FLAT LED LIGHT
NLF SERIES
By using fixed current drive, our products have a steady brightness even with varying voltage, which increases LED lifespan. A unique protection circuit prevents LED Lights from power surge, unstable voltage, and sudden power failure. Our products have passed insulation tests, suitable for machinery use, using high reliable LED of world famous manufacturer. The body is made of aluminum and tempered glass . The narrow design of 41mm is suitable for limited space machines.
・Conformity standards:
・Color temp.:5700K
・Body color:Black(standard)
・Lifespan:40,000 hours at max working temp. of 40℃ (104°F)at 70% LUX
・Operation temp.:-10℃~40℃(14°F~104°F)(unfrozen)
・Protection ratings:IP67
・Standard cable:3M(AWG26x2C)
◎Options:
・Angle adjustment bracket(ND-P02)
・Cable cover
・Mangnet(ND-P03)(Neodymium)
・AC power adapter(AC100~240V)
   (ND-PM243)

‧Specifications



Type drawing Power source Wattage Flux Lumens(1m)
Hi-power LED
Mid-
power
LED
Hi-power LED
Mid-
power
LED

no lens

lens no lens lens
NLF 13C DC 24V 8W 820 lm 740 lm   220 lx 1,200 lx
NLF 26C 15W 1,600 lm 1,440 lm   420 lx 2,050 lx
NLF 13S 10W     420 lm     260 lx
NLF 26S 20W     870 lm     510 lx

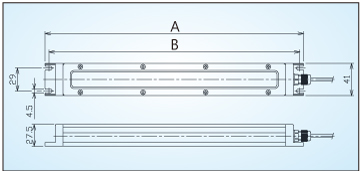

‧Dimensions(Standard)

Mode/Din.(mm) A B
NLF13C/13S 330 320
NLF26C/26S 590 580

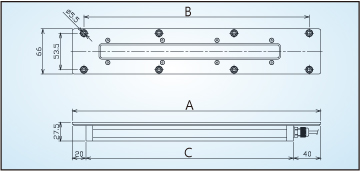

‧Dimensions(flange)





Model/Din(mm) A B C
NLF13CF/13SF 364 330 304
NLF26CF/26SF 624 600 564


‧NLF series Model Variation
