Cable gland
What is a cable gland?
It can be used to fix and protect wires and cables in precision mechanical equipment, various switchboards, control boxes, marine electrical equipment, and outdoor equipment.
Water vapor intrusion will reduce the insulation performance and shorten the life of electronic products. Using cable glands can keep the cable outlet holes sealed, waterproof and dustproof.
And avoid dangerous gases entering the instrument or junction box to cause short circuit or explosion.
Cable gland-features

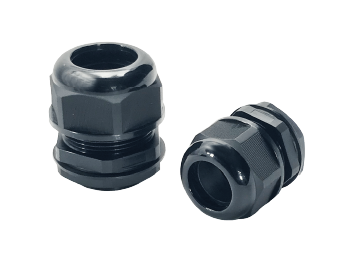

Waterproof nylon cable gland, designed with clamping claws and clamping rings.
Tensile strength, waterproof, dustproof, resistant to weak acids, alcohol, oil and general solvents.
Specification
| color | black |
|---|---|
| Material | NYLON 66, EPDM weather-resistant rubber |
| temperature range | -40℃～100℃ |
| Waterproof level | IP68 |
| certification | UL、RoHS、REACH |
| Fire protection and flame resistance grade | UL94V-2（UL94V-0） |
About fire protection and flame resistance grade UL94 V-0/V-1/V-2
Test method: Vertical burning test (20mm)
The test sample (length 125±5mm × width 13.0±0.5mm) is held vertically and burned with a 20mm long flame from below for 10 seconds.
If burning stops within 30 seconds, burn it for another 10 seconds.
Judgment criteria
| Judgment criteria | grade | ||
|---|---|---|---|
| V-0 | V-1 | V-2 | |
| Burning time of each sample | Under 10 seconds | Under 30 seconds | Under 30 seconds |
| The time the sample continues to heat up after the second flame combustion | Under 30 seconds | Under 60 seconds | Under 60 seconds |
| Total burning time of 5 samples | Under 50 seconds | Under 250 seconds | Under 250 seconds |
| Are there any burning particles falling? | none | none | have |
| Is there any burning to the position of the fixing clip? | none | none | none |
The resin material of the corrugated pipe joint: nylon 66 has a flame resistance rating of UL94 V-2, and the rubber material: EPDM has a flame resistance rating of UL94 V-0.
Main Dimensions Chart-Metric Teeth
| model | Applicable cable range Ф(mm) | Thread length(mm) |
|---|---|---|
| N-GNCG-M8-4.8 | 2 ~ 4.8 | 8 |
| N-GNCG-M12-7 | 4 ~ 8 | 8.5 |
| N-GNCG-M12L-7 | 4 ~ 8 | 15 |
| N-GNCG-M16-10 | 5 ~ 10 | 10 |
| N-GNCG-M16L-10 | 5 ~ 10 | 15 |
| N-GNCG-M20S-12.5 | 6 ~ 12.5 | 10 |
| N-GNCG-M20-13.5 | 8.5 ~ 14 | 11 |
| N-GNCG-M20L-13.5 | 8.5 ~ 14 | 15 |
| N-GNCG-M25L-18 | 12.5 ~ 18 | 15 |
Main Dimensional Chart-German Teeth PG
| model | Applicable cable range Ф(mm) | Thread length(mm) |
|---|---|---|
| N-GNCG-PG7-7 | 4 ~ 8 | 8.0 |
| N-GNCG-PG9-7.5 | 4 ~ 8 | 8.2 |
| N-GNCG-PG11-10 | 5 ~ 10 | 10 |
| N-GNCG-PG13.5-12.5 | 6 ~ 12.5 | 10 |
| N-GNCG-PG16-14 | 8.5 ~ 14 | 10.8 |
| N-GNCG-PG21-17.5 | 12.5 ~ 18 | 12 |
| N-GNCG-PG29-25 | 17 ~ 25 | 12 |
