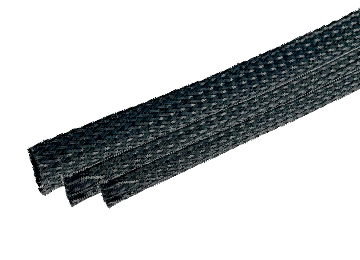

PET braided expanded network tube
What is braided extended network management?
Covered on wires, cables, automotive wiring harnesses, HDMI, and power supply modules for overall cable management.
Braided expansion network management-features
The braided expansion network tube can be expanded to about 2 times the diameter and has good elasticity and can be used for items of different shapes.
Wire bundling in industry, protection of hoses and cables in automation, and also used in commercial applications such as personal computers, automation, motorcycles, bicycles, fishing submersible wires, and pipeline applications.
Good flexibility and good wear resistance, resistant to most chemicals and dissolved substances; light, soft, high expansion ratio, excellent anti-friction properties.
Specification
| color | black |
|---|---|
| Material | PET polyester yarn |
| temperature range | -40～150℃ |
| Flame retardant grade: | VW-1 |
Main dimension drawing
| model | number of braids | Number of spindles | Metric bending diameter (mm) | Imperial bending diameter (inch) | Expansion range (mm) | Monofilament diameter (mm) | Number of mesh |
|---|---|---|---|---|---|---|---|
| N-GE-PES 3.2 | 3 | 24 | 3±2.0 | 1/8" | 2--7 | 0.20±0.02 | 9 |
| N-GE-PES 6.4 | 3 | 32 | 6±2.0 | 1/4" | 3--9 | 0.20±0.02 | 8 |
| N-GE-PES 9.5 | 3 | 48 | 10±3.0 | 3/8" | 6--16 | 0.20±0.02 | 8 |
| N-GE-PES 12.7 | 3 | 48 | 13±2.0 | 1/2" | 8--24 | 0.20±0.02 | 8 |
| N-GE-PES 19.1 | 3 | 72 | 19±3.0 | 3/4" | 14--28 | 0.20±0.02 | 8 |
| N-GE-PES 32 | 3 | 96 | 32±3.0 | 1-1/4" | 20--43 | 0.25±0.02 | 8 |
| N-GE-PES 40 | 3 | 120 | 40±3.0 | 1-1/2" | 25--48 | 0.25±0.02 | 7 |
| N-GE-PES 50 | 5 | 120 | 60±3.0 | 2" | 40--70 | 0.25±0.02 | 6 |
