Adjustable Coolant Hose List
Adjustable Coolant Hose Overview
These adjustable coolant hoses are designed for coolant delivery on machine tools and other industrial fluid applications.
`r`n`t`t`t`t`t`tModular hose segments can be configured by angle, length, and diameter to direct coolant precisely where it is needed.
`r`n`t`t`t`t`t`tThe hose is made from polyformaldehyde (POM) for chemical resistance, impact resistance, and heat resistance.
Pressure Resistance
`r`n`t`t`t`t`t`tPressure resistance supports common cutting machines and air compressor applications.
Cooling liquid: 0.2MPa (2kgf/cm2）
- The hose holds its position like a metal pipe, keeping coolant aimed at a fixed point.
- Compatible hose styles and dedicated clamps make machine tool coolant routing easier to configure.
- Minimum bend diameter
- 1/4" 72mm 3/8" 85mm
- 1/2" 90mm 3/4" 145mm
Installation Examples

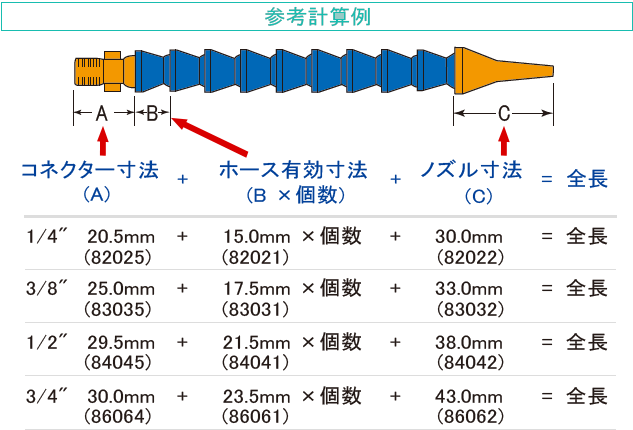

How to Calculate Assembly Dimensions
Chemical Resistance
| Chemical | Compatible/Not Compatible |
|---|---|
| Solvents | Compatible |
| Lubricating oil | Compatible |
| Hydraulic oil | Compatible |
| Engine oil | Compatible |
| Household items | Compatible |
| Detergent | Compatible |
| Pesticide | Compatible |
| Herbicide | Compatible |
| Insecticide | Compatible |
| Fertilizer | Compatible |
| Chemical | Compatible/Not Compatible |
|---|---|
| acetone | Compatible |
| Benzene | Compatible |
| Castor oil | Compatible |
| Phosphoric acid | Not compatible |
| Hydrochloric acid | Not compatible |
| Hydrogen peroxide | Not compatible |
| Sulfuric acid | Not compatible |
| Sodium hydroxide | Not compatible |
| Ammonium hydroxide | Not compatible |
