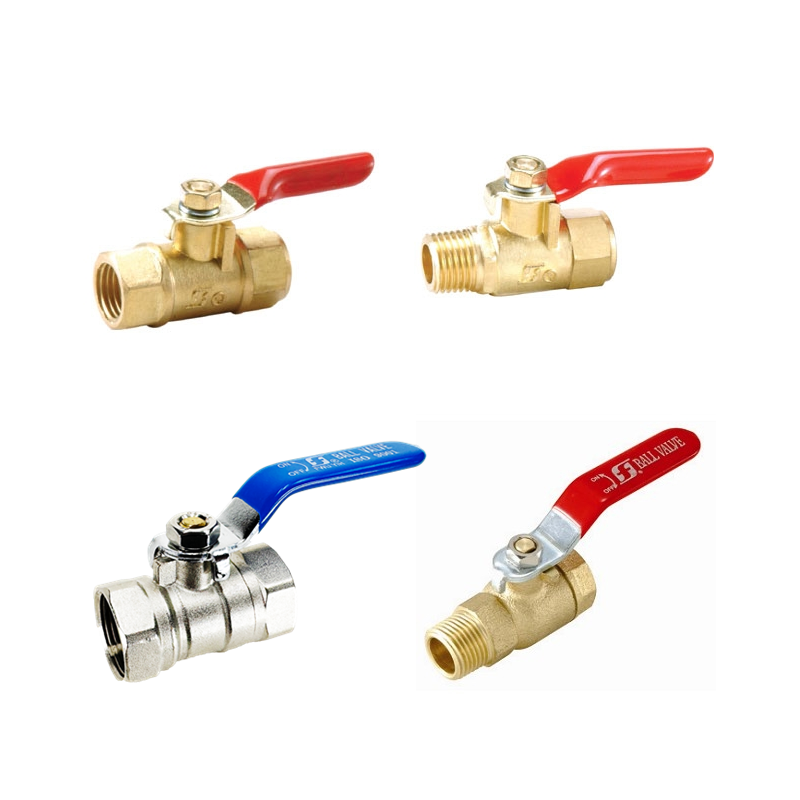

Copper ball valve (faner)
What is a copper ball valve (fan)?
Ball valve (usually) is an important device for controlling the flow of fluid in pipelines.
For example, tap water and natural gas related to people's livelihood; air, steam, etc. used in factory production. Any fluid that can be transported through pipelines needs to adjust the flow or control the pressure through valves.
Therefore, ball valves (anywhere) are indispensable items in our people's livelihood and industry.
The purpose of copper ball valve (faner)
Ball valves are plug-type valves, mainly used to open and close pipelines and equipment media.
Can be used as an adapter for water filters, water dispensers, water purifiers, etc.
Specification
| Material | brass |
|---|---|
| Maximum operating pressure (MPa) | 0.5 |
| Applicable fluid | water, air, oil |
List of standard models

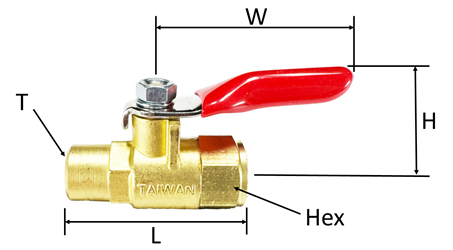

Double inner tooth cock (N-CK-11FF)

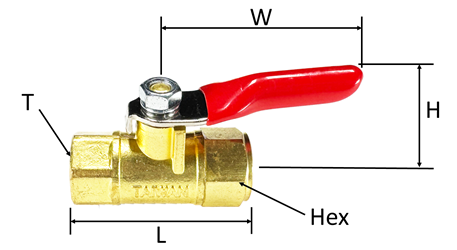

Double inner tooth cock (N-CK-22FF, N-CK-33FF, N-CK-44FF)
| model | T internal teeth | L （mm） |
H （mm） |
W （mm） |
HEX （mm） |
|---|---|---|---|---|---|
| N-CK-11FF | 1/8" | 40 | 26.5 | 43 | 16 |
| N-CK-22FF | 1/4" | 39.5 | 26.5 | 43 | 16 |
| N-CK-33FF | 3/8" | 43 | 22 | 43 | 20 |
| N-CK-44FF | 1/2" | 49 | 24 | 42 | 24 |

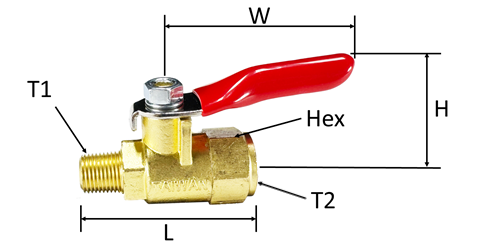

Internal and external dental cock
| model | T1 external fangs | T2 internal teeth | L （mm） |
H （mm） |
W （mm） |
HEX （mm） |
|---|---|---|---|---|---|---|
| N-CK-11MF | 1/8" | 1/8" | 40 | 26 | 42 | 16 |
| N-CK-22MF | 1/4" | 1/4" | 39.5 | 23 | 43 | 16 |
| N-CK-33MF | 3/8" | 3/8" | 48.5 | 27.5 | 40 | 20 |
| N-CK-44MF | 1/2" | 1/2" | 49 | 24 | 42 | 24 |

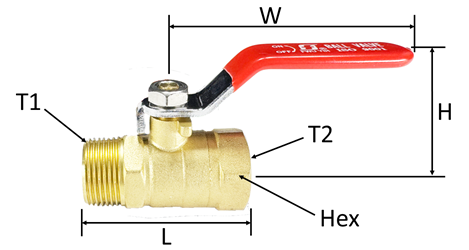

Internal and external tooth ball valve
| model | T1 external fangs | T2 internal teeth | L （mm） |
H （mm） |
W （mm） |
HEX （mm） |
|---|---|---|---|---|---|---|
| N-BV23-06 | 3/4" | 3/4" | 60 | 50 | 86 | 29.5 |

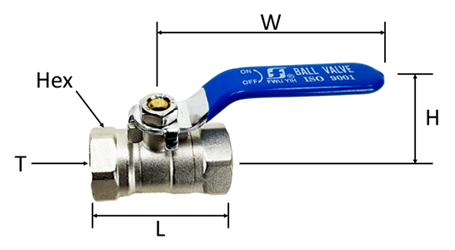

Double internal tooth ball valve
| model | T internal teeth | L （mm） |
H （mm） |
W （mm） |
HEX （mm） |
|---|---|---|---|---|---|
| N-BV22-06 | 3/4" | 56 | 41 | 80 | 29.5 |
