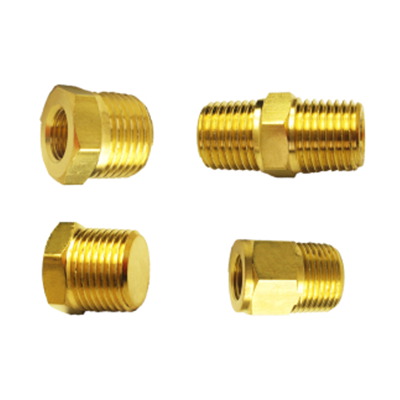

Copper adapter (direct head)
What is a copper adapter (direct connector)?
A copper joint is a type of joint that is primarily used as a part that connects two parts together.
Copper adapters are suitable for low pressure piping applications or pipe connections in fuel, water, oil and gas, refrigeration, instrumentation and hydraulic systems.
The purpose of copper adapter (direct head)
Can be used for brass, copper and iron pipe connections.
Specification
| Material | brass |
|---|---|
| Maximum operating pressure (MPa) | 1 |
| Applicable fluid | water, air, oil |
Main dimension drawing
Internal and external tooth joint
| model | Inner tube tooth T1 | External canal tooth T2 | L （mm） |
HEX （mm） |
ID （mm） |
|---|---|---|---|---|---|
| N-E01-C101 | 1/8" | 1/8" | 21 | 12 | 5.5 |
| N-E01-C102 | 1/8" | 1/4" | 24 | 14 | 8.5 |
| N-E01-C201 | 1/4" | 1/8" | 24 | 17 | 5.5 |
| N-E01-C202 | 1/4" | 1/4" | 27 | 17 | 8 |
| N-E01-C203 | 1/4" | 3/8" | 27 | 17 | 11.5 |
| N-E01-C204 | 1/4" | 1/2" | 29.5 | 21 | 11.5 |
| N-E01-C301 | 3/8" | 1/8" | 24 | 21 | 5.5 |
| N-E01-C302 | 3/8" | 1/4" | 27 | 21 | 8 |
| N-E01-C303 | 3/8" | 3/8" | 27 | 21 | 10.5 |
| N-E01-C304 | 3/8" | 1/2" | 29.5 | 21 | 15 |
| N-E01-C402 | 1/2" | 1/4" | 30 | 24 | 8 |
| N-E01-C403 | 1/2" | 3/8" | 30 | 24 | 10.5 |
| N-E01-C404 | 1/2" | 1/2" | 32.5 | 24 | 14 |
Double external tooth joint
| model | Tube tooth T1 | Inner tube tooth T2 | L （mm） |
HEX （mm） |
ID （mm） |
|---|---|---|---|---|---|
| N-E02-C101 | 1/8" | 1/8" | 23 | 10 | 6.1 |
| N-E02-C202 | 1/4" | 1/4" | 29 | 14 | 8 |
| N-E02-C303 | 3/8" | 3/8" | 29 | 17 | 10.5 |
| N-E02-C404 | 1/2" | 1/2" | 35 | 21 | 14 |
| N-E02-C606 | 3/4" | 3/4" | 37 | 27 | 19 |
Bu Shen
| model | External canal tooth T1 | Inner tube tooth T2 | L （mm） |
HEX （mm） |
|---|---|---|---|---|
| N-E06-C201 | 1/4" | 1/8" | 17 | 14 |
| N-E06-C301 | 3/8" | 1/8" | 17 | 14 |
| N-E06-C302 | 3/8" | 1/4" | 17 | 17 |
| N-E06-C401 | 1/2" | 1/8" | 21 | 21 |
| N-E06-C402 | 1/2" | 1/4" | 21 | 21 |
| N-E06-C403 | 1/2" | 3/8" | 21 | 21 |
| N-E06-C602 | 3/4" | 1/4" | 22 | 27 |
| N-E06-C603 | 3/4" | 3/8" | 22 | 27 |
| N-E06-C604 | 3/4" | 1/2" | 22 | 27 |
oil plug
| model | Tube tooth T | L1 （mm） |
L2 （mm） |
HEX （mm） |
|---|---|---|---|---|
| N-A08-1-1 | 1/8" | 14 | 9 | 10 |
| N-A08-2-1 | 1/4" | 17 | 12 | 14 |
| N-A08-3-1 | 3/8" | 17 | 12 | 17 |
| N-A08-4-1 | 1/2" | 21 | 15 | 21 |
