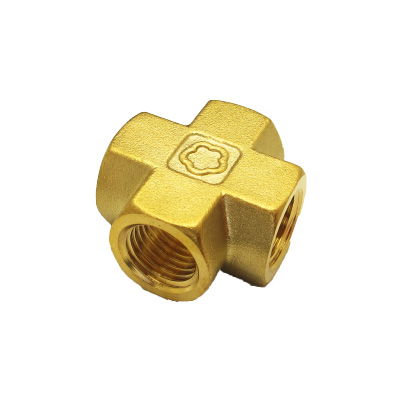

Copper adapter (four-way)
What is a copper adapter (cross)?
A copper joint is a type of joint that is primarily used as a part that connects two parts together.
Copper adapters are suitable for low pressure piping applications or pipe connections in fuel, water, oil and gas, refrigeration, instrumentation and hydraulic systems.
A cross joint is used to form a cross-shaped connection point in a pipeline, allowing fluid to flow in four directions.
The purpose of copper adapter (four-way)
Can be used for brass, copper and iron pipe connections.
Specification
| Material | copper |
|---|---|
| Maximum operating pressure (MPa) | 1 |
| Applicable fluid | water, air, oil |

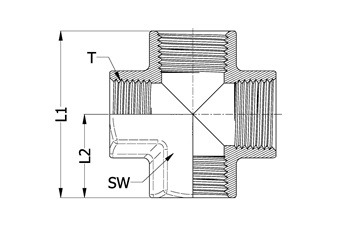

Main dimension drawing
Internal teeth four-way
| model | Tube tooth T | L1（mm） | L2（mm） | SW（mm） |
|---|---|---|---|---|
| N-A10-F1 | 1/8" | 26.5 | 13.25 | 14 |
| N-A10-F2 | 1/4" | 30 | 15 | 17.5 |
| N-A10-F3 | 3/8" | 40 | 20 | 21 |
| N-A10-F4 | 1/2" | 49 | 24.5 | 25 |
