What is a closed-end terminal?

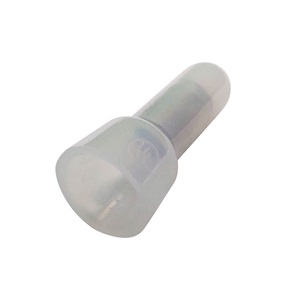

A closed-end terminal is an electrical connector typically used to secure and connect the ends of wires or cables.
The interior of the plastic housing has terminals made of copper alloy or aluminum alloy, which provide good electrical conductivity.
After the terminal is clamped, it is resistant to vibration and not easy to fall off, and can replace the traditional wiring method of insulating tape.
Suitable for all types of electrical products, lighting and home wiring and other wiring equipment.
How to use closed-end terminals
Peel off the insulation on the outside of the wire, insert it into the terminal, and clamp it with a tool.
Material characteristics
The shell formed of PA66 engineering plastic has a UL94V-2 flame retardant rating and can withstand temperatures up to 105°C. The internal terminals are made of copper alloy or aluminum alloy.
Specification
| Body material | PA66 |
|---|---|
| Terminal material | Tinned copper |
| Fire protection and flame resistance grade | UL94V-2 |
| Rated temperature | 105℃ |
| Certification | UL、CSA、CQC、RoHS、REACH |
List of standard models

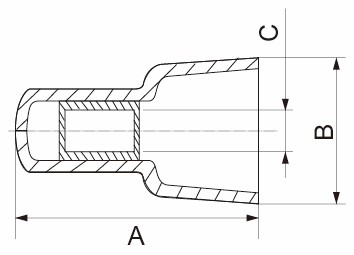

| model | A（mm） | B（mm） | C（mm） | Electrical specifications | Applicable wire | color |
|---|---|---|---|---|---|---|
| N-NG-CE1 | 18.2 | 7.8 | 2.6 | 300V MAX | 22-18 AWG 24-18 AWG |
primary color |
| N-NG-CE2I | 20 | 9.5 | 3.3 | 22-14 AWG | ||
| N-NG-CE5I | 25.5 | 12.5 | 4.4 | 300V MAX(UL, CSA) 600V MAX(CQC) |
22-10 AWG 20-12 AWG |
|
| N-NG-CE8 | 27.7 | 14.3 | 5.3 | 300V MAX(UL) 600V MAX(CSA, CQC) |
16-10 AWG |
