Portable lighting list

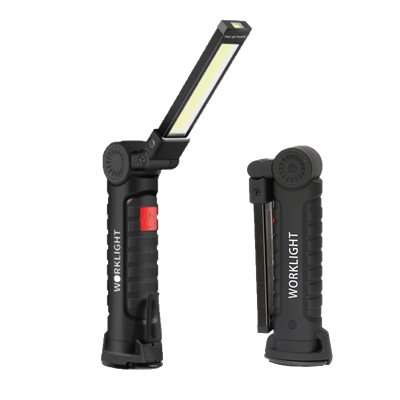

Handheld work light N-WKL-001
Feature
Foldable design, lightweight and easy to carry.

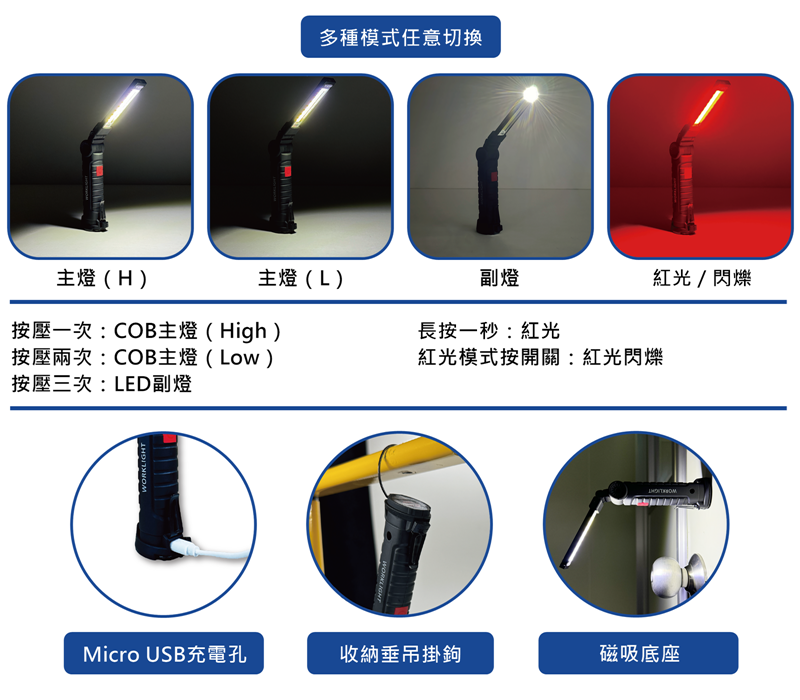

There are three modes to switch between: main light, auxiliary light and warning light, which are suitable for outdoor activities, task lighting and emergency lighting.
The bottom is equipped with magnets that can be adsorbed on metal surfaces, and can also be hung at the desired location with hooks, making it easy to use.
Using Micro USB charging, the use time can be up to 5 hours (LED sub-light).
Use
Emergency lighting, workplace lighting, automobile and motorcycle maintenance lighting, lighting for outdoor activities, etc.
Specification
| color temperature | COB main light: 5,000K LED sub-light: 8,000K |
|---|---|
| Color rendering | Ra70 |
| Use temperature | -10℃～40℃ |
| protection level | IP4X |
| Body material | Aluminum alloy + ABS |
| input voltage | 5V |
| Charging hole | Micro USB |
| Dimming function | White light (H / L), auxiliary light, red light |
| flashing function | Press and hold for 1 second |
| Accessories | Micro USB charging cable 0.5M |

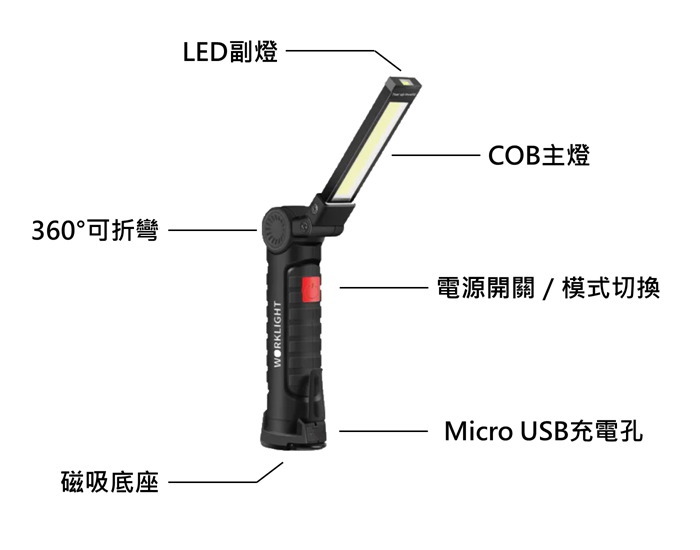

Feature introduction
Scope of application
camping lighting

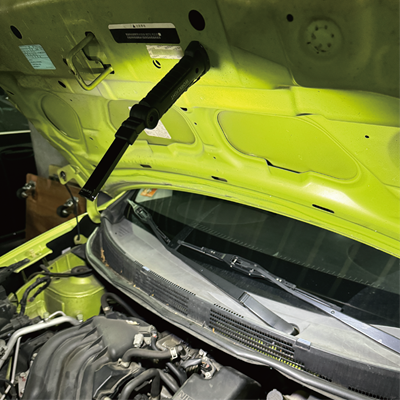

car repair lighting

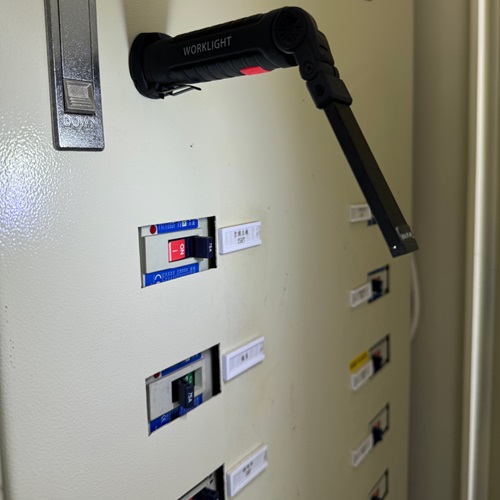

power distribution lighting
List of standard models
| model | Luminous flux | Bending angle | usage time | Charging time | input voltage | Applicable power supply | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| main light | auxiliary light | main light | auxiliary light | red light | ||||||||
| N-WKL-001 | High | 110 lm | 6 lm | 360° | High | 1 hr | 5 hr | High | 3 hr | 1.5 hr | 5V | Built-in lithium battery 18650 300mAh × 1 |
| Low | 25 lm | Low | 3.5 hr | Flash | 4 hr | |||||||

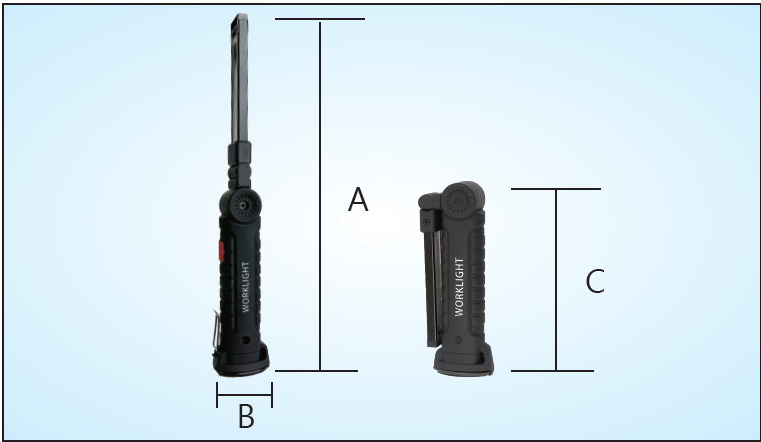

Dimensional drawing
| Model/size (mm) | A | B | C |
|---|---|---|---|
| N-WKL-001 | 205 | 35 | 110 |
