lever connector
What is a lever connector?
The lever connector is a type of terminal block. Different from the cumbersome steps of traditional wiring methods, the lever connector can be installed quickly without the need for other tools.
The connector is equipped with a power test hole, which can directly measure the voltage without disassembly.
The main body is made of polycarbonate (PC), which has good insulation and does not support combustion. It will not cause wire embrittlement or short-circuit fire due to poor wiring, which further improves safety and convenience.
How to use lever connector
Simply insert the wire into the lever connector and snap down the lever to secure the wire. The transparent housing allows you to clearly see whether the wire is installed correctly.
It is suitable for various purposes such as wire splicing and branching connection in junction boxes, wall socket installation, wire connection of various lamps and lanterns, and wiring installation of various electrical products.
Material characteristics
The body is made of polycarbonate (PC) and the lever is made of polyamide (PA), which has good insulation.
The UL94V-0 fireproof and flame-resistant rating means that it will not burn within 10 seconds when placed close to the flame of the spray gun when placed vertically, so it can be used safely.
The conductor is made of stainless steel springs and highly conductive copper, which can replace traditional solder and tape wiring methods.

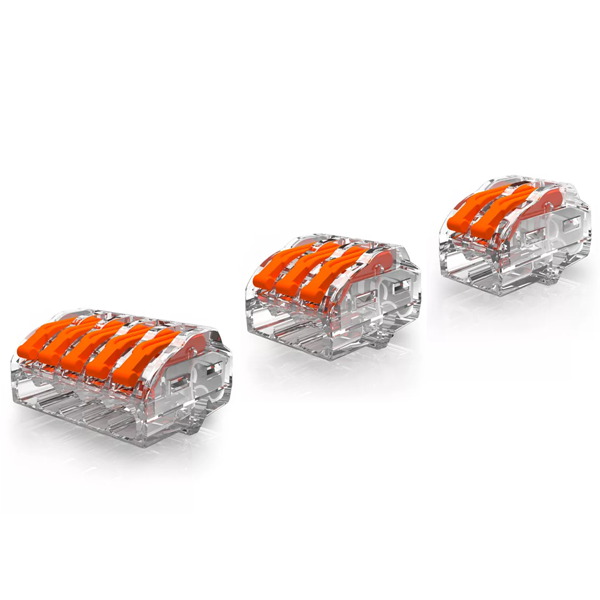

It is suitable for solid core wire, stranded wire and flower wire, and has different pole numbers such as 2, 3 and 5 poles. You can choose the product you want according to your usage.
Specification
| Body material | Polycarbonate (PC) |
|---|---|
| Lever material | Polyamide (PA) |
| Conductor material | Steel plate, copper |
| Fire protection and flame resistance grade | UL94V-0 |
| Certification | UL、CE、PSE、RoHS、REACH |
List of standard models
| model | Number of poles | Temperature resistant | Rated voltage-current | Applicable wire | color | ||
|---|---|---|---|---|---|---|---|
| Solid wire | Stranded wire | flower line | |||||
| N-PC622 | 2 | 105℃ | 450V-32A | 1.6 / 2.0mm | 2.0 / 3.5 mm² | 0.2 - 4.0 mm² | orange color |
| N-PC623 | 3 | ||||||
| N-PC625 | 5 | ||||||
