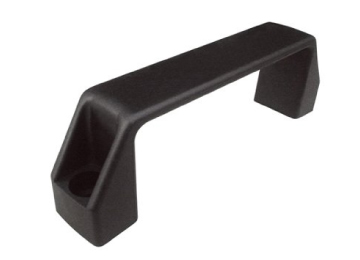

General Machine Handle
Handle Introduction
Lightweight, economical nylon handle for machine tools and industrial equipment.
The easy-grip design remains comfortable to hold, even in cold working environments.
Specifications
| Material | Nylon plus fiberglass |
|---|---|
| Color | Black |

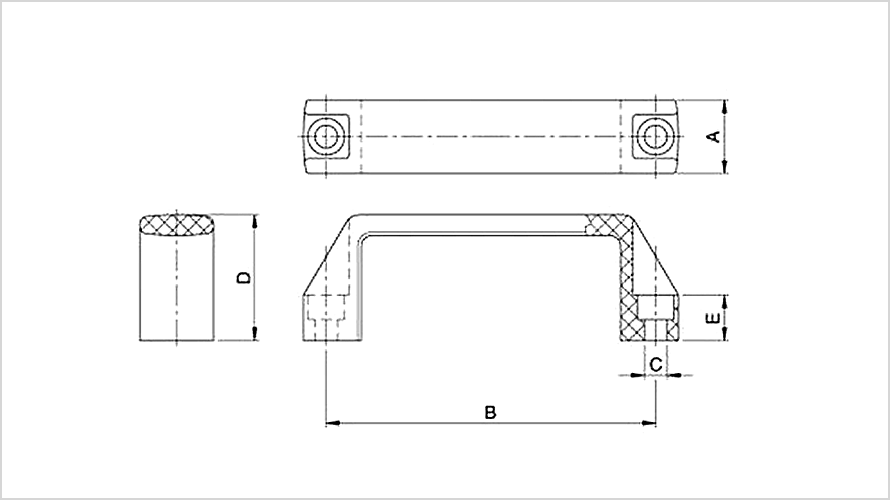

Main Dimension Drawing
1211 Series (Square Type)
| Model/Size (mm) | A | B | C | D | E |
|---|---|---|---|---|---|
| 1211-94-BK | 21 | 94 | 6.5 | 40 | 13 |
| 1211-117-BK | 26 | 117 | 8.5 | 41 | 15 |
| 1211-132-BK | 27 | 132 | 8.5 | 45 | 16 |
| 1211-179-BK | 28 | 179 | 8.5 | 50 | 17 |
| 1211-235-BK | 31 | 235 | 10.5 | 54 | 21 |
