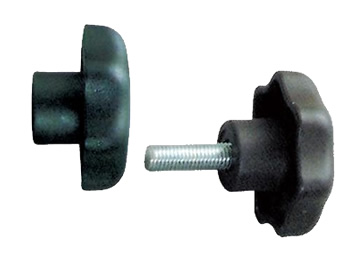

Machine Knob
Knob Introduction
The multi-lobe design is easy to grip and turn for machine tool and industrial equipment applications.
Specifications
| Material | Nylon plus fiberglass |
|---|---|
| Bolt Material | steel |
| Color | Black |
Main Dimension Drawing

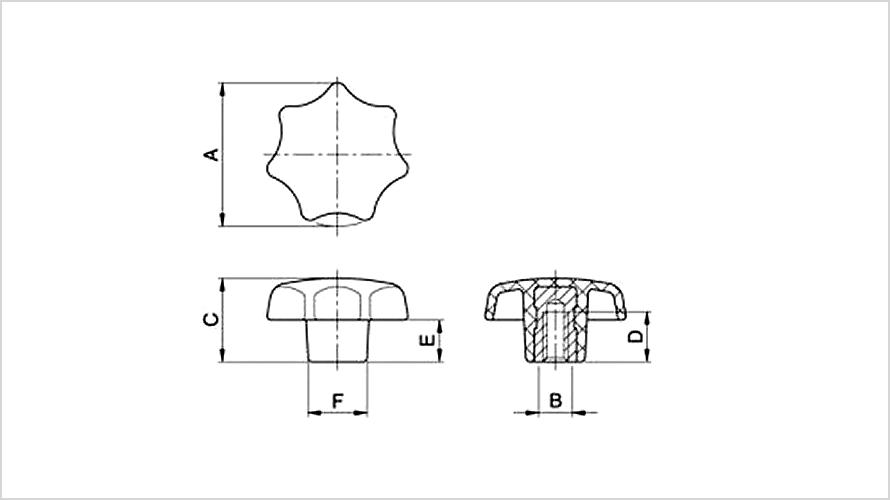

Heptagonal knob (female plug style) 6020 series
| Model/Size (mm) | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 6020-25-M5 | 25 | M5 | 16 | 9.5 | 8 | 12 |
| 6020-25-M6 | 25 | M6 | 16 | 9.5 | 8 | 12 |
| 6020-32-M6 | 32 | M6 | 20 | 12 | 10 | 14 |
| 6020-40-M6 | 40 | M6 | 25 | 14 | 13 | 18 |
| 6020-40-M8 | 40 | M8 | 25 | 14 | 13 | 18 |
| 6020-50-M8 | 50 | M8 | 32 | 18 | 17 | 22 |
| 6020-50-M10 | 50 | M10 | 32 | 18 | 17 | 22 |
| 6020-63-M10 | 63 | M10 | 39 | 22 | 21 | 26 |
| 6020-63-M12 | 63 | M12 | 39 | 22 | 21 | 26 |

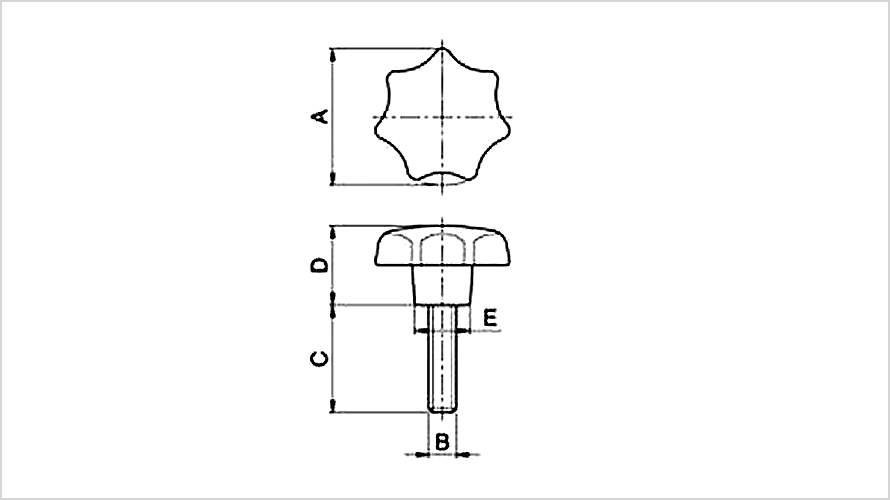

Heptagonal knob (male plug style) 6050 series
| Model/Size (mm) | A | B | C | D | E |
|---|---|---|---|---|---|
| 6050-25-M6-10 | 25 | M5 | 10 | 16 | 12 |
| 6050-25-M6-15 | 25 | M6 | 15 | 16 | 12 |
| 6050-25-M6-20 | 25 | M6 | 20 | 16 | 12 |
| 6050-32-M6-15 | 32 | M6 | 15 | 20 | 14 |
| 6050-32-M6-20 | 32 | M6 | 20 | 20 | 14 |
| 6050-32-M6-30 | 32 | M6 | 30 | 20 | 14 |
| 6050-40-M8-20 | 40 | M8 | 20 | 25 | 18 |
| 6050-40-M8-30 | 40 | M8 | 30 | 25 | 18 |
| 6050-40-M8-40 | 40 | M8 | 40 | 25 | 18 |
| 6050-40-M8-50 | 40 | M8 | 50 | 25 | 18 |
| 6050-50-M8-20 | 50 | M8 | 20 | 32 | 22 |
| 6050-50-M8-30 | 50 | M8 | 30 | 32 | 22 |
| 6050-50-M8-40 | 50 | M8 | 40 | 32 | 22 |
| 6050-50-M10-20 | 50 | M10 | 20 | 32 | 22 |
| 6050-50-M10-30 | 50 | M10 | 30 | 32 | 22 |
| 6050-50-M10-40 | 50 | M10 | 40 | 32 | 22 |
