Grip Handle

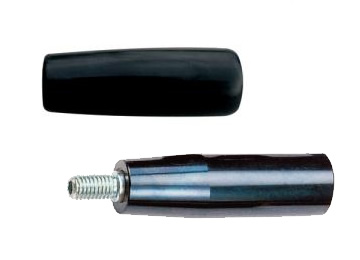

Grip Handle Introduction
The grip handle is made from phenolic resin (Bakelite) for durable industrial use.
※The 1010 Series resin grip handle has a hexagonal hole at the front end of the bolt.
Specifications
| Grip Material | Phenolic resin (bakelite) |
|---|---|
| Bolt Material | steel |
| Color | Black |
Main Dimension Drawing

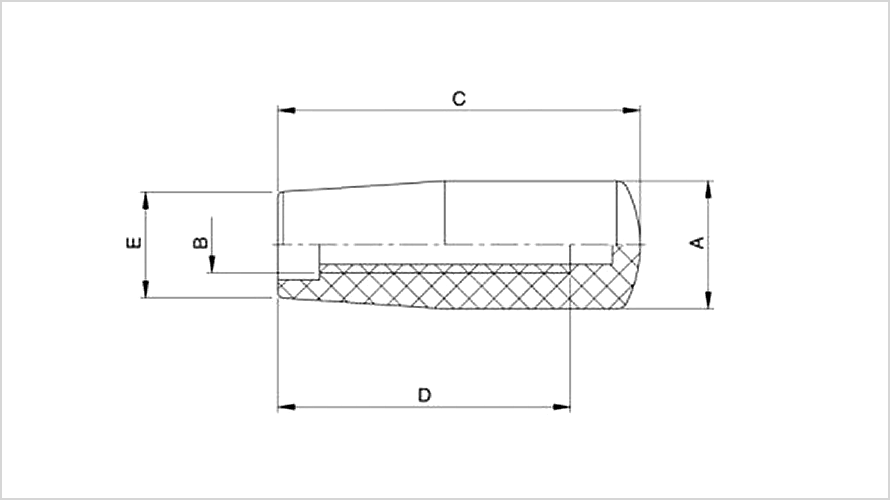

Long Bead Knob
1140 Series
| Model/Size (mm) | A | B | C | D | E |
|---|---|---|---|---|---|
| 1140-18-M6 | 18 | M6 | 40 | 22 | 15 |
| 1140-21-M6 | 21 | M6 | 50 | 25 | 17 |
| 1140-21-M8 | 21 | M8 | 50 | 35 | 17 |
| 1140-23-M8 | 23 | M8 | 65 | 51 | 19 |
| 1140-23-M10 | 23 | M10 | 65 | 52 | 19 |
| 1140-26-M10 | 26 | M10 | 80 | 55 | 21 |

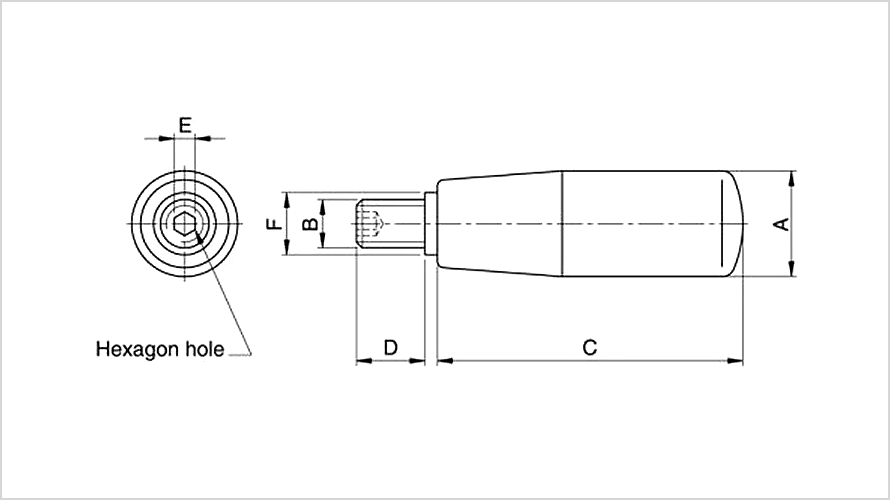

Rotary handle (external thread type)
1010 Series
| Model/Size (mm) | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 1010-18-M6 | 18 | M6 | 40 | 12 | 3 | 10 |
| 1010-21-M6 | 21 | M6 | 50 | 13 | 3 | 10 |
| 1010-21-M8 | 21 | M8 | 50 | 13 | 4 | 10 |
| 1010-23-M8 | 23 | M8 | 65 | 14 | 4 | 13 |
| 1010-23-M10 | 23 | M10 | 65 | 14 | 5 | 13 |
| 1010-26-M10 | 26 | M10 | 80 | 16 | 5 | 13 |
