Patch type connector
What is a plug-in connector?
Plug-in connectors are a type of terminal block. Different from the cumbersome steps of traditional wiring methods, plug-in connectors can be installed quickly without the need for other tools.
The main body is PC and the side cover is made of PA66, which has good insulation and does not support combustion. It will not cause wire embrittlement or short-circuit fire due to poor wiring, which further improves safety and convenience.
How to use plug-in connectors
Strip the wires and insert them directly into the wire trough to use.
Suitable for both single and multi-strand wires, allowing repeated insertion of larger gauge wires than previously removed.
It can be used for various purposes such as lighting wiring and wiring in electrical junction boxes of construction, water and electricity projects.
Material characteristics
The body is made of polycarbonate (PC) with good insulation.
The UL94V-2 fire retardant rating means that it will not burn within 10 seconds when placed close to the flame of the spray gun when placed vertically, so it can be used safely.
The conductor is made of stainless steel springs and highly conductive copper, which can replace traditional solder and tape wiring methods.
Specification
| Body material | Polycarbonate (PC) |
|---|---|
| Side cover material | Polyamide (PA66) |
| Conductor material | Steel plate, copper |
| Fire protection and flame resistance grade | UL94V-2 |
| Certification | UL、CE、RoHS、REACH |
List of standard models
| model | Number of poles | Temperature resistant | Rated voltage-current | Applicable wire | color |
|---|---|---|---|---|---|

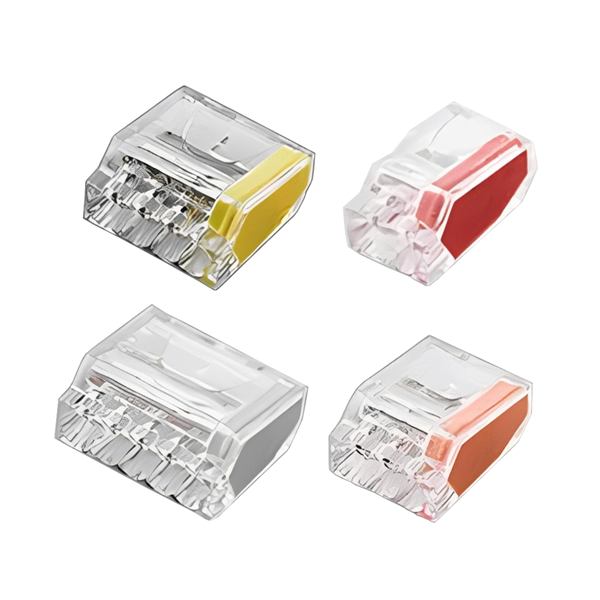

| N-PC252-CL | 2 | 85℃ | 450V-24A | Solid wire/hard wire = 1-2,5 mm² | red |
| N-PC253-CL | 3 | orange color | |||
| N-PC254-CL | 4 | yellow | |||
| N-PC255-CL | 5 | grey |
