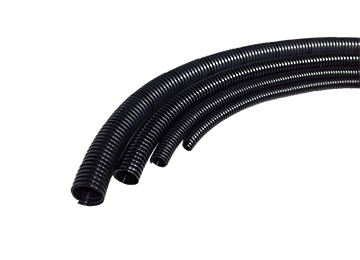

Non-split wave tube
What is a non-split wave tube?
Unlike split corrugated tubes, non-split corrugated tubes do not have openings cut out and are mainly used to protect and manage various cables and wires.
The surface of the non-cut corrugated tube is corrugated and the inner and outer walls are smooth. Cables or wires can be easily inserted into it, making it easy to use.
And it has good elasticity, wear resistance, oil resistance, chemical resistance and high insulation.
Function of non-cut wave tube
Threading wires or cables into the tube and then locking them securely can prevent wire wear and protect them.
Materials and dimensions of non-split wave tubes
The non-split wave tube is made of NYLON (nylon), which has good elasticity and can be bent and stretched without being easily damaged.
And can withstand high temperatures up to 120°C without deformation.
We provide a total of 8 types of products with inner diameters ranging from 6.8mm to 47.0mm. You can choose the size you want according to your needs.
Specification
| color | black |
|---|---|
| Material | NYLON (nylon) |
| Operating temperature range | -10℃~120℃ |
| Flame retardant grade | VW-1 |
Main dimension drawing
| model | Inner diameter (mm) | Outer diameter (mm) | Material |
|---|---|---|---|
| N-GPA-07 | 6.8 | 10.0 | NYLON (nylon) |
| N-GPA-09 | 9.6 | 13.0 | |
| N-GPA-11 | 12.0 | 15.8 | |
| N-GPA-16 | 16.2 | 21.2 | |
| N-GPA-21 | 21.9 | 28.5 | |
| N-GPA-29 | 27.6 | 34.5 | |
| N-GPA-36 | 36.0 | 42.5 | |
| N-GPA-48 | 47.0 | 54.5 |
