Cut open the wave tube

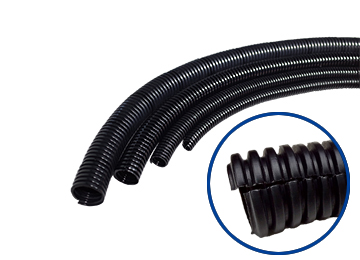

What is a split wave tube?
Resin material used to protect indoor and outdoor wires, cables and hoses.
Split corrugated pipes are pipes with corrugations on the surface. The pipe fittings have split lines for easy opening, closing and storage.
Split corrugated pipes are pipes with corrugated stripes on their surface.
Cutting open the function of the wave tube
Can be used on outdoor wiring as well as indoors; can be used to protect outdoor antenna cables and watering hoses.
Ideal for protecting car engine room cables.
Feature
Depending on the application requirements, everything from 10-meter cuts to complete rolls are sold.
Material, size
There are two materials, namely PP (polypropylene) and NYLON (nylon).
There are 10 types of inner diameters ranging from 5.5mm to 32.4mm.
Specification
| color | black |
|---|---|
| Material | PP (polypropylene) NYLON (nylon) |
| Operating temperature range (PP) | -40℃ ~ 125℃ |
| Operating temperature range (NYLON) | -10℃ ~ 120℃ |
Main dimension drawing
| model | Inner diameter (mm) | Outer diameter (mm) | Material |
|---|---|---|---|
| NCT-05PP | 5.5 | 7.7 | PP (polypropylene) |
| NCT-07PP | 7.6 | 10.7 | |
| NCT-10PP | 10.2 | 14 | |
| NCT-13PP | 13.8 | 17.5 | |
| NCT-16PP | 15.9 | 19.2 | |
| NCT-19PP | 19.6 | 23.8 | |
| NCT-22PP | 22.1 | 27 | |
| NCT-25PP | 25.1 | 30 | |
| NCT-28PP | 28.2 | 34 | |
| NCT-32PP | 32.4 | 38 |
| model | Inner diameter (mm) | Outer diameter (mm) | Material |
|---|---|---|---|
| NCT-05NY | 5.5 | 7.7 | NYLON (nylon) |
| NCT-07NY | 7.6 | 10.7 | |
| NCT-10NY | 10.2 | 14 | |
| NCT-13NY | 13.8 | 17.5 | |
| NCT-16NY | 15.9 | 19.2 | |
| NCT-19NY | 19.6 | 23.8 | |
| NCT-22NY | 22.1 | 27 | |
| NCT-25NY | 25.1 | 30 |
