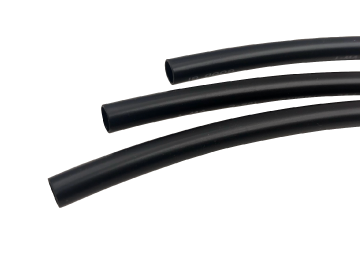

PVC casing
What is PVC casing?
PVC extruded casing is made of polyvinyl chloride as the main raw material by extrusion molding. It has the characteristics of insulation, oil resistance, aging resistance, acid and alkali resistance and softness, and has a wide range of uses.
Uses of PVC casing
PVC casing has good voltage resistance and insulation effect, and its uniform thickness will not produce pinholes. Its soft characteristics make it suitable for wiring in narrow places and places that require bending.
Therefore, it is widely used in the insulation and protection of automobile wiring harnesses, motors, and wire connection parts.
Specification
| color | black |
|---|---|
| Material | PVC (polyvinyl chloride) |
| heat resistance temperature | -30℃~105℃ |
| Rated voltage | 300V |
| Breakdown voltage | 14kV |
| Flame retardant grade | VW-1 |
Main dimension drawing
| model | Inner diameter (mm) | Wall thickness (mm) |
|---|---|---|
| N-GP-300V-0 | 8.38±0.50 | 0.44±0.15 |
| N-GP-300V-1 | 7.47±0.50 | 0.44±0.15 |
| N-GP-300V-2 | 6.68±0.50 | 0.44±0.15 |
| N-GP-300V-3 | 5.94±0.50 | 0.44±0.15 |
| N-GP-300V-4 | 5.28±0.50 | 0.44±0.15 |
| N-GP-300V-5 | 4.72±0.30 | 0.44±0.15 |
| N-GP-300V-6 | 4.22±0.30 | 0.44±0.15 |
| N-GP-300V-7 | 3.76±0.20 | 0.44±0.15 |
| N-GP-300V-8 | 3.38±0.20 | 0.44±0.15 |
| N-GP-300V-9 | 3.00±0.20 | 0.44±0.15 |
| N-GP-300V-5/16 | 7.92±0.50 | 0.44±0.15 |
