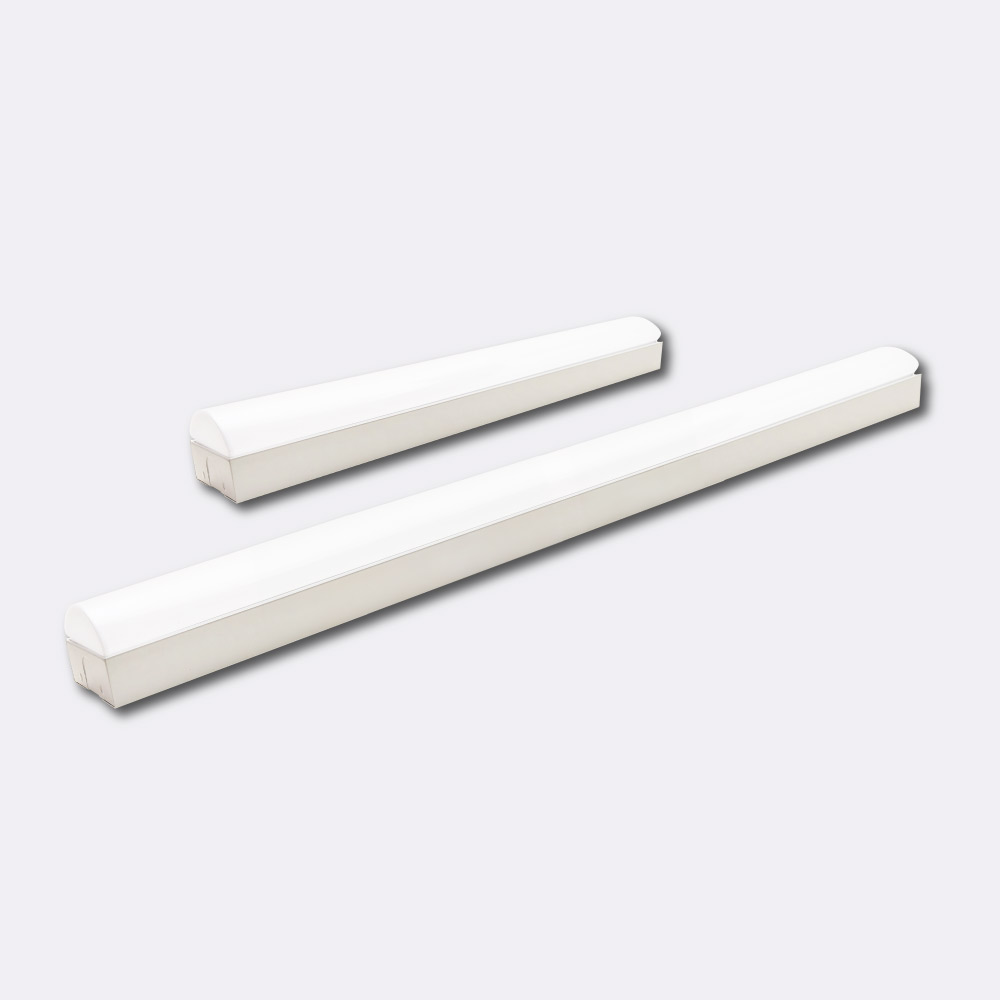

Integrated linear light
Feature
Commonly known as bracket lights and shelf lights. The integrated design effectively saves installation space.
The ceiling-mounted installation surface is flat and porous when combined with the ceiling, and is not afraid of dust accumulation.
The detachable structure requires no fixing devices, making it easy to replace parts and reducing installation costs.
The lamp shell is made of highly transparent PC material, which has excellent color rendering and even and natural light emission.
The luminaires can be combined together to provide a bright, concentrated lighting effect, ideal for indoor lighting.
It has the advantages of high brightness, high efficiency, energy saving and power saving.
Applicable
Indoor lighting, auxiliary light sources, indirect lighting, etc. in clean rooms, offices, warehouses, etc.
Specification
| Color rendering | Ra>80 |
|---|---|
| color temperature | 4,000k、6,500k |
| power factor | ≧90% |
| life expectancy | Ambient temperature 25℃ 50,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -5℃～35℃ |
| Certification |
|
Strobe comparison between other brand products and this product
Left: other cards
When using a mobile phone or digital camera, you
can clearly see screen flickering and horizontal and vertical lines. Being in this
environment for a long time can easily cause eye fatigue and discomfort.
Right: this product
The flicker percentage of this product is ≦2% and
will not cause flickering. Long-term use will not cause eye fatigue and provide a
comfortable lighting environment.

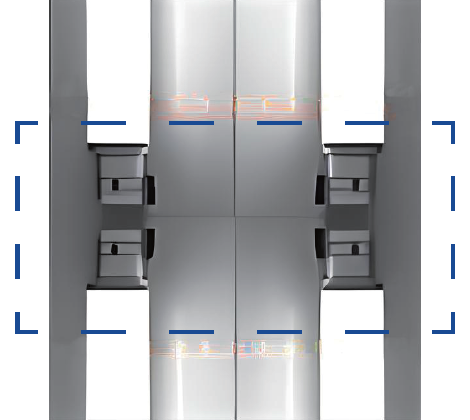

There is no dark area when lighting fixtures are connected in series
This product can be connected in series to provide lighting without gaps or dark areas. It can provide neat and bright lighting for spacious spaces such as stores and parking lots.
Other brand products
There are obvious dark areas at the series
connection and the light is uneven

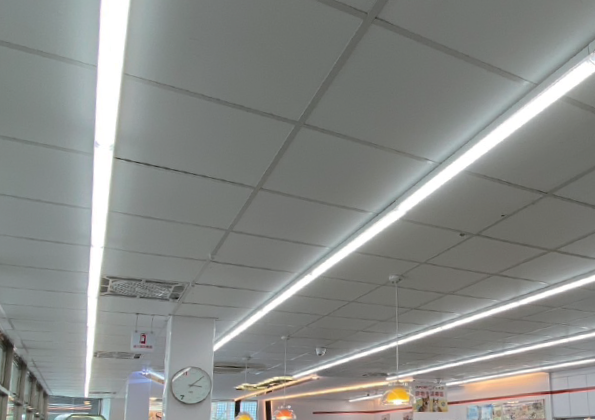

This product
There is no dark area at the series connection,
providing a neat and consistent light source
Usage examples

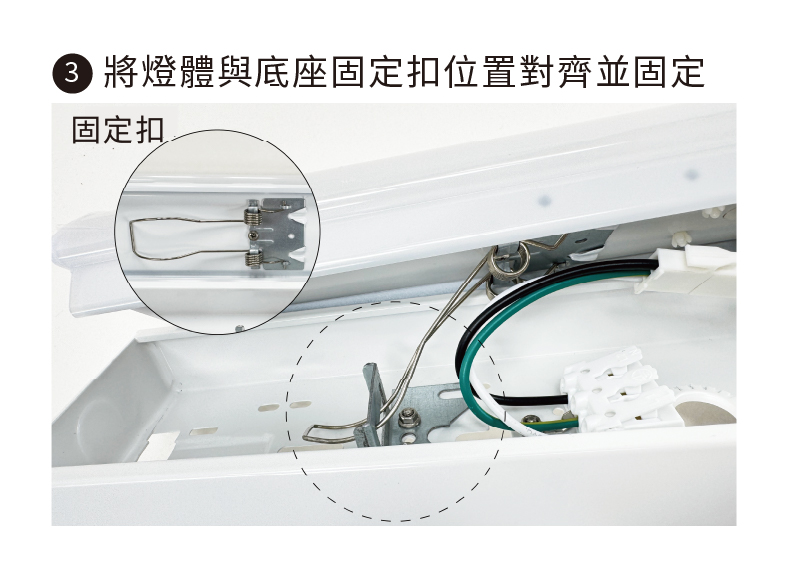

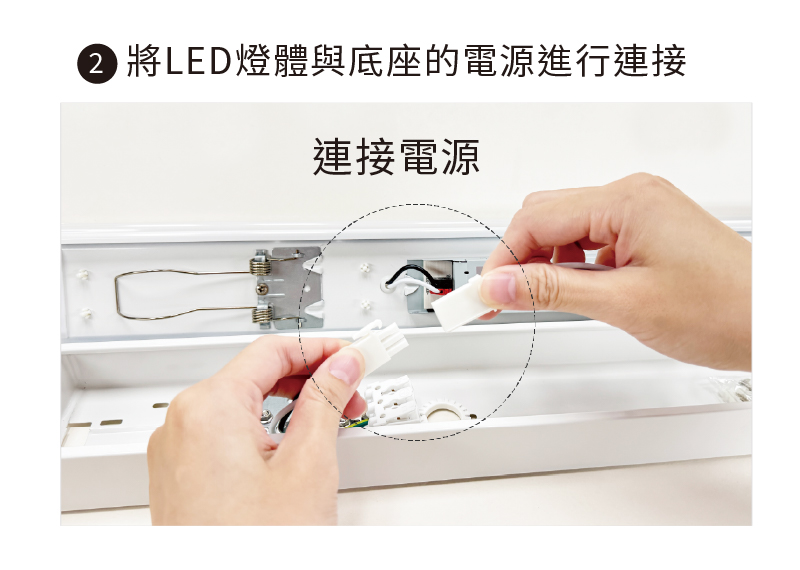

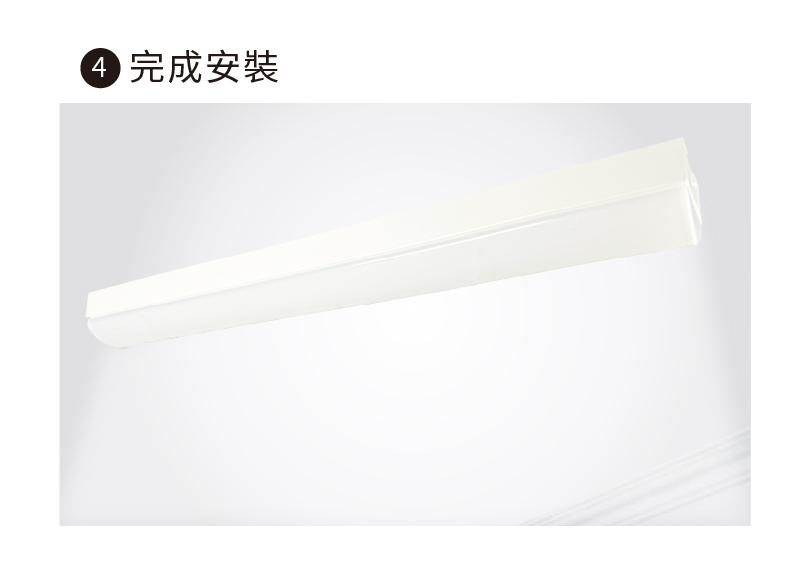

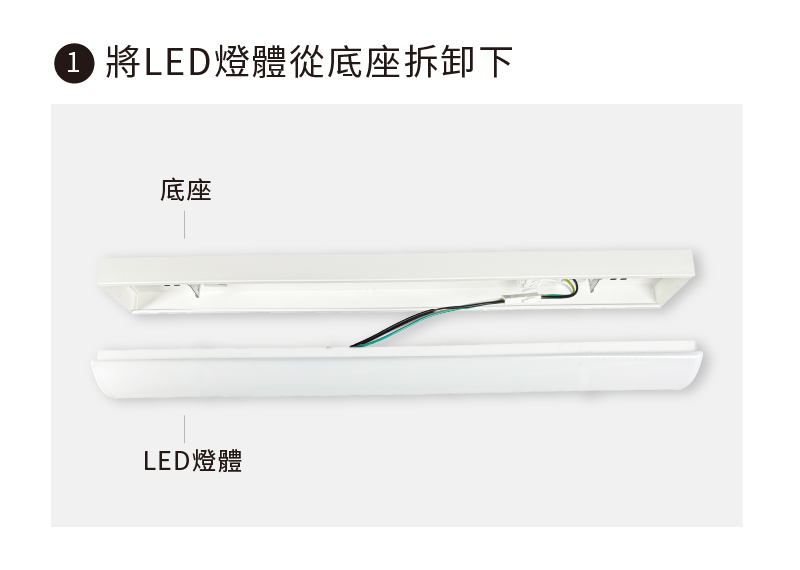

Lighting installation method
Scope of application

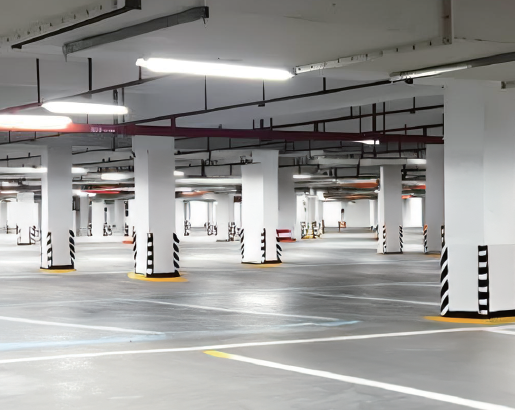

parking lot lighting

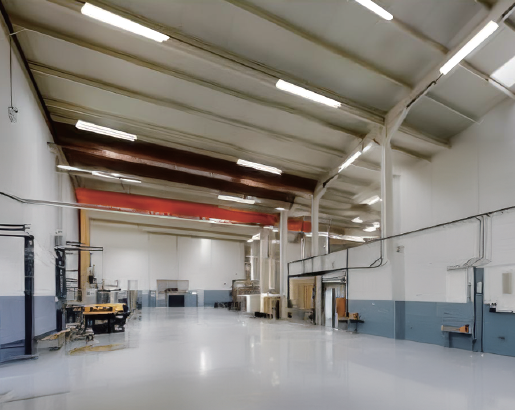

factory lighting

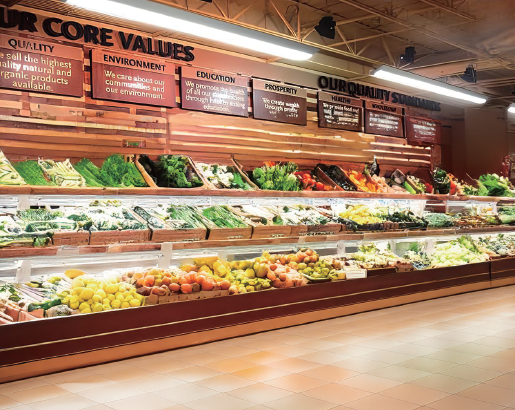

Shopping mall lighting
Light distribution curve data

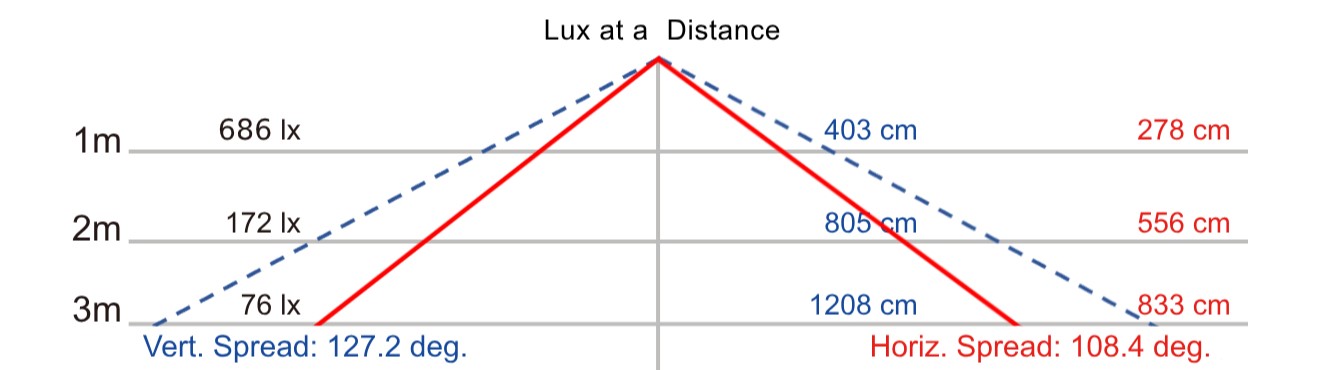

PLL-E201640H／PLL-E201665H

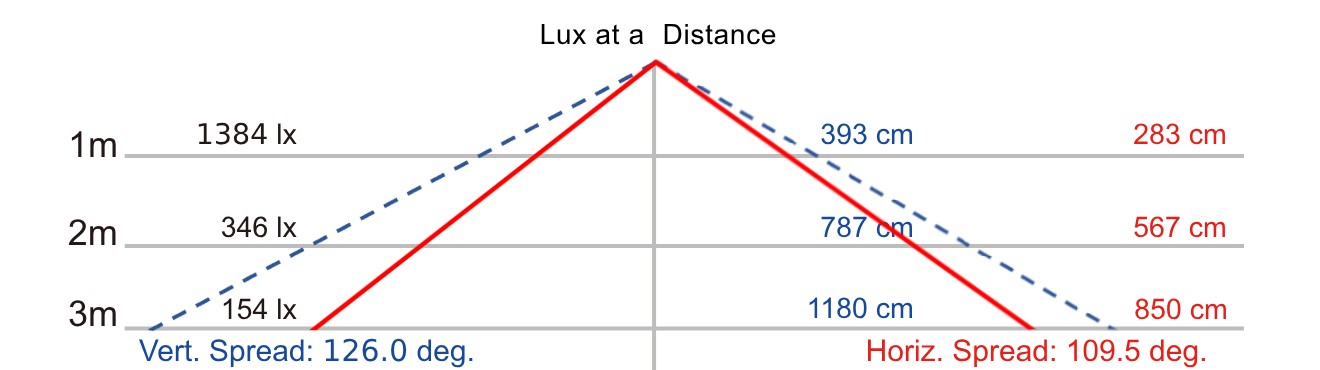

PLL-E403240H／PLL-E403265H
Model list

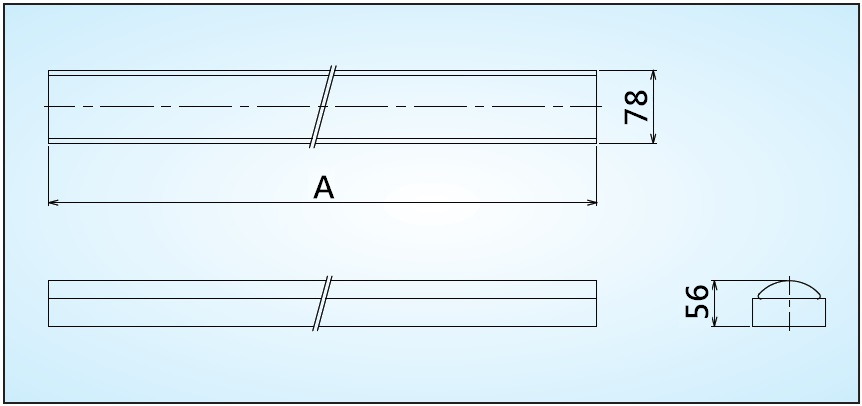

Dimensional drawing
| model | A（mm） |
|---|---|
| PLL-E201640H | 634 |
| PLL-E201665H | |
| PLL-E403240H | 1250 |
| PLL-E403265H |
