AW series

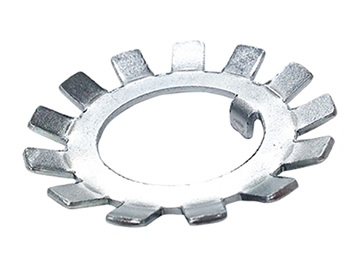

What are Bearing Washers/Star Washers (AW Washers)?
Used with locking nuts, one tooth on the inside and multiple teeth on the outside.
Fit the internal teeth into the grooves cut in the shaft and fold one of the external teeth into the groove on the outer circumference of the lock nut to prevent loosening.
Like the lock nut, it is manufactured in accordance with the JIS standard "JIS B 1552".
Bearing Washer Materials and Dimensions
There are 15 sizes from M10 to M70. Please refer to the size chart below for details.
Use
Star washers for adapter sleeves, knockout sleeves and bearing nuts of ordinary bearings
Specification
| Material |
AW00-09: SPCC / AW10-14: SPHC (steel) SUS304 (stainless steel material) |
|---|---|
| surface treatment | none |
| Screw standard | Metric (fine) screws |
| Applicable nuts | SS400/SUS304 AN series |
Dimensional drawing
| Size chart | |
|---|---|
| 00 | M10×0.75P |
| 01 | M12×1.0P |
| 02 | M15×1.0P |
| 03 | M17×1.0P |
| 04 | M20×1.0P |
| 05 | M25×1.5P |
| 06 | M30×1.5P |
| 07 | M35×1.5P |
| Size chart | |
|---|---|
| 08 | M40×1.5P |
| 09 | M45×1.5P |
| 10 | M50×1.5P |
| 11 | M55×2.0P |
| 12 | M60×2.0P |
| 13 | M65×2.0P |
| 14 | M70×2.0P |
| - | |
