What is a magnetic base?
- It is used as a clamp for holding measuring instruments with magnets and fixing them to
the panel, mainly when taking measurements using dial gauges/indicators.
In addition, laser experiments and optical experiments can be used to fix and mount the instrument on a magnetized plate with a magnet.
Magnetic base switch switches toOn status:Has magnetic attraction; switch toOff state:There is no magnetic attraction function.
Feature
Magnet material
Use ferrite magnets. Ferrite magnets are resistant to rust and are resistant to
demagnetization even when impacted.
Ferrite is a magnetic body made of iron oxide as its
main component and mixed and sintered with cobalt, nickel, manganese, etc. In addition,
ferrite has a large electrical impedance (not easy to conduct electricity), so it is
suitable for a variety of uses.
Magnetic seat style
The bottom of the magnetic base has a V-shaped and concave design. As long as there is a place where the magnet can be stably absorbed, whether it is a flat or curved mounting surface, the magnetic base can be fixed.
Bracket style
Various arm shapes, lengths, outer diameters, movable or adjustable arm options are
available.
The clamping head part also comes in various shapes, with or without bite
patterns, clamping strength, etc., and can be purchased to suit different uses.
Magnetic base
The standard magnetic base with screw holes can be used with appropriate poles for purposes other than measurement.
Nikki magnetic base product types

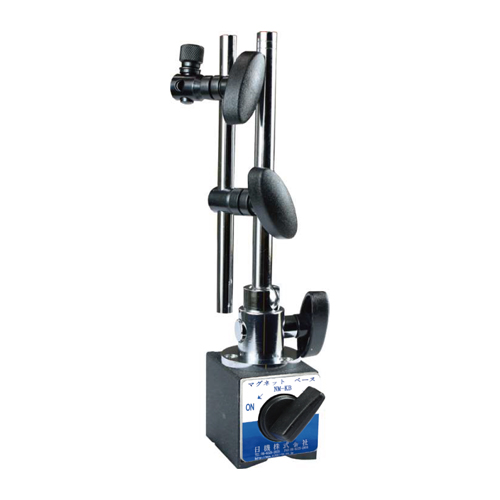

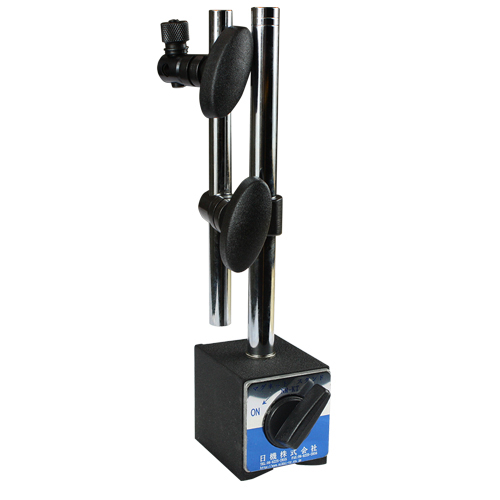

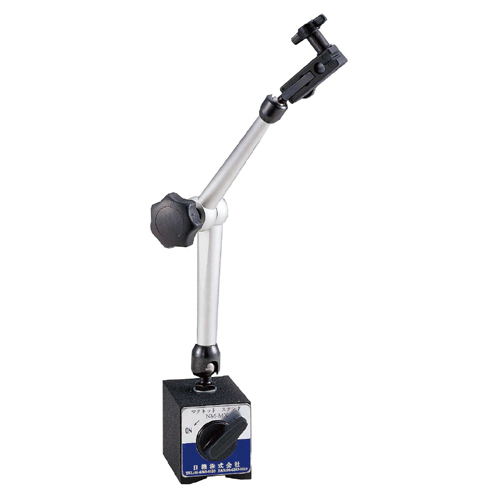

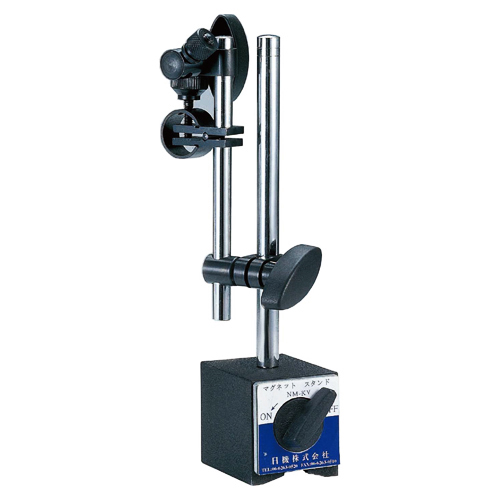

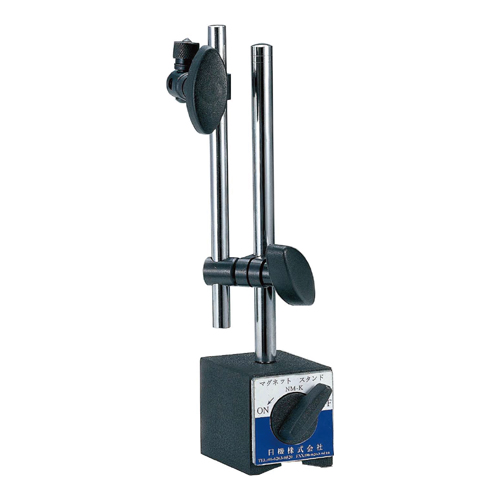

Bracket type magnetic base
Can be used as a holder for measuring instruments such as dial indicators and
indicators.
In addition to the standard type, it also has fine adjustment function, main

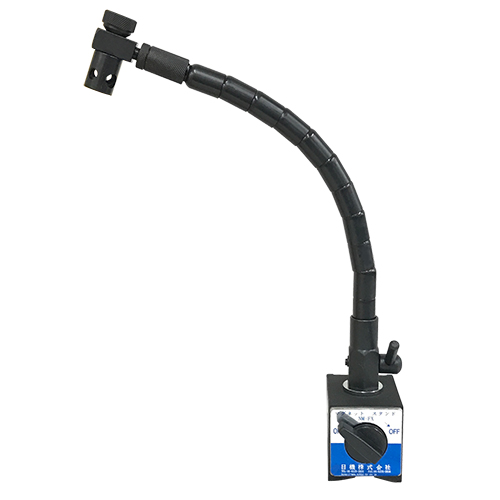

rod tilt type, micro adjustment function (mechanical type), flexible rod, etc.
Magnetic base
Standard magnetic base with adsorption force up to 300N~1500N. Designed with metric threaded holes for attaching a clamp or arm.
Mini magnetic base
Mini magnet base for use in tight spaces.
The maximum suction force is 150N~300N, and the
bracket styles include arm and clamp types.
T-shaped magnetic object absorber
Equipped with a T-shaped handle for carrying workpieces, it is the best tool when carrying iron plates, nails, and chips.
Magnetic seat type cutting fluid water pipe
Metal processing machines and electric discharge machines cool the working machinery and remove processing dust.
Magnetic base
Purpose: As a holder for measuring instruments such as dial indicators, it can be used in a wide range of applications.
