Magnetic base related application products-Magnetic base

Magnetic base related application products

Magnetic base

Purpose: This is a magnetic base with threaded holes M5~M8.

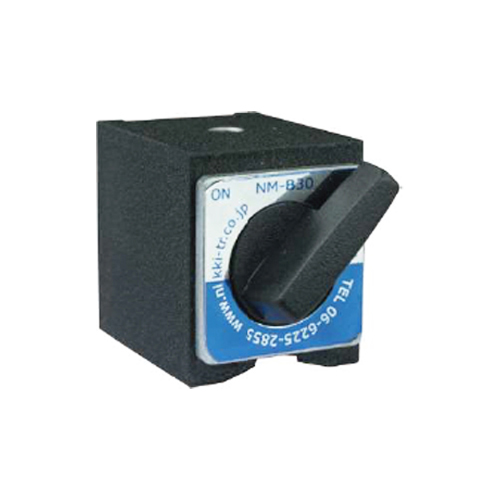

NM-B30 product image

model	NM-B30
size	35ｘ30ｘ35(H)㎜
Screw hole diameter	M5x0.8P
Maximum adsorption force	300N
Adsorption surface	Bottom (V-shaped)- Back
drawing	PDF DXF

Magnetic Base Buy

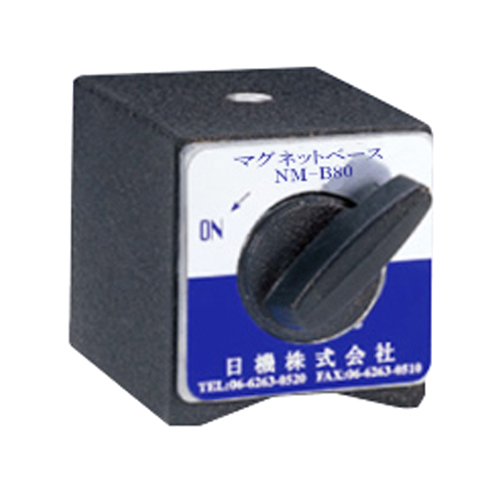

NM-B80 product image

model	NM-B80
size	60ｘ50ｘ55(H)㎜
Screw hole diameter	M8x1.25P
Maximum adsorption force	800N
Adsorption surface	Bottom (V-shaped)- Back
drawing	PDF DXF

Magnetic Base Buy

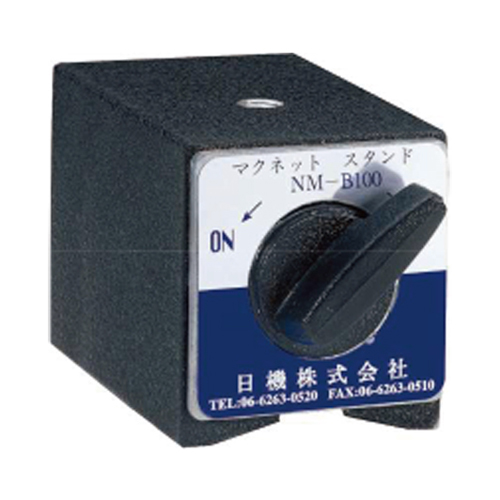

NM-B100 product image

model	NM-B100
size	73ｘ50ｘ55(H)㎜
Screw hole diameter	M8x1.25P
Maximum adsorption force	1,000N
Adsorption surface	Bottom (V-shaped)- Back
drawing	PDF DXF

Magnetic Base Buy

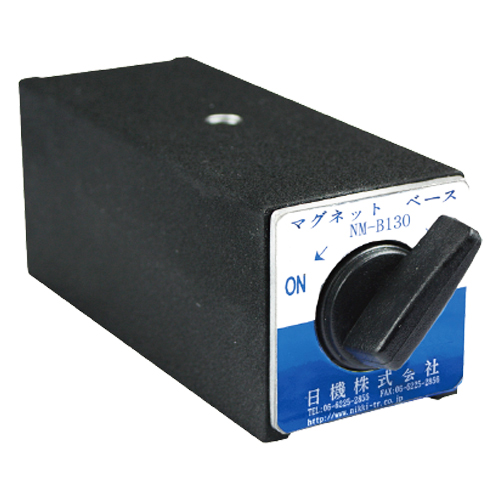

NM-B130 product image

model	NM-B130
size	117ｘ50ｘ55(H)㎜
Screw hole diameter	M10x1.25P
Maximum adsorption force	1,300N
Adsorption surface	Bottom (V-shaped)- Back
drawing	PDF DXF

Magnetic Base Buy

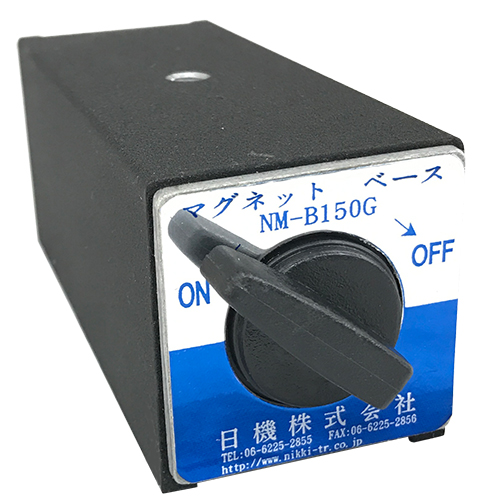

NM-B150G product image

model	NM-B150G
size	120ｘ50ｘ52(H)㎜
Screw hole diameter	M8x1.25P
Maximum adsorption force	1,500N
Adsorption surface	Bottom (concave type)- Back
drawing	PDF DXF

Magnetic Base Buy
