NLSS12BD4 Series | Desktop Plant Lamp
Feature
The LED spectrum is specially designed, and the 660nm series of red and blue light has uniform wavelengths, which can promote plant germination and growth, effectively help the development of plant rhizomes, and is suitable for use in the juvenile stage of plants.
The 3000K series increases the red light energy of 610-720nm, which has a significant impact on photosynthesis, photoperiod effect and growth rate, stimulating flowering and seed germination, making plants more outstanding in flowering and fruiting.
NLSS12BD4 series plant lights have high PPFD energy and are more suitable for medium and large potted plants.
- The wavelength that best affects the photosynthesis effect of plants is the red light wavelength of 660nm.
- This product is a low electromagnetic wave lighting fixture.
- It adopts constant current IC loop driving method to keep the light soft and free of glare and flicker.
- Using LEDs that are highly trusted around the world.
Applicable
Plant growth lights, plant lights, potted plant lighting.
Specification
| certification |
 (power
supply)
|
|---|---|
| wavelength | 660nm |
| PPFD | 85~815μmol |
| power supply | AC100V - 240V |
| Body material | Metal |
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
|---|---|
| life expectancy | Operating temperature 25℃ 60,000hr ※Life span is based on initial illumination reduced to 70% |
| protection level | IP50 |
| Standard wiring | 2m (AC/DC power supply) |
Adding plant furnishings to indoor spaces has soothing and stress-relieving effects.
In addition, plants produce negative ions, thus reducing formaldehyde, improving air quality, absorbing harmful gases, and improving indoor air quality.Many scientific studies have shown that placing plants indoors can help relax your mood, reduce stress, tension and fatigue, and can improve indoor dust and organic volatile matter.
Want to grow your favorite plants in offices and various indoor spaces?
Photosynthesis in plants promotes leaf growth, flowering and fruiting, and prolongs the life of
the next generation of seedlings. Plants are divided into positive plants and negative plants
according to the required light intensity.
Those with higher light intensity requirements are
called positive plants, and those with lower light intensity requirements are called negative
plants. Many foliage plants are shade plants, making them ideal for indoor use with plant
lights.
Correlation between the number of light quanta and plant photosynthesis.
In nature, different plants require different levels of light. According to the relationship between plants and light intensity, they are generally divided into positive plants and negative plants.
The use of LED plant lights to supplement light must meet the needs of positive and negative plants in order to activate the photosynthesis mechanism.
Photosynthetic Photon Flux Density PPFD (Photosynthetic Photon Flux Density)
PPFD represents the number of photons in the visible wavelength range per unit time area. Its unit is μmol/㎡s.
The number of light quanta affects whether plants start photosynthesis.

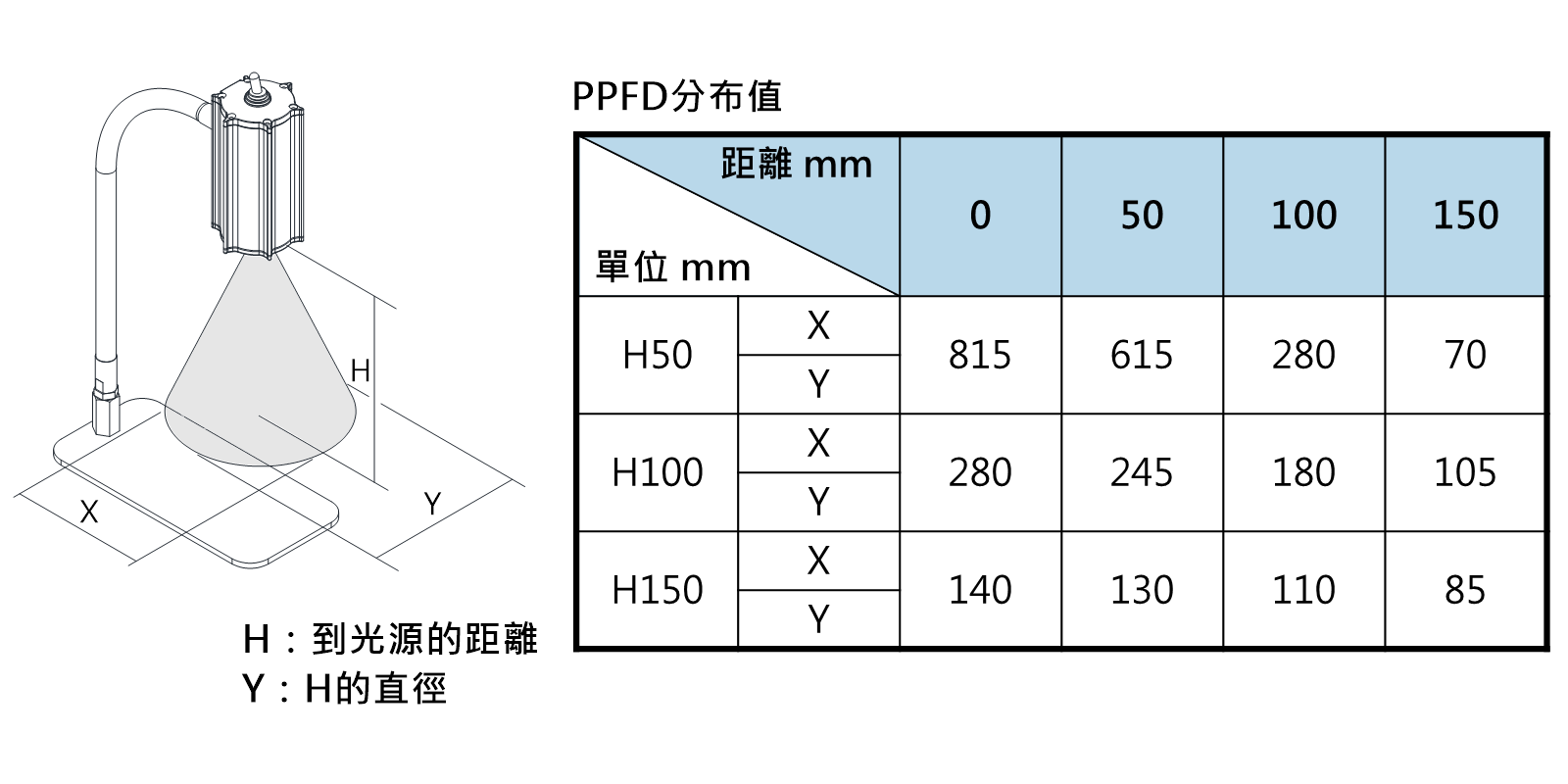

NLSS12BD4-AC(660nmp) PPFD data

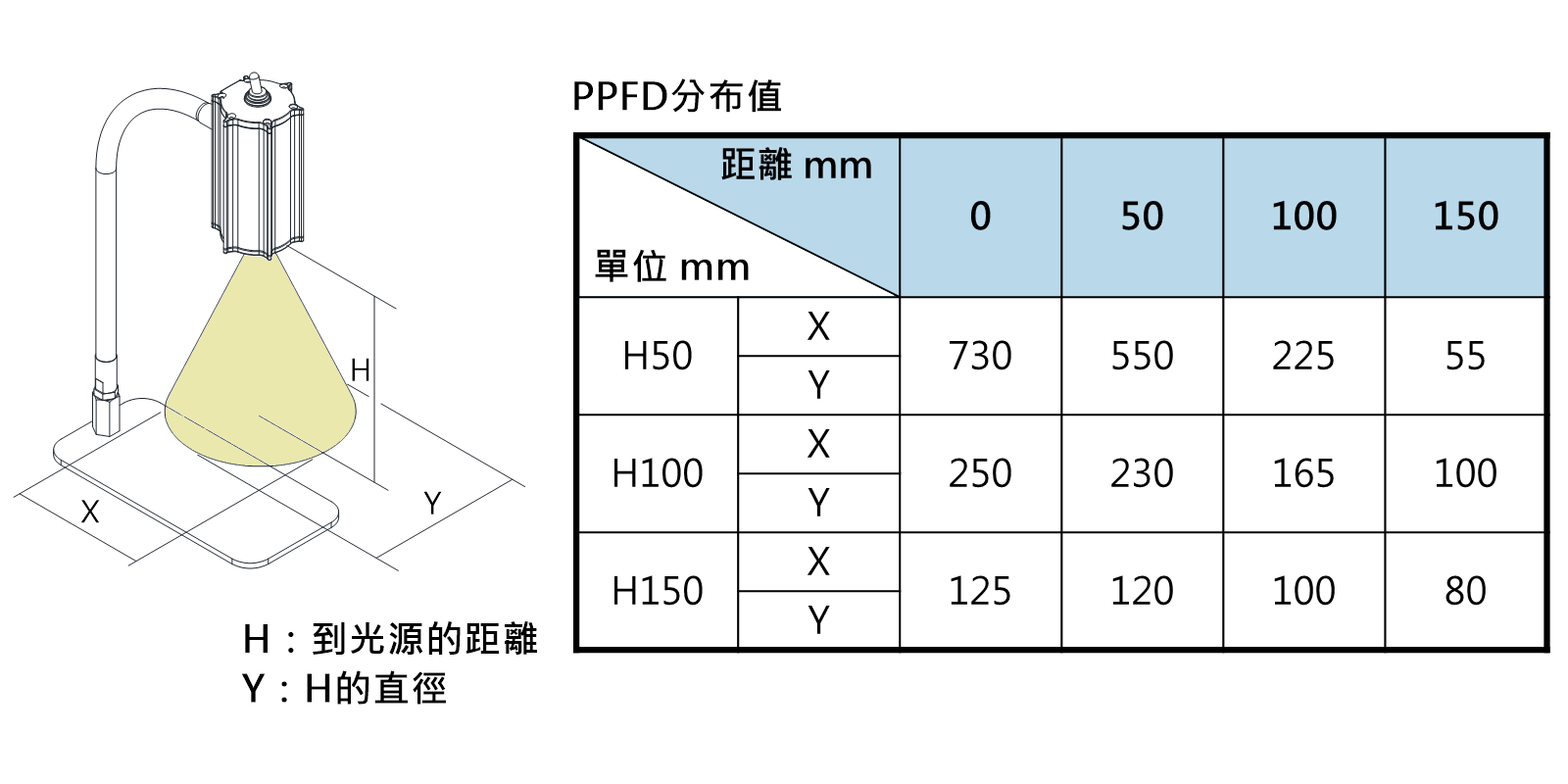

NLSS12BD4-AC(3000K) PPFD data
Application relationship of red and blue light quantum wavelengths
￭ 400-520nm (blue): The absorption ratio of chlorophyll and carotene is larger, which has the greatest impact on photosynthesis and can help the development of plant roots and stems.
￭ 610~720nm (red): Has a significant impact on photosynthesis, photoperiodic effect and growth rate.
The relationship between plants and light
CO absorbed by plants during photosynthesis2and CO released
during respiration2The light intensity at the same level is called the light compensation
point.
After the light intensity exceeds the light compensation point, as the light intensity increases, the photosynthesis rate will gradually increase. At this time, the photosynthetic intensity will exceed the respiration intensity. However, when the light intensity reaches a certain value and the light intensity is increased, the photosynthesis rate will no longer increase. This is the light saturation point, and the light saturation points of positive plants and negative plants are different.
When plants are grown indoors, even if the plants do not grow fast, they must be kept alive. Using indoor LED plant lights as light compensation points can meet the needs of a variety of plants.
Light saturation point for foliage plants
PPFD stands for photosynthetic photon flux density, which is used to measure the amount of light used by plants for photosynthesis, and its unit is μmol.
Different plants have different PPFD requirements. Generally, the light compensation point of foliage plants is about 10 μmol, and the light saturation point is about 300-500 μmol.

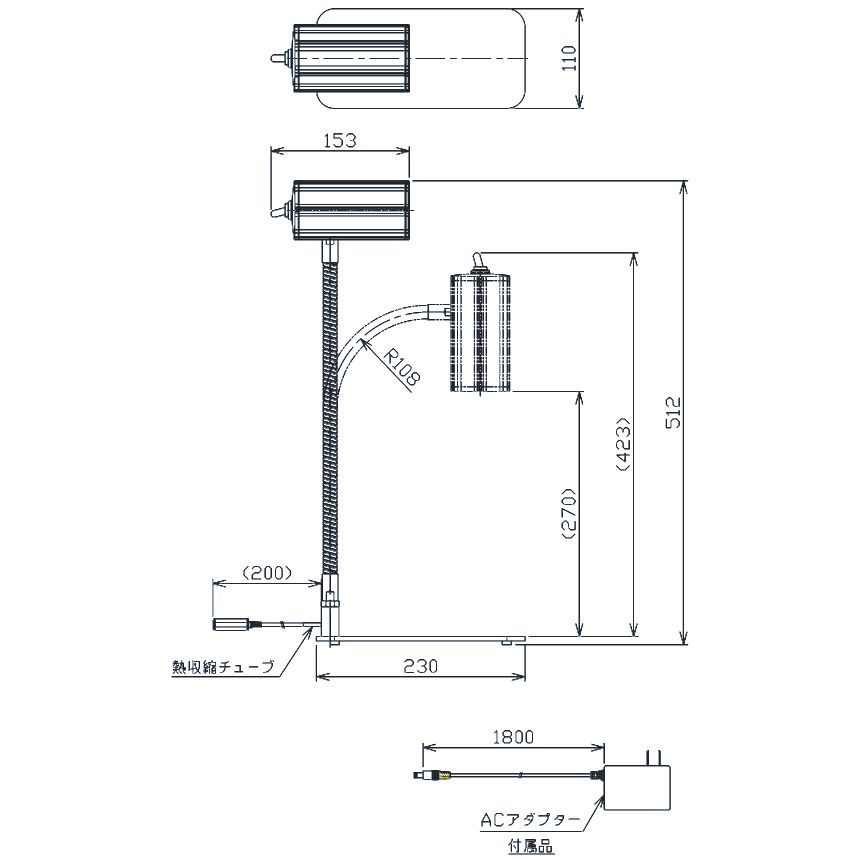

Dimensional drawing
