NLA50 Series | Standard Warning Light

MAIN product image

Feature

Red, yellow and green colors are used as fixed multi-layer LED warning light devices.

It has the advantages of brightness, lightness, low price and low power consumption.

The transparent lampshade of the warning light enhances the refraction and penetration of light and can better reflect the signal status.

Applicable

Semiconductor industry, machine tools, automation control, driveway entrances and exits, parking lots.

Base style

MAIN product image

Specification

life expectancy Ambient temperature 25℃ 60,000 hours
※Life span is based on initial illumination reduced to 70%
Use temperature -10℃～40℃ (referring to the condition without freezing)
protection level IP53
power supply DC24V
Body material nylon
Standard wiring Plastic base 800 mm (UL1007×AWG22)
L-shaped base 750 mm (UL1007×AWG22)
Metal base 850 mm (UL1007×AWG22)
B6 plastic base 850 mm (UL1007×AWG22)
certification MARK-CE product image MARK-FCC product image
Select accessories Buzzer: maximum volume 85db (measured at 1m)

Warning Light NLA50 Series Buy manual

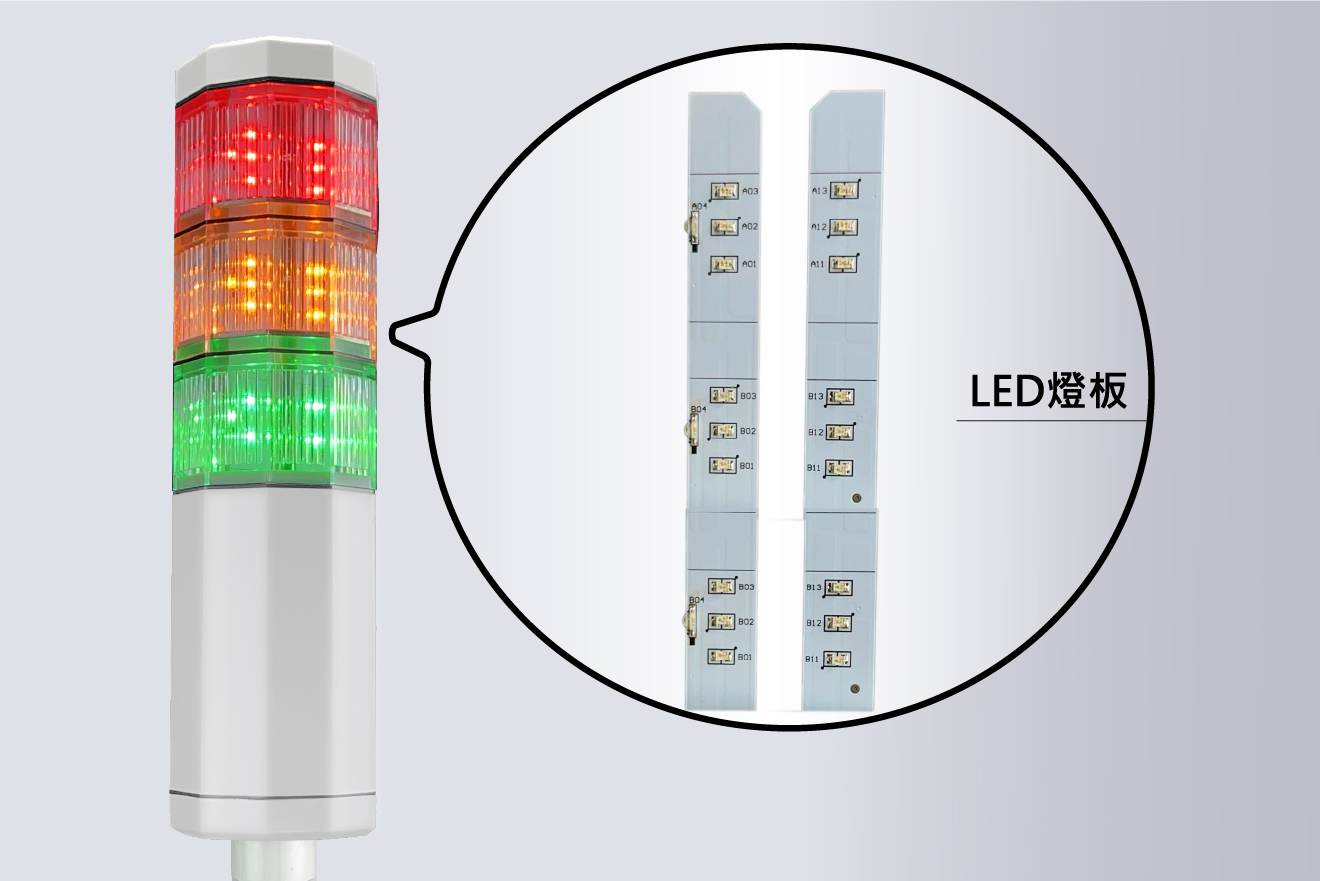

NLA50-A series

The number of layers can be selected from one to three.

Affordable and simple design, can be seen clearly from any direction.

image003 b product image

Standard model list

model power supply color consume electricity
NLA50 DC24V 1st floor
AR(red) / AY(yellow)		 0.8W
2 layers ※Fixed color
A (red and green)		 1.4W
3 layers ※Fixed color
A (red, yellow, green)		 2.4W

Standard model list

model Number of layers Base drawing power supply color consume electricity
NLA50 3 B1 PDF  DXF  3D STEP DC24V 1st floor
AR(red) / AY(yellow)		 0.8W
B2 PDF  DXF  3D STEP
B3 PDF  DXF  3D STEP 2 layers ※Fixed color
A (red and green)		 1.4W
B4 PDF  DXF  3D STEP
b5 PDF  DXF  3D STEP 3 layers ※Fixed color
A (red, yellow, green)		 2.4W
B6 PDF  DXF  3D STEP

Standard type-model selection method

model power supply Number of layers Base body color buzzer color shell
NLA50
  • DC
    =DC 24V
  • 1
  • 2
  • 3
  • B1
    =Plastic base (angle adjustable)
  • B2
    =L-shaped base
  • B3
    =Metal base (angle adjustable)
  • B4
    =metal base
  • B6
    =fixed base
  • D
    =grey
  • No markings
    =no sound
  • Z
    =Beep
  • A
    = red, yellow, green (three layers)
    = red, green (second floor)
  • AY=yellow (one layer)
  • AR=red (one layer)
  • Not specified
    =transparent
  • S
    =milk white

NLA50 Series | Crystal Diamond Warning Light

MAIN product image

Feature

It has the advantages of large lighting area, clear illumination and low power consumption.

Warning light device using multi-layered LEDs in red, yellow, green, blue and white.

The color sequence of warning lights can be specially arranged.

Using the constant current drive method, the brightness of the lamp can be kept constant even if the input voltage changes, and the life of the LED can be increased.

The independently developed protection circuit design protects against surges and unstable currents at the moment the power is turned on, or instantaneous power outages.

Applicable

Semiconductor industry, machine tools, automation control, driveway entrances and exits, parking lots.

Video introduction

Specification

life expectancy Ambient temperature 25℃ 60,000 hours
※Life span is based on initial illumination reduced to 70%
Use temperature -10℃～40℃ (referring to the condition without freezing)
protection level IP53
power supply AC/DC24V
Body material Nylon
Standard wiring Plastic base 800 mm (UL1007×AWG22)
L-shaped base 750 mm (UL1007×AWG22)
Metal base 850 mm (UL1007×AWG22)
B6 plastic base 850 mm (UL1007×AWG22)
certification MARK-CE product image MARK-FCC product image
Select accessories Buzzer: maximum volume 85db (measured at 1m)
flashing

Warning Light NLA50 Series Buy manual

NLA50 series

Crystal diamond warning light adopts reflector lampshade structure; the number of layers can be 1-5.

The reflective area is larger, brighter, and emit light evenly in 360 degrees.

IMAGE003-C1 product image

Crystal type model list

model power supply color consume electricity
NLA50 AC/DC24V R(red) 1W
Y (yellow) 1W
G (green) 0.4W
B (blue) 0.5W
W (white) 0.4W

Crystal diamond type-model selection method

model power supply Number of layers Base body color flashing buzzer color shell
NLA50
  • DC
    =AC/DC 24V
  • 1
  • 2
  • 3
  • 4
  • 5
  • B1
    =Plastic base (angle adjustable)
  • B2
    =L-shaped base
  • B3
    =Metal base (angle adjustable)
  • B4
    =metal base
  • B6
    =fixed base
  • D
    =grey
  • No markings
    = no flicker
  • S
    = flashing
  • No markings
    =no sound
  • Z
    =Beep
  • R =Red
  • Y =yellow
  • G =green
  • B = blue
  • W = white
  • Not specified
    =transparent
  • S
    =milk white

Comparison example of warning lights of other brands and those of Japanese aircraft I

Nikki warning lights are made of transparent cover material; when the warning light lights up, it illuminates the entire transparent cover; it is easy to see whether there is a light on from a distance; it reduces misjudgment and negligence.

SAMPLEB-3 product image

Usage examples

SAMPLEA-3 product image

Introduction to warning light shades

IMAGE003-C2 product image

The lampshade can be selected from transparent or milky white according to the purpose.

It is recommended to use a transparent lampshade when inside a factory you want to identify it from a distance and prevent misrecognition or missed sightings.

In situations such as supermarket checkout counters or offices where the light can be easily recognized at close range, it is recommended to use a milky white lampshade that emits a lighter light color and can protect your eyes.

Transparent lampshade: Factories, warehouses, parking lots, etc.

SAMPLE-D product image

Milky white lampshade: Cashier counter, office, etc.

SAMPLE-C product image

feature

  1. Miniature design, saving space.
  2. It can be open loop and controlled directly by PLC.
  3. The position of the lighting mark can be changed by tilting the body.
  4. The body is made of nylon, which has the advantages of heat resistance and oil resistance.
  5. The LED modules can be freely changed, and the light layers of various colors can be replaced according to customer needs.
  6. Has obtained CE/FCC certification. Passed various tests such as vibration test, insulation resistance test, etc.
  7. There is also a diffusion style. The built-in reflective surface of the light cover can refract light and penetrate the lamp cover, and each layer can emit light evenly.
  8. The exclusive decagonal lampshade design, and the internal curved mirror surface, emits full light from the lampshade, making it easy to identify.

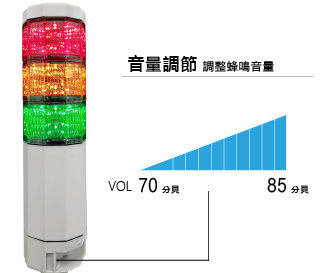

  9. The resonance design of the buzzer increases the volume, which can be as high as 85 decibels (measured at 1m), and can also be used in noisy factories.
BEEP-FEATURE product image

Dimensional drawing

Plastic base: B1

SIZE product image

NLA50DC-□B1D L seat size table
NLA50DC- 1B1D 2B1D 3B1D 4B1D 5B1D
L（mm） 276 306 336 366 396

L-shaped base: B2

SIZE product image

NLA50DC-□B2D L seat size table
NLA50DC- 1B2D 2B2D 3B2D 4B2D 5B2D
L（mm） 320 350 380 410 440

Metal base: (adjustable angle) B3

SIZE product image

NLA50DC-□B3D L seat size table
NLA50DC- 1B3D 2B3D 3B3D 4B3D 5B3D
L（mm） 223 253 283 313 343

Metal base: B4

SIZE product image

NLA50DC-□B4D L seat size table
NLA50DC- 1B4D 2B4D 3B4D 4B4D 5B4D
L（mm） 325 355 385 415 445

Fixed base: B6

SIZE product image

NLA50DC-□B6D L seat size table
NLA50DC- 1B6D 2B6D 3B6D 4B6D 5B6D
L（mm） 120 150 180 210 240

Wiring diagram (DC)

NLA50DC product image

NLA50-PNP product image

NLA50-NPN product image

Signal line color matching

  Signal line color matching list
red light red
yellow light yellow
green light green
cyan light green
white light white
buzzer Tachibana
flash common line Tea
common line purple
