NLA50 Multi-Layer LED Signal Tower

(NLA50 series)

LED Signal Tower Series

NLA50 Series | Standard LED Signal Tower

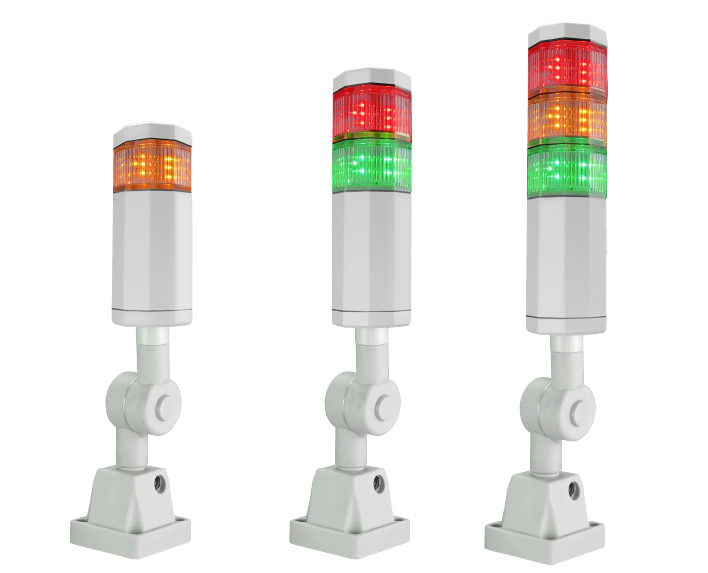

NLA50 LED signal tower

Features

The NLA50 Series is a compact multi-layer LED signal tower for industrial machine status indication and warning applications.

Red, yellow, and green light layers are available for standard configurations, with options for flashing and buzzer functions.

The transparent light cover improves light transmission and makes machine status easy to identify from a distance.

Applications

Semiconductor Equipment, Machine Tools, Factory Automation Systems, Driveway Entrances, Parking Lots, and Industrial Status Indication.

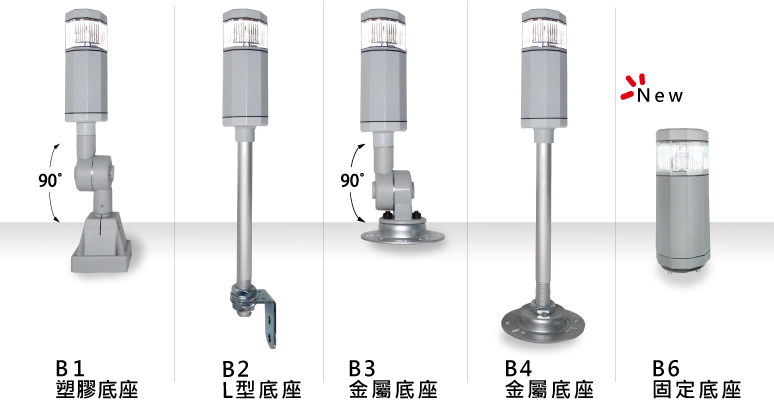

Base Styles

NLA50 signal tower base styles

Specifications

Expected Life 60,000 hours at ambient temperature 25℃
※Life is based on luminous output reduced to 70% of the initial value.
Operating Temperature -10℃～40℃ (referring to the condition without freezing)
Protection Rating IP53
Power Supply DC24V
Housing Material Nylon
Standard Wiring Plastic Base 800 mm (UL1007×AWG22)
L-Shaped Base 750 mm (UL1007×AWG22)
Metal Base 850 mm (UL1007×AWG22)
B6 Plastic Base 850 mm (UL1007×AWG22)
Certifications CE Certification mark FCC Certification mark
Optional Accessories Flashing function
Buzzer: maximum volume 95 dB (measured at 1 m)
※Intermittent buzzer sound (58 times/min) must be triggered by the flashing common line.

Buy NLA50 Series Download Manual

NLA50-A series

One to three light layers can be selected.

The economical, compact design provides clear visibility from multiple directions.

NLA50 signal tower base style B1

NLA50L-A series

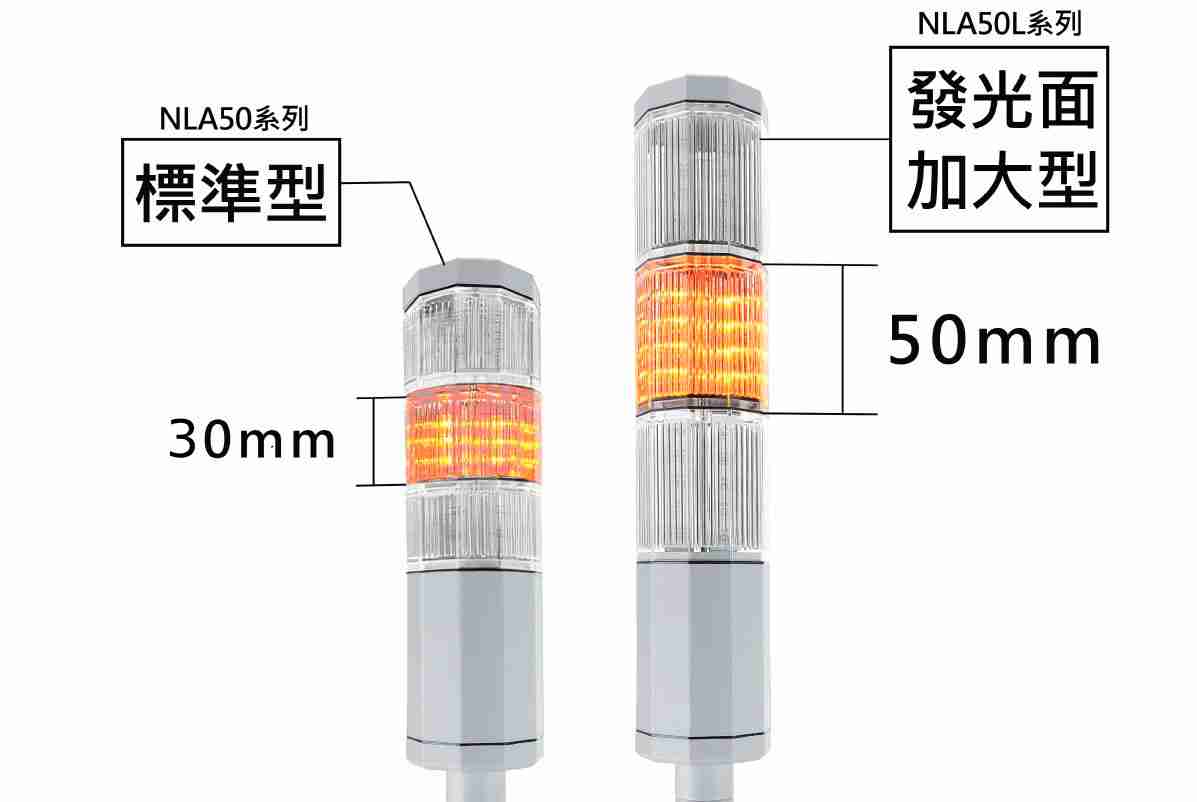

Fixed three-layer light color configuration.

The enlarged illuminated surface makes each light color easy to identify from a distance.

NLA50 signal tower base style B2

Standard Model List

Model Number of Layers Base Drawing Drawing (85 dB) Power Supply Color Power Consumption
NLA50DC-1B1D-A 1st floor Plastic Base PDF  DXF  3D STEP PDF  DXF  3D STEP DC24V AR (Red) / AY (Yellow) 0.8W
NLA50DC-1B2D-A L-Shaped Base PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-1B3D-A Metal Base
(Angle adjustable)		 PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-1B4D-A Metal Base PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-1B6D-A Fixed Base PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-2B1D-A 2nd floor Plastic Base PDF  DXF  3D STEP PDF  DXF  3D STEP A (red and green)
※Color fixed		 1.4W
NLA50DC-2B2D-A L-Shaped Base PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-2B3D-A Metal Base
(Angle adjustable)		 PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-2B4D-A Metal Base PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-2B6D-A Fixed Base PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-3B1D-A 3rd floor Plastic Base PDF  DXF  3D STEP PDF  DXF  3D STEP A (red, yellow, green)
※Color fixed		 2.4W
NLA50DC-3B2D-A L-Shaped Base PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-3B3D-A Metal Base
(Angle adjustable)		 PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-3B4D-A Metal Base PDF  DXF  3D STEP PDF  DXF  3D STEP
NLA50DC-3B6D-A Fixed Base PDF  DXF  3D STEP PDF  DXF  3D STEP

Model Number Selection Guide

Model Luminous Surface Power Supply Number of Layers Base Body Color Flashing Buzzer Color Light Cover
NLA50
  • No Marking
    =Standard Type
  • L
    =Large Luminous Surface
  • DC
    =DC 24V
  • 1
  • 2
  • 3
  • B1
    =Plastic Base (angle adjustable)
  • B2
    =L-Shaped Base
  • B3
    =Metal Base (angle adjustable)
  • B4
    =Metal Base
  • B6
    =Fixed Base
  • D
    =Gray
  • No Marking
    =No Flashing
  • S
    =Flashing
  • No Marking
    =No Sound
  • Z
    =85 dB Buzzer
  • RZ
    =85 dB Intermittent Buzzer
  • HZ
    =95 dB Buzzer
  • HRZ
    =95 dB Intermittent Buzzer

    ※Intermittent buzzer sound (58 times/min) must be triggered by the flashing common line
  • A
    =Red, Yellow, Green (Three Layers)
    =Red, Green (Two Layers)
  • AY = Yellow (One Layer)
  • AR = Red (One Layer)
  • No Marking
    =Transparent
  • S
    =Milky White

Beep tone audition

Buzzer 85 dB
(Z)

NLA50 alarm sound pattern chart

85 dB Intermittent Buzzer
(RZ)

NLA50 alarm sound pattern chart

Buzzer 95 dB
(HZ)

NLA50 alarm sound pattern chart

95 dB Intermittent Buzzer
(HRZ)

NLA50 alarm sound pattern chart

85 dB Buzzer + Flashing
(SZ)

NLA50 alarm sound pattern chart

85 dB Intermittent Buzzer + Flashing
(SRZ)

NLA50 alarm sound pattern chart

95 dB Buzzer + Flashing
(SHZ)

NLA50 alarm sound pattern chart

95 dB Intermittent Buzzer + Flashing
(SHRZ)

NLA50 alarm sound pattern chart

NLA50 Series | Crystal Diamond Signal Tower

NLA50 crystal light cover signal tower

Features

The large illuminated area provides clear indication with low power consumption.

This signal tower uses multi-layer LEDs in red, yellow, green, blue, and white.

The signal color sequence can be customized.

The constant-current drive keeps brightness stable even when the input voltage changes and helps extend LED service life.

The independently developed protection circuit design protects against surges and unstable currents at the moment the power is turned on, or instantaneous power outages.

Applications

Semiconductor Equipment, Machine Tools, Automation Control Systems, Driveway Entrances and Exits, and Parking Lots.

Video Introduction

Specifications

Expected Life 60,000 hours at ambient temperature 25℃
※Life is based on luminous output reduced to 70% of the initial value.
Operating Temperature -10℃～40℃ (referring to the condition without freezing)
Protection Rating IP53
Power Supply AC/DC24V
Housing Material Nylon
Standard Wiring Plastic Base 800 mm (UL1007×AWG22)
L-Shaped Base 750 mm (UL1007×AWG22)
Metal Base 850 mm (UL1007×AWG22)
B6 Plastic Base 850 mm (UL1007×AWG22)
Certification CE Certification mark FCC Certification mark
Optional Accessories Flashing function
Buzzer: maximum volume 95 dB (measured at 1 m)
※Intermittent buzzer sound (58 times/min) must be triggered by the flashing common line

Buy NLA50 Signal Tower Series Download Manual

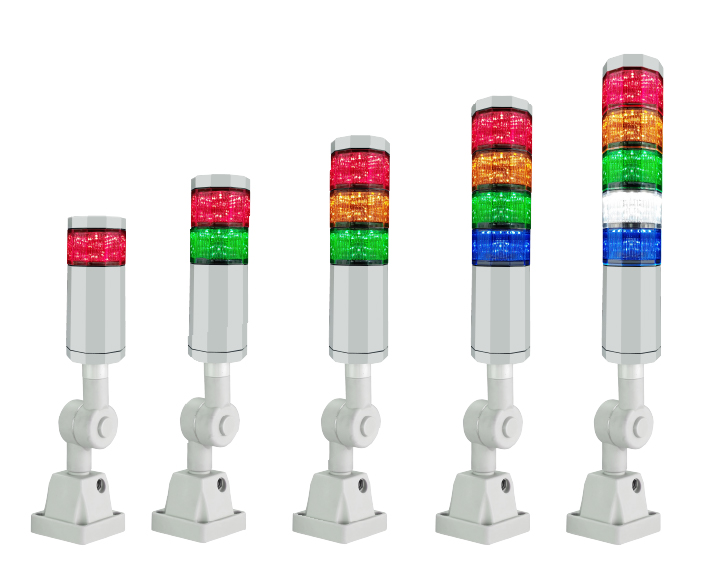

NLA50 series

The crystal light cover signal tower uses a reflector and supports one to five light layers.

The larger reflective area provides brighter, more uniform 360-degree light emission.

NLA50 crystal light cover signal tower

Crystal type Model list

Model Power Supply Color Power Consumption
NLA50 AC/DC24V R (Red) 1W
Y (Yellow) 1W
G (Green) 0.4W
B (Blue) 0.5W
W (White) 0.4W

Model Number Selection Guide

Model Power Supply Number of Layers Base Body Color Flashing Buzzer Color Light Cover
NLA50
  • DC
    =AC/DC 24V
  • 1
  • 2
  • 3
  • 4
  • 5
  • B1
    =Plastic Base (angle adjustable)
  • B2
    =L-Shaped Base
  • B3
    =Metal Base (angle adjustable)
  • B4
    =Metal Base
  • B6
    =Fixed Base
  • D
    =Gray
  • No Marking
    =No Flashing
  • S
    =Flashing
  • No Marking
    =No Sound
  • Z
    =85 dB Buzzer
  • RZ
    =85 dB Intermittent Buzzer
  • HZ
    =95 dB Buzzer
  • HRZ
    =95 dB Intermittent Buzzer

    ※Intermittent buzzer sound (58 times/min) must be triggered by the flashing common line
  • R = Red
  • Y = Yellow
  • G = Green
  • B = Blue
  • W = White
  • No Marking
    =Transparent
  • S
    =Milky White

Comparison with Other Signal Towers

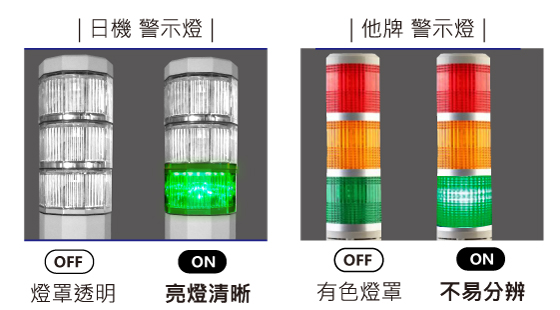

NIKKI signal towers use a transparent light cover. When the light turns on, the entire light cover is illuminated, making the status easy to identify from a distance and helping reduce missed or mistaken signals.

NLA50 signal tower visibility comparison

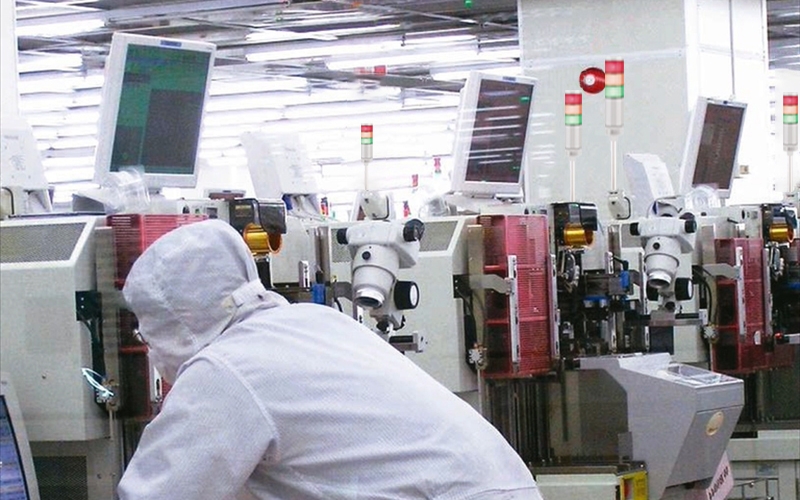

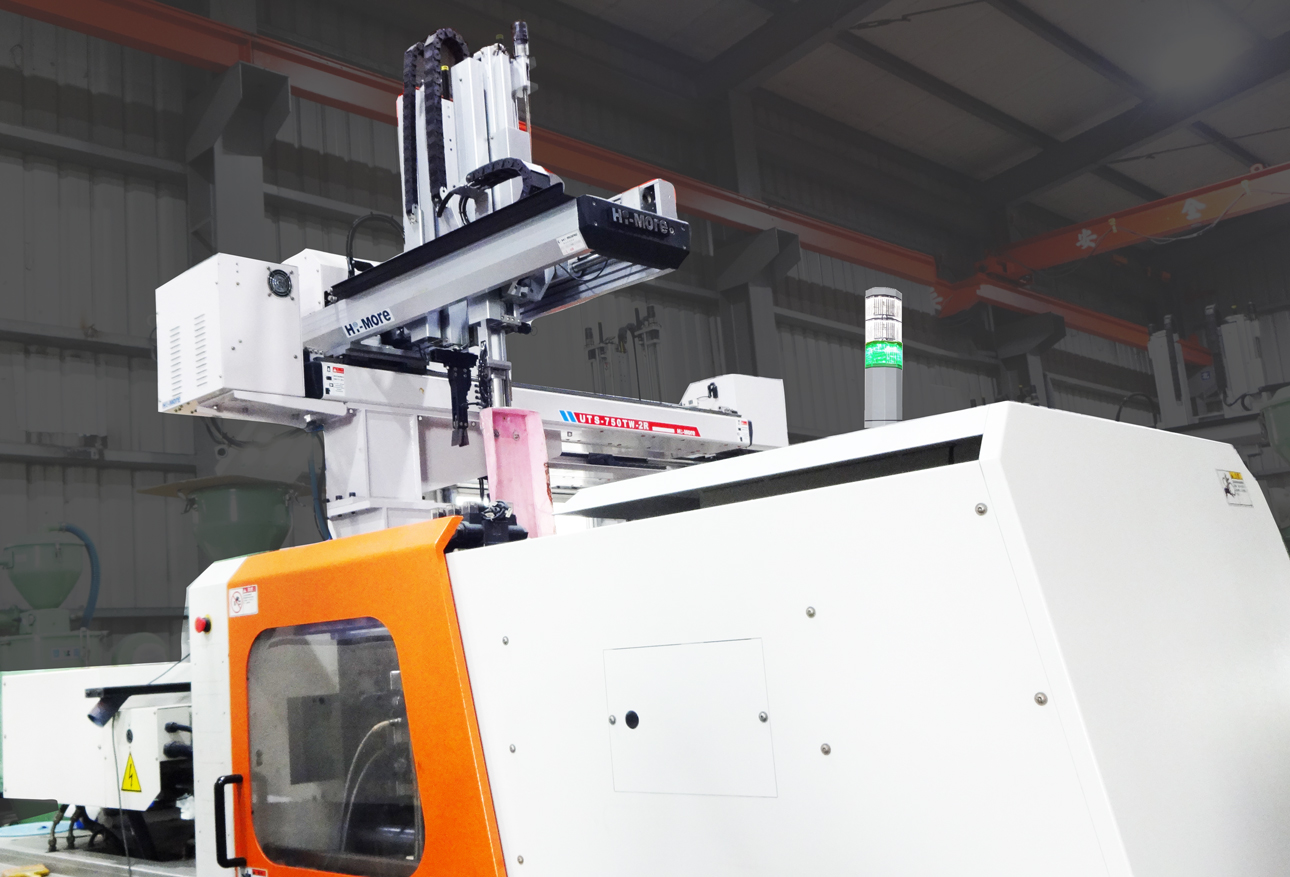

Application Example

NLA50 signal tower application example

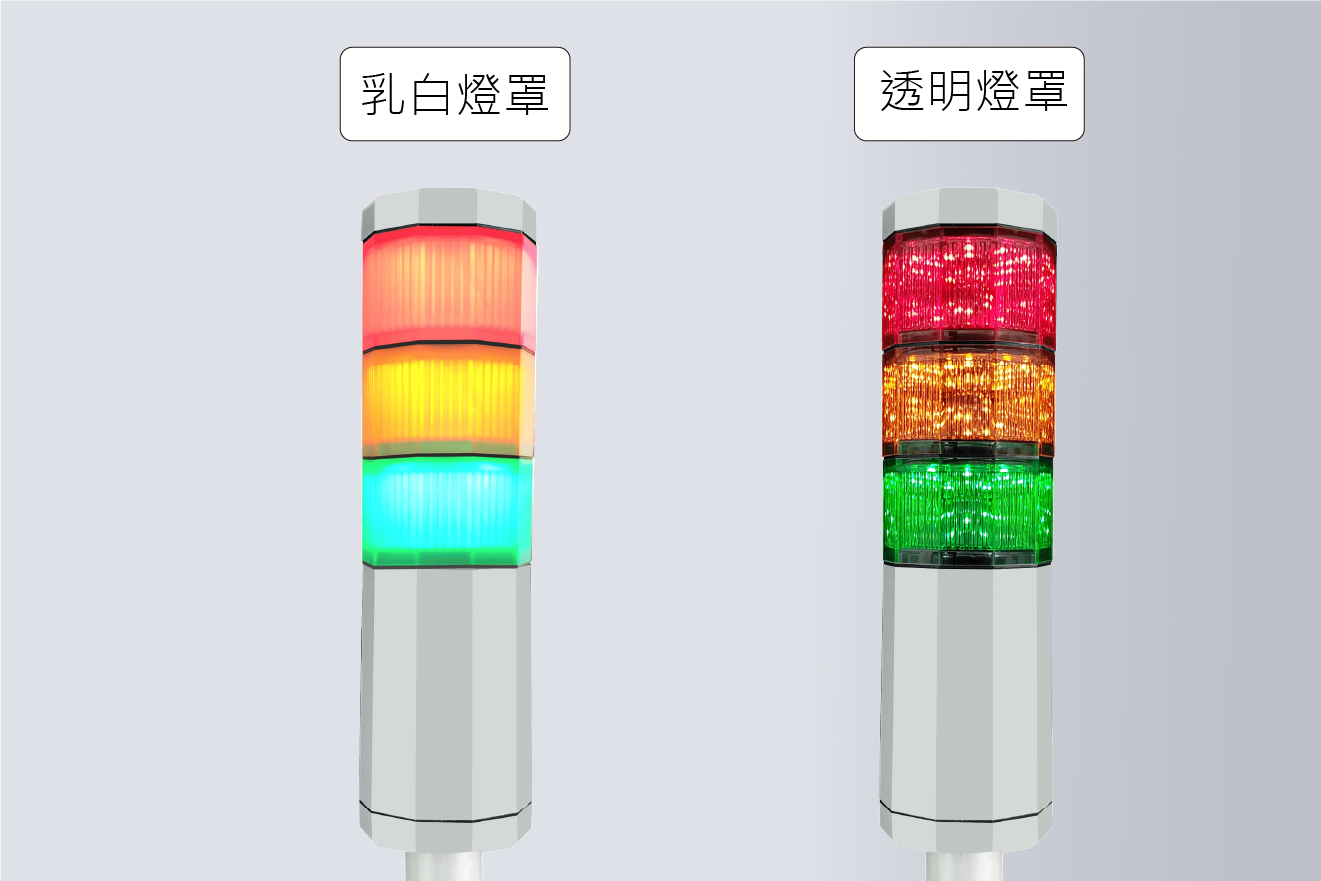

Signal Tower Light Cover Options

Transparent and milky white signal tower lenses

Choose a transparent or milky white light cover to match the application environment.

A transparent light cover is recommended when long-distance visibility is important, such as inside factories, warehouses, or parking areas.

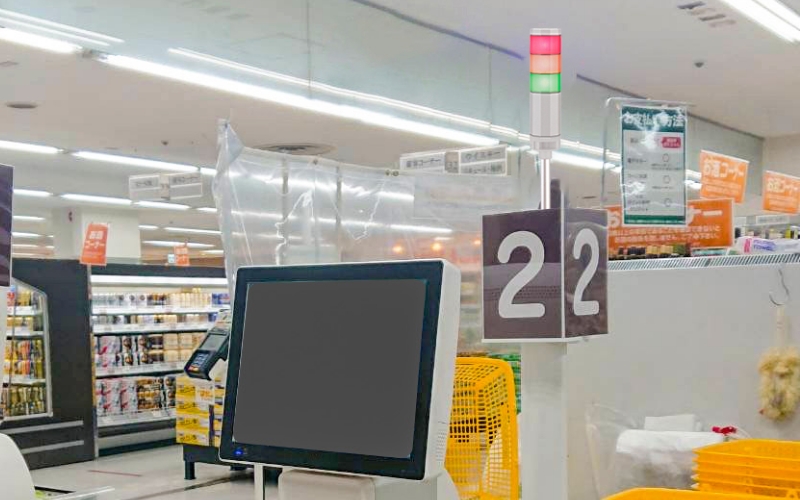

A milky white light cover is recommended for close-range environments such as checkout counters or offices, where softer light is easier on the eyes.

Transparent Light Cover: Factories, warehouses, and parking lots.

Transparent light cover application

Milky White Light Cover: Cashier counters and offices.

Milky white light cover application

Features

  1. Compact design saves installation space.
  2. Open-loop control is supported, allowing direct PLC control.
  3. The lighting position can be adjusted by tilting the body.
  4. The nylon housing provides heat resistance and oil resistance.

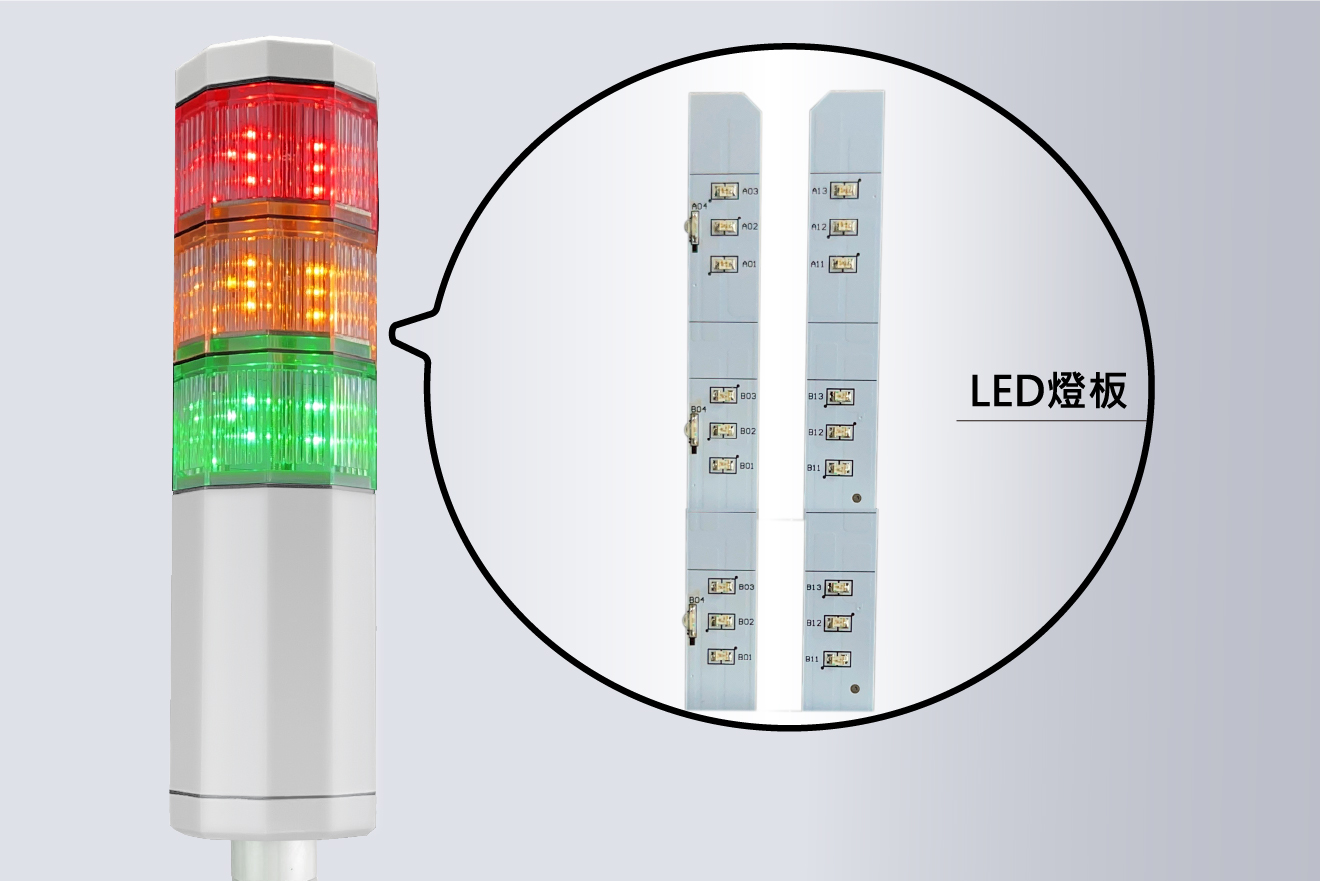

  5. LED modules can be changed freely, and light layers can be configured according to customer requirements.
  6. CE/FCC certified and tested for vibration resistance and insulation resistance.

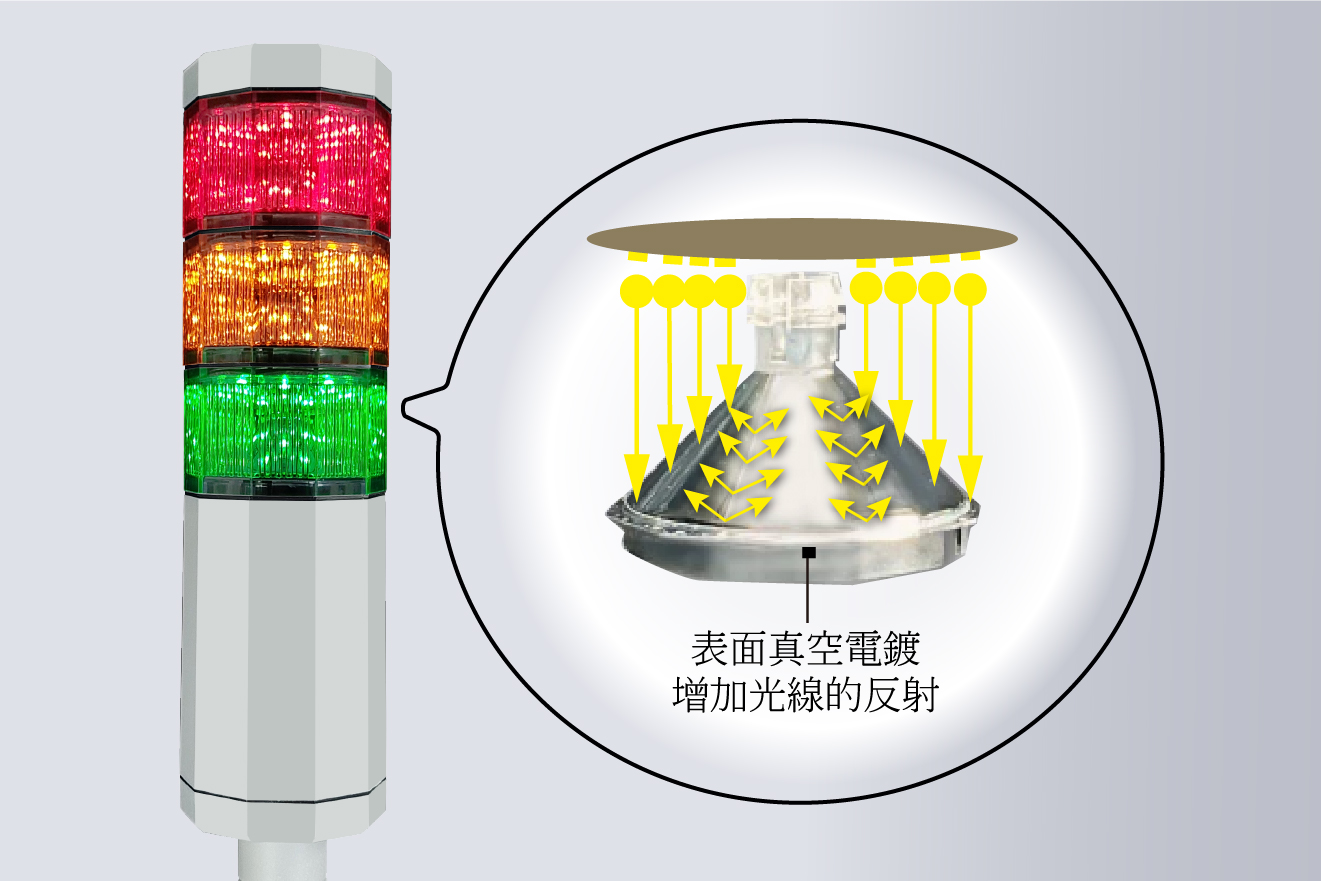

  7. Diffused light cover options are available. The built-in reflective surface refracts light through the light cover so each layer emits evenly.
  8. The exclusive decagonal light cover and internal curved reflective surface improve visibility across the full light cover area.
  9. The resonant buzzer design increases volume up to 95 dB (measured at 1 m), making it suitable for noisy factories.

Dimensions

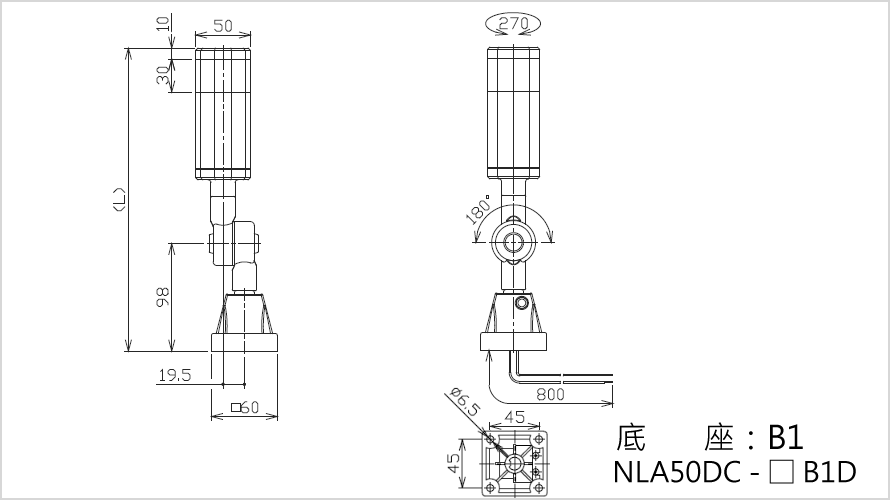

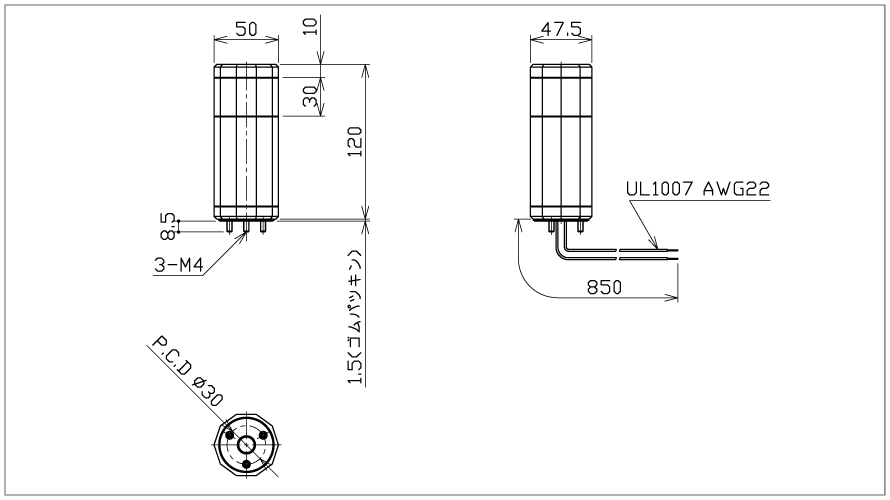

Plastic Base: B1

NLA50 B1 Plastic Base dimensions

NLA50DC-□B1D L Seat Size Table
NLA50DC- 1B1D 2B1D 3B1D 4B1D 5B1D
L（mm） 276 306 336 366 396

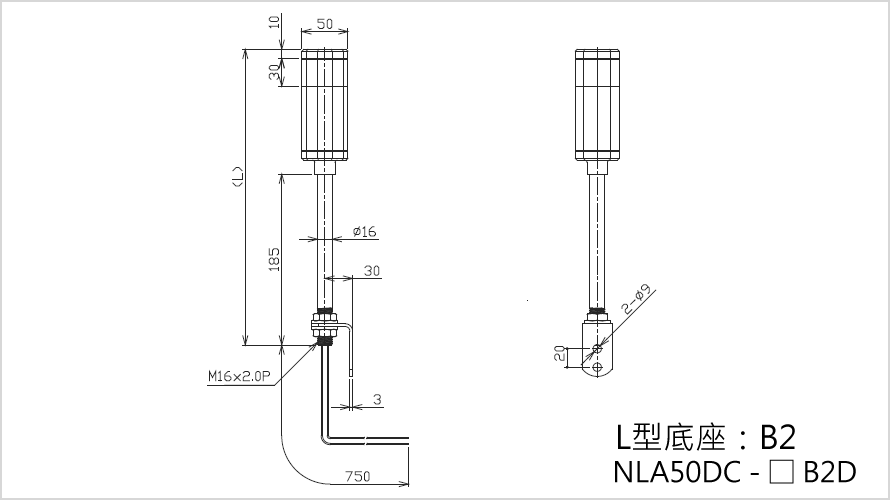

L-Shaped Base: B2

NLA50 B2 L-Shaped Base dimensions

NLA50DC-□B2D L Seat Size Table
NLA50DC- 1B2D 2B2D 3B2D 4B2D 5B2D
L（mm） 320 350 380 410 440

Metal Base: (adjustable angle) B3

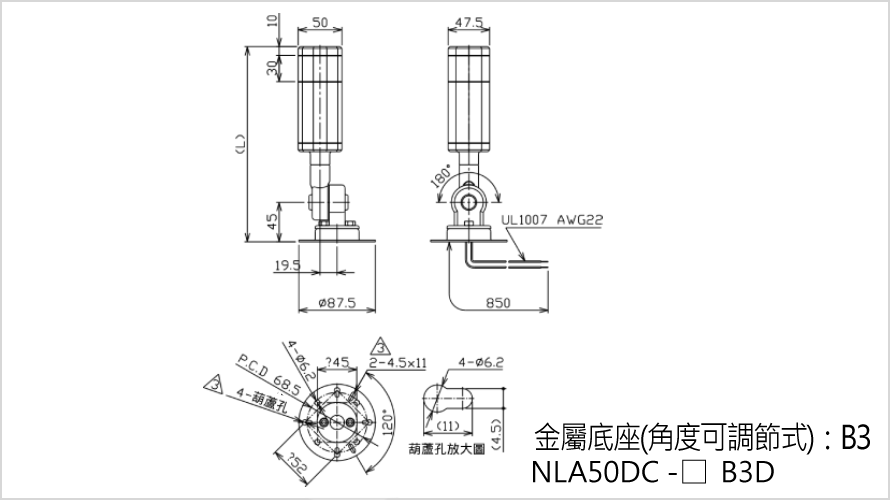

NLA50 B3 adjustable Metal Base dimensions

NLA50DC-□B3D L Seat Size Table
NLA50DC- 1B3D 2B3D 3B3D 4B3D 5B3D
L（mm） 223 253 283 313 343

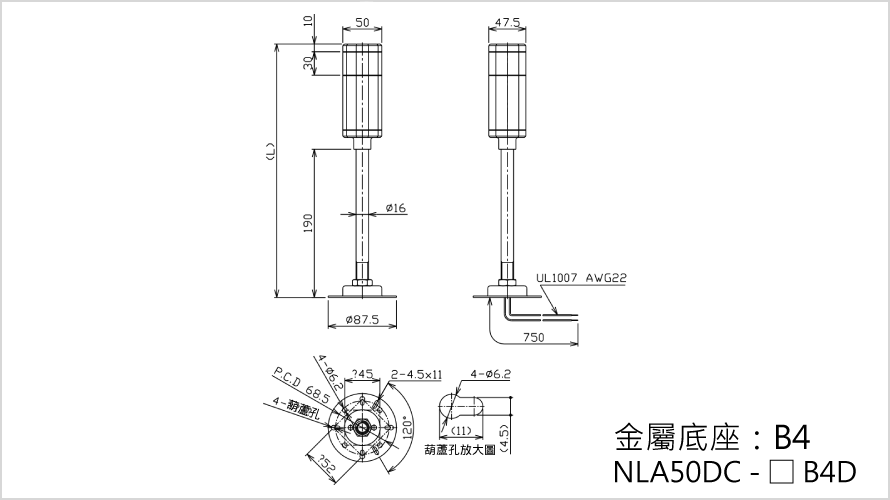

Metal Base: B4

NLA50 B4 Metal Base dimensions

NLA50DC-□B4D L Seat Size Table
NLA50DC- 1B4D 2B4D 3B4D 4B4D 5B4D
L（mm） 325 355 385 415 445

Fixed base: B6

NLA50 B6 Fixed Base dimensions

NLA50DC-□B6D L Seat Size Table
NLA50DC- 1B6D 2B6D 3B6D 4B6D 5B6D
L（mm） 120 150 180 210 240

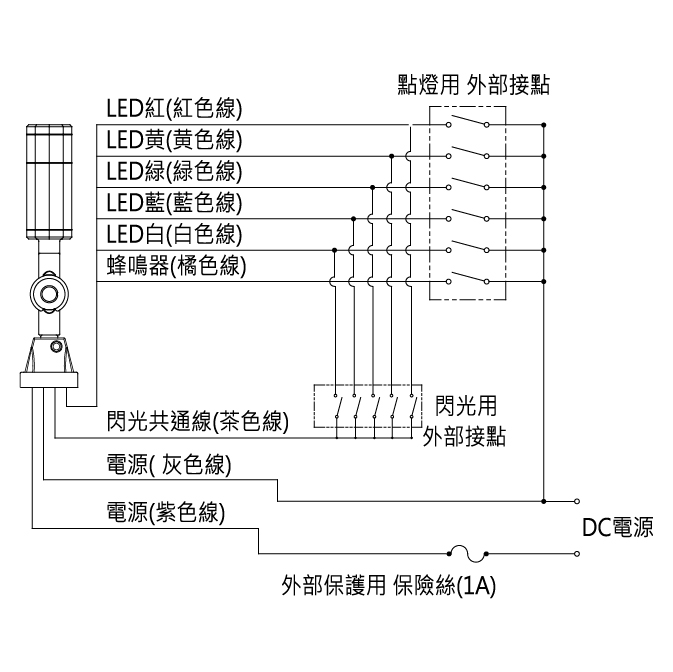

Wiring Diagram (DC)

NLA50 DC wiring diagram

NLA50 PNP wiring diagram

NLA50 NPN wiring diagram

Signal Cable Color Chart

Signal Cable Color Chart
Red Light Red
Yellow Light Yellow
Green Light Green
Blue Light Blue
White Light White
Buzzer Orange
Flashing Common Cable Brown
Common Cable Purple
