LED warning light
NLA70 series

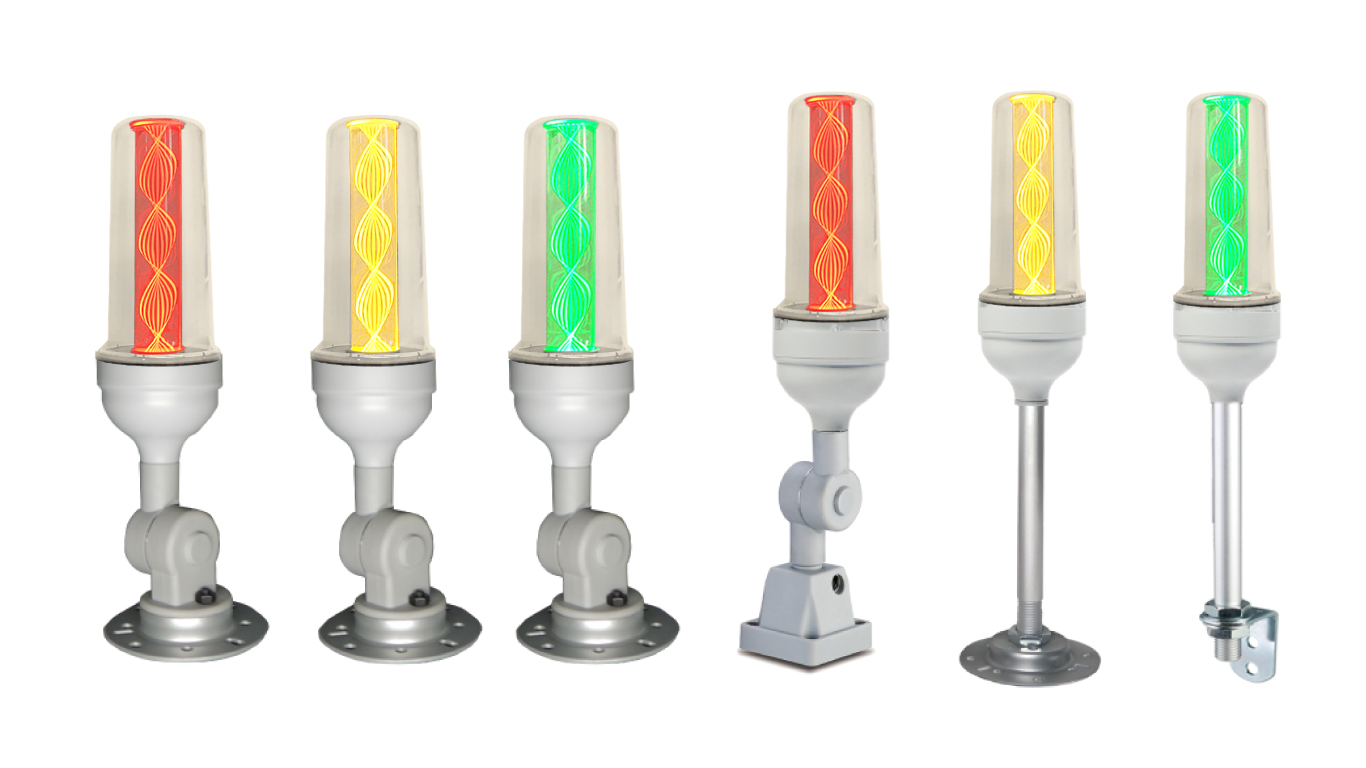

Feature

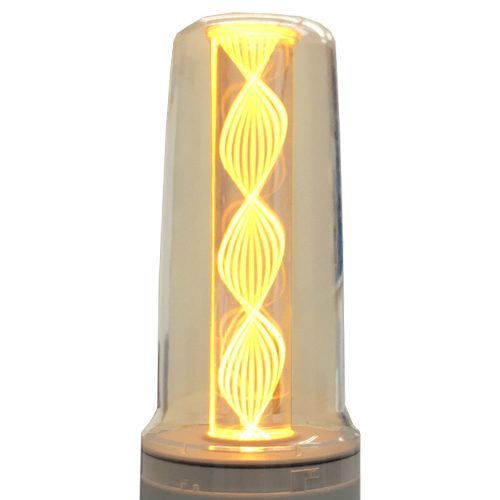

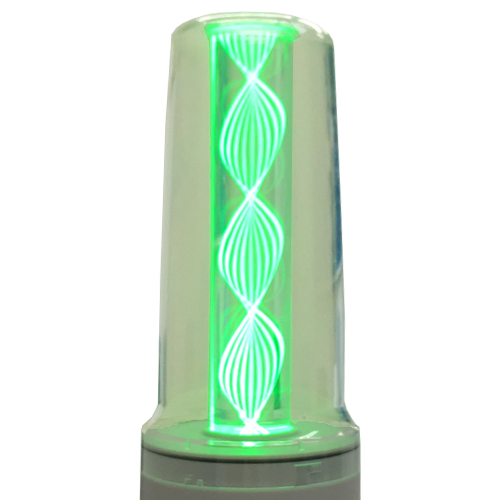

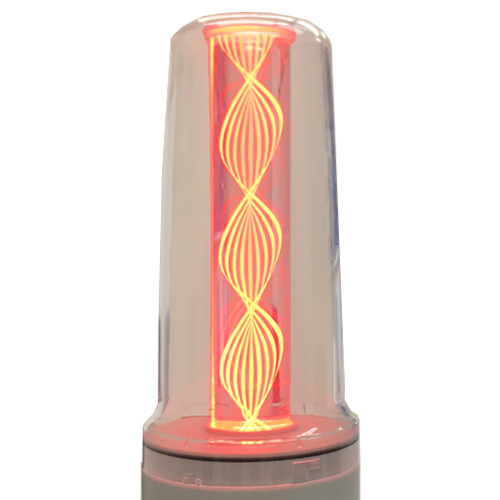

The three-color warning lights of red, yellow, and green emit light through the light guide column, and through the transparent lampshade, the light-emitting surface can be easily seen from all angles, making the light source more uniform and the viewing angle wider.
The independently developed protection circuit design protects against power intrusions, surges, or instantaneous power outages. It has passed the vibration test and insulation resistance test and is a very safe design.

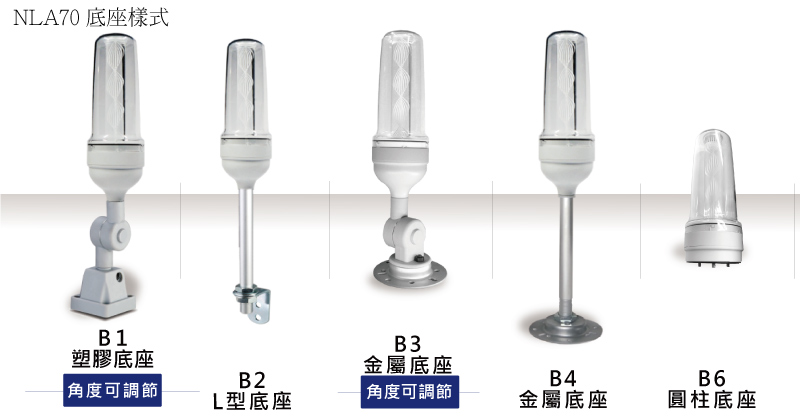

There are various bases for customers to choose from to match the hole design. In addition, the foldable base design eliminates the trouble of disassembling the lamp when transporting it to the machine, increasing its convenience.
Applicable
FA mechanical operation status display (note and reminder), indoor parking lot vacancy display, game machine status display
Video introduction
Specification
| life expectancy | Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
|---|---|
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| protection level | IP53 |
| Material quality | Polycarbonate |
| Wire length | 800mm（3B1D/3B3D/3B6D） 750mm（3B2D/3B4D） |
| Select accessories | flashing |
| Buzzer: Volume 75dB (measured at 1m) ※The intermittent beeping sound (58 times/min) must be triggered by the flashing common line |
|
| certification |
|
Standard model list
| model | power supply | color | consume electricity |
|---|---|---|---|
| NLA70 | DC24V | R(red) | 1.5W |
| Y (yellow) | 1W | ||
| G (green) | 1W |

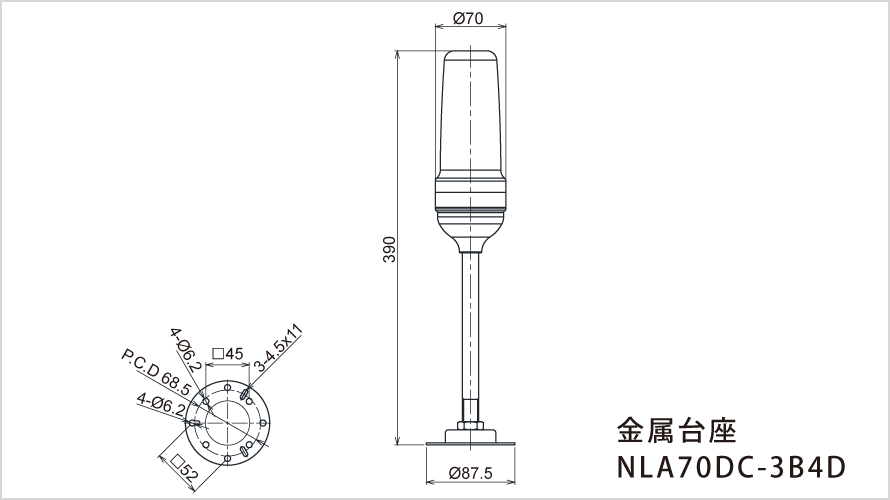

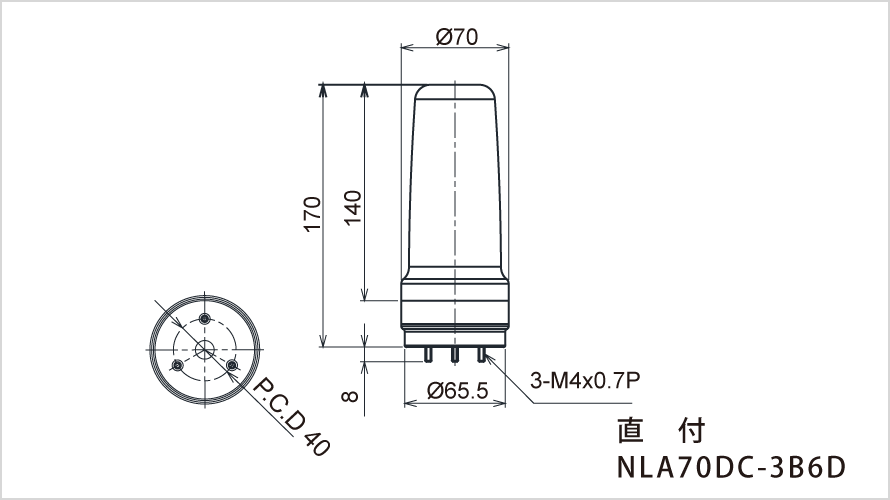

Dimensional drawing

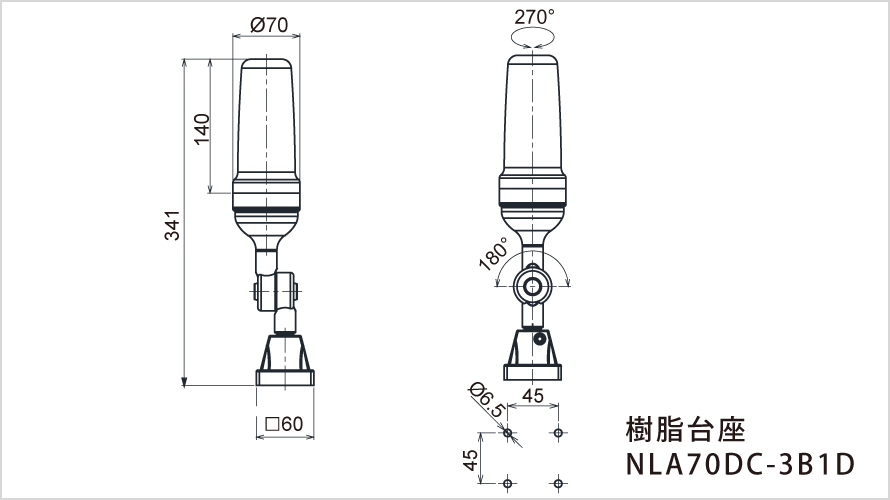

Plastic base: B1

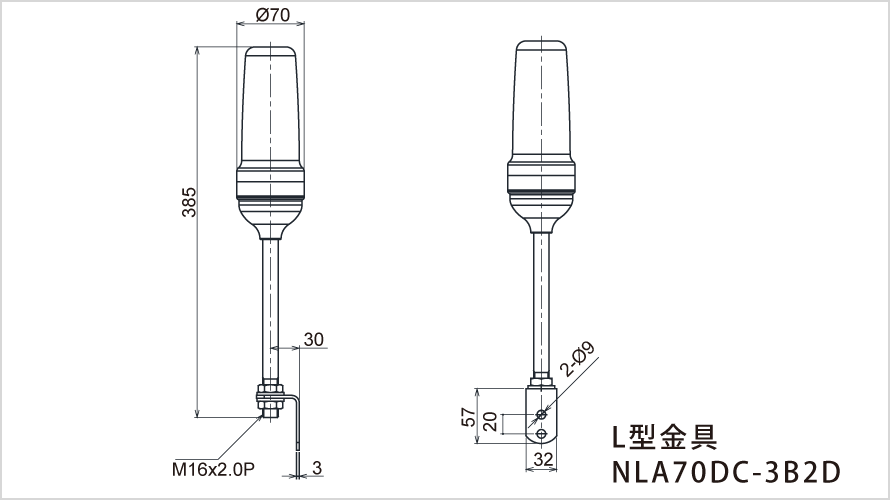

L-shaped base: B2

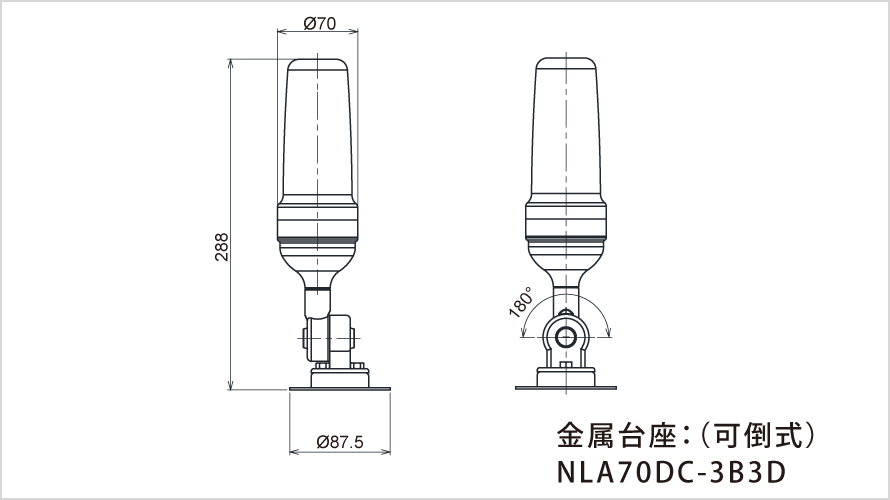

Metal base: (adjustable angle) B3
Metal base: B4
Fixed base: B6

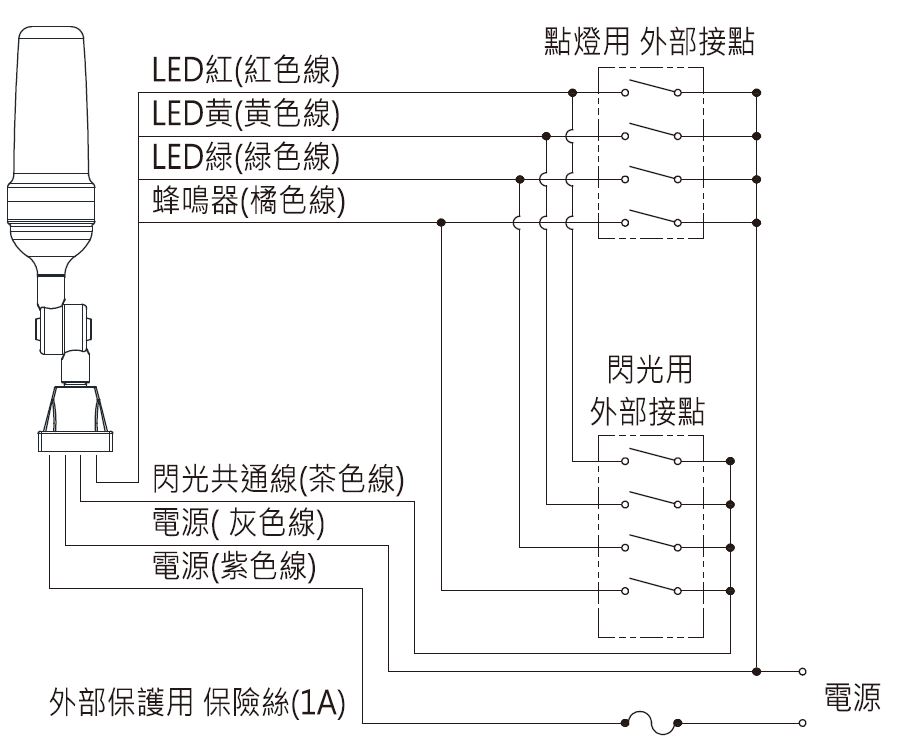

Wiring diagram (DC)/signal line color list

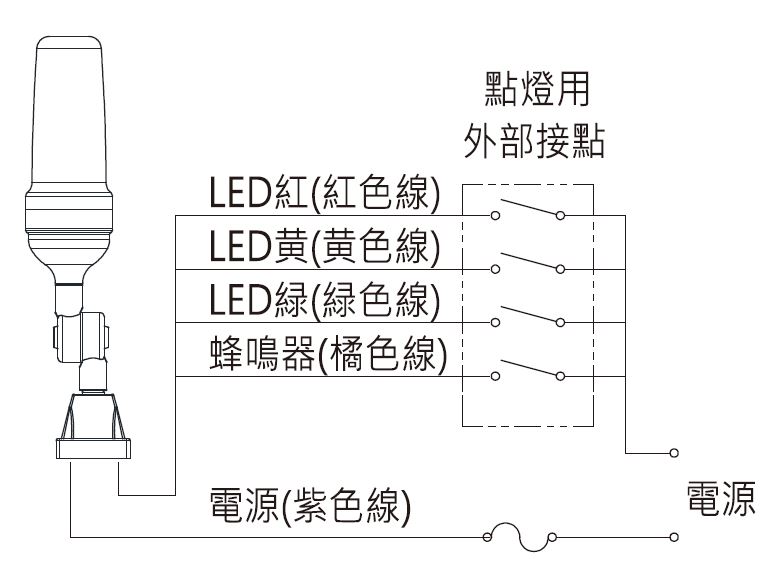

Wiring diagram (DC)/signal line color list
| Signal line color matching list | |
|---|---|
| red light | red |
| yellow light | yellow |
| green light | green |
| buzzer | Tachibana |
| flash common line | Tea |
| power cord | purple |
Type selection method
| model | power supply | Base | flashing | buzzer | color | lampshade | |
|---|---|---|---|---|---|---|---|
| NLA70 |
|
|
|
|
|
|
|
