LED warning light
NLA65 series
Feature

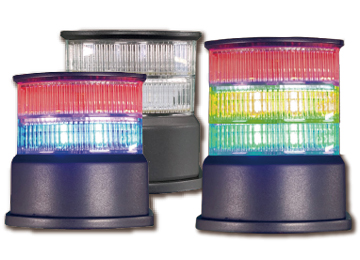

The lightweight and streamlined LED laminated warning light uses highly reliable and high-efficiency LEDs. It has the characteristics of bright illumination, lightweight, and low price.
Warning lights (indicators) have five luminous colors: red, yellow, green, blue, and white. Various luminous colors can be arranged and combined at will, and up to five layers can be combined.
The LED itself is used to emit light of each color, and with the design of a transparent lamp housing, each color is clearly visible. Each layer of lamp shells is connected to each other by a female pin header, which has good shock resistance. It adopts a circuit design that can withstand sudden surge current or instantaneous power outage without causing damage.
The main body is made of nylon resin and has high resistance to oil mist drugs. The appearance is matte black and has a streamlined design. It can be used on machine tools or semiconductor equipment. It is also very suitable for use on gaming machines and various entertainment machines.
Applicable

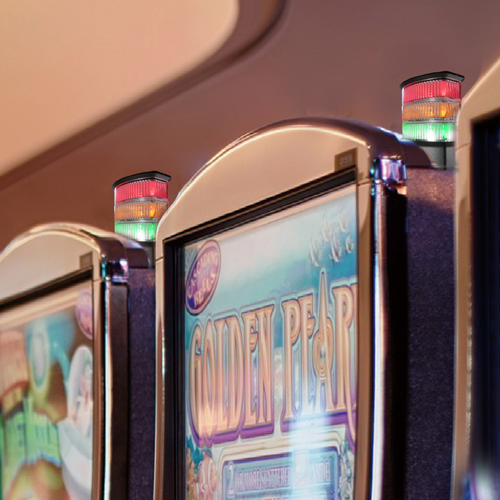

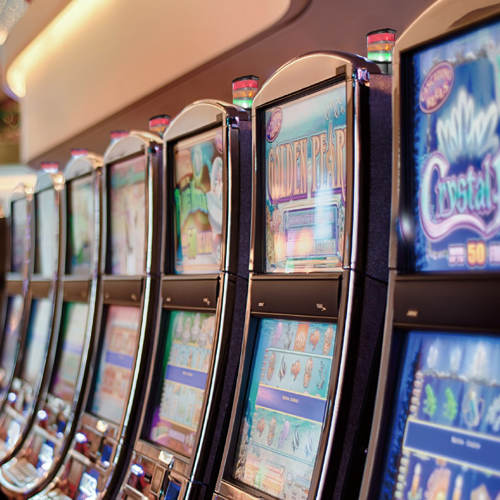

Tool machinery operating status display (attention and reminder), semiconductor machines, automatic control machines, gaming machines, and game machines.
Specification
| life expectancy | Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
|---|---|
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| protection level | IP50 |
| Body material | nylon |
| Standard wiring | Plastic base 1000mm (UL1007*AWsG22) |
| Select accessories | flashing |
| Buzzer: Volume 85dB (measured at 1m) ※The intermittent beeping sound (58 times/min) must be triggered by the flashing common line |
|
| certification |  |
Standard model list
| model | power supply | color | Power consumption |
|---|---|---|---|
| NLA65 | DC12V DC24V |
red | 0.7W |
| yellow | 0.4W | ||
| green | 0.6W | ||
| blue | 0.9W | ||
| white | 0.3W |

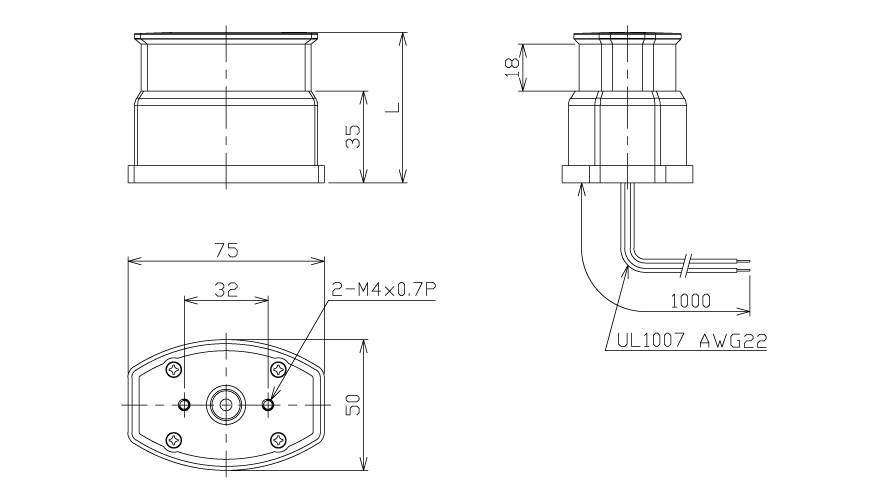

Dimensional drawing
| L size | |||||
|---|---|---|---|---|---|
| NLA65DC- | 1B7K | 2B7K | 3B7K | 4B7K | 5B7K |
| L（mm） | 57.5 | 75.5 | 93.5 | 111.5 | 129.5 |

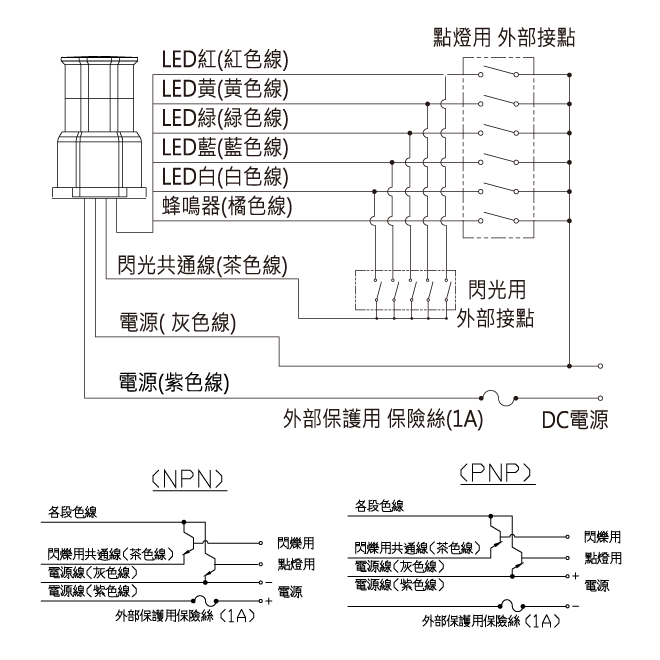

Wiring diagram (DC)
Type selection method
| model | power supply | Number of layers | flashing | buzzer | color | |
|---|---|---|---|---|---|---|
| NLA65 |
|
|
B7K |
|
|
|
