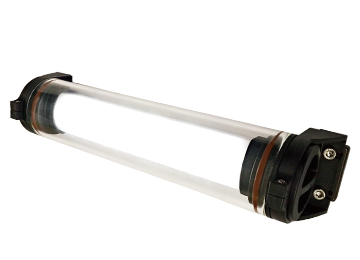

NLB-G series
Feature
The rechargeable waterproof LED light has a built-in high-efficiency lithium battery.
The outer cover is a glass tube with high light transmittance, which is resistant to cutting oil and acid and alkali liquids.
It adopts magnet adsorption and fixation method, no wires are required, and it has excellent mobility and can be easily placed in any position within the machine.
It emits natural light and has a wide irradiation range, and there is no glare unique to LED.
Long-life battery safety design: protection circuit for overcharge, over-discharge and high temperature.
Use
Lighting in environments with high humidity, high acid and alkali, impact resistance, and places where power supply is difficult
Specification
| color temperature | 5,700K |
|---|---|
| Use temperature | -10℃～40℃ |
| protection level | IP67 (fully waterproof) |
| Body material | glass tube |
| consume electricity | 3.5W / 6W |
| Charging interface | USB type-C |
| Dimming function | Full light (H) 1/2 (M) 1/3 (L) |
| flashing function | Hold for 3 seconds |
| certification |
 (lithium ion battery)
|
| Accessories | Fixed magnet (ND-P04) |
|---|
NLBG side part explanation
Double-layer oil seal (O-ring) has strong sealing performance.
Large diameter and easy to open.
Power switch/USB charging port
Standard model list
| model | Battery | Luminous flux | Illumination (0.5m) | Power consumption | Charging voltage | Charging time | Lighting time |
|---|---|---|---|---|---|---|---|
| NLB03G | Lithium-ion battery 3.7V/1800mAh |
360 lm | 400 lx | 3.5W | USB 5V/1A | 2.5 hours | 2 hours (H) 5 time(M) 12 hours (L) |
| NLB06G | Lithium-ion battery 3.7V/3700mAh |
750 lm | 820 lx | 6W | USB 5V/2A | 2.75 hours |

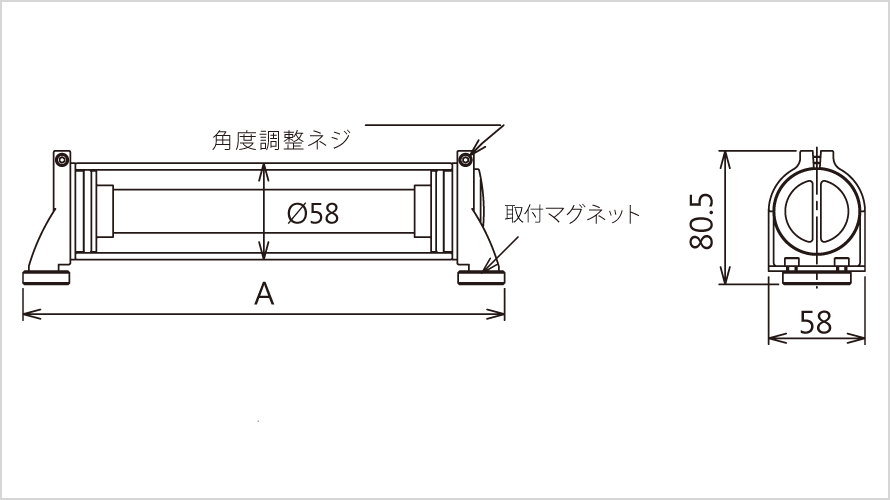

Dimensional drawing
NLBG
| Model/size (mm) | A |
|---|---|
| NLB03G | 290 |
| NLB06G | 410 |

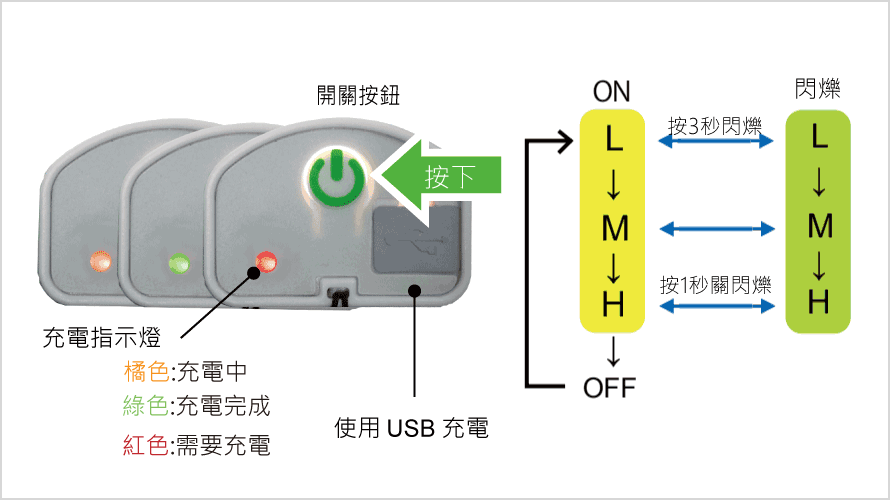

How to operate
Accessories
-
fixed magnet
- Model: ND-P04
- Dimensions: 41Lx28Wx8H
- Packing quantity: 2 pieces/pack
- Includes: Allen head screws
M5x25L 4 pieces - Magnet: Neodymium magnet
- ※Drawing "download"
