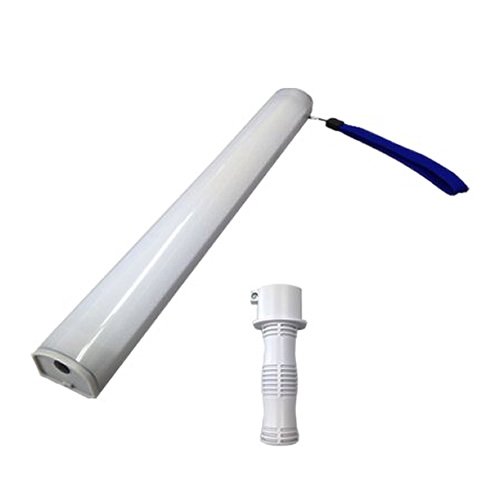

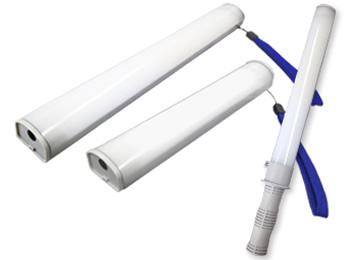

NLB-V series
Feature
Handheld rechargeable LED lighting plays an excellent role in equipment inspections, emergencies, outdoor activities and more.
The main body adopts a milky white cover, which is made of lightweight and shock-resistant PVC polycarbonate.
Can illuminate a wider range.
IP65 waterproof and dustproof design, can be used in rainy or dusty environments.

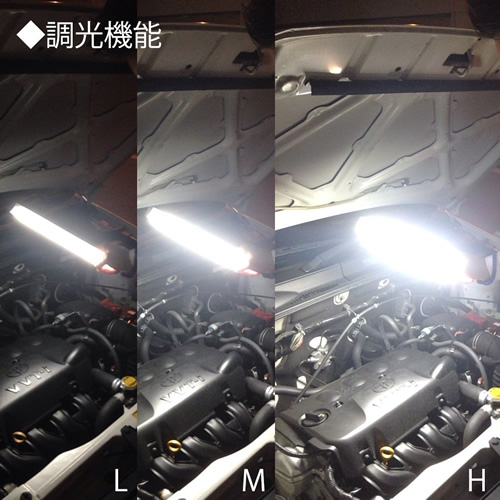

With (H), (M), (L) dimming functions, brightness and power consumption can be adjusted
Charging time is 2.5 hours.
There is a magnet on the back of the lamp body, which can be adsorbed on the surface of metal objects.
Applicable
Indoor and outdoor work lights, factory machinery inspection lights, emergency lights, leisure activity lights (camping, fishing), etc.Specification
| color temperature | 5,700K |
|---|---|
| Use temperature | -10℃～40℃ |
| protection level | IP65 |
| Body material | Polycarbonate(PC) |
| Power consumption | 3.5W / 6W |
| Charging style | USB type-C |
| Dimming function | Full light (H) 1/2 (M) 1/3 (L) |
| flash function | Press and hold for 3 seconds |
| magnet iron | Built-in magnet on the back |
| certification |    (lithium ion battery) |
| Accessories | Handle (with magnet) (ND-P11) |
|---|---|
| Anti-fall sling |
| Optional accessories | Magnetic clasp (ND-P13) |
|---|---|
| Magnetic base (ND-P14) |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Feature introduction
The handheld NLB-V has uniform light and a wide range of ambient lighting, making it very suitable for outdoor activities.
It has 2.5 hours of fast charging, 12 hours of long-lasting lighting, and IP65 daily waterproof rating.
It has high strength and impact resistance, is lightweight, and is easy to carry at home or during travel.

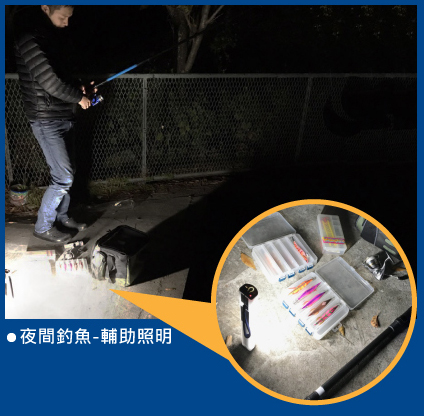

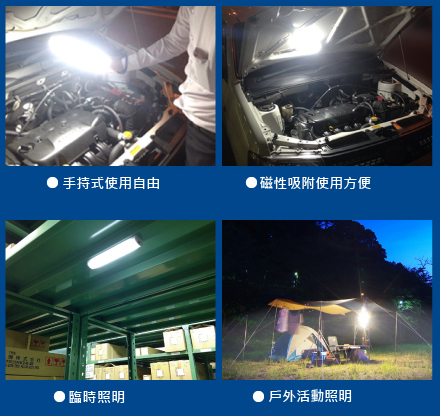

Use cases
Standard model list
| model | Battery | Luminous flux | Illumination (0.5m) | Power consumption | Charging voltage | Charging time | Lighting time |
|---|---|---|---|---|---|---|---|
| NLB03V | rechargeable lithium ion 3.7V/1800mAh |
360 lm | 400 lx | 3.5W | USB 5V/1A | 2.5hr | 2hr（H） 5hr（M） 12hr（L） |
| NLB06V | rechargeable lithium ion 3.7V/3700mAh |
750 lm | 820 lx | 6W | USB 5V/2A | 2.75hr |

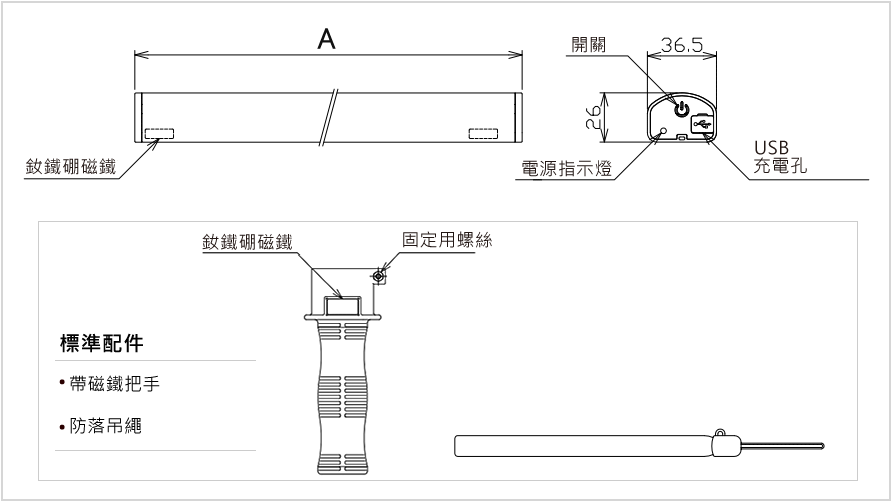

Dimensional drawing
NLB-V
| Model/size (mm) | A |
|---|---|
| NLB03V | 205 |
| NLB06V | 325 |

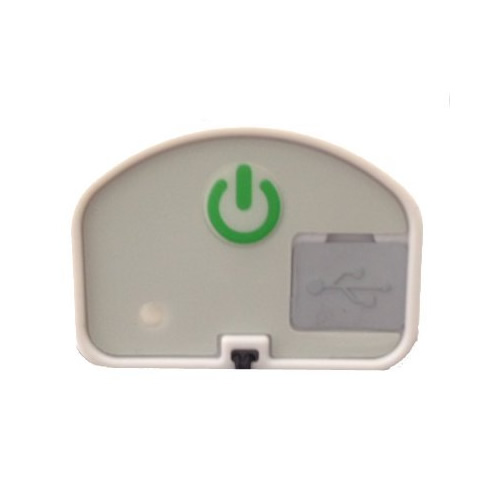

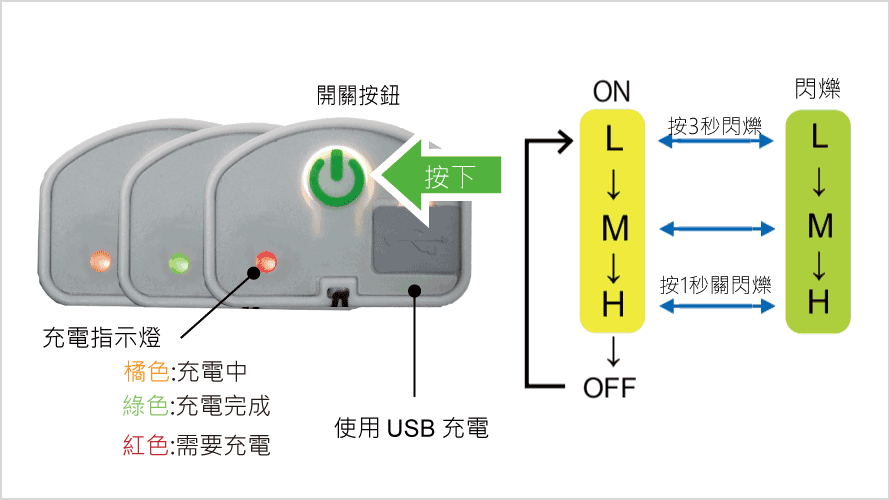

How to operate
Basic accessories
-
With magnet handle
- Model: ND-P11
-

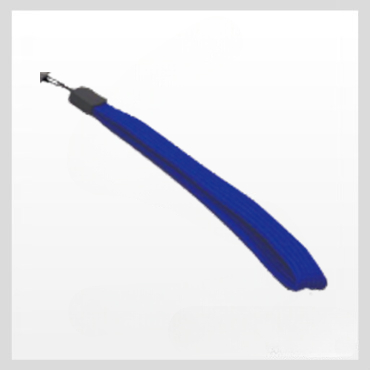

Anti-fall sling
- Anti-fall sling
Select accessories
-
Magnetic clasp
- Model: ND-P13
-
Magnetic base
- Model: ND-P14
Examples of use of optional accessories

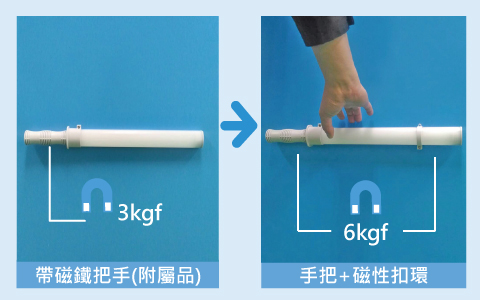

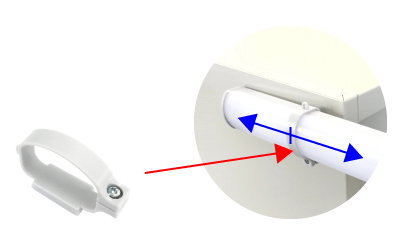

【ND-P13】
Magnetic clasp slides freely to adjust position

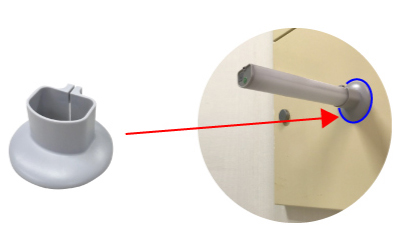

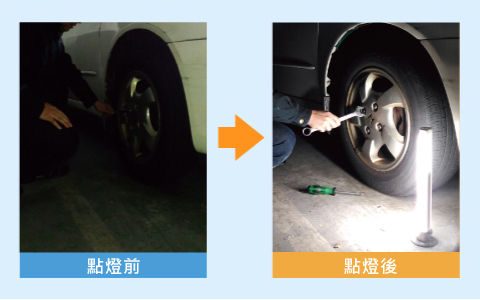

【ND-P14】
Use the auxiliary magnetic base to allow the lamp to stand, or it can be attached vertically to the wall.
