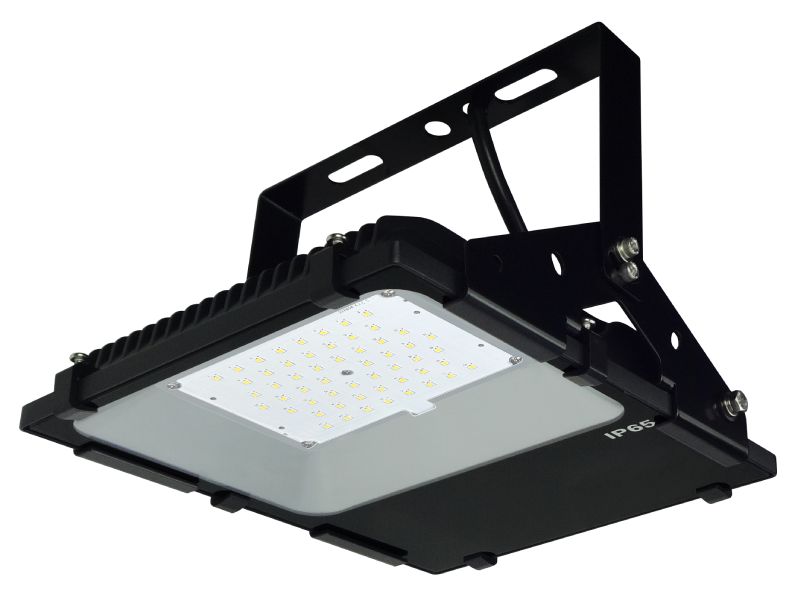

Factory lighting NLFL-HL series
Feature
The hanging floodlight has a 120° ultra-wide angle illumination range and is suitable for facade lighting environments.
Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the life of the LED can be increased.
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages. It is an LED projector with high insulation and safety design.
It uses LEDs that are highly trusted in the world. The body is made of aluminum and the front is made of heat-treated glass. The whole is sturdy and not easy to be damaged.
※The hanging floodlight is equipped with an anti-fall steel cable for added safety protection.
Applicable
Factory lighting, indoor lighting, warehouse lighting, gas station lighting.
-

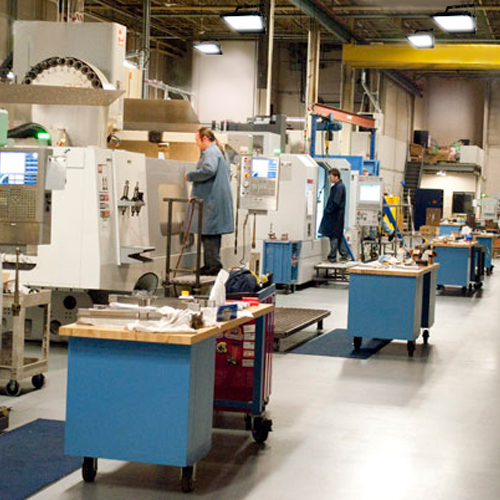

Factory task lighting
-

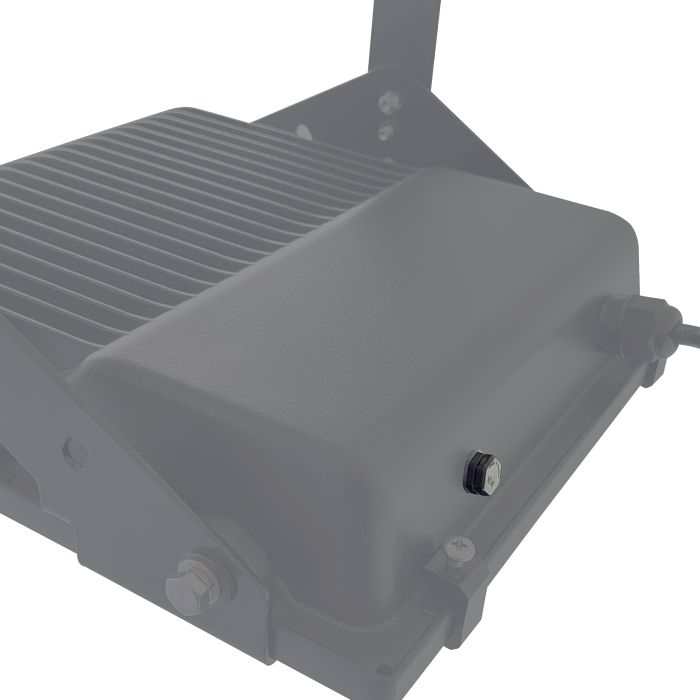

Breathing valve balances
the negative pressure difference between inside and outside -

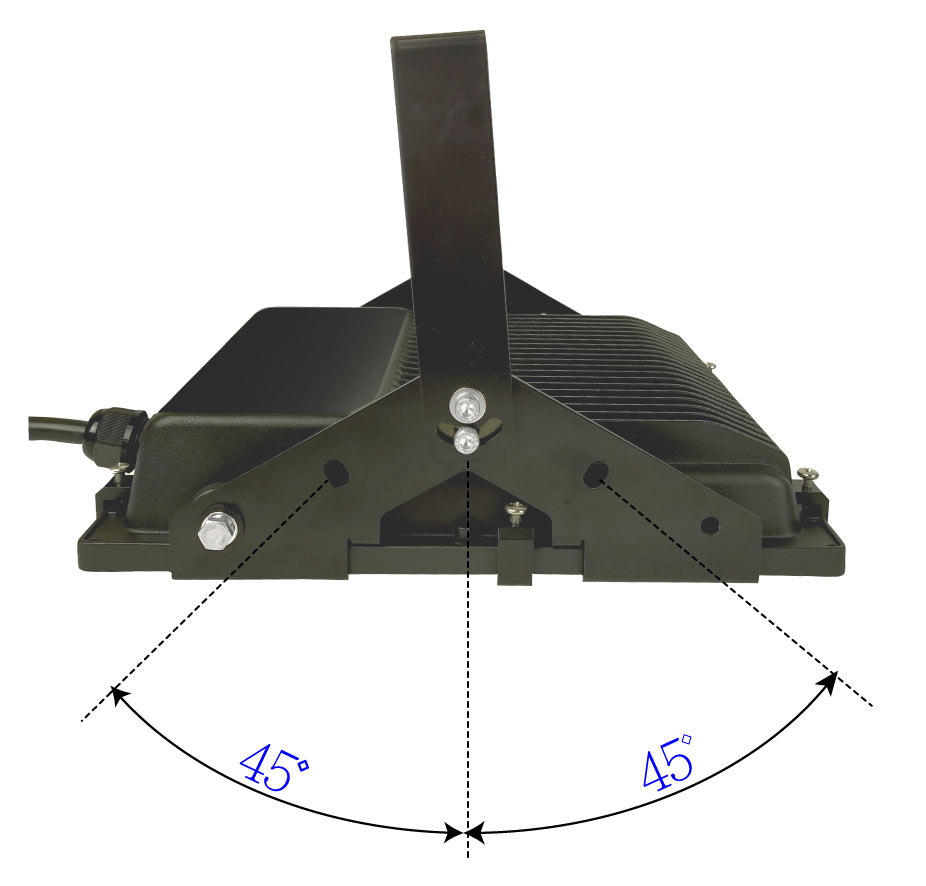

The angle can be
adjusted on the left and right sides -

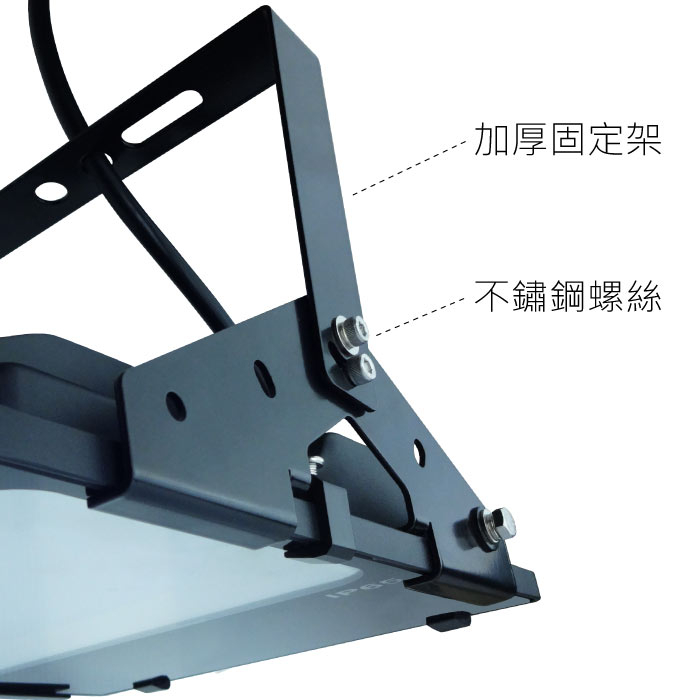

Selected materials
Specification
| color temperature | 5,700K |
|---|---|
| Body material | Aluminum alloy |
| life expectancy | Use temperature 25℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the condition of no freezing) |
| protection level | IP65 |
| power supply | AC100 - 240V |
| Standard wiring | Oil resistant wire 0.5m（VCTF0.75mm2x3C） |
| Accessories | Anti-fall wire rope |
|---|
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Lightning surge protection
Use lightning protection design to prevent lightning surges, thereby protecting the lamps from damage caused by lightning. (Surge waveform 8/20μs, may cause 10kA discharge)
If a direct lightning strike or induced lightning strike occurs, surge waves may be conducted by wires, causing damage to electronic machinery. This lighting product is equipped with a surge protector containing lightning protection.
The line withstand is ±6kV
3
times the international standard
Withstand ±15kV to ground
3.75
times the international standard
SPD (lightning arrester)
Protect LED floodlights by limiting the instantaneous fluctuation current (surge) generated by lightning.
A general lightning strike will cause an electric shock of tens of kV or more, but this LED lamp has an SPD between the power supply IC and the ground, so when an electric shock occurs, the surge will flow back to the ground through the SPD.
※When using this lamp, be sure to connect it to ground.
Standard model list
| model | drawing | Luminous flux | Illumination (3m) | Surge Protection | power supply | Power consumption | Luminous Efficacy |
|---|---|---|---|---|---|---|---|
| NLFL50-HL-AC | PDF DXF | 8,600 lm | 345 lx | 15kV | AC100 - 240V | 50W | 172 lm/W |
| NLFL80-HL-AC | PDF DXF | 12,230 lm | 540 lx | 80W | 165 lm/W | ||
| NLFL100-HL-AC | PDF DXF | 15,820 lm | 650 lx | 100W | 158 lm/W | ||
| NLFL150-HL-AC | PDF DXF | 15,600 lm | 620 lx | 150W | 104 lm/W | ||
| NLFL200-HL-AC | PDF DXF | 19,700 lm | 770 lx | 180W | 98 lm/W |

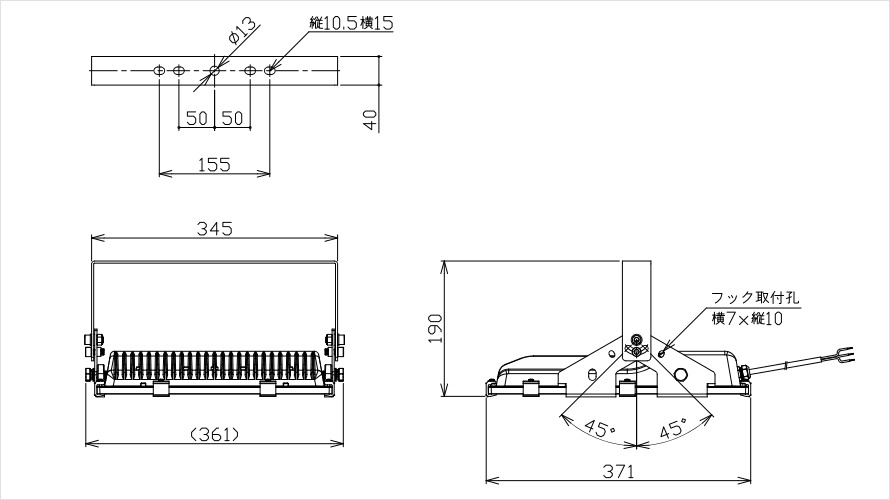

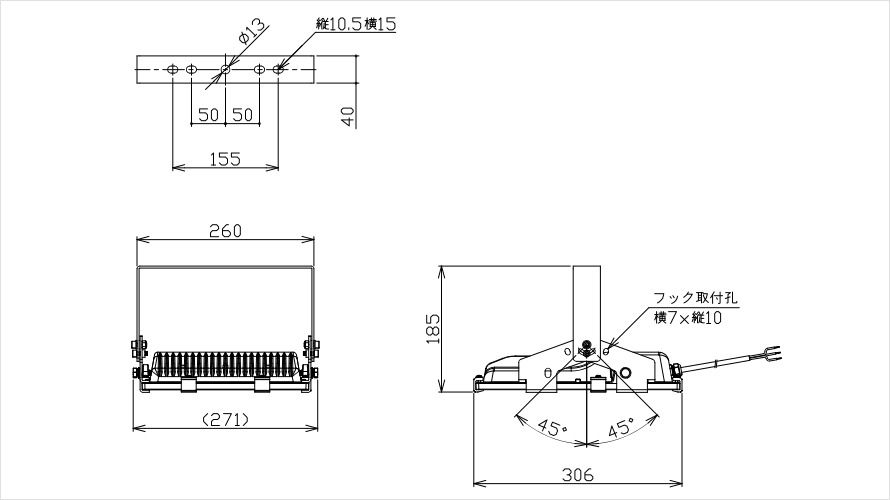

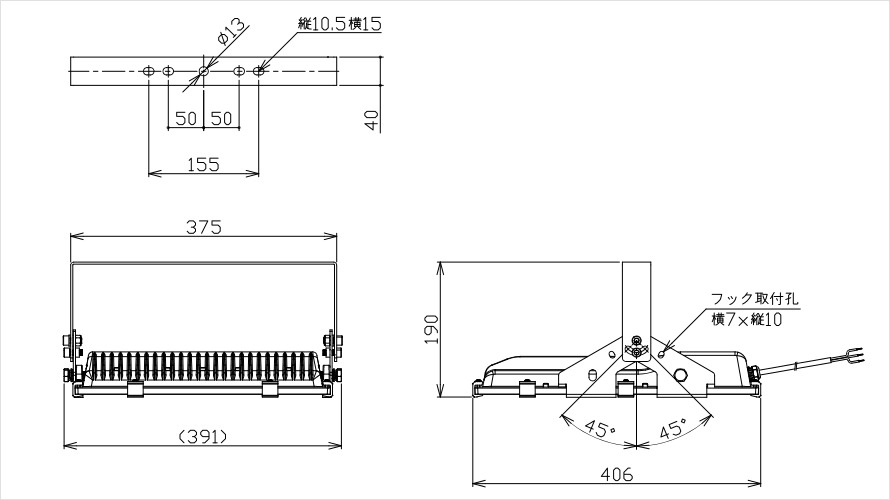

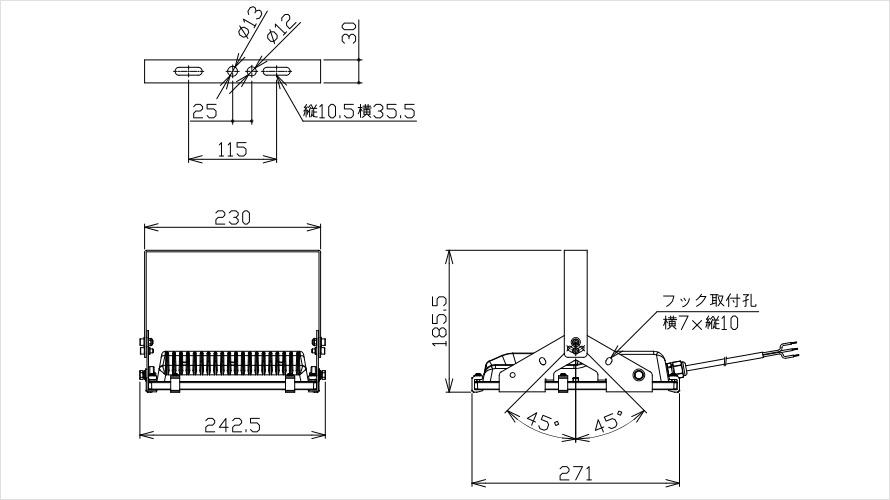

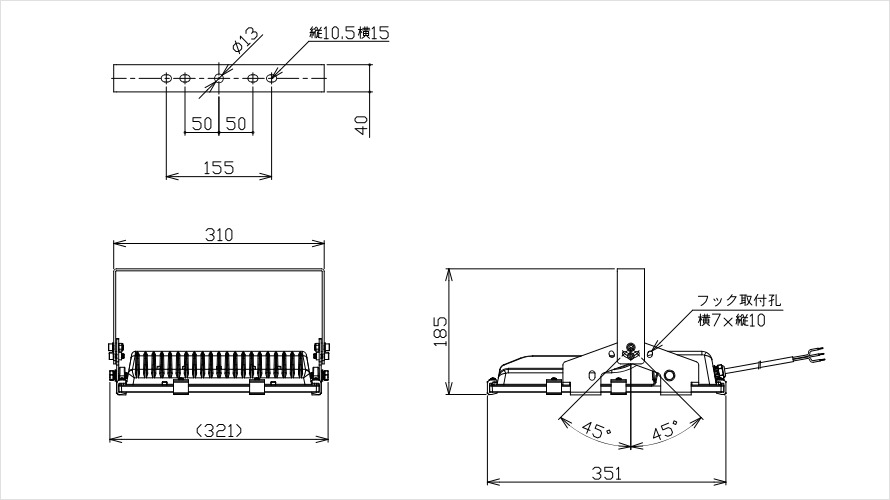

Appearance dimension drawing
NLFL50-HL-AC
NLFL80-HL-AC
NLFL100-HL-AC
NLFL150-HL-AC
NLFL200-HL-AC
