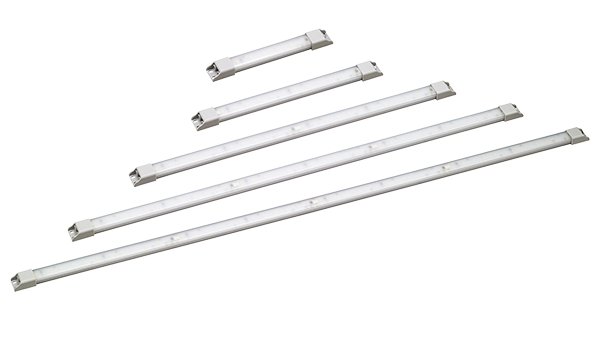

NLT Series
Features
The NLT series is a slim LED light built with a DOB (Driver on Board) design for compact industrial installations.
The milky-white housing produces smooth, even illumination while reducing the sharp glare often associated with LEDs, helping improve visual comfort during long work periods.
A constant-current IC drive circuit keeps brightness stable even when input voltage fluctuates, supporting consistent performance and longer LED service life.
Nikki's proprietary protection circuit helps protect the light from inrush current and momentary power interruptions.
The high-insulation safety design uses reliable LEDs selected for demanding industrial environments.
Applications
Equipment lighting, machine lighting, control panel lighting, distribution cabinet lighting, refrigerated storage lighting, and other compact installation spaces.Specifications
| Color Temperature | 5,700K |
|---|---|
| Expected Service Life | 40,000 hours at 40°C ambient temperature * Service life is based on luminous output decreasing to 70% of the initial value. |
| Operating Temperature | -10°C to 40°C (non-freezing conditions) |
| Protection Rating | IP65 |
| Power Supply | DC24V |
| Standard Cable | 3m （ AWG26x2C ） |
| Housing Color | Milky white |
| Certifications |
|
| Optional Accessories |
|---|
| Clear housing |
| Mounting magnets (ND-P03) |
| AC/DC power supply (ND-PM243) |
| Switch control cable (ND-SW01) |
Gentle Flicker-Controlled Light Source
IEEE 1789 provides guidance for evaluating the effect of lighting flicker. A flicker percentage of 8% is commonly treated as a safety reference, while flicker becomes almost imperceptible to the human eye at approximately 3%.
Nikki's proprietary design reduces flicker to below 2%, helping prevent visible flicker in still images and video. Even when filming at high frame rates such as 240 fps, the light helps avoid banding, making it suitable for image inspection, appearance inspection, precision photography, and long-duration visual work.
* The comparison below shows illumination under a Nikki light source.
Conventional LED: flicker and banding may appear during photography.
Nikki LED light: smooth, even, flicker-controlled illumination.
Standard Models (Housing: Milky White)
| Model | Drawing | Luminous Flux | Illuminance (1 m) | Power Supply | Power Consumption |
|---|---|---|---|---|---|
| NLT05-DC-S | PDF DXF | 190 lm | 60 lx | DC24V | 2.4W |
| NLT10-DC-S | PDF DXF | 480 lm | 160 lx | 4.8W | |
| NLT20-DC-S | PDF DXF | 970 lm | 320 lx | 10.8W | |
| NLT30-DC-S | PDF DXF | 1,450 lm | 470 lx | 15.6W | |
| NLT40-DC-S | PDF DXF | 1,980 lm | 640 lx | 21.6W | |
| NLT50-DC-S | PDF DXF | 2,590 lm | 845 lx | 24W |
Light Distribution Data

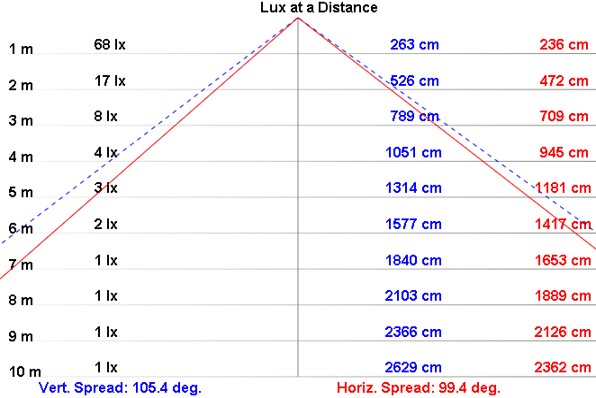

NLT-05-DC-S
NLT-10-DC-S

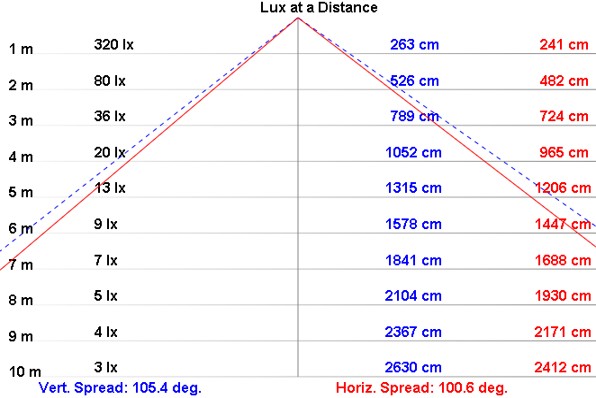

NLT-20-DC-S

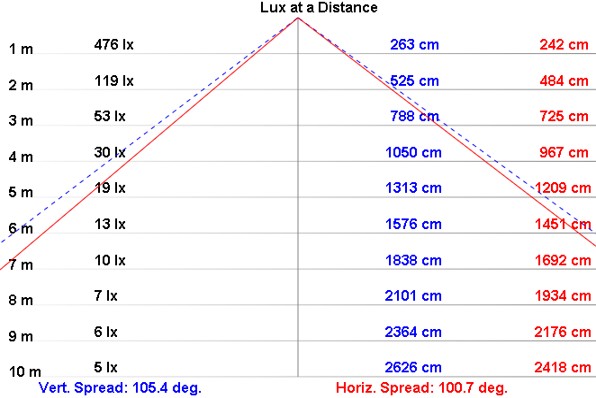

NLT-30-DC-S

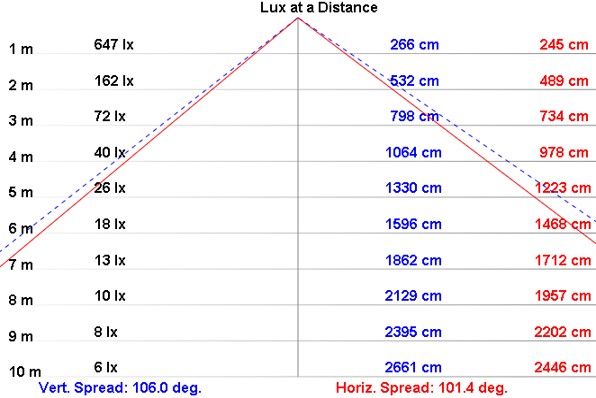

NLT-40-DC-S

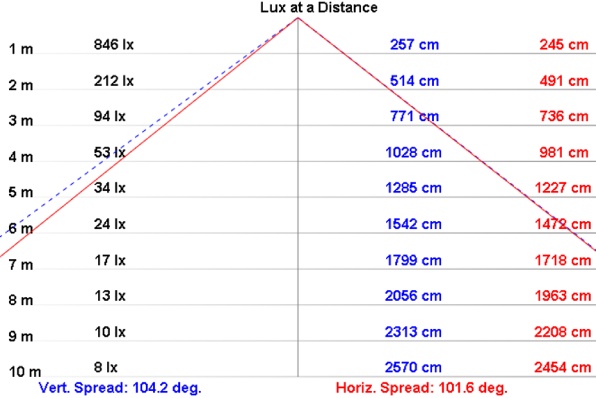

NLT-50-DC-S
Standard Models (Housing: Clear)
| Model | Drawing | Luminous Flux | Illuminance (1 m) | Power Supply | Power Consumption |
|---|---|---|---|---|---|
| NLT05-DC | PDF DXF | 210 lm | 70 lx | DC24V | 2.4W |
| NLT10-DC | PDF DXF | 530 lm | 170 lx | 4.8W | |
| NLT20-DC | PDF DXF | 1,050 lm | 320 lx | 10.8W | |
| NLT30-DC | PDF DXF | 1,570 lm | 480 lx | 15.6W | |
| NLT40-DC | PDF DXF | 2,100 lm | 660 lx | 21.6W | |
| NLT50-DC | PDF DXF | 2,825 lm | 890 lx | 24W |

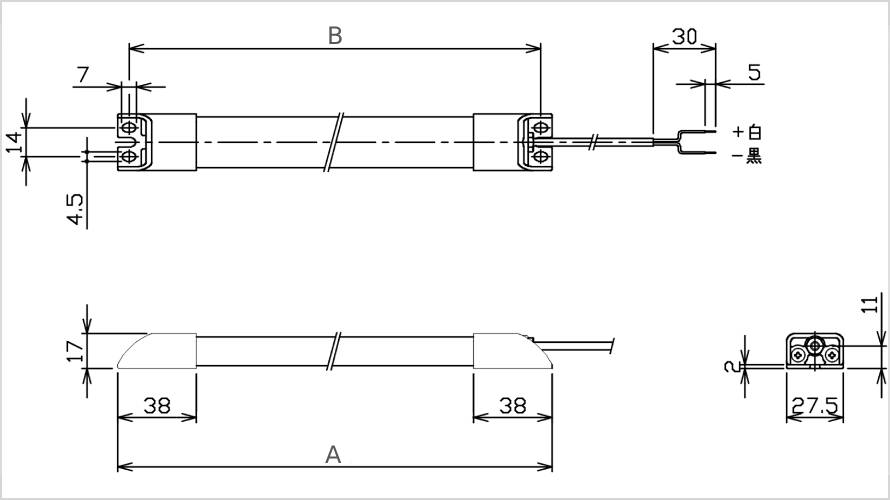

Dimensions
Standard Type
| Model / Dimensions (mm) | A | B |
|---|---|---|
| NLT05-DC-S | 210 | 200 |
| NLT10-DC-S | 330 | 320 |
| NLT20-DC-S | 580 | 570 |
| NLT30-DC-S | 830 | 820 |
| NLT40-DC-S | 1080 | 1070 |
| NLT50-DC-S | 1340 | 1330 |
Optional Accessories
-
Wall-Mount AC/DC Power Supply
- Model: ND-PM243
- Certifications: PSE, FCC
- Input voltage: AC100-240V
- Output voltage: DC24V
- Output power: 24W max.
- Cable length: 1.8 m
- Output plug: DC Phi 5.5 x 2.5 mm
- Drawing: Download
-
Mounting Magnet Set
- Model: ND-P03
- Dimensions: 41L x 28W x 8H mm
- Quantity: 2 magnets per set
- Included screws: M4 x 6L, 4 pcs
- Drawing: Download
-
Switch Control Cable
- Model: ND-SW01
- Cable length: 0.3 m
- Applicable voltage: 5V-24V
- Allowable current: 3A
- Output plug: DC Phi 5.5 x 2.5 mm
- Drawing: Download
Model Number Selection Guide
| Series | Size | Power | Housing | Options |
|---|---|---|---|---|
| NLT |
|
|
|
|
