Slim LED lighting

(NLT3 series)

Product list

NLT3 series

MAIN product image

Feature

Using the DOB (Driver on Board) design method, the LED and power circuit are on the same PCB; it is thinner and lighter than the NLT2 series.

The milky white shell makes the lamp emit light more uniformly and suppresses the unique flickering light of LED; it is a lighting lamp that is better for the eyes.

Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the life of the LED can be increased.

The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages.

Safe design with high insulation, using LED with high reliability in the world.

Applicable

Automatically control lighting, lighting in distribution boxes, lighting in refrigerated warehouses, etc.

Specification

color temperature 5,700K
life expectancy Ambient temperature 25℃ 60,000 hours
※Life span is based on initial illumination reduced to 70%
Use temperature -10℃～40℃
protection level IP65
power supply DC24V
Standard wiring 1m （ AWG26x2C ）
Shell color milky
Certification ce FCC
Select accessories
shell=transparent
Color temperature 591nm
Fixed magnet (ND-P03)
Fixing bracket (ND-P15)
AC/DC power supply (ND-PM243)
Switch control line (ND-SW01)

NLT3 waterproof LED lighting purchase

Gentle light source without flicker

The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.

Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.

※The picture below shows the situation under the light source of a Nikki product.

FLICKER product image [General LED] Flickers and streaks may be observed during photography
FLICKER product image [Nikki product] Mild and even light, no flicker

List of standard models (casing: milky white)

model drawing Luminous flux Illuminance (1m) power supply Power consumption
NLT3-05-DC-S PDF  DXF  3D STEP 230 lm 60 lx DC24V 1.8W
NLT3-10-DC-S PDF  DXF  3D STEP 440 lm 110 lx 3.8W
NLT3-20-DC-S PDF  DXF  3D STEP 910 lm 230 lx 7.5W
NLT3-30-DC-S PDF  DXF  3D STEP 1,400 lm 360 lx 12W
NLT3-40-DC-S PDF  DXF  3D STEP 1,920 lm 490 lx 16W
NLT3-50-DC-S PDF  DXF  2,440 lm 620 lx 24W

Light distribution curve data

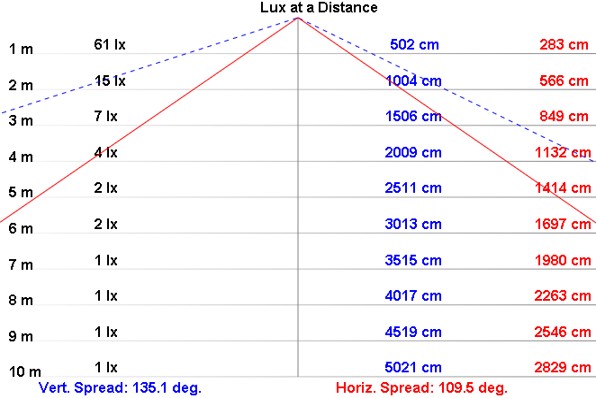

NLT3-05-DC-S (shell: milky white)

NLT3-05 product image
Picture view

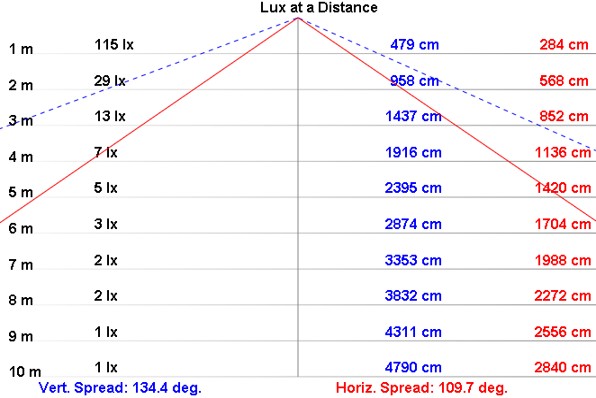

NLT3-10-DC-S (shell: milky white)

NLT3-10 product image
Picture view

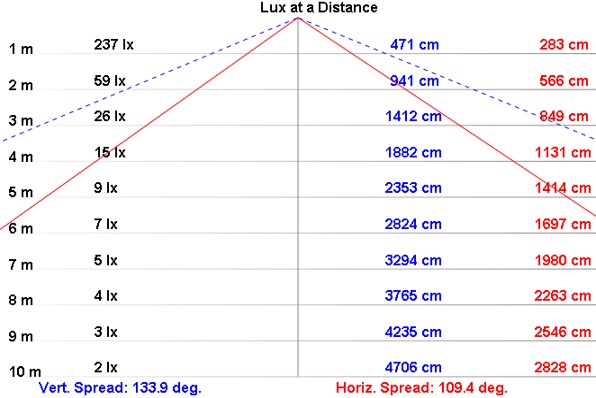

NLT3-20-DC-S (shell: milky white)

NLT3-20 product image
Picture view

NLT3-30-DC-S (shell: milky white)

NLT3-30 product image
Picture view

NLT3-40-DC-S (shell: milky white)

NLT3-40 product image
Picture view

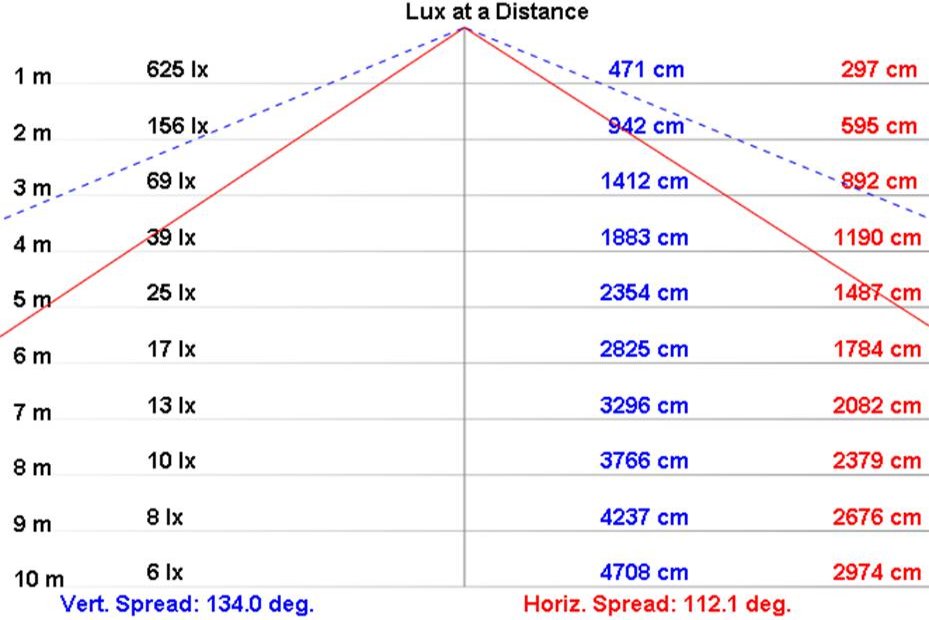

NLT3-50-DC-S (shell: milky white)

NLT3-50 product image
Picture view

List of standard models (casing: transparent)

model drawing Luminous flux Illuminance (1m) power supply Power consumption
NLT3-05-DC PDF  DXF  3D STEP 280 lm 90 lx DC24V 1.8W
NLT3-10-DC PDF  DXF  3D STEP 560 lm 180 lx 3.8W
NLT3-20-DC PDF  DXF  3D STEP 1,090 lm 340 lx 7.5W
NLT3-30-DC PDF  DXF  3D STEP 1,660 lm 500 lx 12W
NLT3-40-DC PDF  DXF  3D STEP 2,280 lm 690 lx 16W
NLT3-50-DC PDF  DXF  2,760 lm 870 lx 24W

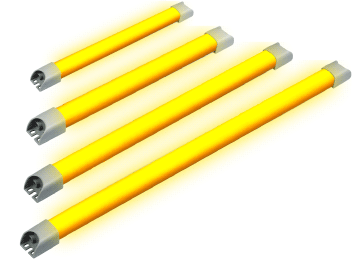

NLT3 series (clean room yellow light | yellow area lighting) ※Customized products

PCAMBER product image

Feature

Photolithography is a method of technology in semiconductor manufacturing.

The wafers are coated with photoresist to make the doping and etching processes easier.

Photoresist is insensitive to light with wavelengths between 500 and 690 nm.

Therefore, lighting fixtures with wavelengths between 500 and 690 nm were installed to prevent adverse photoresist reactions.

NLT3 PC Amber 591nm LED lights are very suitable for such working environments.

Applicable

Lithography machine lighting, clean room lighting, PCB exposure machine lighting, photosensitive film exposure room lighting.

Specification

wave length 591nm
life expectancy Ambient temperature 25℃ 60,000 hours
※Life span is based on initial illumination reduced to 70%
Use temperature -10℃～40℃
protection level IP65
power supply DC24V
Standard wiring 1m （ AWG26x2C ）
Shell color milky
Select accessories Fixed magnet (ND-P03)
Fixing bracket (ND-P15)
AC/DC power supply (ND-PM243)
Switch control line (ND-SW01)

Standard model list

model drawing Luminous flux Illuminance (1m) power supply Power consumption
NLT3-05-DC-S (591nm) PDF  DXF  3D STEP 120 lm 35 lx DC24V 2.5W
NLT3-10-DC-S (591nm) PDF  DXF  3D STEP 300 lm 80 lx 3.8W
NLT3-20-DC-S (591nm) PDF  DXF  3D STEP 610 lm 160 lx 8W
NLT3-30-DC-S (591nm) PDF  DXF  3D STEP 930 lm 230 lx 12W
NLT3-40-DC-S (591nm) PDF  DXF  3D STEP 1,240 lm 310 lx 16W

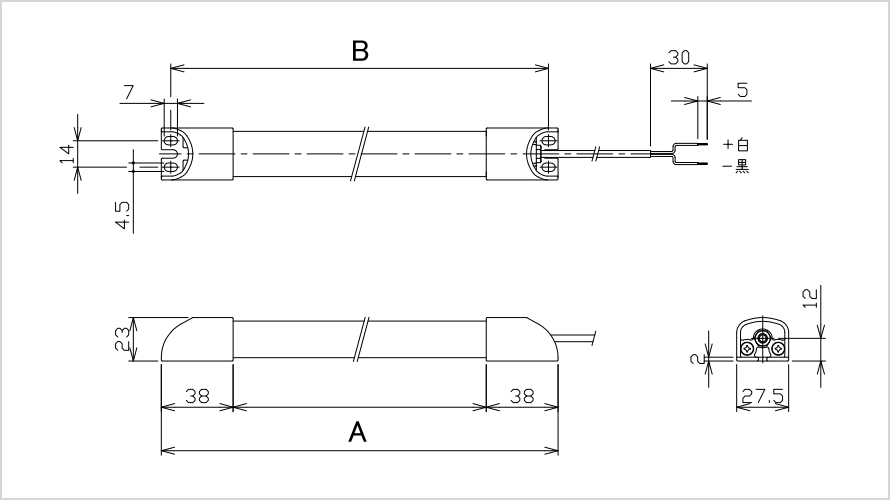

Dimensional drawing

Standard type

SIZE product image

Type/dimension(mm) A B
NLT3-05-DC-S 210 200
NLT3-10-DC-S 330 320
NLT3-20-DC-S 580 570
NLT3-30-DC-S 830 820
NLT3-40-DC-S 1,080 1,070
NLT3-50-DC-S 1,340 1,330

Select accessories


Series selection method

model Specification power supply shell Optional
NLT3
  • 05
  • 10
  • 20
  • 30
  • 40
  • DC=DC24V
  • AC＝AC100 - 240V
    ※Please use single-phase AC power supply
  • No label = transparent
  • S=milky white
  • Fixed magnet MODEL=ND-P03
  • Fixing bracket MODEL=ND-P15
  • Wavelength: 591nm
  • AC/DC power supply MODEL=ND-PM243
  • Switch control line MODEL=ND-SW01
