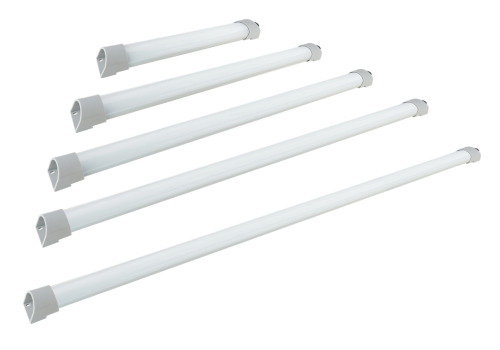

NLT2 series
Feature
It uses a high-transparency, impact-resistant polycarbonate PC body for a more lightweight design.
The optional 110V plug wire makes it easy to take with you and has various uses.
Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the life of the LED can be increased.
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages.
Safe design with high insulation, using LED with high reliability in the world.
Applicable
Lighting in distribution boxes, automatic control lighting, refrigerated warehouse lighting, etc.
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ |
| protection level | IP65 |
| power supply | AC110V |
| Standard wiring | 3m （VCTF0.75mm2x2C） |
| Shell color | milky |
| Certification |
|
| Select accessories | Shell Color = Transparent |
|---|---|
| Fixed magnet (ND-P03) | |
| Wall mount (ND-P07) | |
| Hanging fixed base (ND-P09) | |
| Fixing bracket (ND-P17) | |
| 2m cord with plug (AC110V) |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
List of standard models (casing: milky white)
| model | drawing | Luminous flux | Illuminance (1m) | power supply | Power consumption |
|---|---|---|---|---|---|
| NLT2-10-AC-S | PDF DXF 3D STEP | 900 lm | 250 lx | AC100-240V | 7W |
| NLT2-20-AC-S | PDF DXF 3D STEP | 1,900 lm | 500 lx | 14W | |
| NLT2-30-AC-S | PDF DXF 3D STEP | 2,900 lm | 750 lx | 20W | |
| NLT2-40-AC-S | PDF DXF 3D STEP | 3,900 lm | 1,000 lx | 27W | |
| NLT2-50-AC-S | PDF DXF 3D STEP | 4,140 lm | 1,130 lx | 34W |
※When optional plug wire is provided, only single voltage AC110V is provided, please add (2M+P) at the end of the model.
Light distribution curve data

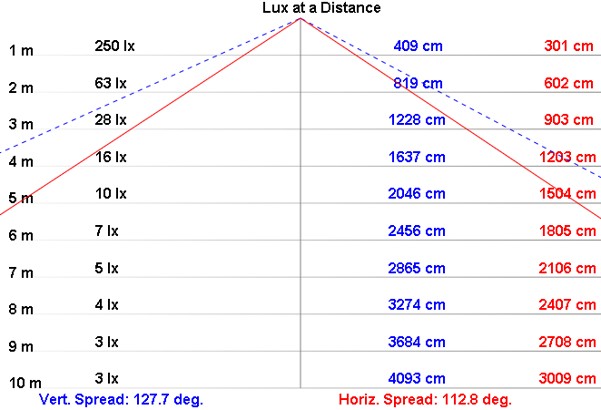

NLT2-10-AC-S

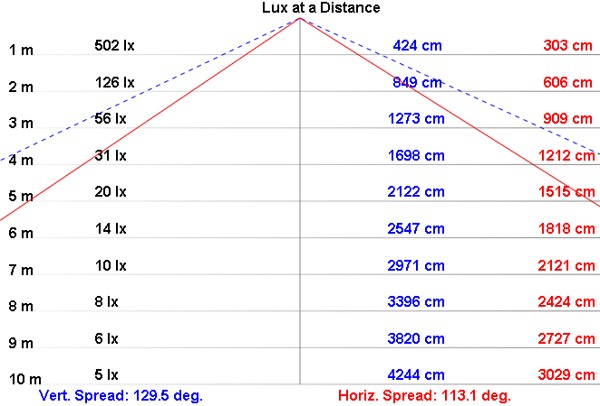

NLT2-20-AC-S

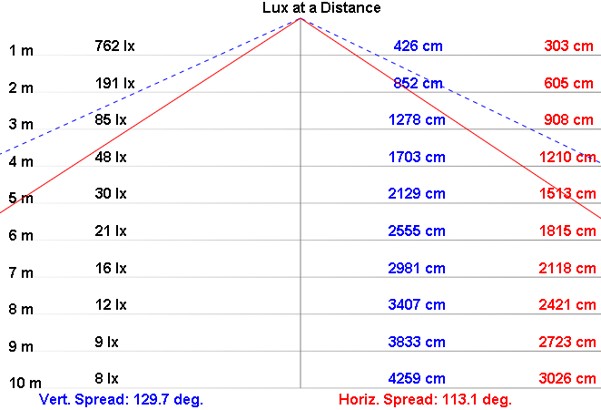

NLT2-30-AC-S
NLT2-40-AC-S
NLT2-50-AC-S
List of standard models (casing: transparent)
| model | drawing | Luminous flux | Illuminance (1m) | power supply | Power consumption |
|---|---|---|---|---|---|
| NLT2-10-AC | PDF DXF 3D STEP | 1,040 lm | 330 lx | AC100-240V | 7W |
| NLT2-20-AC | PDF DXF 3D STEP | 2,140 lm | 670 lx | 14W | |
| NLT2-30-AC | PDF DXF 3D STEP | 3,260 lm | 1,010 lx | 20W | |
| NLT2-40-AC | PDF DXF 3D STEP | 4,330 lm | 1,370 lx | 27W | |
| NLT2-50-AC | PDF DXF 3D STEP | 4,880 lm | 1,560 lx | 34W |
※When optional plug wire is provided, only single voltage AC110V is provided, please add (2M+P) at the end of the model.

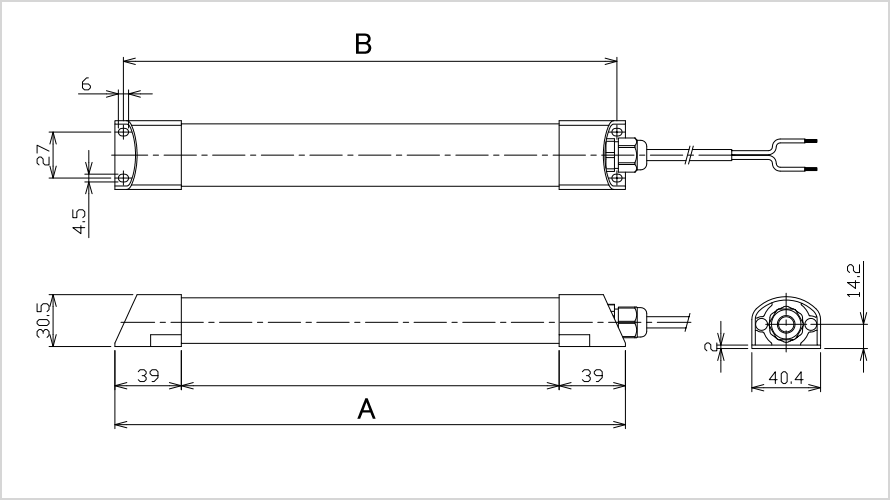

Dimensional drawing
Standard type
| Model/size (mm) | A | B |
|---|---|---|
| NLT2-10 | 300 | 290 |
| NLT2-20 | 520 | 510 |
| NLT2-30 | 735 | 725 |
| NLT2-40 | 950 | 940 |
| NLT2-50 | 1170 | 1160 |
Select accessories
-
fixed magnet
- Model:ND-P03
- Overall dimensions: 41Lx28Wx8H
- 2 magnets/set
- M4x6L 4 pieces
- ※Drawing "download"
Series selection method
| model | Specification | power supply | shell | Optional |
|---|---|---|---|---|
| NLT2 |
|
|
|
|
