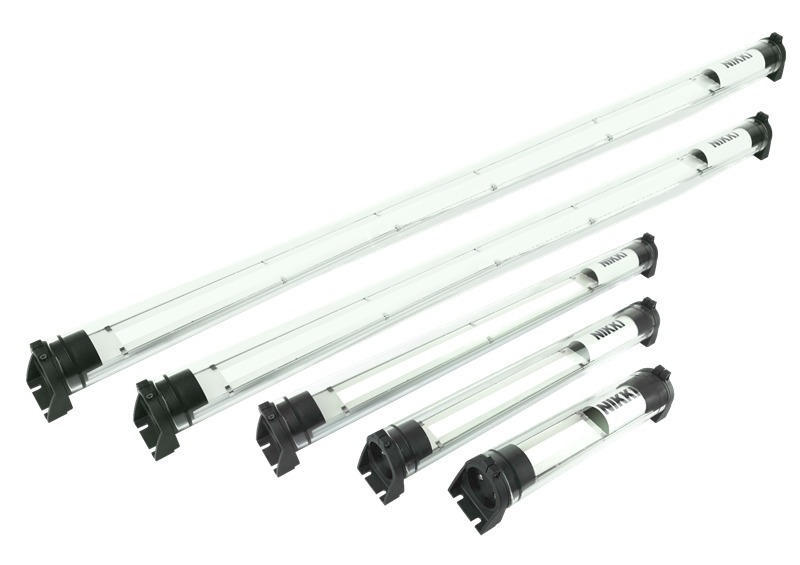

NLM SN2 series
Feature
This product is a waterproof LED lamp most suitable for internal lighting of machine tools. The mounting hole positions are the same as those of the previous NLM series.
The appearance is a glass tube with high light transmittance and a fiberglass nylon end cap, which makes the whole tube strong and durable.
The power supply uses a constant current IC drive circuit method, which can maintain the brightness of the lamp unchanged even if the voltage changes, and can increase the life of the LED.
The independently developed protection circuit design has a certain degree of protection against inrush currents, surges, or instantaneous power outages.
The unique optical design eliminates the glare and multi-layer overlapping phenomena unique to LEDs and achieves high-intensity natural light.
Applicable
Lighting inside machine tools, industrial machinery lighting, equipment machinery lighting, etc.
uniform light
NLM SN2 series lamps are designed with a diffusion plate on the LED light source; it can improve the messy reflected light source of LED and present a uniform light source.
No overlay
Left picture: NLM-SN2: There is no multi-layer overlap
phenomenon of traditional lamp beads, and it will not cause eye fatigue to inspectors
when used for a long time.
Other brands: Traditional LEDs can easily cause fatigue
to the eyes of inspectors due to glare and multi-layered shadows.
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Operating temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ |
| Appearance material | glass tube |
| protection level | IP67 |
| Standard wiring | DC 3m（VCTF0.5mm²x2C） AC 3m（VCTF0.75mm²x2C） |
| Certification |
|
| Select accessories | oil resistant wire |
|---|---|
| Wire protective cover (single side corrugated pipe connector) Wire protective cover (double-sided corrugated pipe connector) |
|
| Fixed magnet (ND-P04) Fixed iron clip (NC-562B) |
|
| 2m cord with plug (AC110V) |
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
