NLM series
Feature
The appearance is a glass tube with high light transmittance and a nylon end cap containing fiberglass material, making the whole structure strong and durable.
Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the LED life can be increased.
It has a uniquely developed protection circuit design that protects against inrush currents, surges, or instantaneous power outages. It also has high insulation properties and is most suitable for internal lighting of machine tools.
Using LEDs that are highly trusted around the world.
Applicable
Tool machinery interior lighting, industrial machinery lighting, equipment machinery lighting
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| Body material | glass tube |
| protection level | IP67 |
| Standard wiring | DC 3m （VCTF0.5mm2x2C） AC 3m （VCTF0.75mm2x2C） |
| Certification |
|
| Select accessories | Body material: PC tube |
|---|---|
| oil resistant wire Fluorine oil seal | |
| Wire protective cover (single side corrugated pipe connector) Wire protective cover (double-sided corrugated pipe connector) |
|
| Fixed magnet (ND-P04) Fixed iron clip (NC-562B) |
|
| 2m cord with plug (AC110V) |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Standard model list
| model | power supply | drawing | Luminous flux | Illuminance (1m) | Power consumption |
|---|---|---|---|---|---|
| NLM10SG-DC | DC24V | PDF DXF 3D STEP | 1,230 lm | 370 lx | 8W |
| NLM10SG-AC | AC100 - 240V | PDF DXF 3D STEP | 1,240 lm | 360 lx | 8W |
| NLM20SG-DC | DC24V | PDF DXF 3D STEP | 2,490 lm | 760 lx | 18W |
| NLM20SG-AC | AC100 - 240V | PDF DXF 3D STEP | 2,330 lm | 700 lx | 16W |
| NLM30SG-DC | DC24V | PDF DXF 3D STEP | 3,730 lm | 1,120 lx | 27W |
| NLM30SG-AC | AC100 - 240V | PDF DXF 3D STEP | 3,410 lm | 1,040 lx | 26W |
| NLM40SG-DC | DC24V | PDF DXF 3D STEP | 5,000 lm | 1,480 lx | 37W |
| NLM40SG-AC | AC100 - 240V | PDF DXF 3D STEP | 4,680 lm | 1,400 lx | 33W |
Light distribution curve data

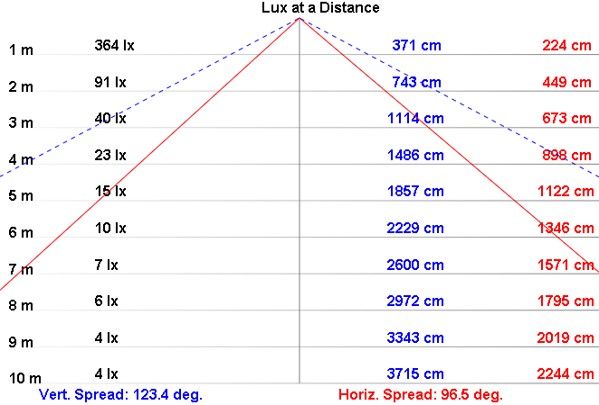

NLM10SG

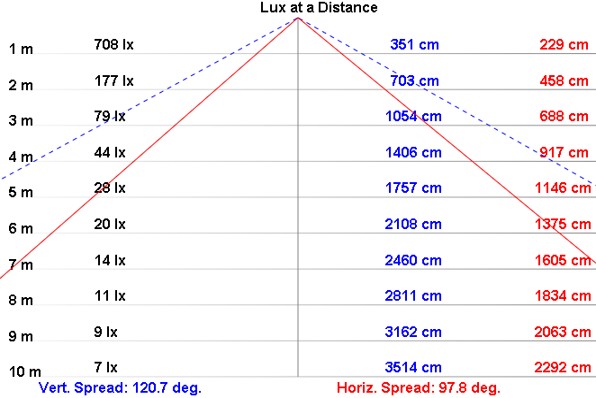

NLM20SG
NLM30SG
NLM40SG

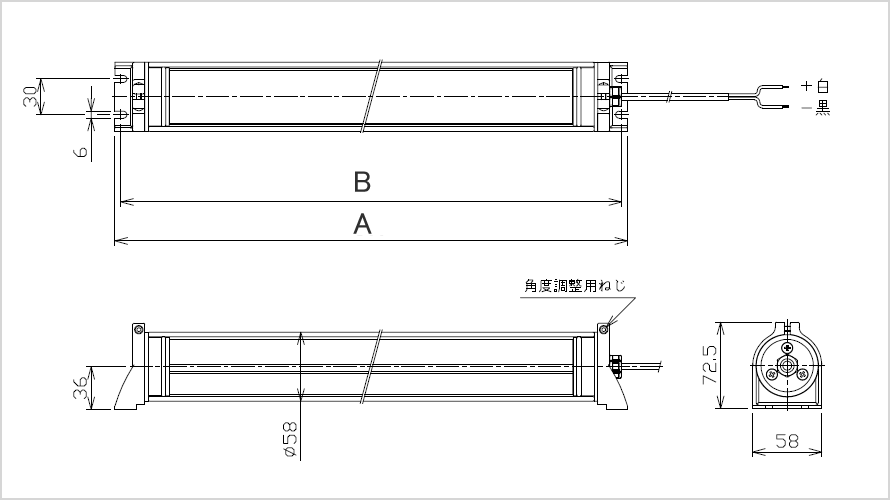

Dimensional drawing
Standard type
| model | A | B |
|---|---|---|
| NLM10SG-DC/AC | 310 | 300 |
| NLM20SG-DC/AC | 500 | 490 |
| NLM30SG-DC/AC | 690 | 680 |
| NLM40SG-DC/AC | 880 | 870 |
NLM waterproof LED light optional accessories
Series selection method
| model | size | Material | power supply | Optional |
|---|---|---|---|---|
| NLM |
|
|
|
|
