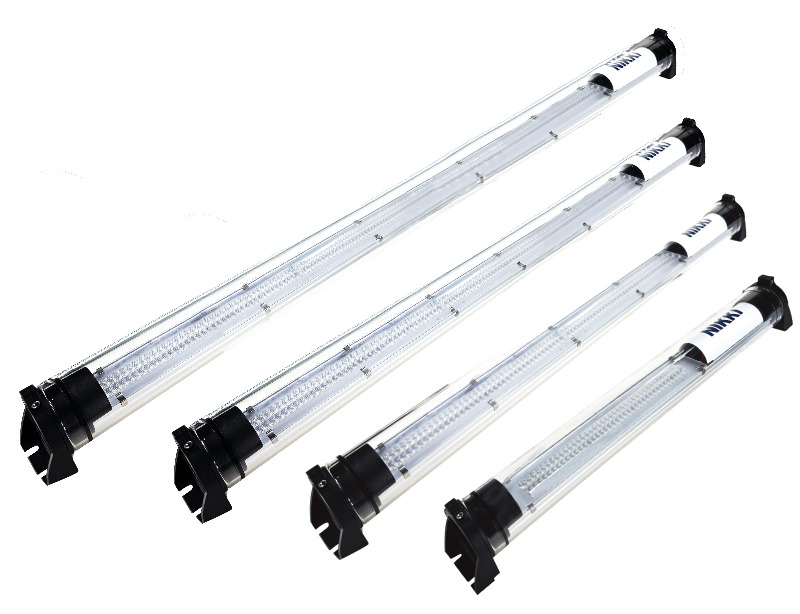

NLM SN3 series
Features
The specially developed lens design significantly improves the illumination.
The exterior uses high-transmittance glass tubes and high-strength end caps containing fiberglass, making the overall design sturdy and durable.
It uses a constant-current IC drive circuit and an independently developed protection circuit to help extend LED service life and provide high insulation.
There is no glare and multi-layered shadow phenomenon unique to LED, and it will not cause eye fatigue even if used for a long time.
Applications
CNC Machine Tools, Industrial Machinery, Manufacturing Equipment, and Factory Automation Equipment.
Specifications
| Color Temperature | 5,700K |
|---|---|
| Service Life | Operating Temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Operating Temperature | -10℃～40℃ |
| Appearance Material | Glass Tube |
| Protection Rating | IP67 |
| Standard Wiring | DC 3m（VCTF0.5mm²x2C） AC 3m（VCTF0.75mm²x2C） |
| Certification |
|
| Optional Accessories | Oil-Resistant Cable |
|---|---|
| Cable Cover with Single-Side Corrugated Tube Fitting Cable Cover with Double-Side Corrugated Tube Fittings |
|
| Mounting Magnet (ND-P04) Metal Mounting Clip (NC-562B) |
|
| 2 m Cord with Plug (AC110V) |
[General LED] Flickers and streaks may be observed during photography
[NIKKI product] Mild and even light, no flicker
