NLL3 series
Feature

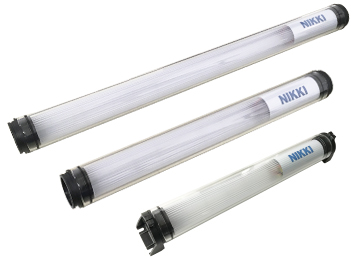

This product is a waterproof LED lamp most suitable for internal lighting of machine tools.
The mounting holes are the same as those of previous fluorescent lamp-type in-camera lighting and NLL series. The main body uses Ø58 glass tubes to make the whole body more slender and the price is more economical and practical.
It has high insulation properties and can cope with voltage changes such as electrostatic discharge and radioactive magnetic field noise, surges, and instantaneous power outages.
Applicable
Tool machinery interior lighting, industrial machinery lighting, equipment machinery lighting
Specification
| color temperature | 5,700K |
|---|---|
| Body color | black |
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| Body material | glass tube |
| protection level | IP67 |
| Standard wiring | DC 3m （VCTF0.5mm2x2C） AC 3m （VCTF0.75mm2x2C） |
| Certification |
|
| Select accessories | Body material: PC tube |
|---|---|
| oil resistant wire Fluorine oil seal |
|
| Wire protective cover (single side corrugated pipe connector) Wire protective cover (double-sided corrugated pipe connector) |
|
| Fixed iron clip (NC-562B) | |
| Plastic end cap (NC-565) | |
| 2m cord with plug (AC110V) |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Standard model list
| model | power supply | drawing | Luminous flux | Illuminance (1m) | Power consumption |
|---|---|---|---|---|---|

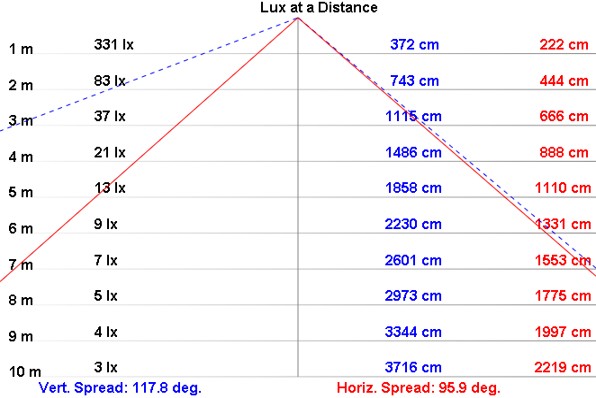

| NLL3-13CG-DC | DC24V | PDF DXF 3D STEP | 900 lm | 280 lx | 8W |
| NLL3-13CG-AC | AC100 - 240V | PDF DXF 3D STEP | |||

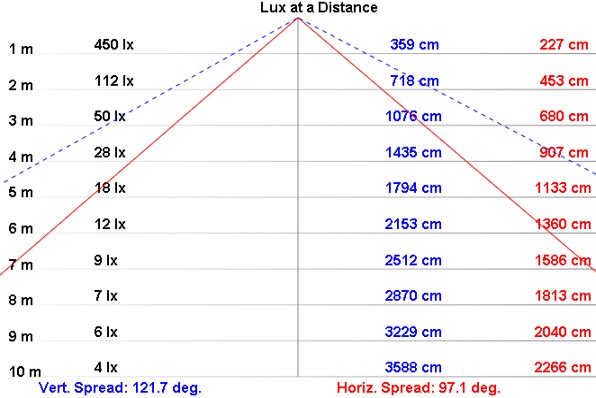

| NLL3-18CG-DC | DC24V | PDF DXF 3D STEP | 1,250 lm | 380 lx | 12W |
| NLL3-18CG-AC | AC100 - 240V | PDF DXF 3D STEP | |||

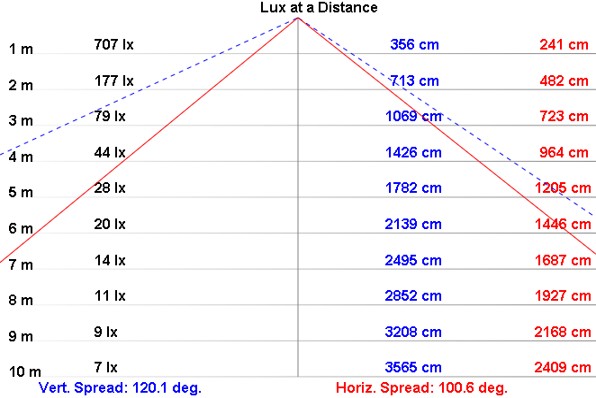

| NLL3-36CG-DC | DC24V | PDF DXF 3D STEP | 2,000 lm | 610 lx | 18W |
| NLL3-36CG-AC | AC100 - 240V | PDF DXF 3D STEP | |||

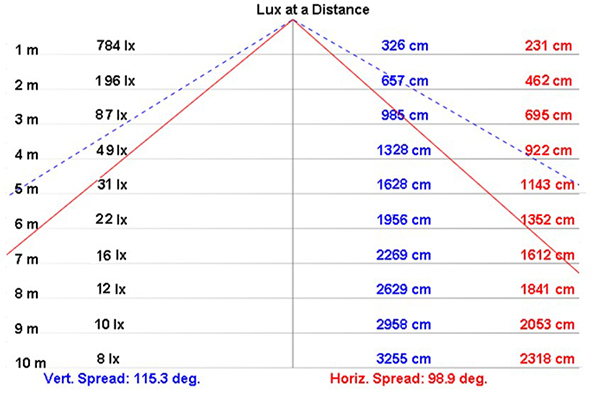

| NLL3-40CG-DC | DC24V | PDF DXF 3D STEP | 2,700 lm | 780 lx | 24W |
| NLL3-40CG-AC | AC100 - 240V | PDF DXF 3D STEP |
