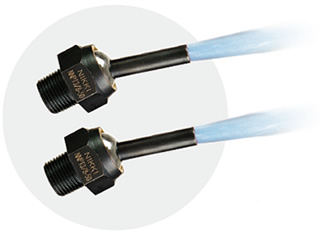

What is a High-pressure Coolant Nozzle?
Specifications
| Thread Specifications | NNPT: tapered pipe thread NNM: Metric thread |
|---|---|
| Embedded Type Specifications | NND |
| Tilt Angle | ±35° |
Features
The direction of the ejection port can be fixed at any position and can be aimed accurately.
Under normal use conditions, it can also respond to coolant pressure (low, medium, and high), and the flow rate will not decrease even at the maximum tilt angle.

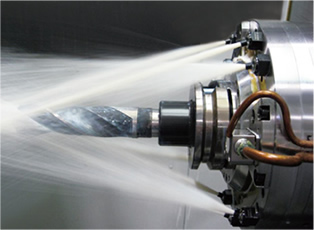

Suitable for CNC machining centers, CNC lathes, milling machines, grinding machines, and other machine tool coolant applications.
Being securely mounted at these points increases machining efficiency, machining accuracy, and extends tool life, helping to reduce operating costs.
Pressure Resistance
Standard type: 2MPa (20kgf/cm2）
Ultra-high
pressure type: 10MPa (100kgf/cm2）
