NNPT-B Angled High-pressure Coolant Nozzle
Angled Spray Series (NNPT-B)

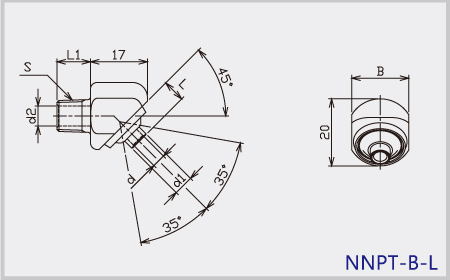

In addition to the fixed tilt of 45°, the oblique spray type also has a movable range of ±35°, and can be bent up to 80° and aimed at the desired place.
Standard Model List
| Specifications | Main Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| Product Model | D | S Thread | L | Drawing | L1 | D1 | D2 | Hex Width B |
| NNPT1/8B-10 | 4 | PT 1/8" | 10 | PDF DXF | 10 | 6 | 6 | 17 |
| NNPT1/8B-20 | 20 | PDF DXF | ||||||
| NNPT1/8B-30 | 30 | PDF DXF | ||||||
| NNPT1/4B-10 | 4 | PT 1/4" | 10 | PDF DXF | ||||
| NNPT1/4B-20 | 20 | PDF DXF | ||||||
| NNPT1/4B-30 | 30 | PDF DXF | ||||||
