High-pressure Coolant Nozzle-Embedded Type

Due to the Embedded Type design, it can be installed in a small space and prevents interference with other nozzles.

(Pressure resistance: water pressure 2MPa)
Specifications	Main Dimensions (mm)

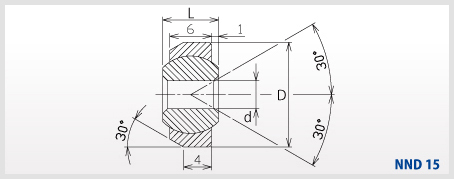

Product Model	D	D	L	Drawing	Remarks
NND15	15	4	8	PDF DXF	Please contact sales for other special standards.

Due to the Embedded Type design, it can be installed in a small space and prevents interference with other nozzles.

(Pressure resistance: water pressure 2MPa)
Specifications	Main Dimensions (mm)

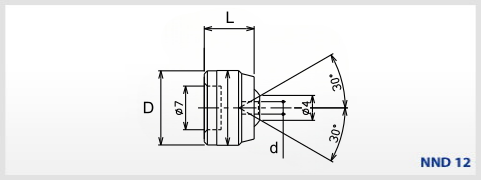

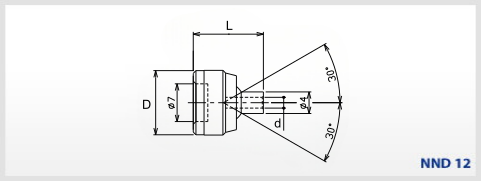

Product Model	D	D	L	Drawing	Remarks
NND12	12	2	8	PDF DXF	Please contact sales for other special standards.
NND12-05	12	2	13	PDF DXF
NND12-10	12	2	18	PDF DXF
NND12-15	12	2	23	PDF DXF

Due to the Embedded Type design, it can be installed in a small space and prevents interference with other nozzles.

(Pressure resistance: water pressure 2MPa)
Specifications	Main Dimensions (mm)

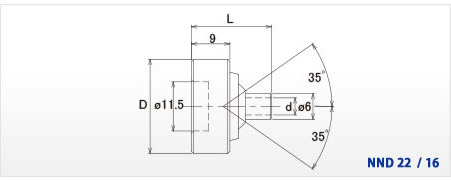

Product Model	D	D	L	Drawing	Remarks
NND16	16	4	21	PDF DXF	Please contact sales for other special standards.
NND22	22	4	18.7	PDF DXF

High-pressure Coolant Nozzle Product List
