High pressure sprinkler head - ultra high pressure type

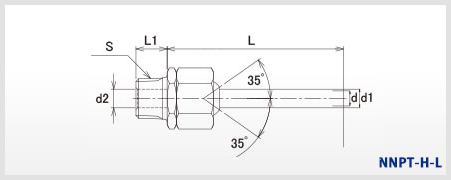

Ultra-high pressure type series (NNPT-H)
The pressure that can be tolerated changes from 2MPa to 10MPa, and even higher pressure can be stably and accurately aimed at the desired place.
- Thread specifications: tapered pipe thread
- Tilt angle: ±35°
- Pressure resistance: 10MPa
Standard model list
| Specification | Main dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| Product model | d | S thread | L | drawing | L1 | d1 | d2 | B hexagonal two sides |
| NNPT1/8H-20 | 4 | PT 1/8" | 20 | PDF DXF | 10 | 6 | 6 | 17 |
| NNPT1/8H-40 | 40 | PDF DXF | ||||||
| NNPT1/8H-60 | 60 | PDF DXF | ||||||
| NNPT1/4H-20 | 4 | PT 1/4" | 20 | PDF DXF | ||||
| NNPT1/4H-40 | 40 | PDF DXF | ||||||
| NNPT1/4H-60 | 60 | PDF DXF | ||||||

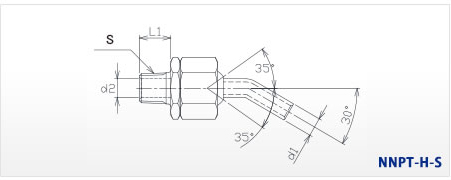

Ultra-high pressure bending type series (NNPT-H-S)
In addition to being able to withstand pressures up to 10MPa, the bent nozzle can be used in a wider range.
- Thread specifications: tapered pipe thread
- Tilt angle: ±35°
- Pressure resistance: 10MPa
Standard model list
| Specification | Main dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| Product model | d | S thread | angle | L1 | d1 | d2 | B hexagonal two sides |
| NNPT1/8H-S15° | 4 | PT 1/8" | 15° | 10 | 6 | 6 | 17 |
| NNPT1/8H-S30° | 30° | ||||||
| NNPT1/4H-S15° | PT 1/4" | 15° | |||||
| NNPT1/4H-S30° | 30° | ||||||

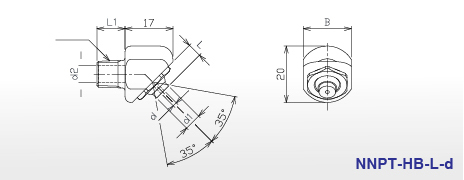

Ultra-high pressure oblique spray series (NNPT-HB-d)
In addition to being able to withstand high pressures up to 10MPa, the oblique spray type with a fixed tilt of 45° can correspond to a water spray range of 45° to 80°.
- Thread specifications: tapered pipe thread
- Tilt angle: ±35°
- Pressure resistance: 10MPa
Standard model list
| Specification | Main dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| Product model | d | S thread | L | drawing | L1 | d1 | d2 | B hexagonal two sides |
| NNPT1/8HB-5-4 | 4 | PT 1/8" | 5 | PDF DXF | 10 | 6 | 6 | 17 |
| NNPT1/8HB-15-1.5 | 1.5 | 15 | PDF DXF | |||||
| NNPT1/8HB-25-1.5 | 1.5 | 25 | PDF DXF | |||||
| NNPT1/4HB-5-4 | 4 | PT 1/4" | 5 | PDF DXF | ||||
| NNPT1/4HB-15-4 | 4 | 15 | PDF DXF | |||||
| NNPT1/4HB-25-1.5 | 1.5 | 25 | PDF DXF | |||||
