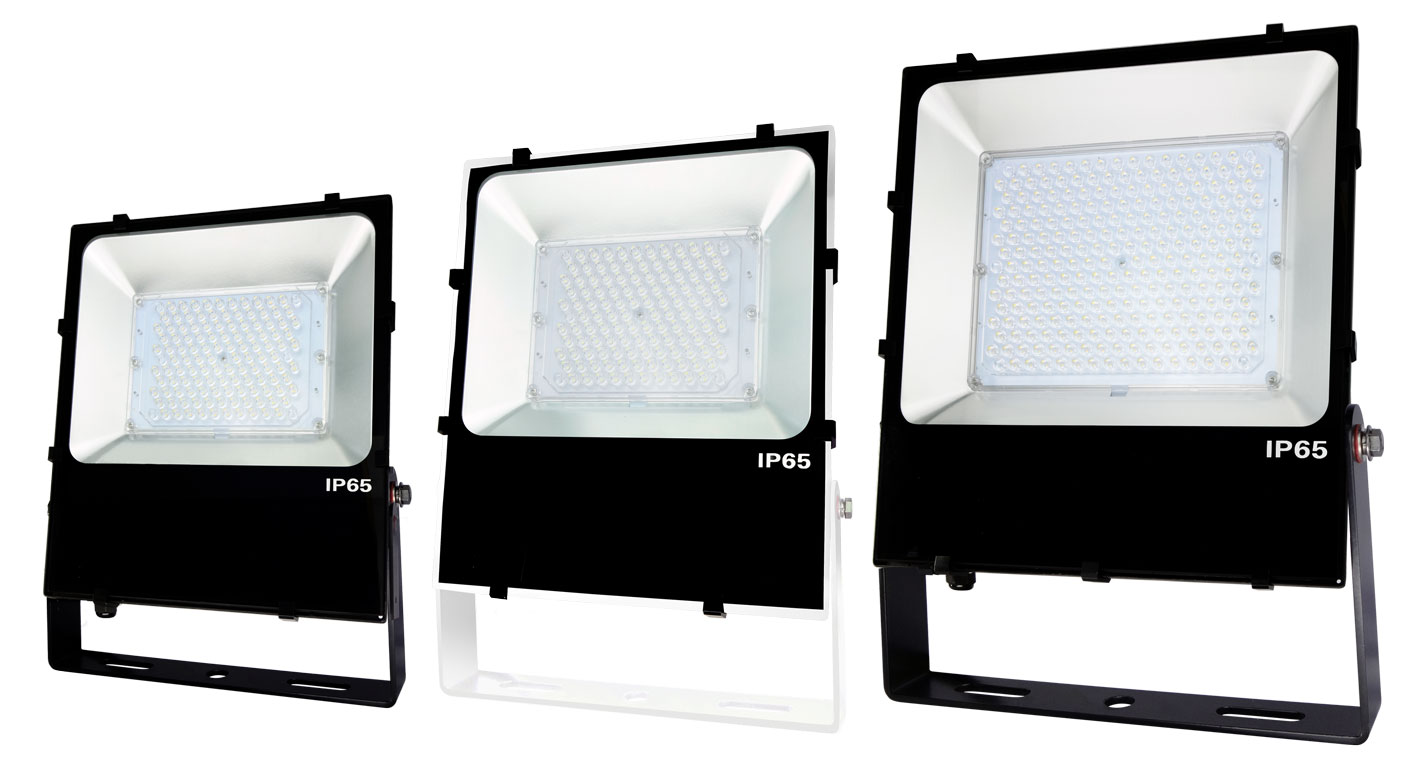

NLFL-A series
Feature
Floodlights for outdoor use, suitable for building exterior wall lighting and advertising billboard lighting.
Lightning surge protection design protects the lamps from damage caused by lightning.
The main body is made of die-cast aluminum to provide good heat dissipation, the arms and bolts are made of stainless steel, and the bracket is coated with weather-resistant coating to enhance weather resistance, making it durable enough even if it is permanently installed outdoors.
The optional arm is made of stainless steel and coated with weather-resistant paint. It is salt-resistant, acid-resistant and corrosion-resistant, providing effectiveness and safety for long-term outdoor installation.
There are 5 types of power consumption of lamps, and 3 light distribution angles of 30°, 60° and 120° can be selected for installation in different situations.
Applicable
Factory lighting, warehouse lighting, construction site lighting, night construction lighting, civil engineering and building site lighting.
-
Advertising signage
lighting -
Advertising signage
lighting
Specification
| color temperature | 5,700K / 4,000K |
|---|---|
| life expectancy | Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
| Color rendering | Ra80 |
| Use temperature | -30℃～45℃ (referring to the condition without freezing) |
| protection level | IP65 |
| Standard wiring | 1.5m（2PNCT0.75mm2X3C） |
| certification |
|
| Light distribution angle | 30° / 60° / 120° |
| Body material | Aluminum alloy |
| glass mirror | tempered glass |
| Fixing bracket | Stainless steel |
| Select accessories | Body: white |
|---|---|
| Telescopic folding tripod: TP-20B / TP-30B (including carrying bag) | |
| Lamp arm (B=black / W=white) Standard type: FA-086AB / FA-086AW Horizontal type: FA-115HB/FA-115HW Vertical type: FA-100VB/FA-100VW |
|
| 3m cord with plug (VCTF0.75mm2x3C) Rainproof ground plug (AC110V) |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Outdoor fixed installation
The arm material, bolts and other hardware accessories are made of SUS stainless steel, which is very suitable for rainy and windy environments. Because it will not rust, it is suitable for outdoor use, such as sign lighting.
Dustproof and waterproof
The protection level is IP65, dustproof and waterproof LED floodlight.
Can be used indoors and outdoors, such as advertising signs, civil engineering sites, construction sites.
Power protection
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages; it also has a high-insulation safety design.
Using LEDs that are highly trusted around the world.
Lightning surge protection
Use lightning protection design to prevent lightning surges, thereby protecting the lamps from damage caused by lightning. (Surge waveform 8/20μs, may cause 10KA discharge)
If a direct lightning strike or induced lightning strike occurs, surge waves may be conducted by wires, causing damage to electronic machinery. This lighting product is equipped with a surge protector containing lightning protection.
The line withstand is ±6kV
3 times the
international standard
Withstand ±15kV to ground
3.75 times
the international standard
SPD (lightning arrester)
Protect by limiting instantaneous fluctuations in current (surge) generated by lightningLED floodlight
A general lightning strike will cause an electric shock of tens of kV or more, but this LED lamp has an SPD between the power supply IC and the ground. Therefore, if an electric shock occurs, it will flow from the breakthrough through the SPD and the ground back to the ground.
※When using this lamp, please be sure to ground it

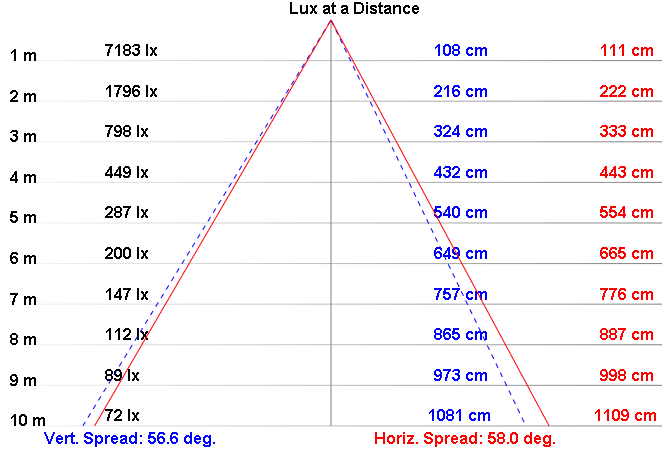

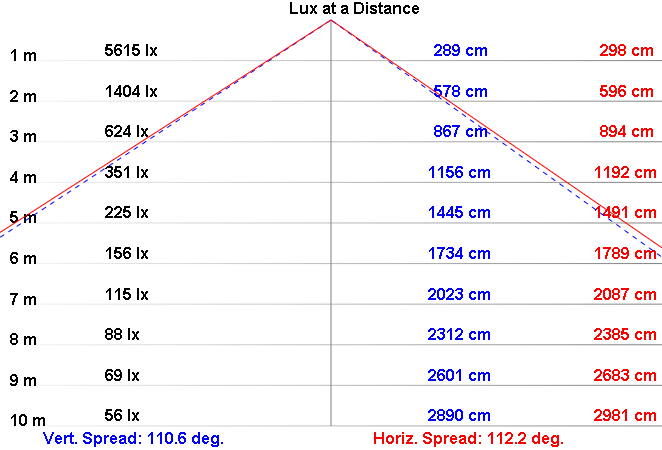

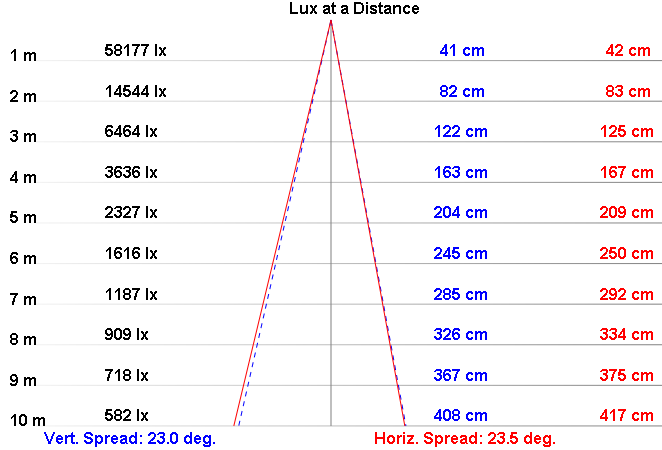

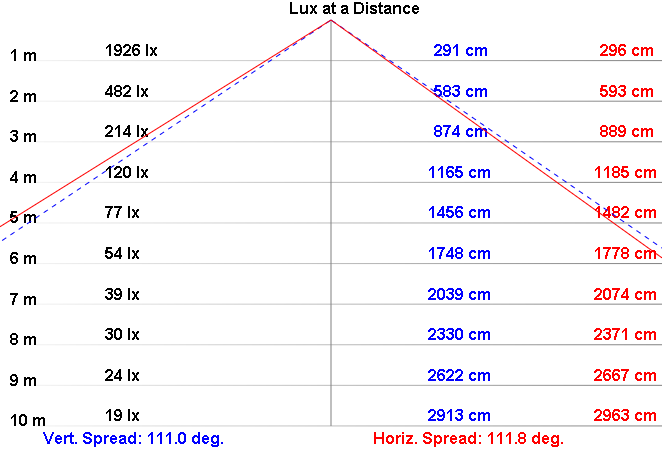

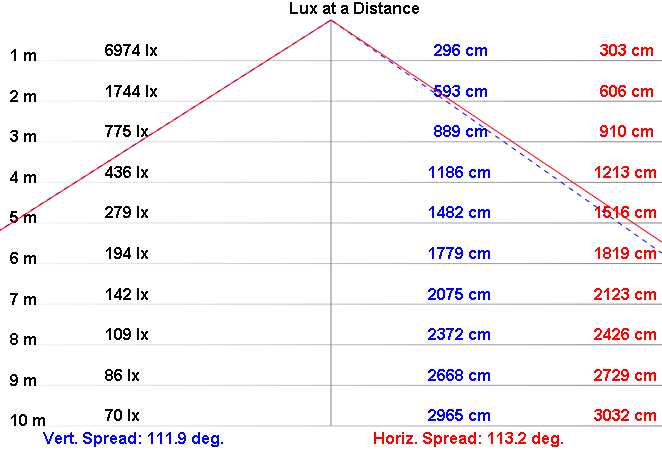

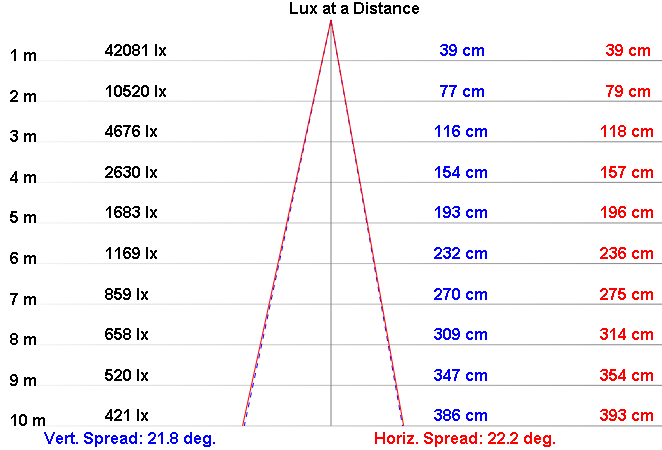

Light distribution curve data

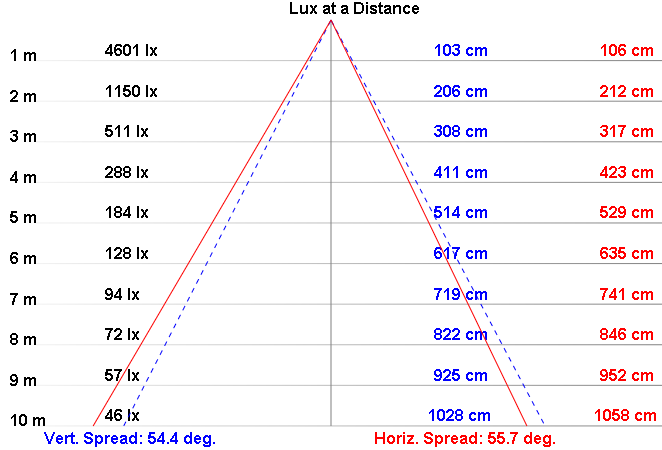

NLFL50A

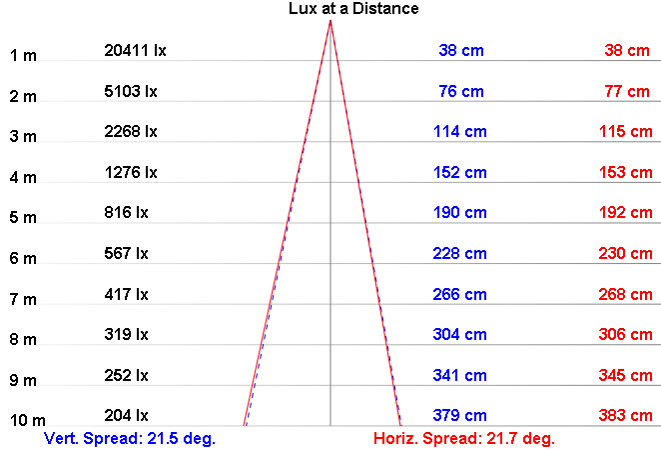

Light distribution angle 30°
Light distribution angle 60°
Light distribution angle 120°
NLFL80A
Light distribution angle 30°
Light distribution angle 60°

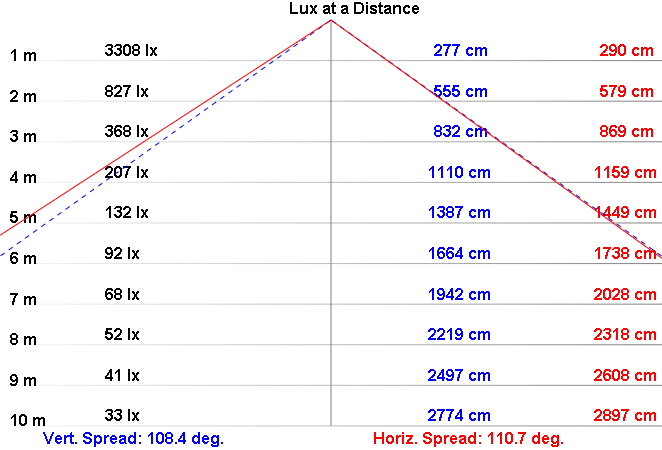

Light distribution angle 120°

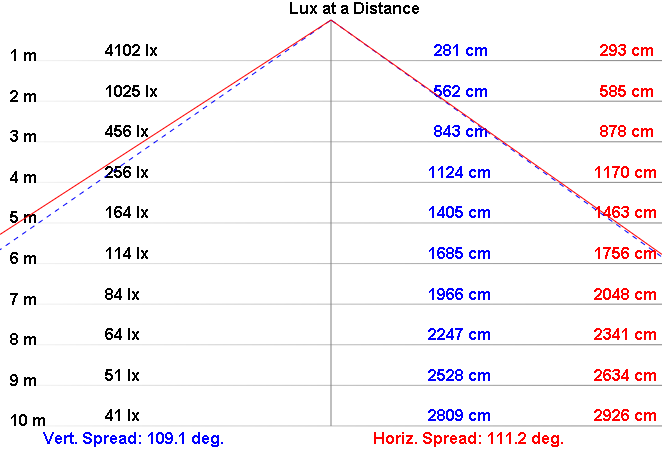

NLFL100A
Light distribution angle 30°

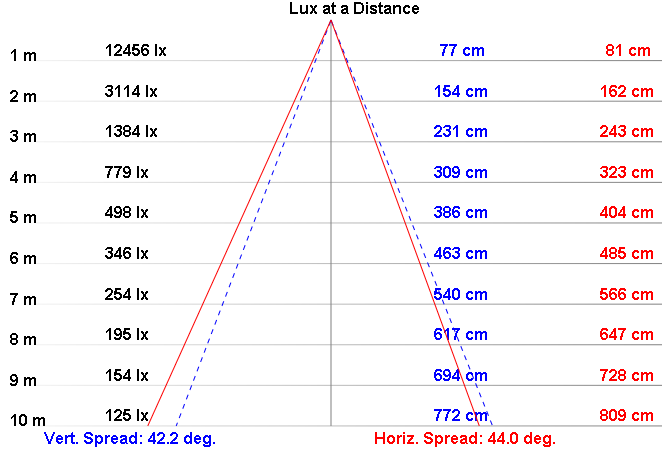

Light distribution angle 60°
Light distribution angle 120°

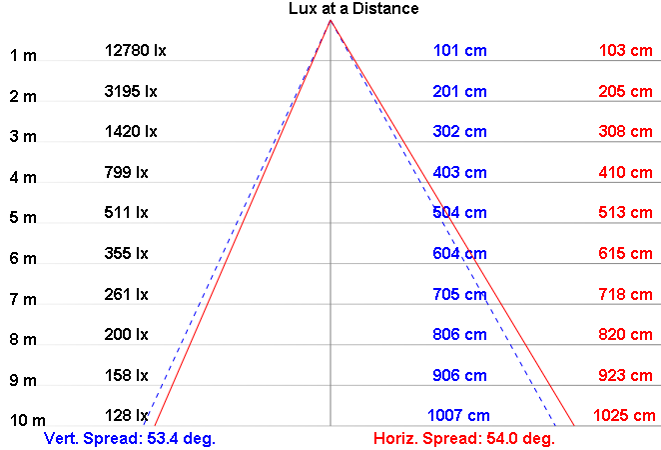

NLFL150A

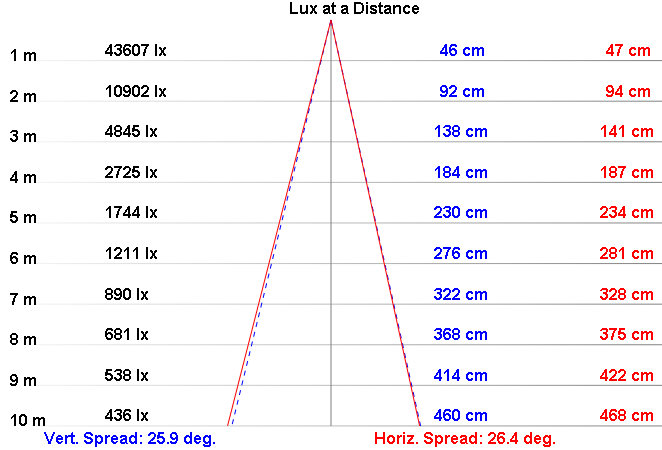

Light distribution angle 30°
Light distribution angle 60°
Light distribution angle 120°
NLFL200A
Light distribution angle 30°

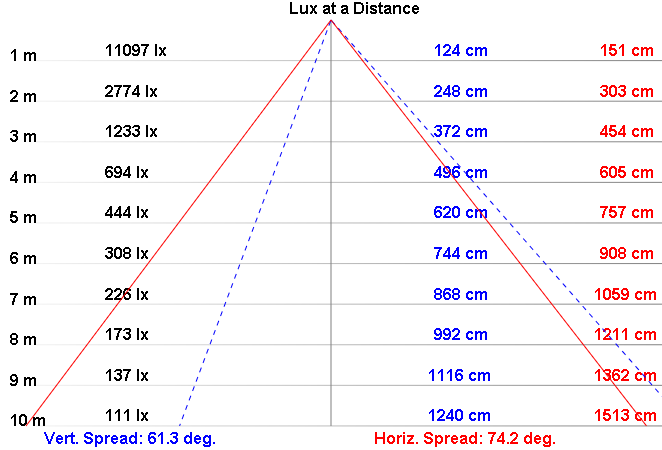

Light distribution angle 60°
Light distribution angle 120°

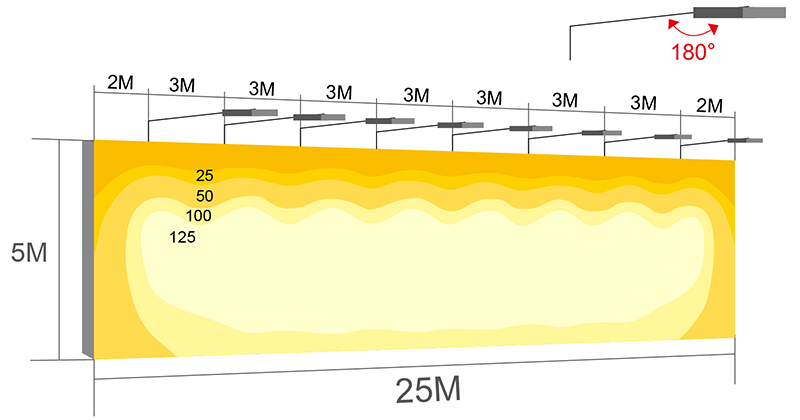

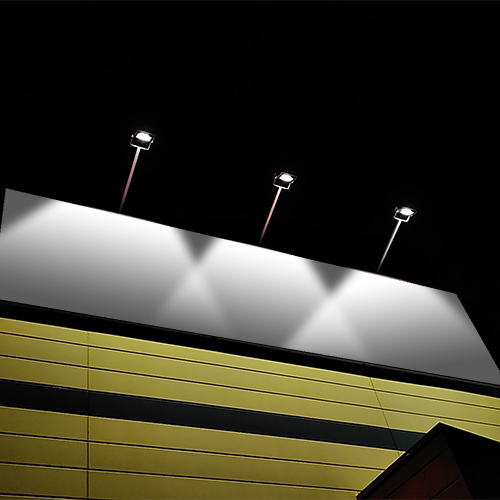

Examples of floodlight applications in advertising billboard lighting
An illumination simulation diagram is constructed based on the actual size and brightness of the advertising board. The number and spacing of floodlights to be installed can be customized according to the customer's actual illumination needs.

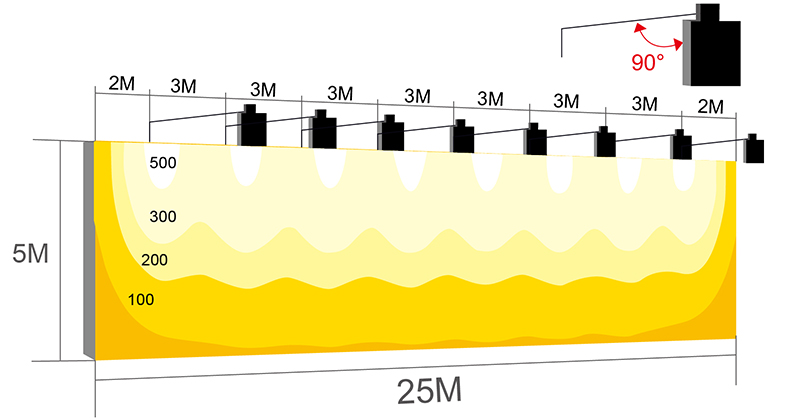

Conditions ①: The floodlights are installed at a distance of 3m, and the NLFL50A-AC projects light at an angle of 90° to the advertising signboard.

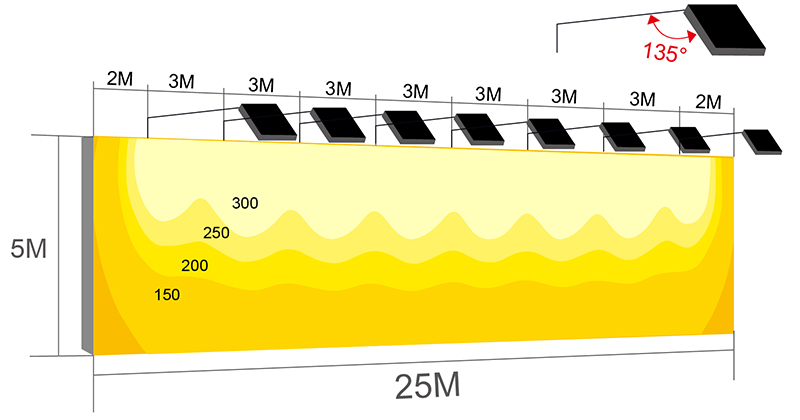

Condition ②: The floodlights are installed at a distance of 3m, and the NLFL50A-AC projects light at an angle of 135° to the advertising signboard.

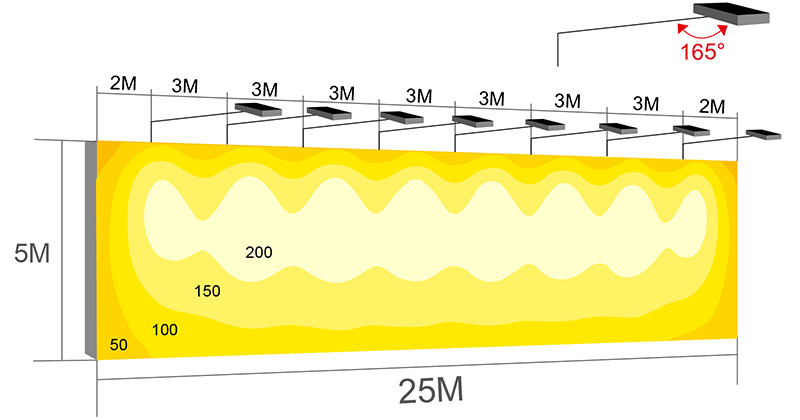

Condition ③: The floodlights are installed at a distance of 3m, and the NLFL50A-AC and the advertising billboard project light at 165°.
Condition ④: The floodlights are installed at a distance of 3m, and the NLFL50-AC projects light at 180° from the advertising signboard.
Countermeasures against strong winds (outdoor installation)

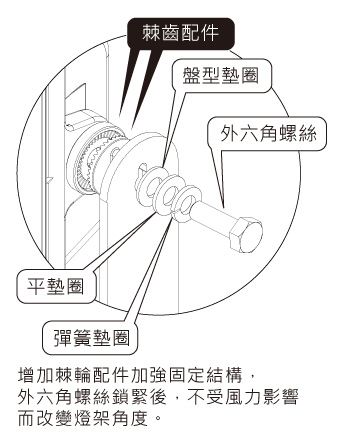

It is locked and fixed with stainless steel hexagonal bolts, which is very suitable for outdoor installation of floodlights. Even in strong wind environments, the lamps will not be damaged.
[Locking screw]
Use a hex wrench to adjust the tightness of the screws.
[Wind pressure test method]
JIS C 8105-2-5: 2017 floodlight safety regulations, the strength of the lamp structure should withstand a wind speed of 60m/s. In our load-bearing test, the front of the floodlight was oriented horizontally. Place a uniform load on the back of the floodlight and test for 10 minutes to confirm that there is no permanent deformation of 1° or greater.
Standard model list
| model | drawing | Luminous flux | illumination | power supply | Power consumption | ||
|---|---|---|---|---|---|---|---|
| 30° | 60° | 120° | |||||
| NLFL50A-AC | PDF DXF | 5,400 lm | 20,400 lx | 4,600 lx | 1,900 lx | AC100 - 240V | 50W |
| NLFL80A-AC | PDF DXF | 8,900 lm | 31,580 lx | 7,180 lx | 3,300 lx | 80W | |
| NLFL100A-AC | PDF DXF | 11,200 lm | 42,000 lx | 12,400 lx | 4,100 lx | 100W | |
| NLFL150A-AC | PDF DXF | 15,600 lm | 43,600 lx | 12,780 lx | 5,600 lx | 150W | |
| NLFL200A-AC | PDF DXF | 19,700 lm | 58,170 lx | 11,100 lx | 6,970 lx | 180W | |

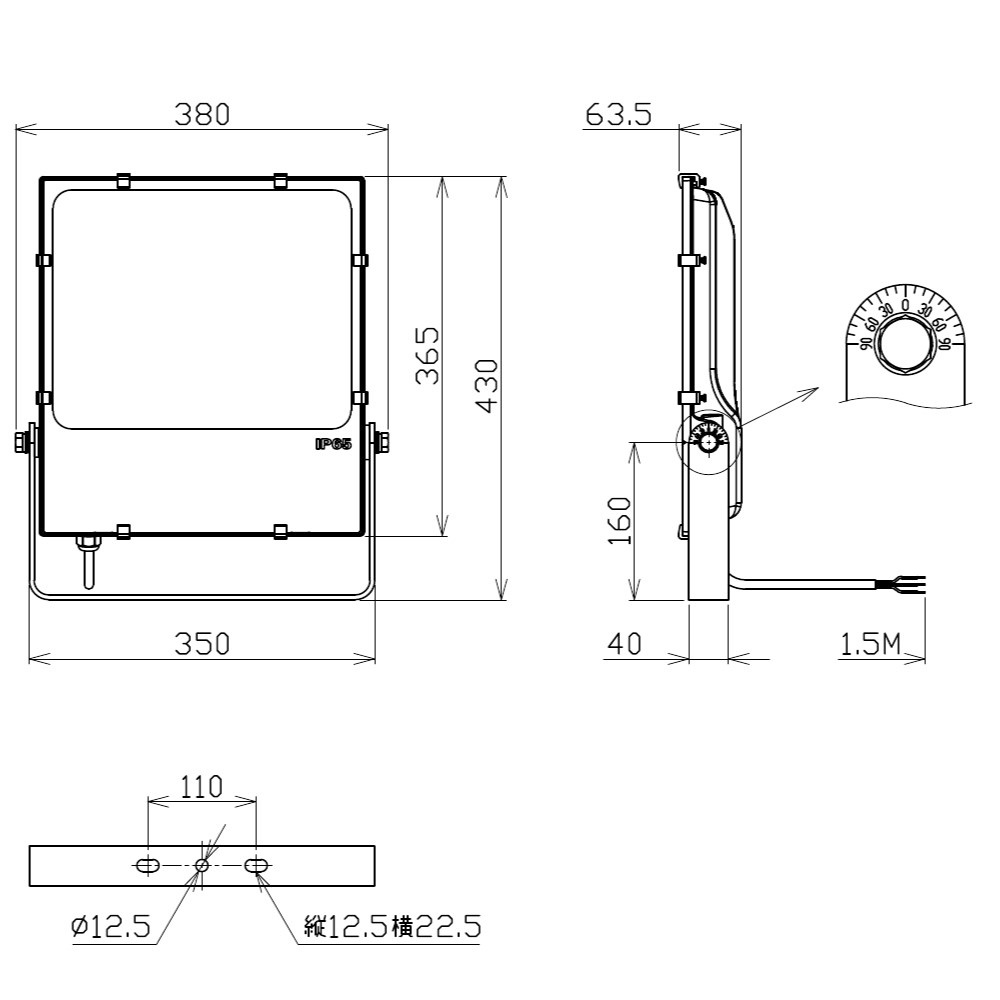

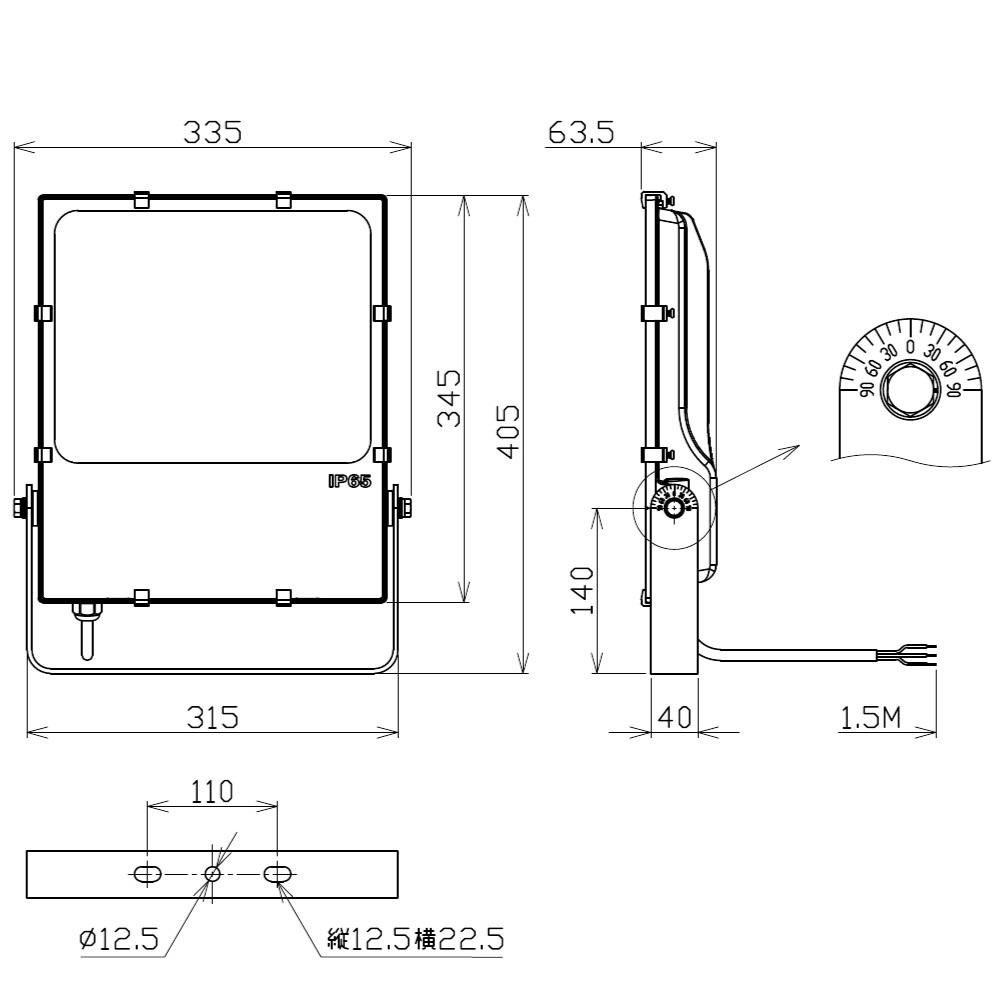

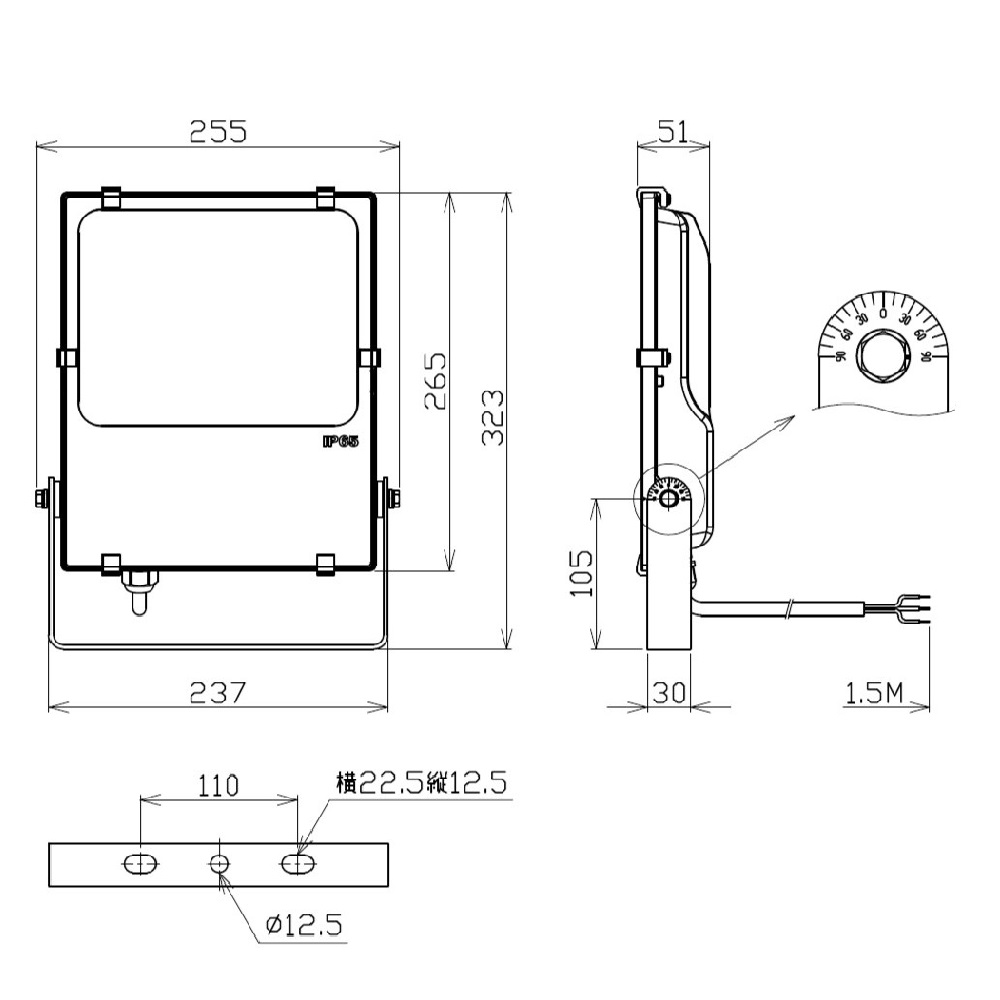

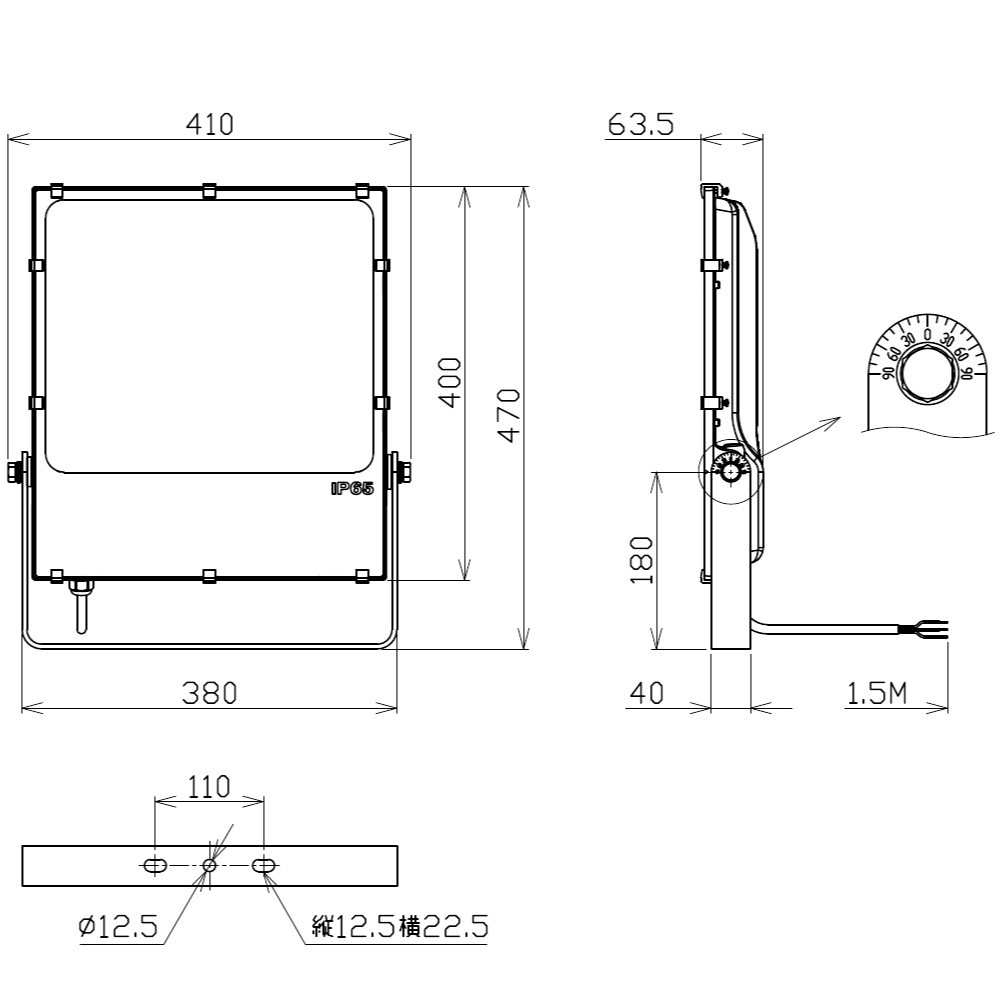

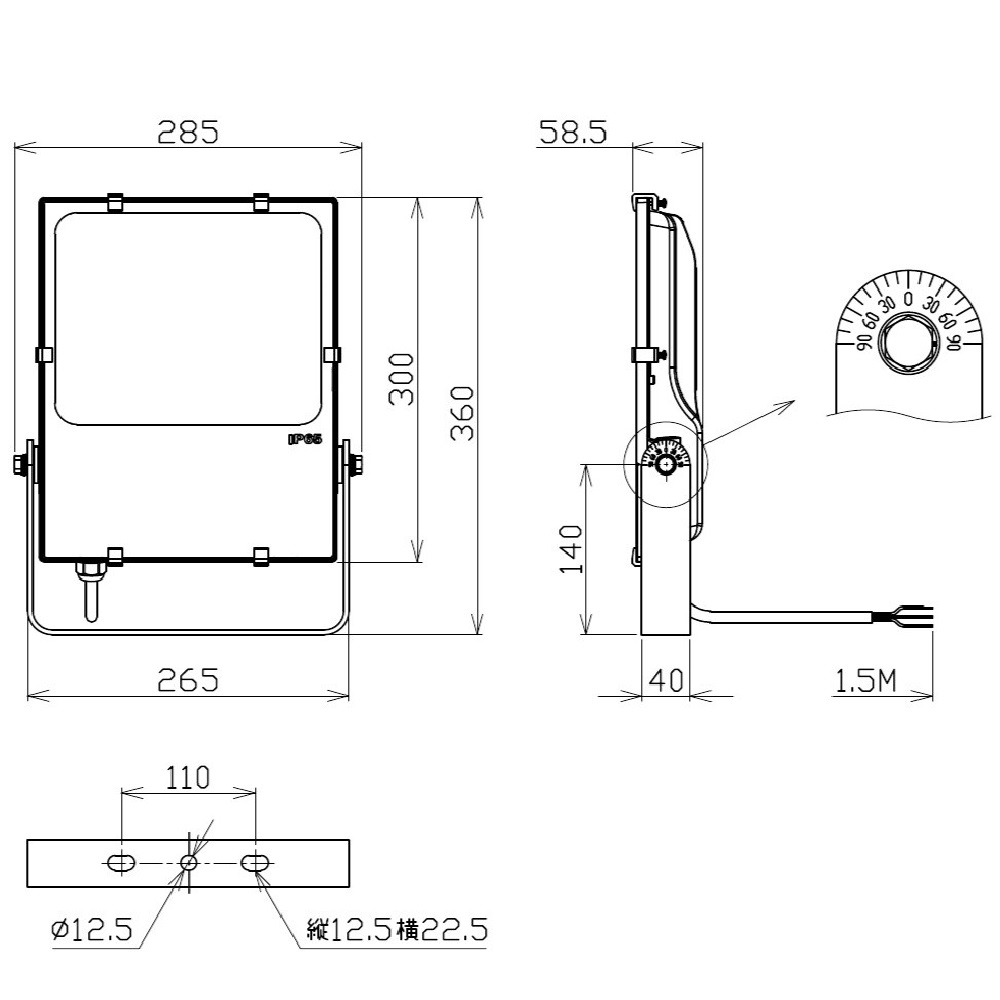

Dimensional drawing
NLFL50 A
NLFL80 A
NLFL100 A
NLFL150 A
NLFL200 A

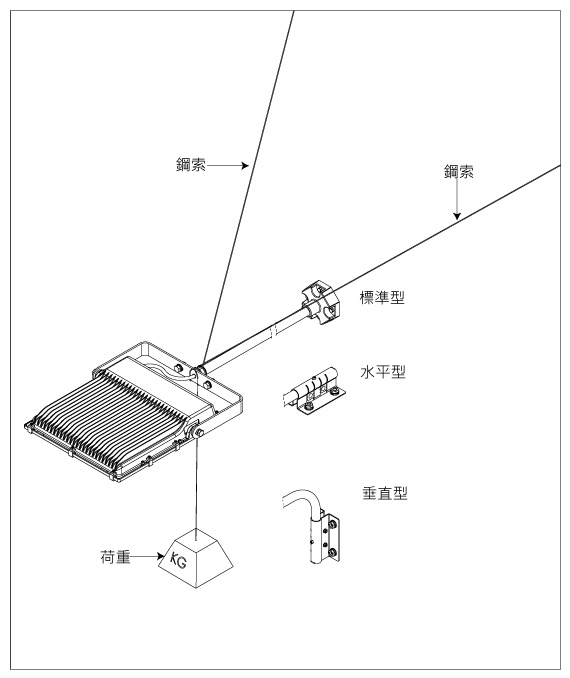

Optional accessories: introduction to lamp support arms

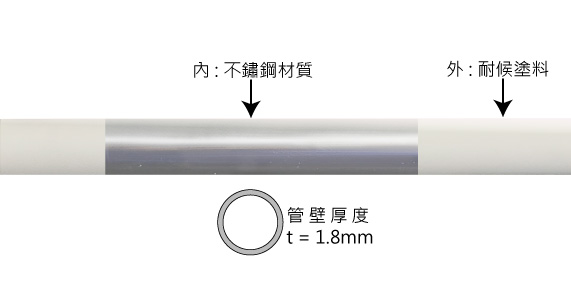

Arm material introduction
The body is made of stainless steel and weather-resistant paint is used on the outside, so it is not easily damaged even if it is left in the outdoor environment for a long time.
Brake wind resistance test
According to JIS C 8105-2-5:2017 test 5.6.5.1
| form | Light fixture pressure area | Arm | Design allowable wind speed |
|---|---|---|---|
| NLFL50A | 0.06m² | Standard type (FA-086A) | 60m/s |
| Horizontal type (FA-115H) | 60m/s | ||
| Vertical type (FA-100V) | 60m/s | ||
| NLFL80A | 0.08m² | Standard type (FA-086A) | 60m/s |
| Horizontal type (FA-115H) | 60m/s | ||
| Vertical type (FA-100V) | 60m/s | ||
| NLFL100A | 0.10m² | Standard type (FA-086A) | 60m/s |
| Horizontal type (FA-115H) | 60m/s | ||
| Vertical type (FA-100V) | 60m/s | ||
| NLFL150A | 0.12m² | Standard type (FA-086A) | 60m/s |
| Horizontal type (FA-115H) | 60m/s | ||
| Vertical type (FA-100V) | 60m/s | ||
| NLFL200A | 0.15m² | Standard type (FA-086A) | 60m/s |
| Horizontal type (FA-115H) | 60m/s | ||
| Vertical type (FA-100V) | 60m/s |
※The equivalent wind speeds listed in this table refer to the average wind speed within 10 minutes.
※Please read the instruction manual carefully before installation.
Select accessories
-

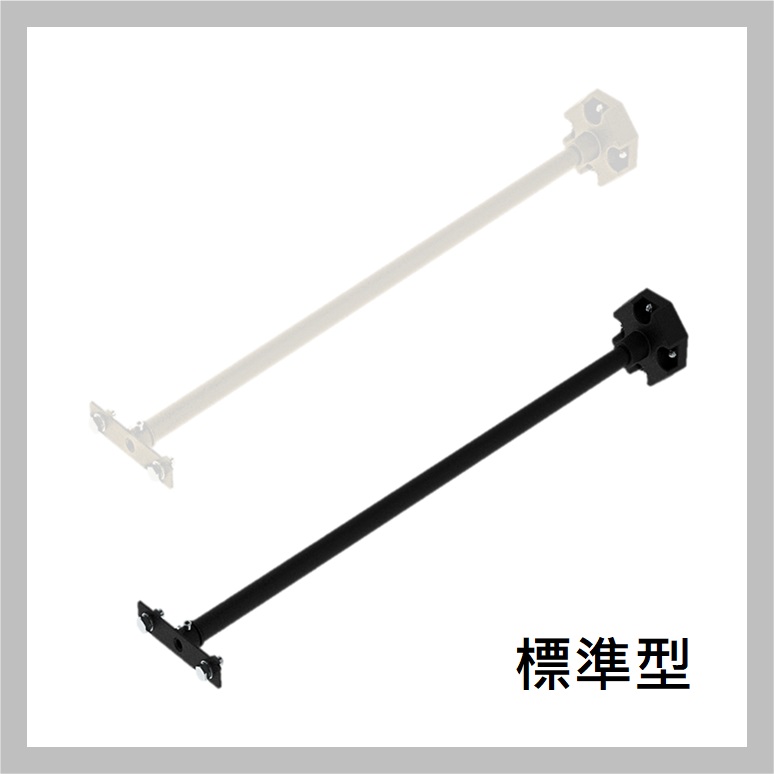

Lamp arm: standard type (FA-086A)
- Internal material: stainless steel
- Exterior material: weather-resistant paint
-

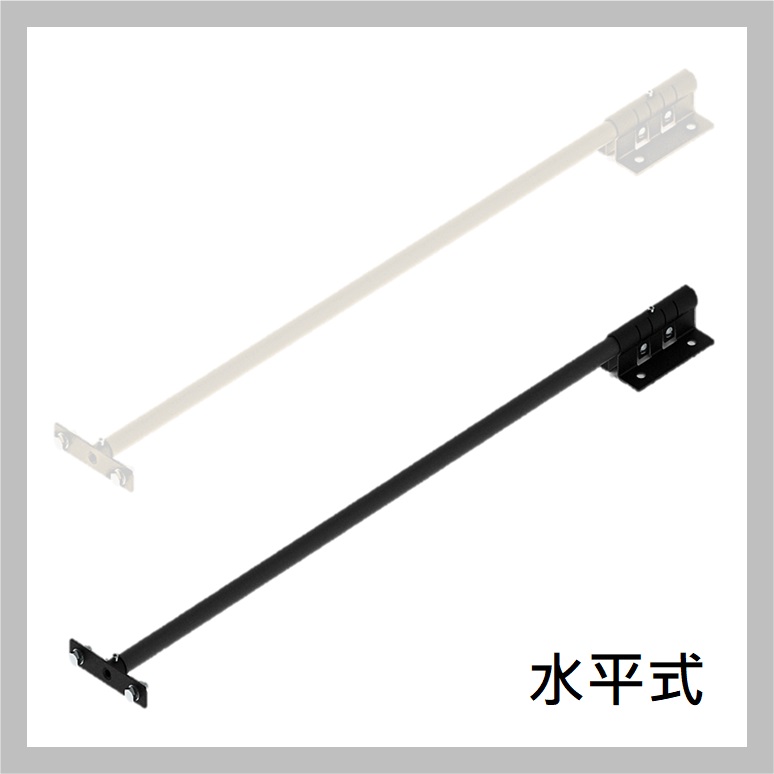

Lamp arm: horizontal (FA-115H)
- Internal material: stainless steel
- Exterior material: weather-resistant paint
-

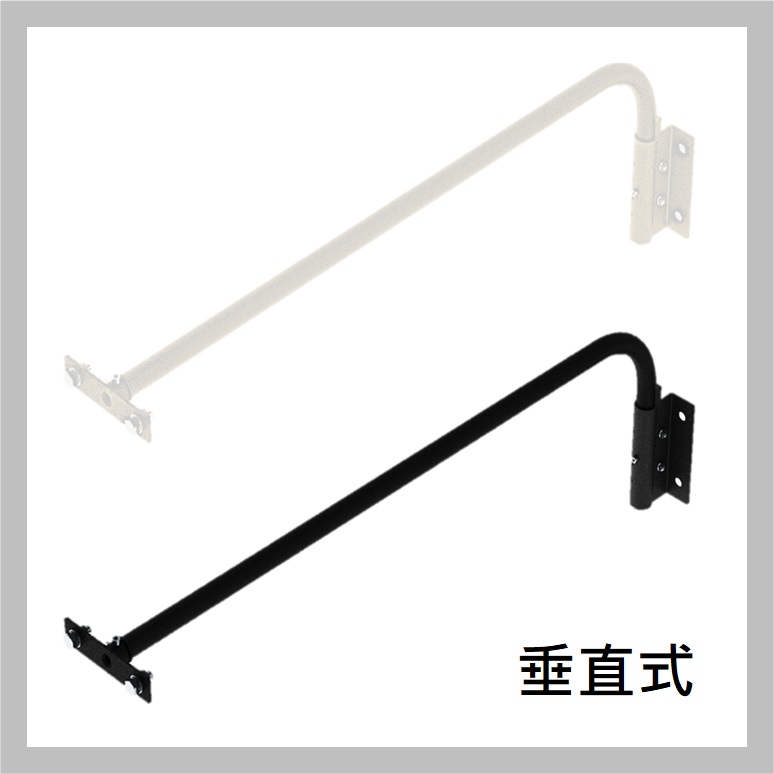

Lamp arm: vertical (FA-100V)
- Internal material: stainless steel
- Exterior material: weather-resistant paint
Model selection method
| model | Specification | power supply | Body color | Lighting angle | color warmth | Optional support arm | |
|---|---|---|---|---|---|---|---|
| NLFL |
|
A | AC =AC100 - 240V |
|
|
|
|
