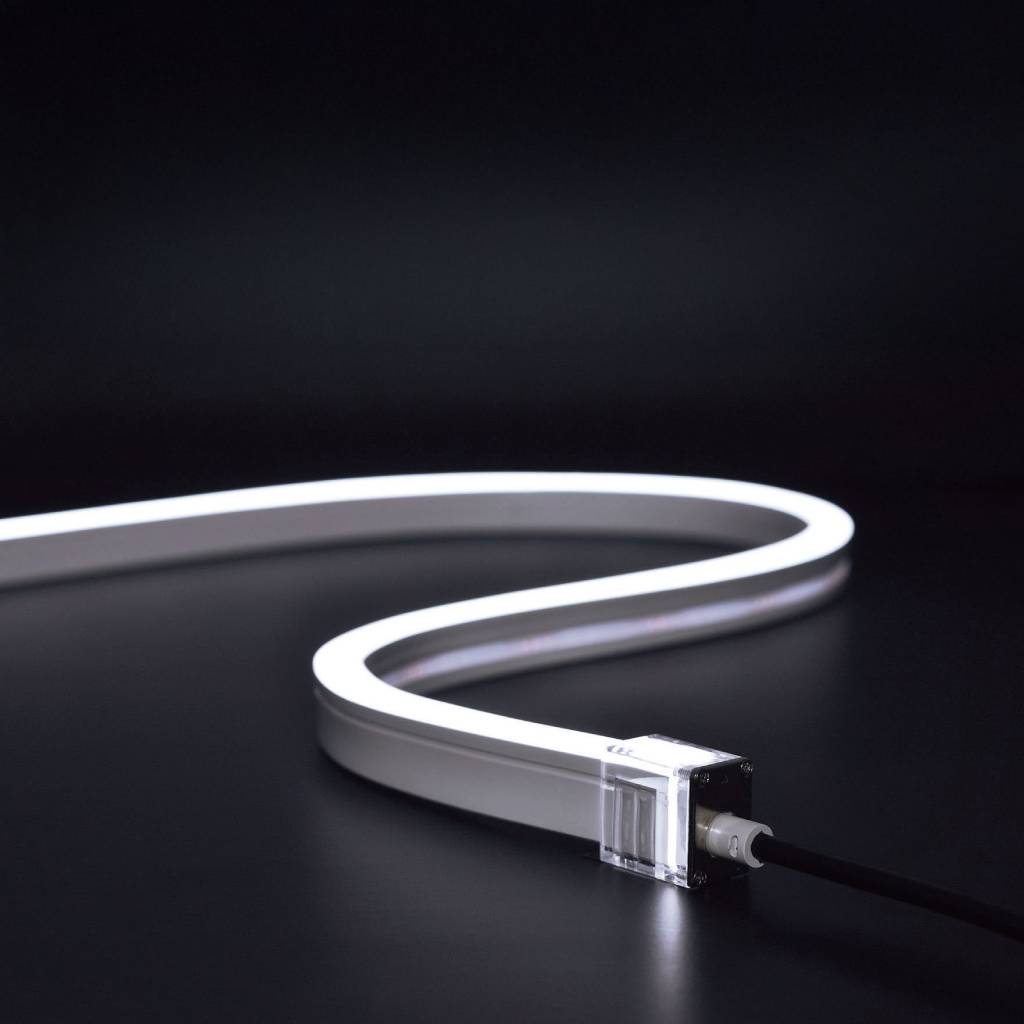

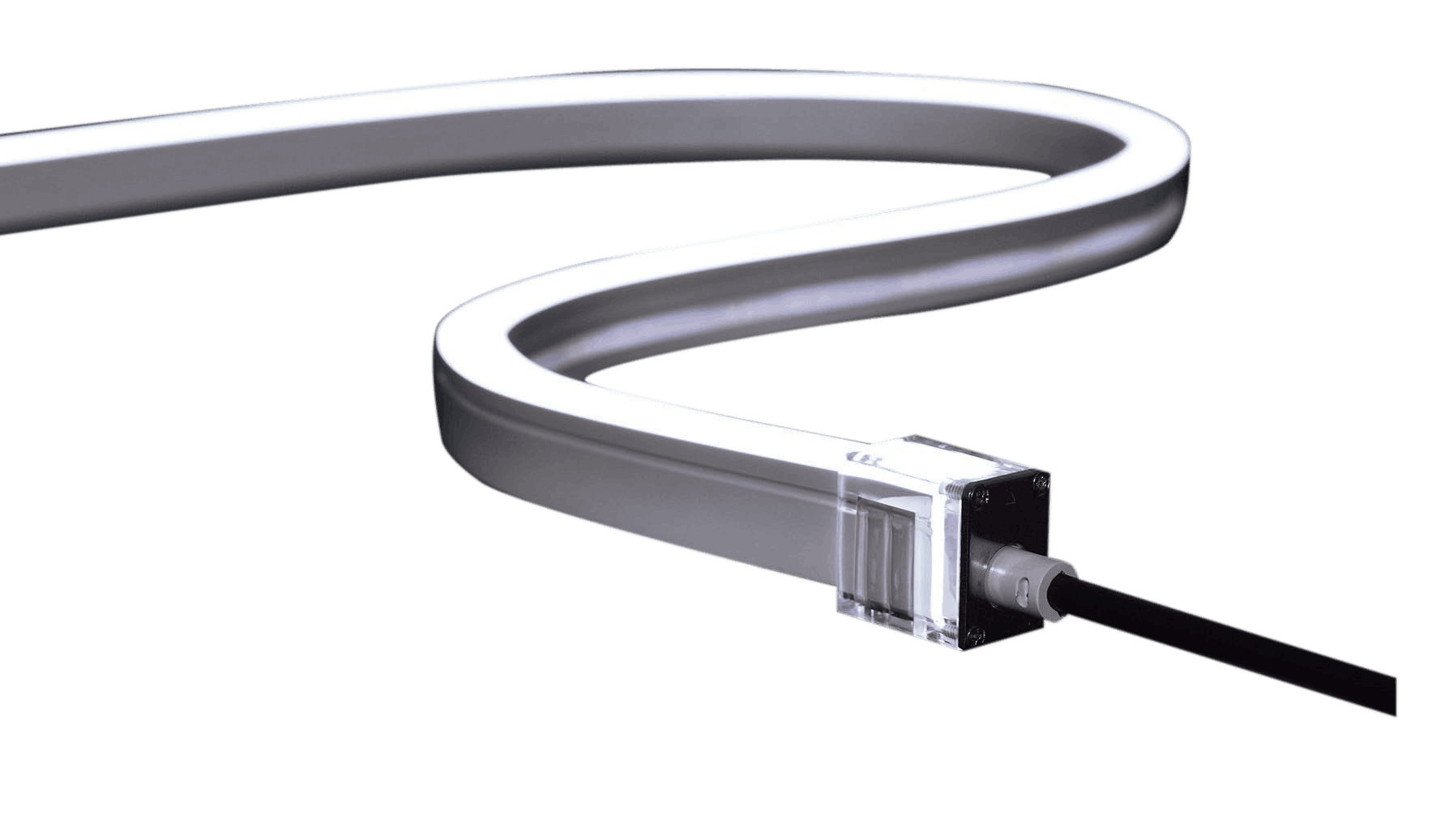

Silicone waterproof light strip

High color rendering Ra90, high color reproduction

High color rendering: Ra90. The higher the color rendering of a light source, the closer its color performance will be to an ideal light source or natural light, making it very suitable for use in situations where color performance is important.

What is an LED light strip?

LED light strips are LED lights in the form of strips or strips.

It has the characteristics of energy saving and low maintenance cost. It generates less heat and can be safely placed for a long time.

You can cut the LED light strip to the required length and easily install it where you want through the adhesive backing.

Main uses of LED light strips

Suitable for home decoration, signage design, cabinet lighting, courtyard, landscaping lighting, accent lighting and other needs.

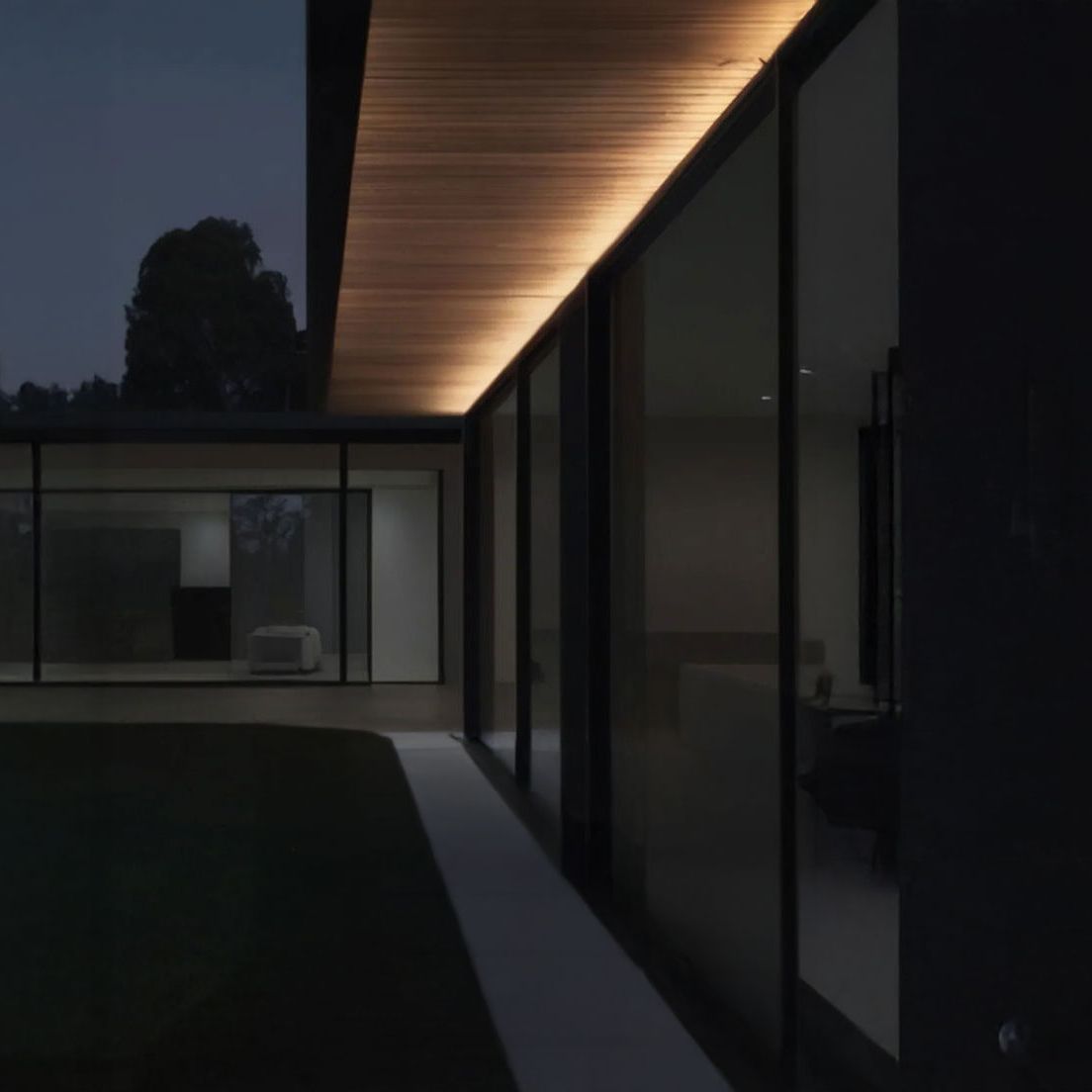

Outdoor decorative lighting

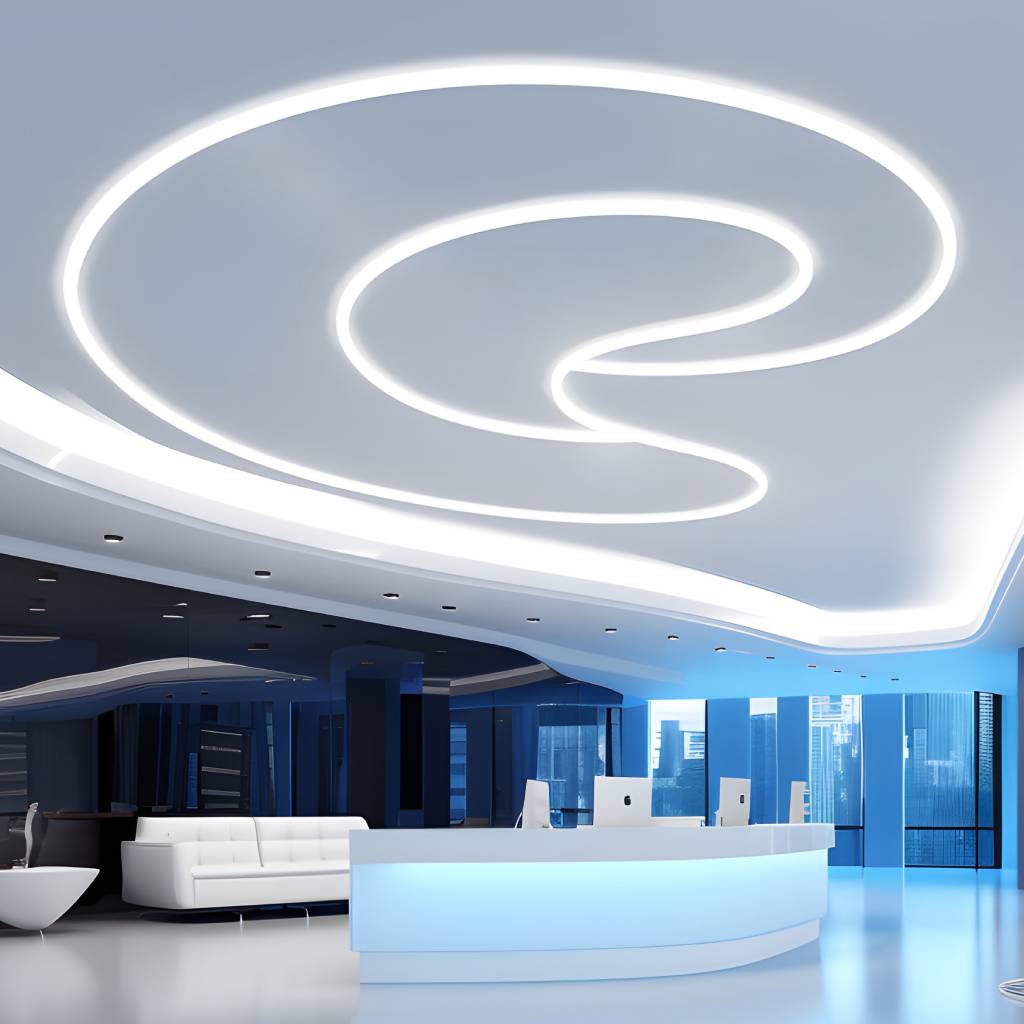

interior design

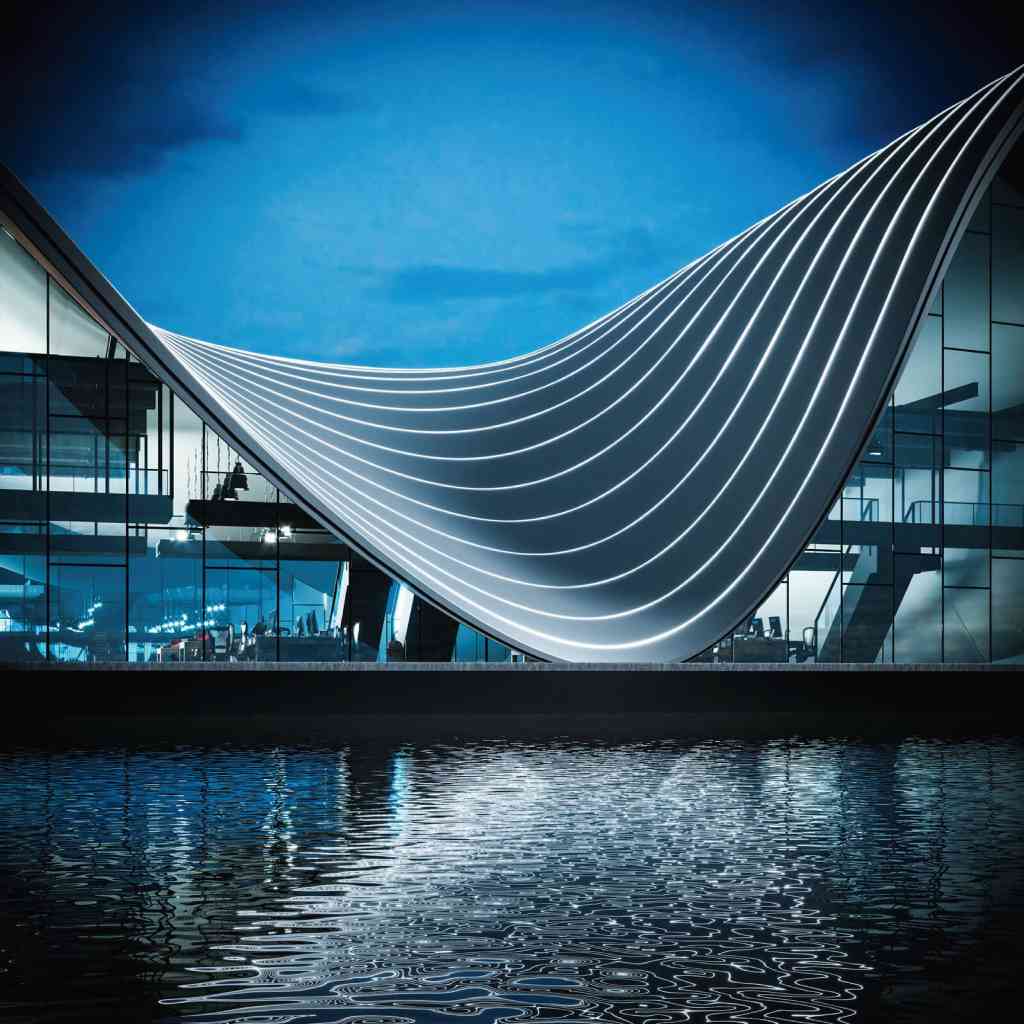

outdoor landscape design
Light bar actual light display

Material characteristics

It is flexible and has good toughness, can fit on curved surfaces or bends, and can be cut to any length. It is flexible and elastic to install.

It can also be equipped with a special silicone end cap to change the outlet direction or complete sealing to achieve a complete line and good installation effect.

This light strip has a protection rating of IP67 and can be installed outdoors.

Voltage drop phenomenon of LED light strips

As LED strips get longer, voltage drops can cause the LED strips to lose intensity.
The LED at the beginning of the strip (closest to the power source) will glow brightly.
In comparison, the LEDs at the end of the strip will have a dim appearance.

Why does voltage drop occur?

Any length of wire has a certain resistance.
The longer the wire, the greater the resistance. The resistance causes a voltage drop, and the voltage drop causes the LED to dim.
Therefore, the LED at the end of the strip will always get less voltage than the LED at the power supply.
If the strip is long enough, the voltage drop will become significant, resulting in a noticeable difference in brightness.

How to avoid pressure drop?

Although LED light strips will have voltage drop problems, we can avoid them through the following methods.

Parallel connection: When long LED light strips need to be installed, it is recommended to connect the light strips in parallel for power supply every 5 meters.

Power supply at both ends of the light strip: The maximum length of the LED light strip recommended on the market is 5 meters. If you need to install a 10-meter-long light bar, you can connect both ends of the light bar to the power supply.

Use multiple power supplies: Using multiple power supplies is a great way to get some brightness. But it requires wiring planning so the light strip doesn't end up too far from the power source.

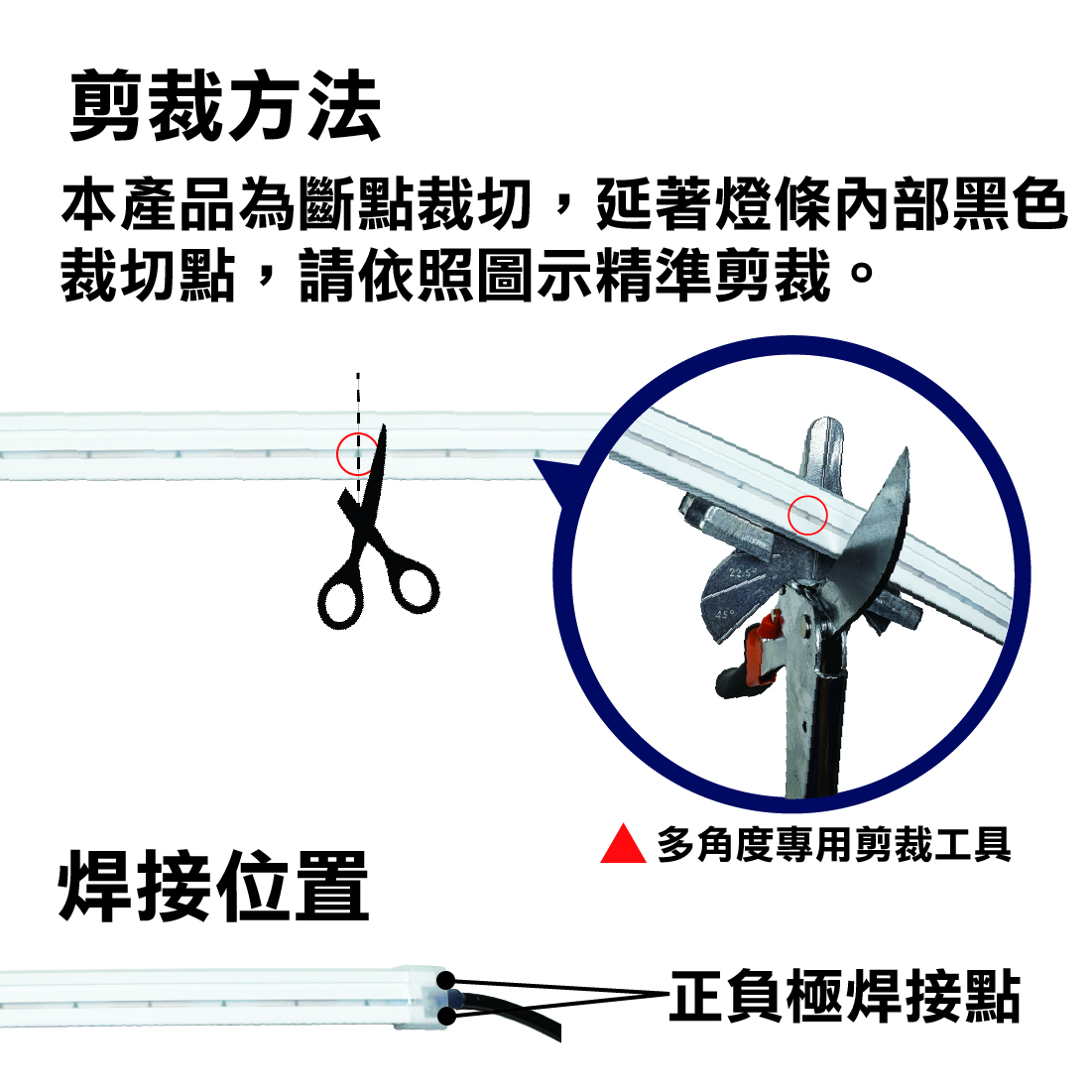

Light strip cutting method

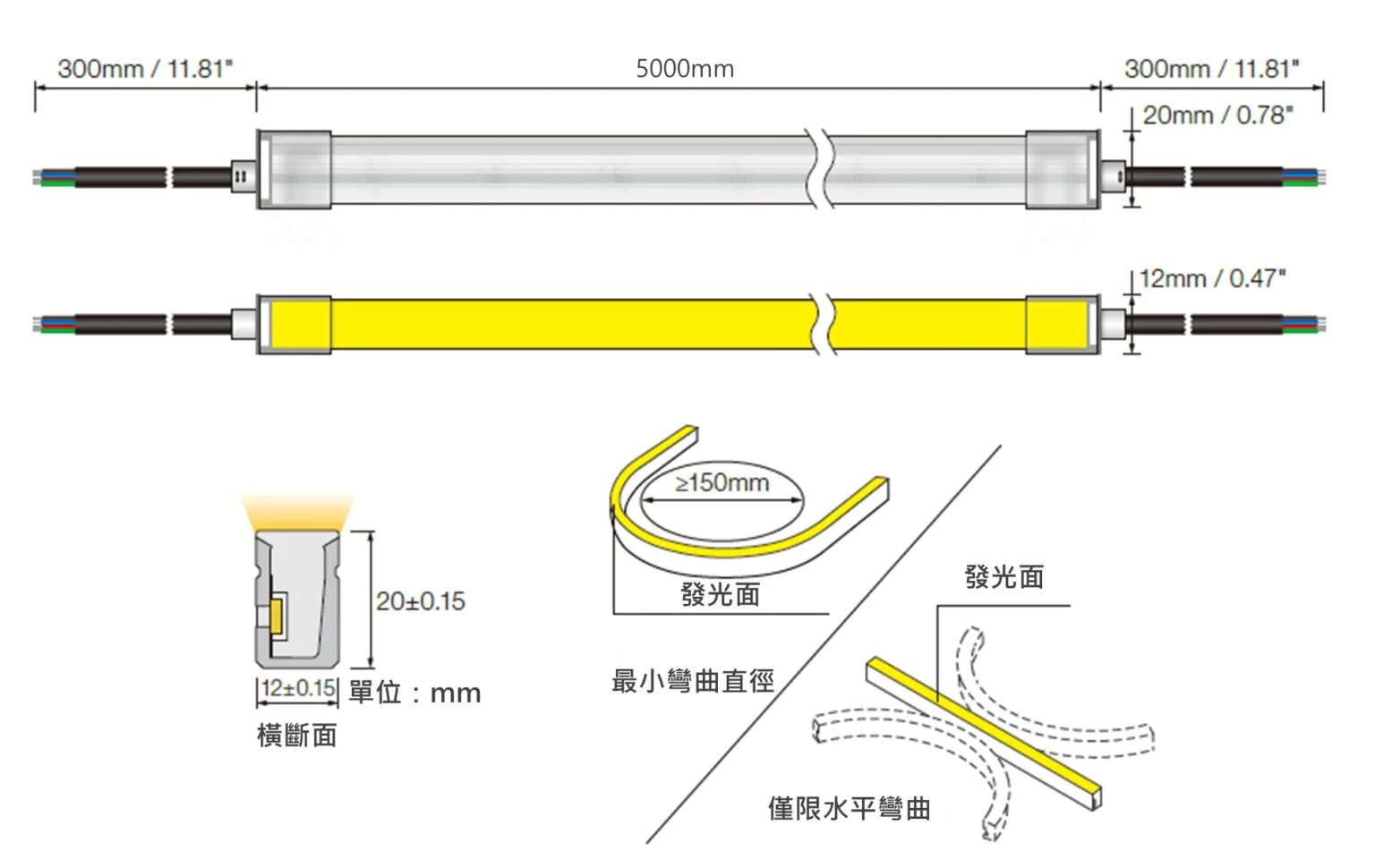

Specification

Use temperature	-20°C~35°C
Protection level	IP67
Certification

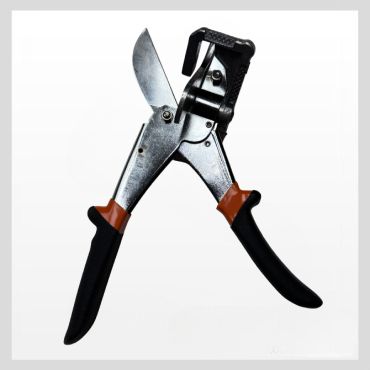

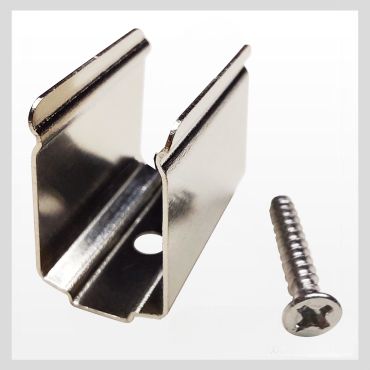

Select accessories	Silicone plug without holes (N-S1220-cap-IP67) The silicone plug has a hole and comes out directly (N-S1220-cap-E-IP67) The silicone plug has a hole at the bottom (N-S1220-cap-B-IP67) The silicone plug has a hole and comes out from the side (N-S1220-cap-S-IP67) Metal fixing clips (N-S1220-Mounting Clips) Special scissors for light strips (N-S1220-Scissors)
