NLS-12/30A series
Feature
It uses the world's most trusted LED to provide a bright beam of light projected on the advertising board, which can highlight the advertising effect.
The lamp body is made of aluminum alloy to provide good heat dissipation. The arms are made of stainless steel and the entire lamp surface is coated with weather-resistant powder coating.
Enhanced salt resistance, acid resistance and corrosion resistance, providing effectiveness and safety for long-term outdoor installation. It is a sturdy and not easily damaged design and can be used to replace the use of halogen lamps.
The installation mode has a variety of lengths and types to choose from to achieve the best lighting field of view.
The lightning protection circuit design is more protective when used outdoors, and it uses LEDs with high global trust.
Applicable

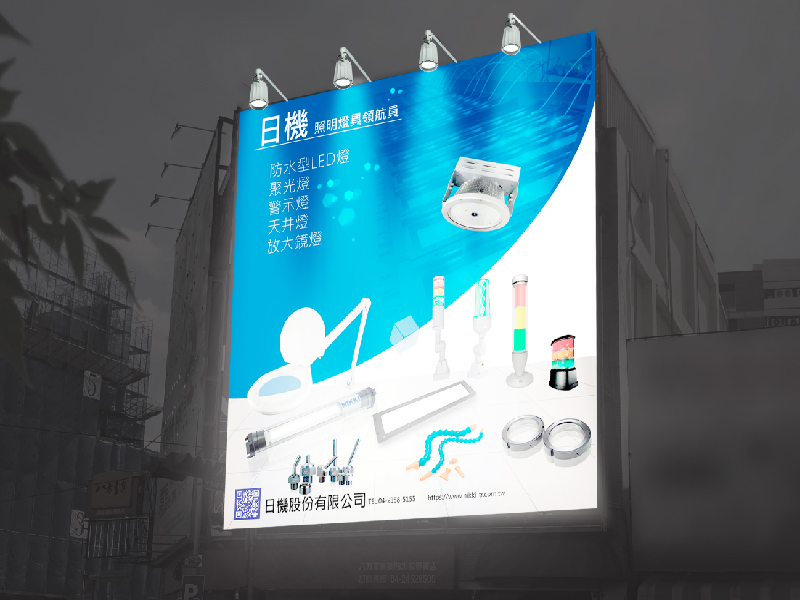

Outdoor lighting, sign lighting
-
Advertising signage lighting
-
Advertising signage lighting
-
outdoor
lighting -
outdoor lighting
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Operating temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the non-freezing state) |
| protection level | IP67 (only inside the lamp head) |
| Standard wiring | 1.5m （2PNCT0.75mm22x3C） |
| certification |
|
| Light distribution angle | 40° |
|---|---|
| Select accessories | Mounting bracket (vertical) |
| Mounting bracket (horizontal) | |
| Light distribution angle: 25° / 120° |
Common outdoor specifications

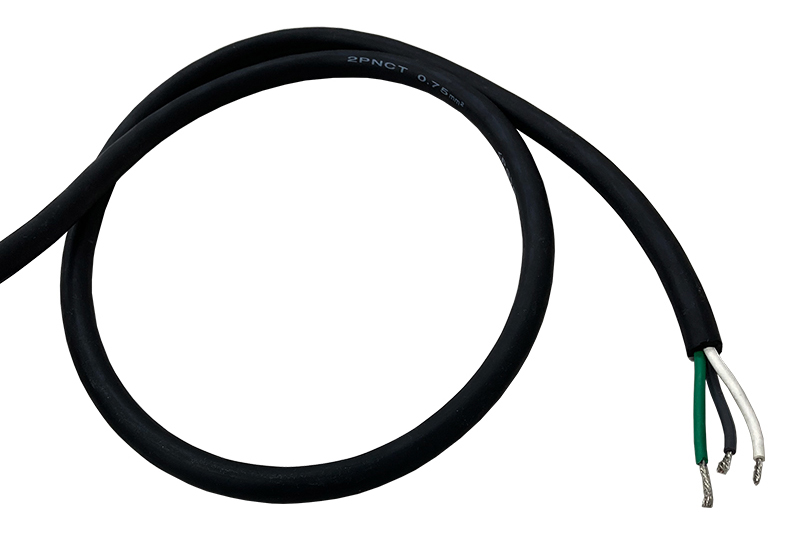

Electrical wires for outdoor use
The wire adopts 2PNCT0.75mm2x3C. Commonly known as rubber wire, it is characterized by its ability to effectively resist hot or cold outdoor weather.
Due to its excellent weather resistance and water resistance, it can also be used outdoors.

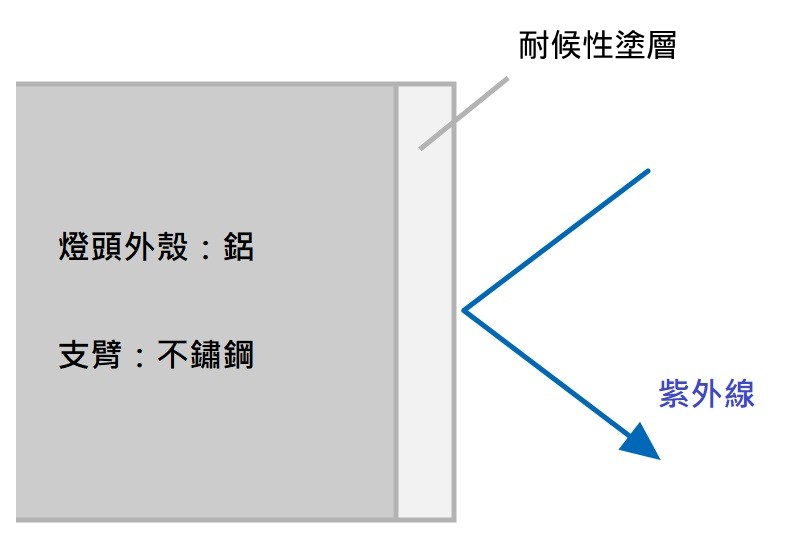

powder coating
A layer of weather-resistant powder is added to the lamp housing and arms.
It adopts powder coating technology, so it has extremely high hardness and solid properties. It can also effectively prevent and improve its durability in the face of deterioration caused by ultraviolet rays.
In addition to effectively reducing costs, the lamps can be set up outdoors for a long time.
Setting method

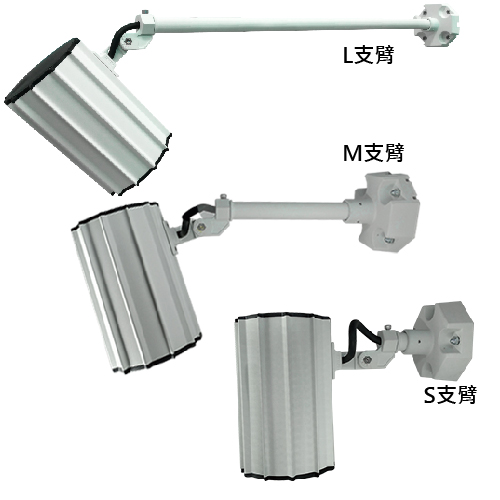

Arm length
Choose from S / M / L.
| Support type | length |
|---|---|
| S | - |
| M | 160 mm |
| L | 760 mm |

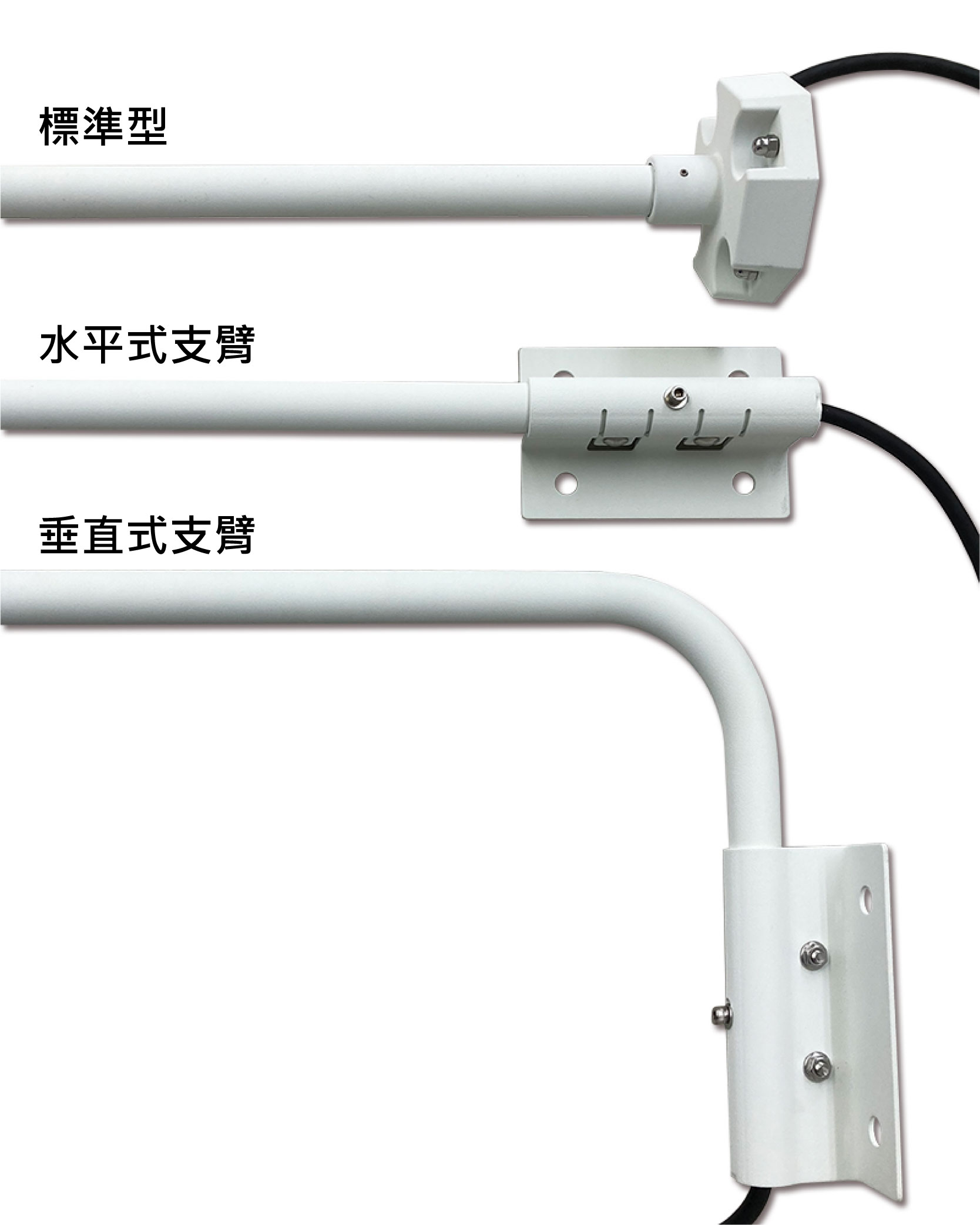

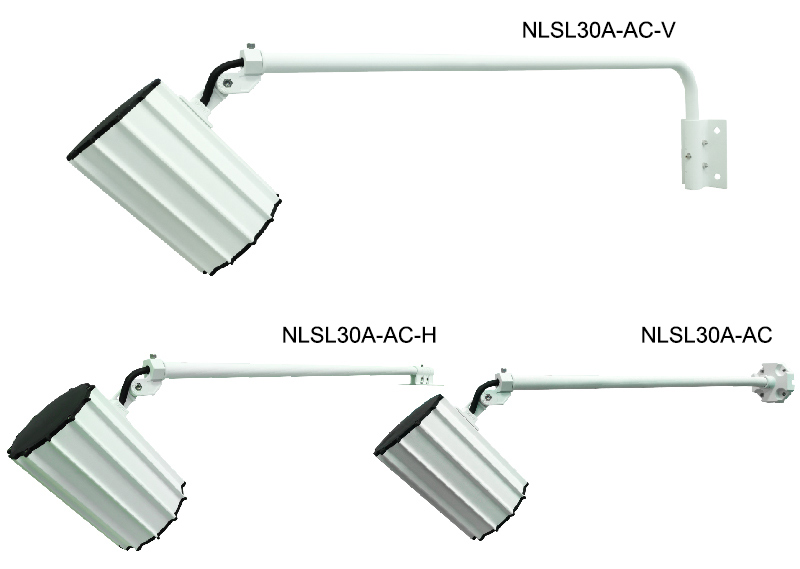

Introduction to arm styles
Introduction to arm shape
Standard, horizontal, vertical lighting fixture arms, etc.

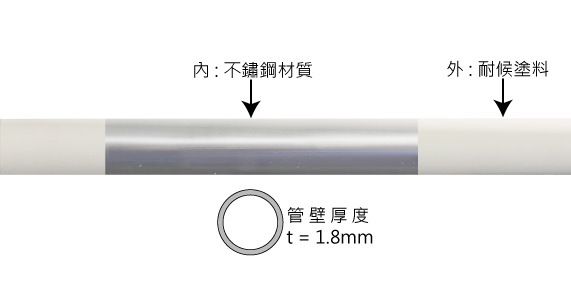

Arm material introduction
The body is made of stainless steel and weather-resistant paint is used on the outside, so it is not easily damaged even if it is left in the outdoor environment for a long time.

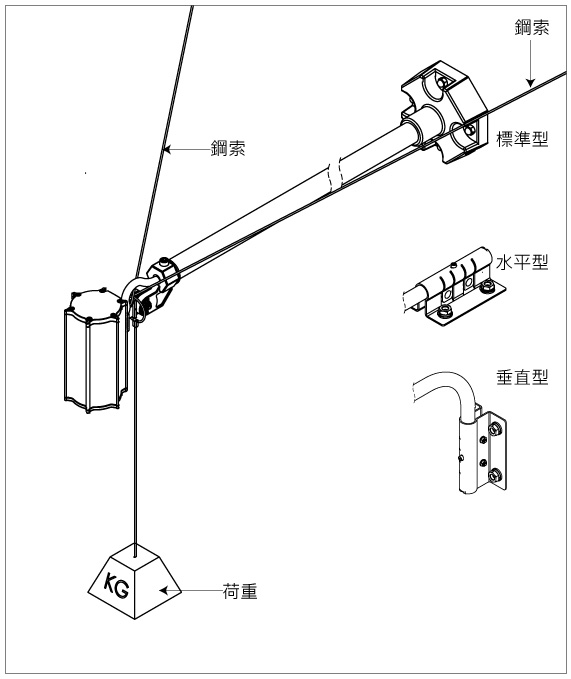

Arm wind resistance data
According to JIS C 8105-2-5:2017 Section 5.6.5.1 test
| form | Light fixture pressure area | Arm | Design allowable wind speed |
|---|---|---|---|
| NLS12A | 0.01m² | Standard type | 60m/s |
| Horizontal | 60m/s | ||
| Vertical | 60m/s | ||
| NLS30A | 0.03m² | Standard type | 60m/s |
| Horizontal | 60m/s | ||
| Vertical | 60m/s |
※The equivalent wind speeds listed in this table refer to the average wind speed within 10 minutes.
※Please read the instruction manual carefully before installation.

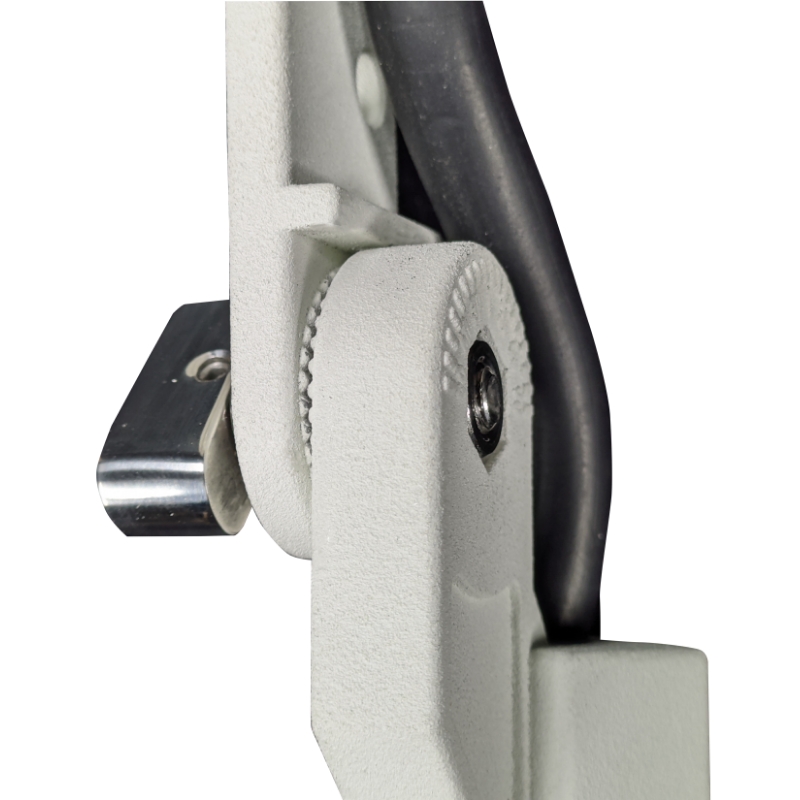

Angle adjustment

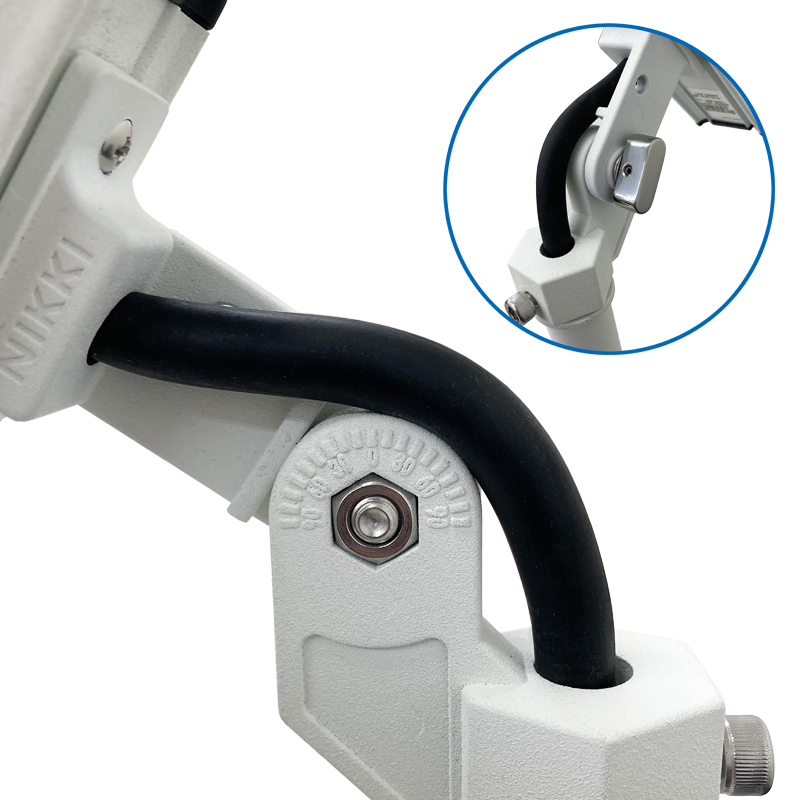

Vertical plane angle adjustment
Loosen the knob to adjust vertical illumination direction in 10° increments (180°).
* When fixing, tighten the knob with a wrench.
* When adjusting the angle, please bend the wire slightly first.
Anti-rotation device
The angle adjustment part is fixed with a ratchet mechanism that prevents rotation, so it can be used with confidence even if it is installed outdoors for a long time.

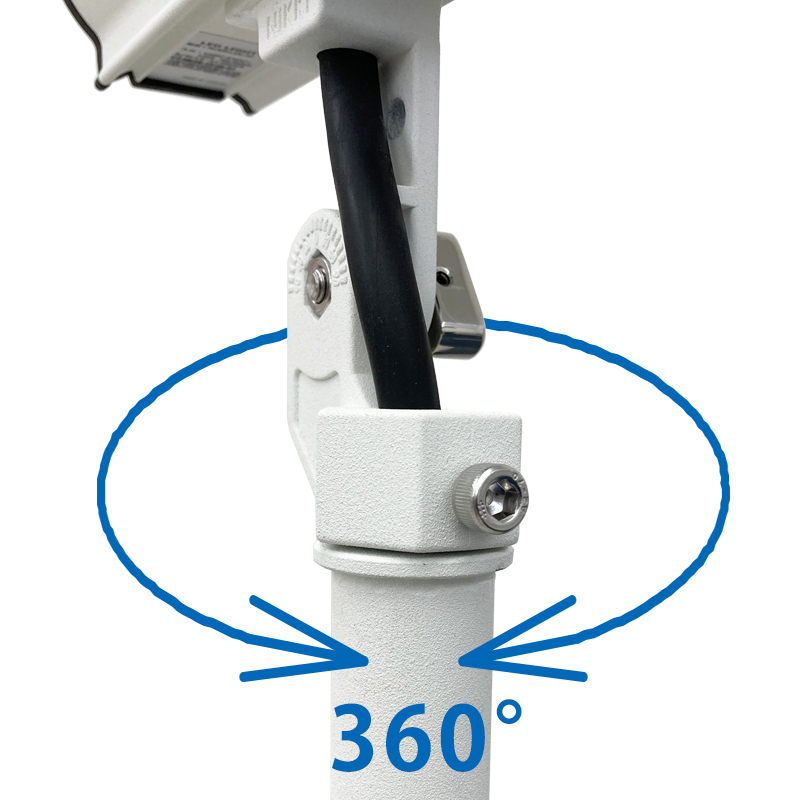

Horizontal angle adjustment
You can adjust the horizontal angle by loosening the rotating adjustment bolt.
* After adjusting the angle, tighten it with a hexagonal wrench.

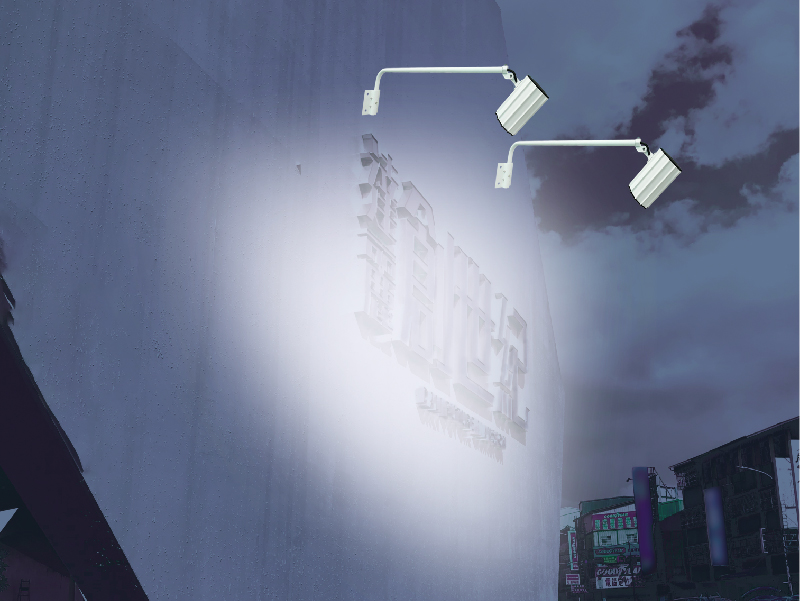

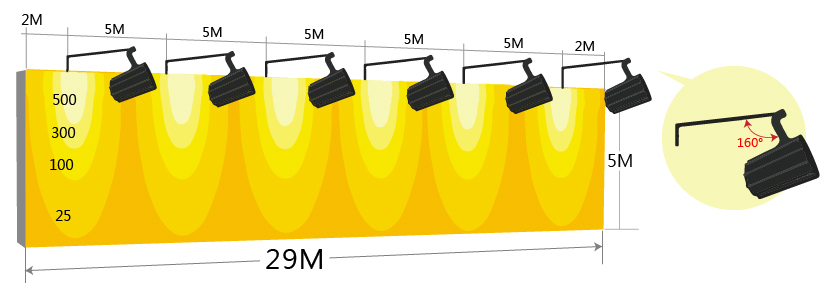

Light distribution diagram display of advertising floodlights
[For example: 29m wide, 5m high signboard]
The lamps are installed at
intervals of 5m, and the brightness measured at the maximum illumination range is
500 lx. The entire signboard is brighter and the advertising effect is
enhanced.
An illumination simulation diagram can be constructed based on the
size, illuminance, and light distribution angle of the actual advertising board.
The number and spacing distance of floodlights to be installed can be customized
according to the customer's actual illumination needs.
Welcome to call,Letterconsult.
Recommended lighting levels for signboards
| Illumination of advertising signboard surface | bright around | Dark around |
|---|---|---|
| Maximum brightness recommendations | 500 lx | 200 lx |
| Minimum visible brightness | 1,000 lx | 500 lx |
※In addition to considering the surface reflection of the signboard,
the environment must also be considered. Please refer to the recommended illumination
levels for signboard surfaces.
※When there are people passing around, please pay more attention to the position and illumination angle of the lighting fixtures.
※When there are people passing around, please pay more attention to the position and illumination angle of the lighting fixtures.
Light distribution curve data
NLS-12A(please refer toRecommended lighting levels for signboards。)
Light distribution angle 25°
Light distribution angle 40°

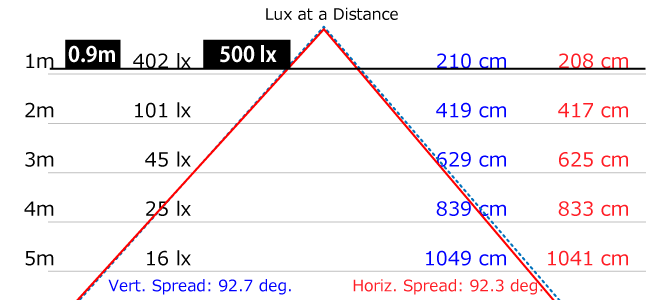

Light distribution angle 120°
NLS-30A(please refer toRecommended lighting levels for signboards。)

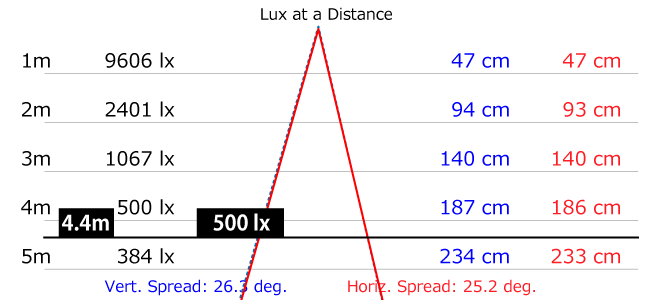

Light distribution angle 25°

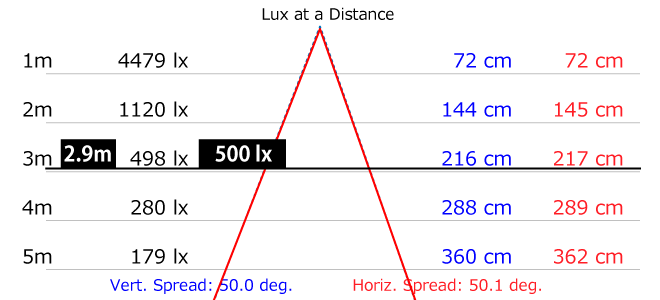

Light distribution angle 40°

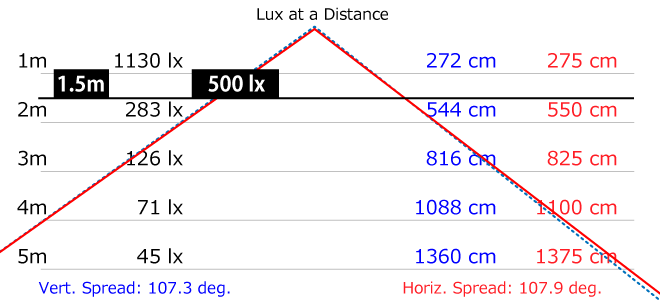

Light distribution angle 120°
List of NLS-A standard models
| model |
drawing
|
Luminous flux | Illuminance (1m) | power supply | Power consumption | ||
|---|---|---|---|---|---|---|---|
| 25° | 40°※ | 120° | |||||
| NLSS12A-AC | PDF DXF | 900 lm | 3,470 lx | 1,200 lx | 400 lx | AC100-240V |
10w |
| NLSM12A-AC | PDF DXF | ||||||
| NLSL12A-AC | PDF DXF | ||||||
| NLSL12A-AC-V | PDF DXF | ||||||
| NLSL12A-AC-H | PDF DXF | ||||||
| NLSS30A-AC | PDF DXF | 3,100 lm | 9,600 lx | 4,480 lx | 1,130 lx | 30w | |
| NLSM30A-AC | PDF DXF | ||||||
| NLSL30A-AC | PDF DXF | ||||||
| NLSL30A-AC-V | PDF DXF | ||||||
| NLSL30A-AC-H | PDF DXF | ||||||
※The standard light distribution angle of this product is 40°.
Appearance dimension drawing
NLSS/M/L12A-AC
| model | A | B | C |
|---|---|---|---|
| NLSS12A-AC | 240 | 130 | 75 |
| NLSM12A-AC | 390 | ||
| NLSL12A-AC | 990 |
NLSS/M/L30A-AC
| model | A | B | C |
|---|---|---|---|
| NLSS30A-AC | 300 | 200 | 130 |
| NLSM30A-AC | 450 | ||
| NLSL30A-AC | 1050 |
NLSL12A-AC-V
NLSL30A-AC-V Dimensional drawing
NLSL12A-AC-H Dimensional Drawing
NLSL30A-AC-H
Series selection method
| Arm length | model | power supply | Base | optical lens | |
|---|---|---|---|---|---|
| NLS |
|
|
|
|
|
