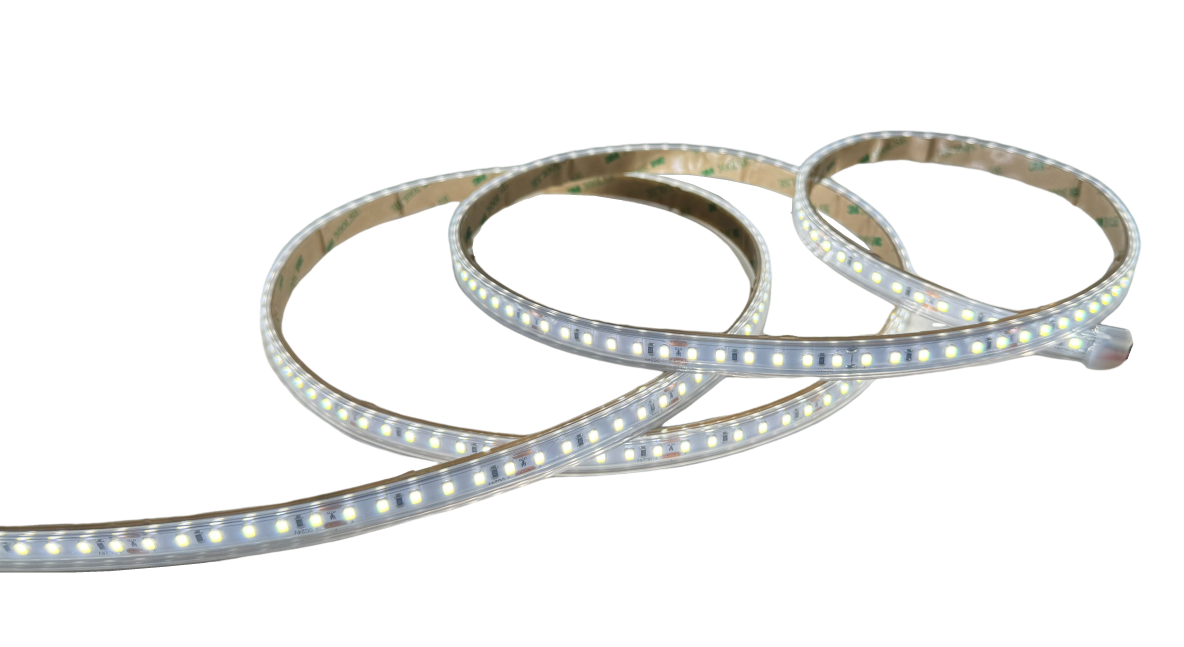

LED light strip
High Color Rendering Ra90
High color rendering: Ra90. A higher color rendering value means the light source reproduces colors closer to natural light, making it suitable for applications where color accuracy is important.
What is an LED light strip?
LED light strips are flexible strip-shaped LED lighting products.
They are energy-saving, low-maintenance, and generate less heat for long-term placement.
The LED light strip can be cut to the required length and installed easily with adhesive backing.
Main Applications of LED Light Strips
Designed for home decoration, signage, cabinet lighting, courtyard lighting, landscape lighting, accent lighting, and similar applications.
-

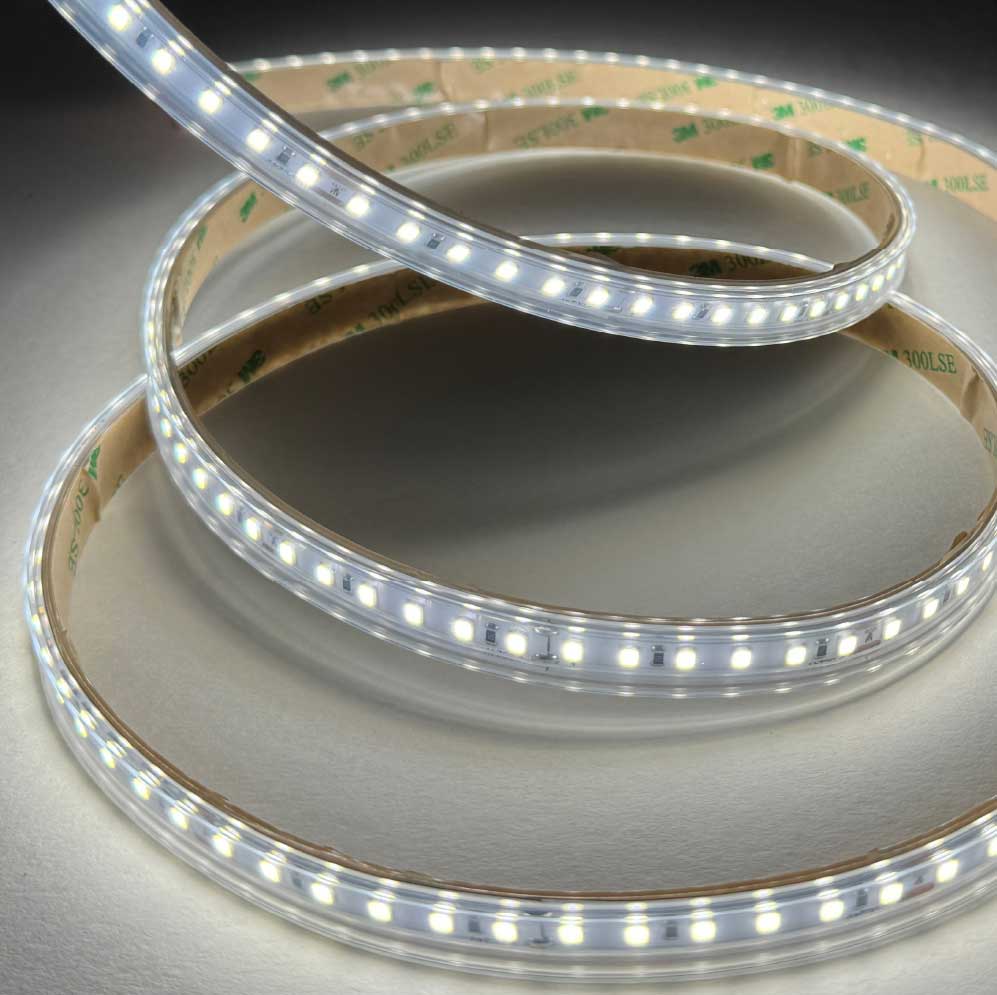

White light strip
(6,500K) -

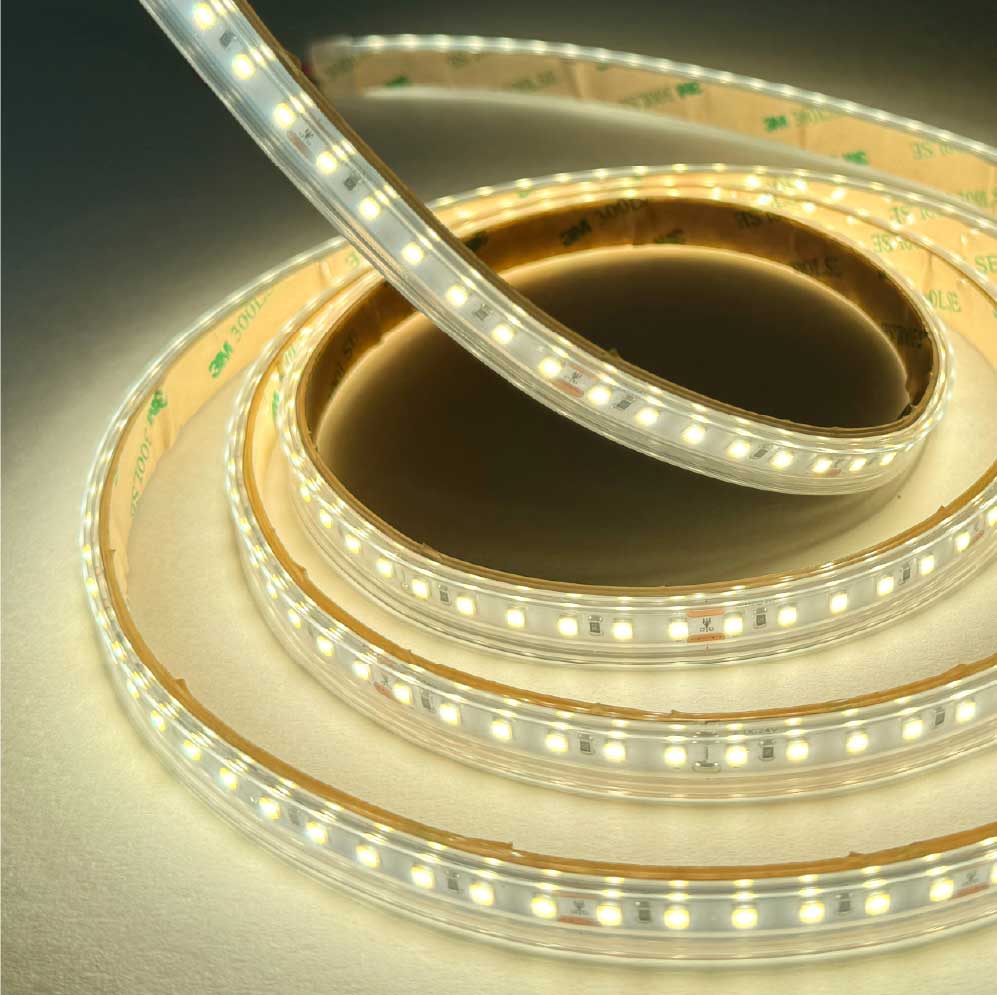

Yellow light strip (3,000K)
-

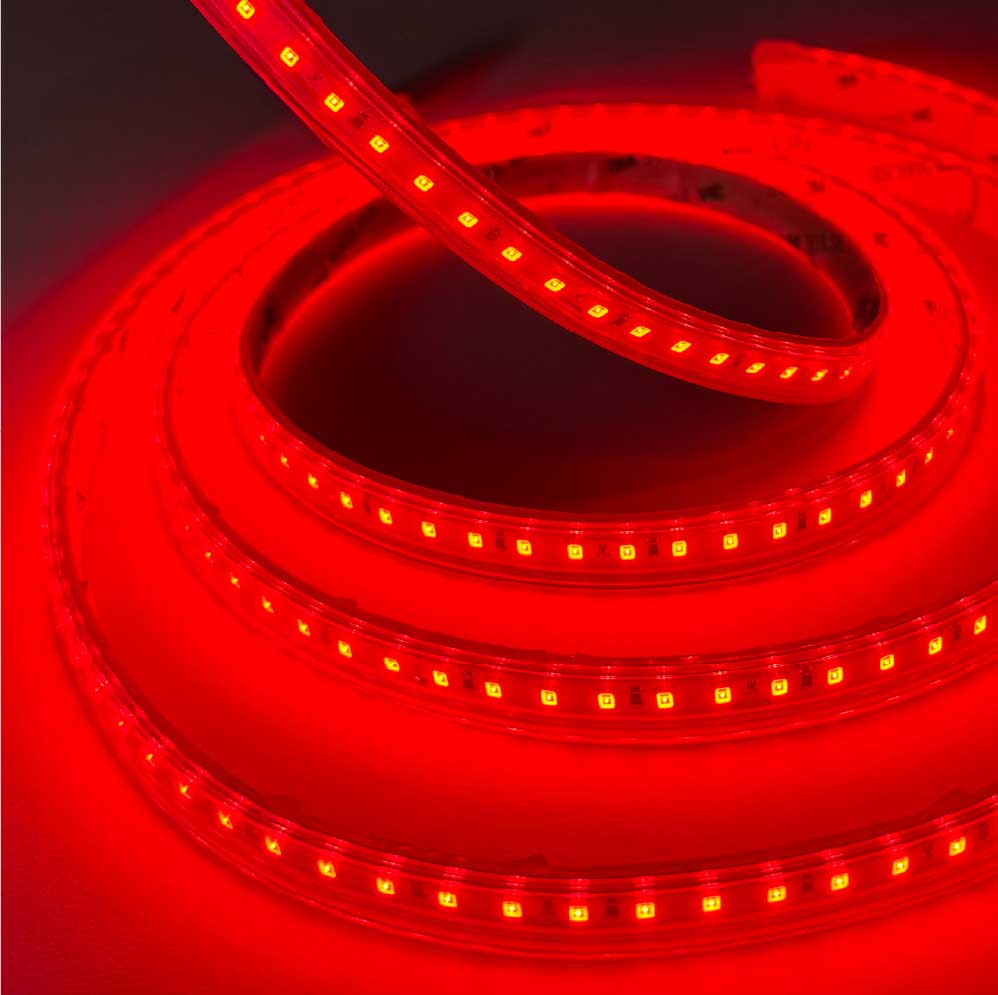

Red light strip
(620-625nm) -

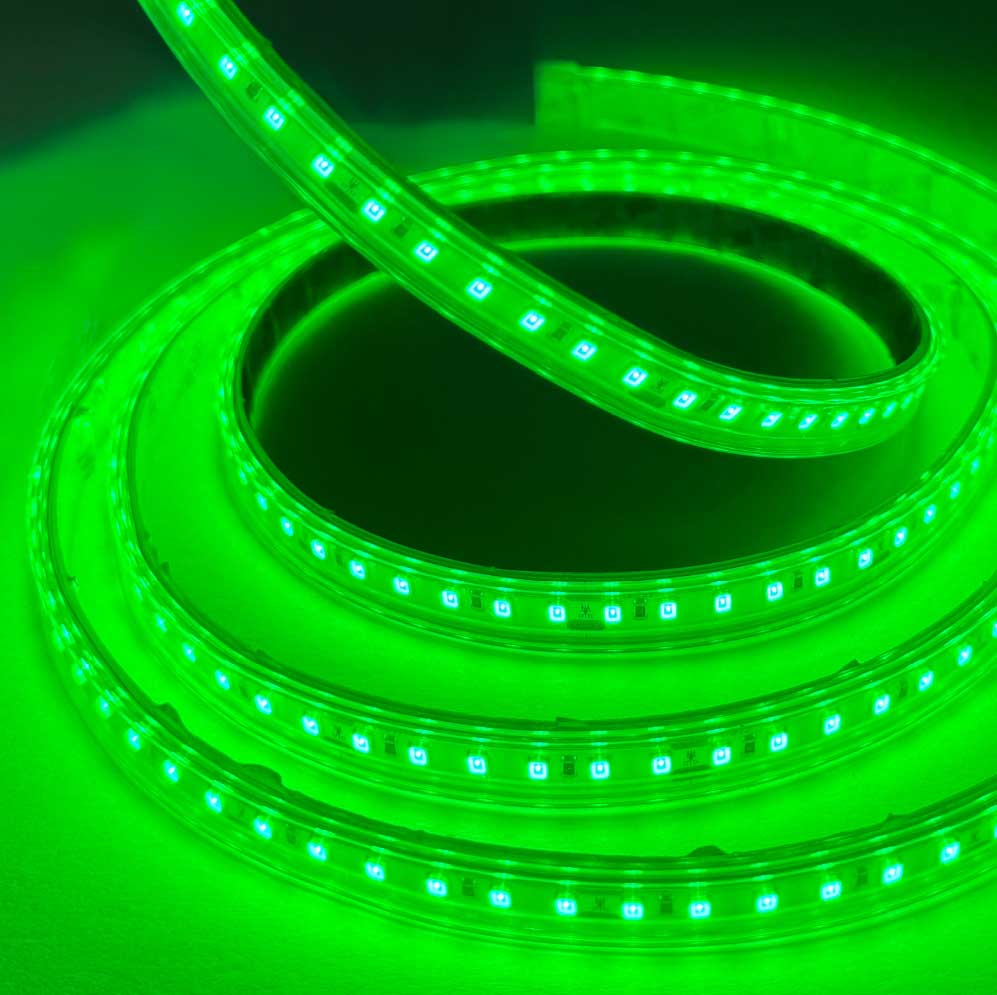

Green light strip
(515-525nm) -

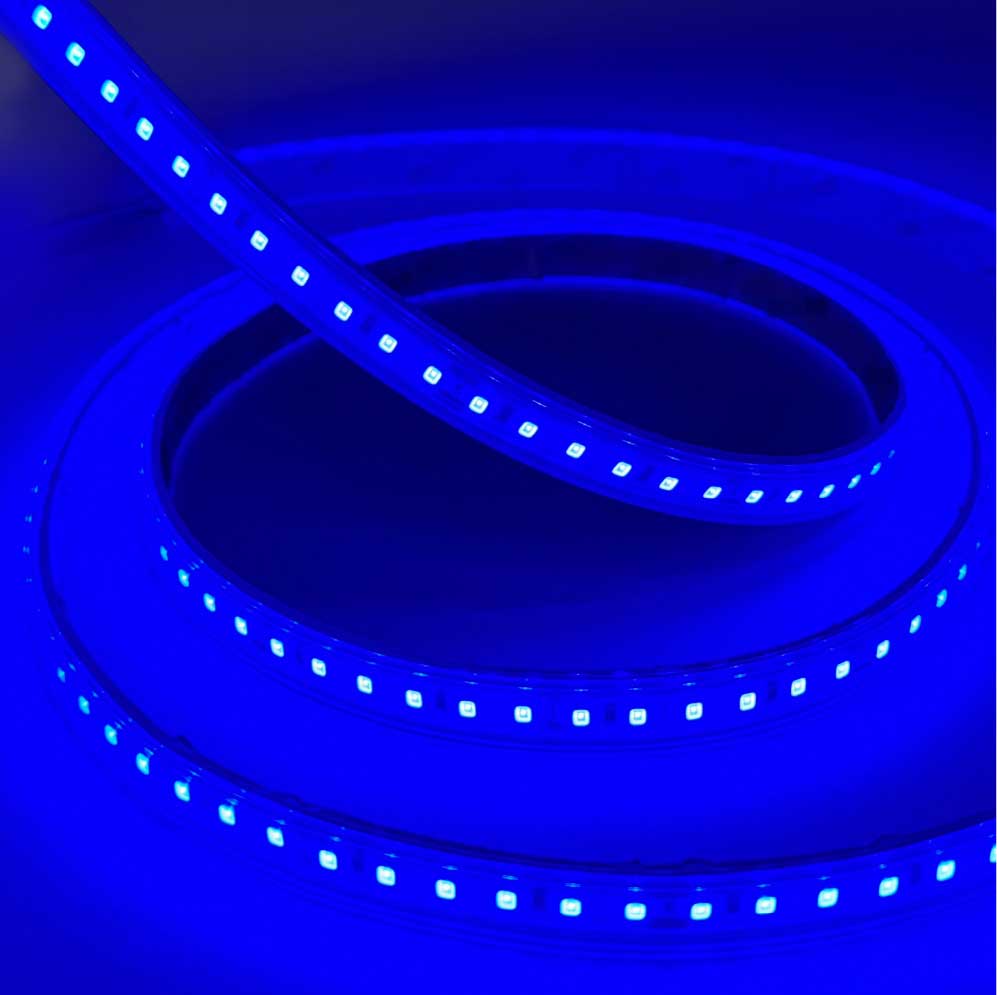

Blue light strip
(460-470nm)
Material Characteristics
The SMD2835 LEDs provide high performance and stable operation.
LED light strips have an average service life of 40,000 to 50,000 hours.
This light strip has a protection rating of IP65 and can be installed outdoors.
Size and Color Selection
Two LED densities are available: 60 LEDs/m and 120 LEDs/m.
Five light colors are available: white (6,500 K), warm white (3,000 K), red (620-625 nm), green (515-525 nm), and blue (460-470 nm) for different applications.
Voltage Drop in LED Light Strips
As LED strips get longer, voltage drops can cause the LED strips to lose
intensity.
The LED at the beginning of the strip (closest to the power source) will
glow brightly.
In comparison, the LEDs at the end of the strip will have a dim
appearance.
Why Does Voltage Drop Occur?
Any length of cable has a certain resistance.
The longer the cable, the greater the
resistance. The resistance causes a voltage drop, and the voltage drop causes the LED to
dim.
Therefore, the LED at the end of the strip will always get less voltage than the
LED at the power supply.
If the strip is long enough, the voltage drop will become
significant, resulting in a noticeable difference in brightness.
How to Reduce Voltage Drop?
Although LED light strips will have voltage drop problems, we can avoid them through the following methods.
Parallel connection: When long LED light strips need to be installed, it is recommended to connect the light strips in parallel for power supply every 5 meters.
Power supply at both ends of the light strip: The recommended maximum length for an LED light strip is 5 meters. For a 10-meter installation, connect both ends of the light strip to the power supply.
Use multiple power supplies: Using multiple power supplies is a great way to get some brightness. But it requires wiring planning so the light strip doesn't end up too far from the power source.

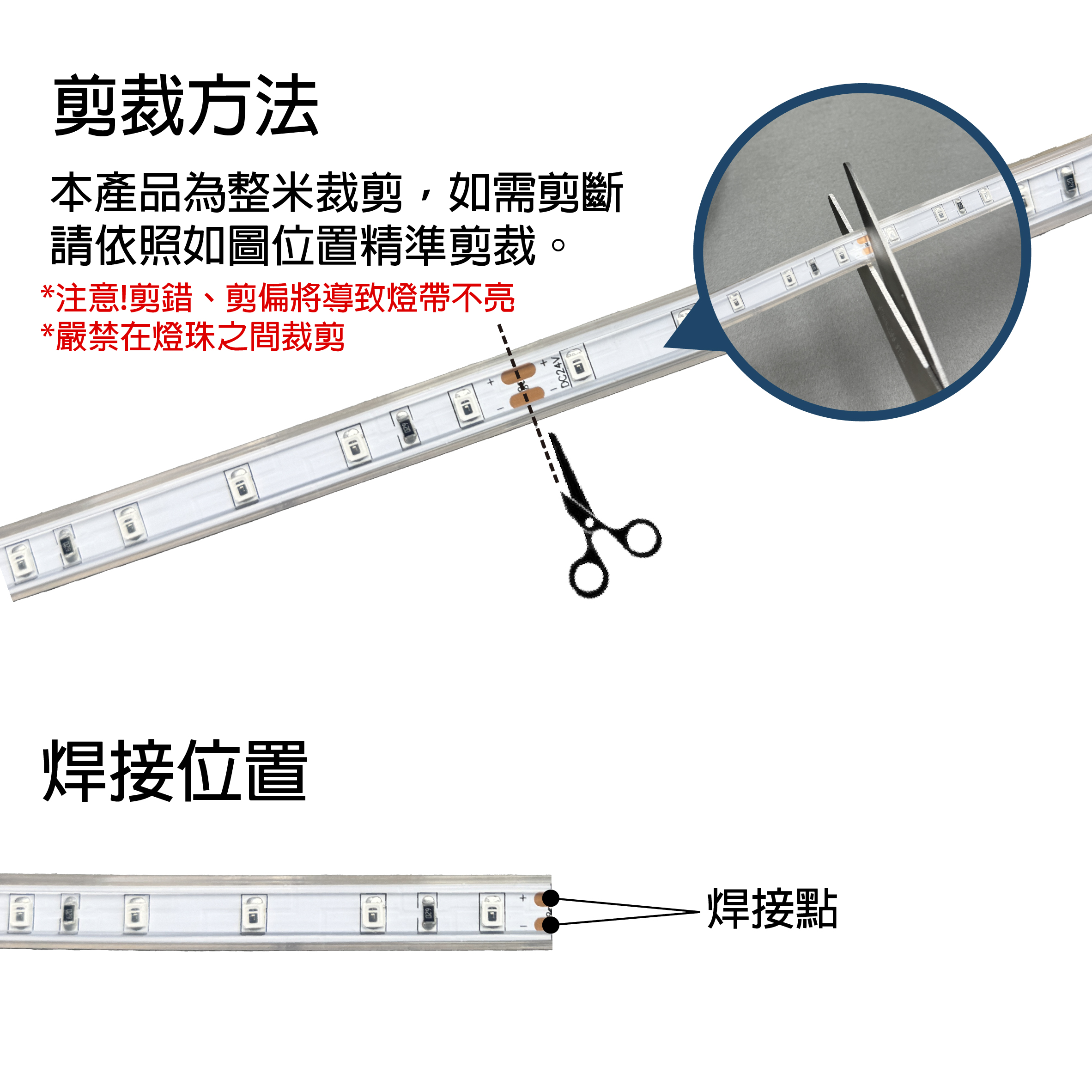

LED Light Strip Cutting Method
Specifications
| LED Size | SMD2835 |
|---|---|
| Operating Temperature | -20°C~50°C |
| LED Density | 60 pcs/meter, 120 pcs/meter |
| Power Supply | DC |
| Protection Rating | IP65 |
| Certification |
|
| Optional Accessories | Wall-Plug AC/DC Adapter (ND-PM243) + DC Power Connector Wall-Plug AC/DC Adapter (ND-PM247) + DC Power Connector Switch Control Cable |
|---|
Model List - 60 LEDs/m
| Model | Light Color | Color Rendering Index | Luminous Flux | Illuminance (1m) | Power Supply | Power Consumption | Length(m) |
|---|---|---|---|---|---|---|---|
| N-LY60-S2835W65-W24-IP65 2M | 6,500K | Ra90 | 1,190 lm | 380 lx | DC24V | 24W | 2 |
| N-LY60-S2835W65-W24-IP65 5M | 60W | 5 | |||||
| N-LY60-S2835W30-W24-IP65 2M | 3,000K | 1,140 lm | 370 lx | 24W | 2 | ||
| N-LY60-S2835W30-W24-IP65 5M | 60W | 5 | |||||
| N-LY60-S2835R-W24-IP65 2M | Red Light 620-625nm |
- | 350 lm | 100 lx | 24W | 2 | |
| N-LY60-S2835R-W24-IP65 5M | 60W | 5 | |||||
| N-LY60-S2835G-W24-IP65 2M | green light 515-525nm |
1,010 lm | 300 lx | 24W | 2 | ||
| N-LY60-S2835G-W24-IP65 5M | 60W | 5 | |||||
| N-LY60-S2835B-W24-IP65 2M | Blu-ray 460-470nm |
200 lm | 50 lx | 24W | 2 | ||
| N-LY60-S2835B-W24-IP65 5M | 60W | 5 |
Model List - 120 LEDs/m
| Model | Light Color | Color Rendering Index | Luminous Flux | Illuminance (1m) | Power Supply | Power Consumption | Length(m) |
|---|---|---|---|---|---|---|---|
| N-LY120-S2835W65-W24-IP65 2M | 6,500K | Ra90 | 1,240 lm | 390 lx | DC24V | 24W | 2 |
| N-LY120-S2835W65-W24-IP65 5M | 60W | 5 | |||||
| N-LY120-S2835W30-W24-IP65 2M | 3,000K | 1,200 lm | 390 lx | 24W | 2 | ||
| N-LY120-S2835W30-W24-IP65 5M | 60W | 5 | |||||
| N-LY120-S2835R-W24-IP65 2M | Red Light 620-625nm |
- | 380 lm | 110 lx | 24W | 2 | |
| N-LY120-S2835R-W24-IP65 5M | 60W | 5 | |||||
| N-LY120-S2835G-W24-IP65 2M | green light 515-525nm |
1,280 lm | 370 lx | 24W | 2 | ||
| N-LY120-S2835G-W24-IP65 5M | 60W | 5 | |||||
| N-LY120-S2835B-W24-IP65 2M | Blu-ray 460-470nm |
230 lm | 60 lx | 24W | 2 | ||
| N-LY120-S2835B-W24-IP65 5M | 60W | 5 |
Dimensions

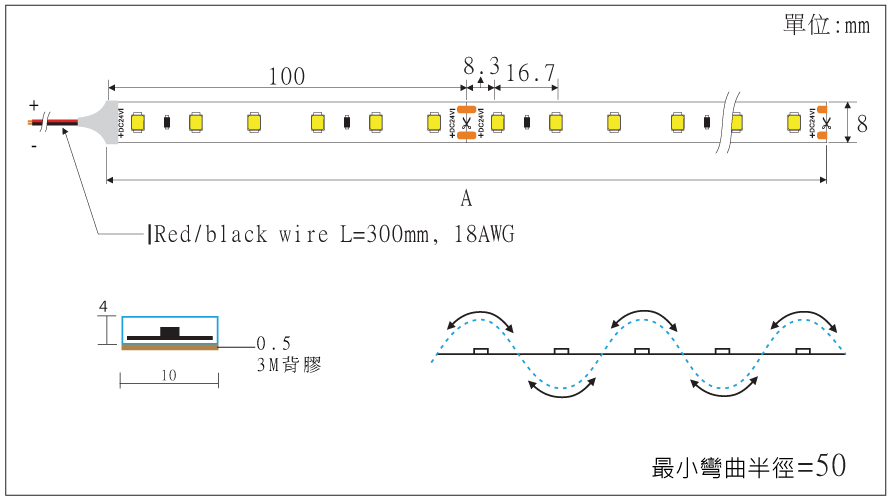

60-Piece LED Size Chart
| Model | A |
|---|---|
| N-LY60-S2835W65-W24-IP65 2M | 2,000 |
| N-LY60-S2835W65-W24-IP65 5M | 5,000 |
| N-LY60-S2835W30-W24-IP65 2M | 2,000 |
| N-LY60-S2835W30-W24-IP65 5M | 5,000 |
| N-LY60-S2835R-W24-IP65 2M | 2,000 |
| N-LY60-S2835R-W24-IP65 5M | 5,000 |
| N-LY60-S2835G-W24-IP65 2M | 2,000 |
| N-LY60-S2835G-W24-IP65 5M | 5,000 |
| N-LY60-S2835B-W24-IP65 2M | 2,000 |
| N-LY60-S2835B-W24-IP65 5M | 5,000 |

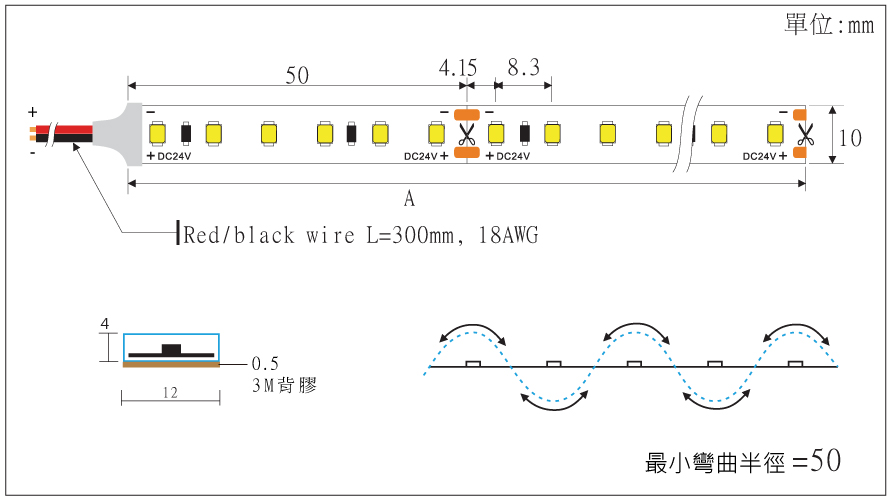

120 LEDs size chart
| Model | A |
|---|---|
| N-LY120-S2835W65-W24-IP65 2M | 2,000 |
| N-LY120-S2835W65-W24-IP65 5M | 5,000 |
| N-LY120-S2835W30-W24-IP65 2M | 2,000 |
| N-LY120-S2835W30-W24-IP65 5M | 5,000 |
| N-LY120-S2835R-W24-IP65 2M | 2,000 |
| N-LY120-S2835R-W24-IP65 5M | 5,000 |
| N-LY120-S2835G-W24-IP65 2M | 2,000 |
| N-LY120-S2835G-W24-IP65 5M | 5,000 |
| N-LY120-S2835B-W24-IP65 2M | 2,000 |
| N-LY120-S2835B-W24-IP65 5M | 5,000 |
Optional Accessories for LED Light Strips
-
Wall-Plug AC/DC Adapter
- Model: ND-PM243
- Certification: PSE FCC
- Input Voltage: AC100-240V
- Output voltage: DC24V
- Output power: maximum 24W
- Cable Length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-

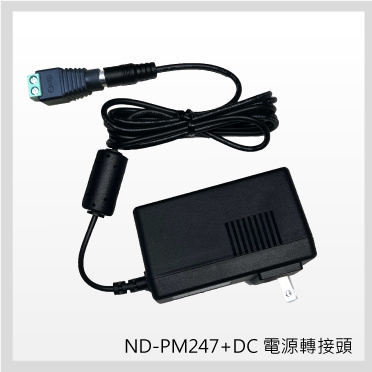

Wall-Plug AC/DC Adapter
- Model: ND-PM247
- Certification: PSE FCC
- Input Voltage: AC100-240V
- Output voltage: DC24V
- Output power: Max 60W
- Cable Length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
Switch Control Cable
- Model: ND-SW01
- Cable Length: 0.3m
- Applicable voltage: 5V-24V
- Allowable current: 3A
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
