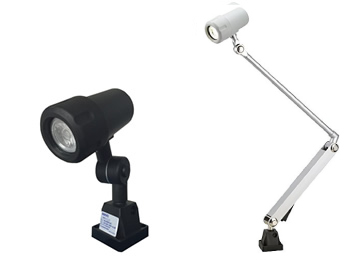

NLS-03 series
Feature
The body of the NLS03 series is made of plastic and has good insulation.
The LED power supply uses a constant current IC loop drive method, which can maintain the brightness of the lamp unchanged even if the voltage changes, and can increase the life of the LED.
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages.
It also has high insulation properties and is most suitable for internal lighting of tool machinery. Using LEDs that are highly trusted around the world.
Applicable
Tool machinery internal and external lighting, inspection lighting, etc.
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ |
| protection level | IP65 (only inside the lamp head) |
| Standard wiring | 3m （VCTF0.75mm2x2C） |
| Certification |

|
| Select accessories | Color temperature 4,000K |
|---|---|
| oil resistant wire | |
| L-shaped base (AL-23) C-type base (AL-28B) |
|
| Tact switch (TS) suitable for 03 series |
Standard model list
| model | drawing | Luminous flux | Illuminance (1 meter) | power supply | Consumption power |
|---|---|---|---|---|---|
| NLSS03C-DC | PDF DXF | 510 lm | 1,780 lx | DC24V | 5W |
| NLSS03C-AC | PDF DXF | AC110V | |||
| NLSM03C-DC | PDF DXF | DC24V | |||
| NLSM03C-AC | PDF DXF | AC110V |
※Corresponding power supply AC110V ※When selecting, please add (2M+P) at the end of the model
Light distribution curve data
NLS-03
Dimensional drawing

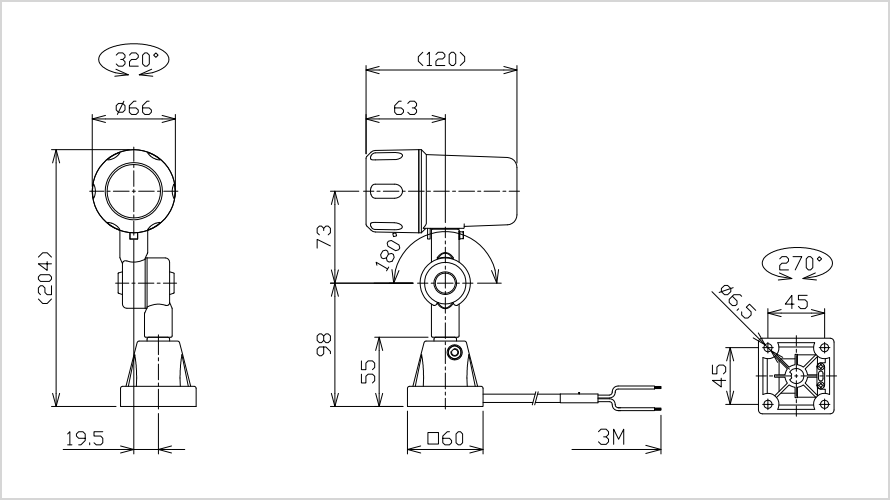

NLSS03-DC/AC

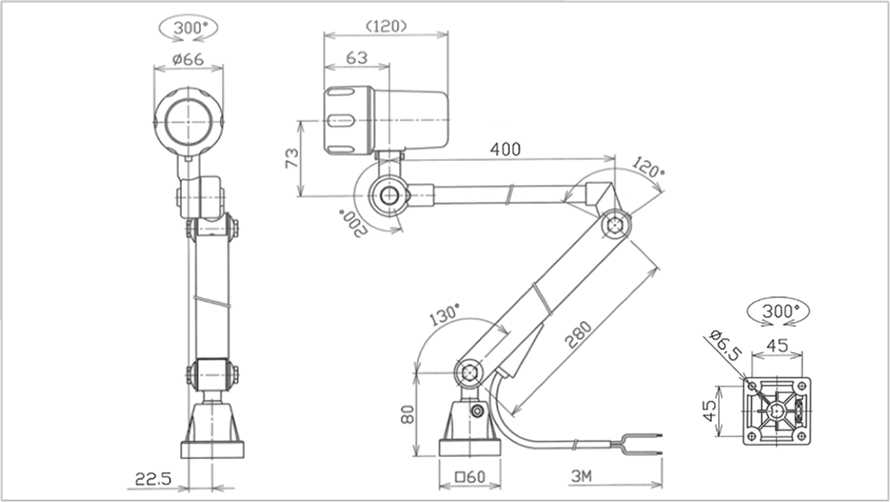

NLSM03-DC/AC
Select accessories
Series selection method
| model | Arm length | style | Support type | power supply | Optional |
|---|---|---|---|---|---|
| NLS |
|
|
|
|
|
