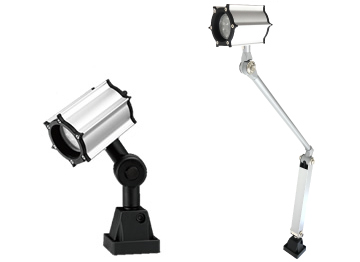

NLS-05 series
Feature
The NLS05 series is made of aluminum, has good heat dissipation and is sturdy and durable.
Using a constant current IC drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the life of the LED can be increased.
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages.
It also has high insulation properties and uses LEDs that are highly trusted worldwide.
Applicable
Lighting for interior and exterior use of tool machinery, etc.
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the non-freezing state) |
| protection level | IP67 (only inside the lamp head) |
| Standard wiring | 3m （VCTF0.75mm2x2C） |
| Certification |

|
| Select accessories | Color temperature 4,000K |
|---|---|
| oil resistant wire | |
| L-shaped mounting bracket (AL-23) C-type base (AL-28B) |
|
| 2m cord with plug (AC110V) |
Standard model list
| model | drawing | Luminous flux | Illuminance (1 meter) | power supply | Consumption power |
|---|---|---|---|---|---|
| NLSS05C-DC | PDF DXF | 510 lm | 1,780 lx | DC24V | 5W |
| NLSS05C-AC | PDF DXF | AC110V | |||
| NLSM05C-DC | PDF DXF | DC24V | |||
| NLSM05C-AC | PDF DXF | AC110V | |||
| NLSL05C-DC | PDF DXF | DC24V | |||
| NLSL05C-AC | PDF DXF | AC110V |
※For optional wire style with plug, please add (2M+P) at the end of the model number; the corresponding power supply is AC110V.
Light distribution curve data
NLS-05
Dimensional drawing

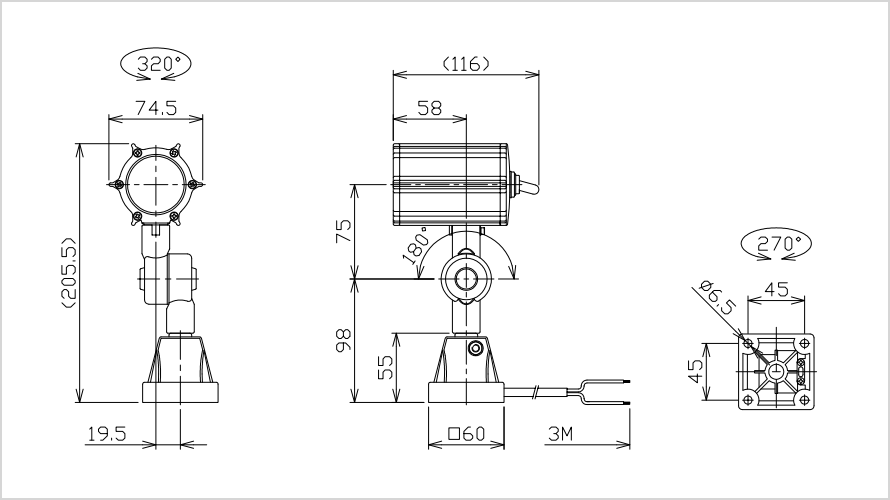

NLSS05-DC/AC
NLSM05-DC/AC

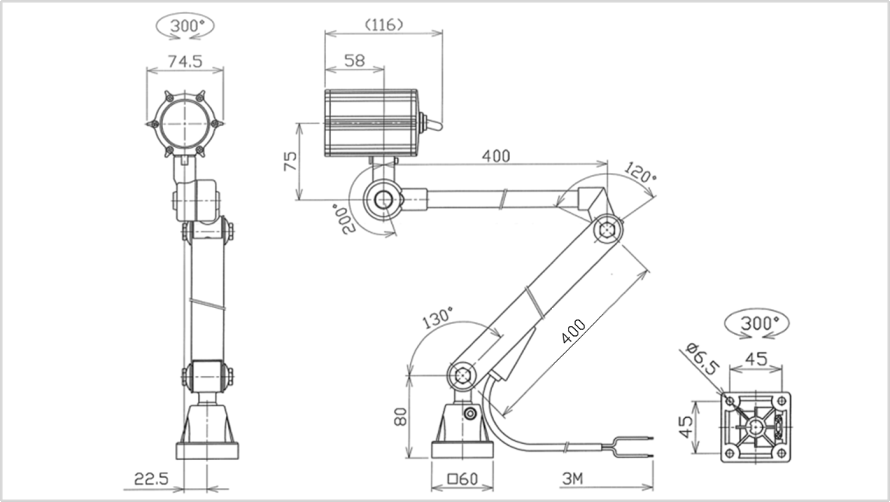

NLSL05-DC/AC
Select accessories
Series selection method
| model | Arm length | style | Support type | power supply | Optional |
|---|---|---|---|---|---|
| NLS |
|
|
|
|
|
