NLS-15/18 series
Feature

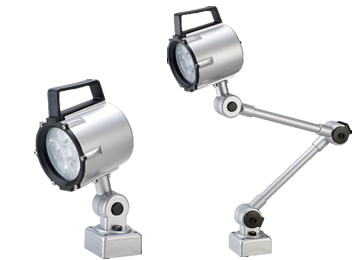

The spotlight type work light is made of aluminum and uses semi-strengthened glass. The design is sturdy and not easily damaged and can be used to replace traditional work lights.
Using the constant current drive method, the brightness of the lamp can be kept constant even if the input voltage changes, and the life of the LED can be increased.
The independently developed protection circuit design protects against surges and unstable currents at the moment the power is turned on, or instantaneous power outages.
It has a waterproof rating of IP67 and can withstand short-term exposure to water without being damaged. It is completely resistant to dust and debris generated during work. It has passed a variety of safety tests and is very suitable for work lighting.
Applicable
Machine tool internal and external lighting, work lights, etc.
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the non-freezing state) |
| protection level | IP67 (only inside the lamp head) |
| Standard wiring | 3m （VCTF0.75mm2x2C） |
| Certification |

|
| Select accessories | Color temperature 4,000K |
|---|---|
| oil resistant wire | |
| L-shaped base (AL-23) C-type base (AL-28B) |
|
| 2m cord with plug (AC110V) |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker

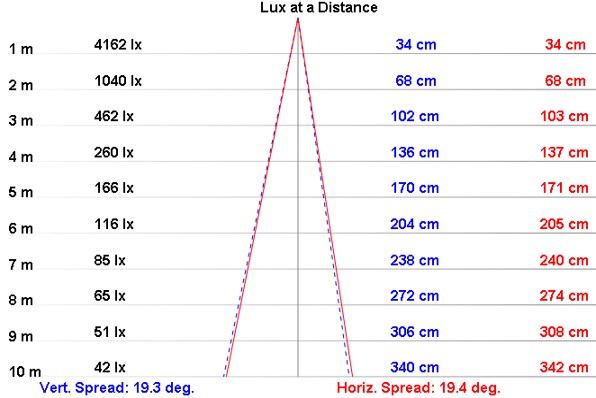

NLS15 standard model list

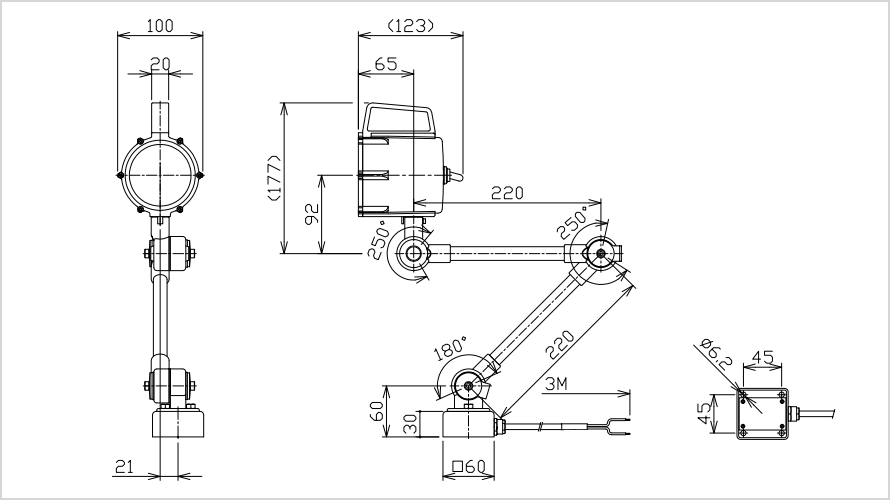

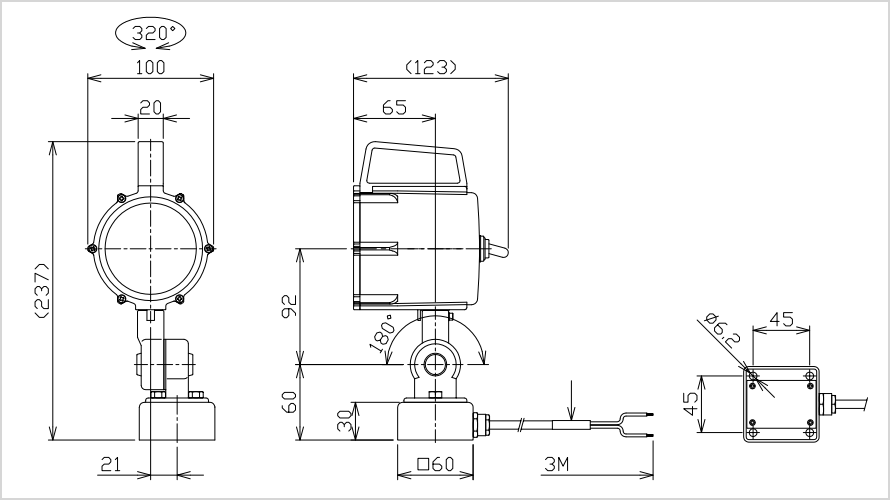

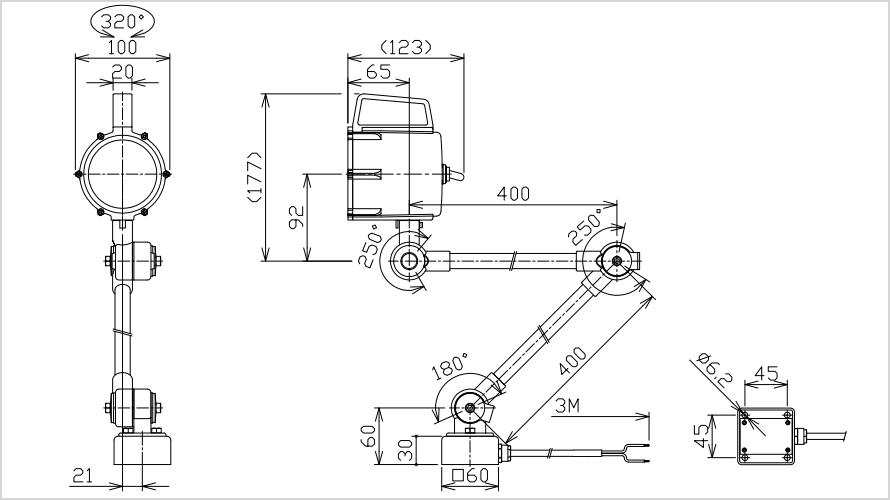

| model | drawing | Luminous flux | illumination | power supply | Power consumption |
|---|---|---|---|---|---|
| NLSS15C-DC | PDF DXF | 770 lm | 4,160 lx | DC24V | 7W |
| NLSS15C-AC | PDF DXF | AC110V | |||
| NLSM15CP-DC | PDF DXF | DC24V | |||
| NLSM15CP-AC | PDF DXF | AC110V | |||
| NLSL15CP-DC | PDF DXF | DC24V | |||
| NLSL15CP-AC | PDF DXF | AC110V |
※For optional wire style with plug, please add (2M+P) at the end of the model number; the corresponding power supply is AC110V.

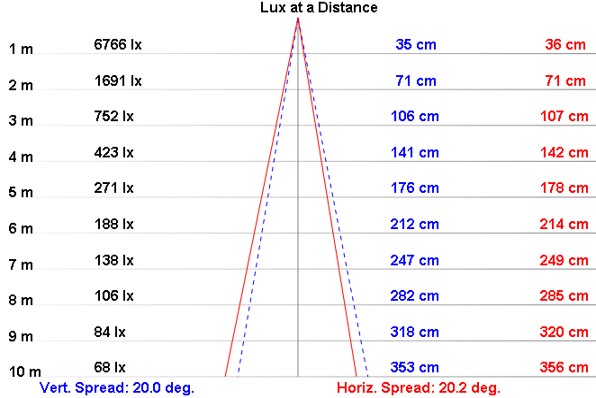

NLS18 standard model list
| model | drawing | Luminous flux | illumination | power supply | Power consumption |
|---|---|---|---|---|---|
| NLSS18C-DC | PDF DXF | 1,200 lm | 6,760 lx | DC24V | 9W |
| NLSS18C-AC | PDF DXF | AC110V | |||
| NLSM18CP-DC | PDF DXF | DC24V | |||
| NLSM18CP-AC | PDF DXF | AC110V | |||
| NLSL18CP-DC | PDF DXF | DC24V | |||
| NLSL18CP-AC | PDF DXF | AC110V |
※For optional wire style with plug, please add (2M+P) at the end of the model number; the corresponding power supply is AC110V.
