NLS-12/30C series
Feature
The lengthened and enlarged lamp body structure provides brighter and wider illumination 2 to 3 times more than the original one for use on large gantry processing equipment machines.
The lamp body is made of aluminum alloy and stainless steel, and the glass is made of tempered glass, which is durable and not easily broken.
Constant current drive and sufficient protection circuits extend the life of the LED, and the excellent insulation design reduces noise interference.
The independently developed protection circuit design protects against inrush current and sudden power outages.
Ideal for interior lighting of machine tools, it uses the world's most reliable LED.
Applicable
Large machinery and gantry machining centers.
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Operating temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the non-freezing state) |
| protection level | IP67 (only inside the lamp head) |
| Standard wiring | 3m （VCTF0.75mm2x2C） |
| power supply | AC110V |
| Certification |
|
| Light distribution angle | 40° |
|---|---|
| Select accessories | Oil resistant wire 3m |
| L-shaped base (AL-23) | |
| C-type base (AL-28B) | |
| Cord with plug 2m (AC110V) | |
| Light distribution angle: 25° |
JIS lighting specifications
According to the JIS Z9110:2010 specification, the illumination of the work surface in the workplace needs to be 500lx to meet the standards for working environment lighting.
For medium-sized machinery use (NLS-12C)

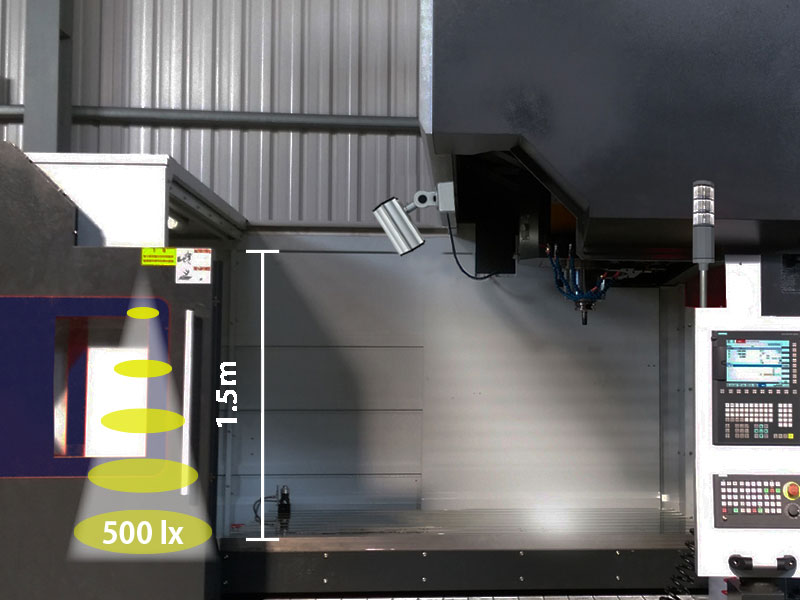

Medium-sized machine tools use NLSS12C 40° light distribution angle. At 1.5m directly below, the measured illumination is 500lx, which is about twice the illumination of NLSS-05C.
Large machine use (NLS-30C)

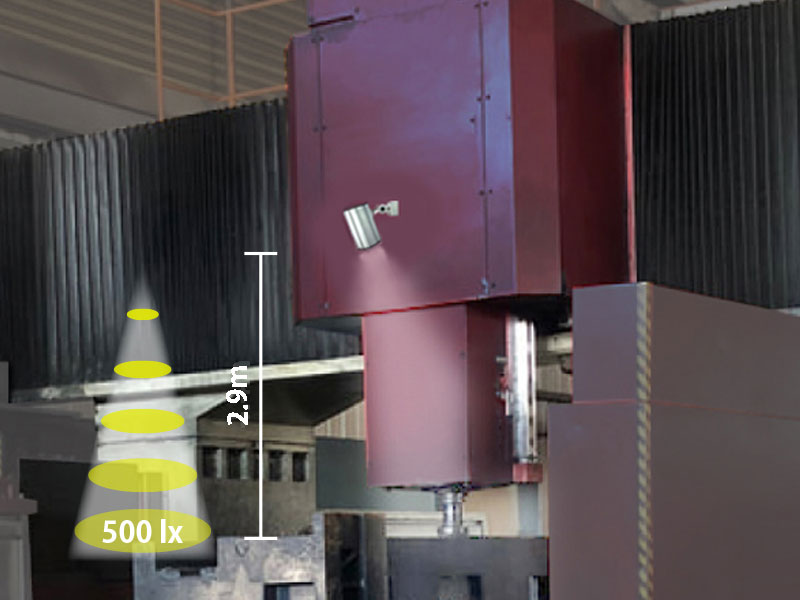

The 40° light distribution angle is 2.9m directly below, and the measured illumination is 500lx, which provides sufficient lighting for large machines.

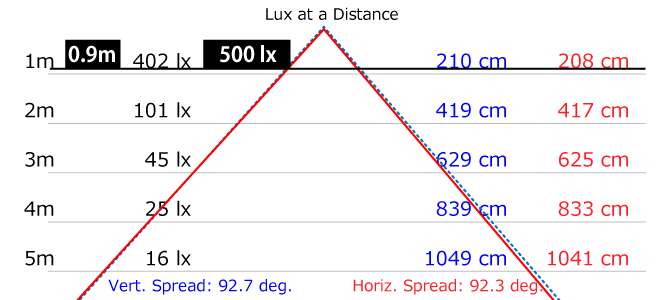

Light distribution curve data

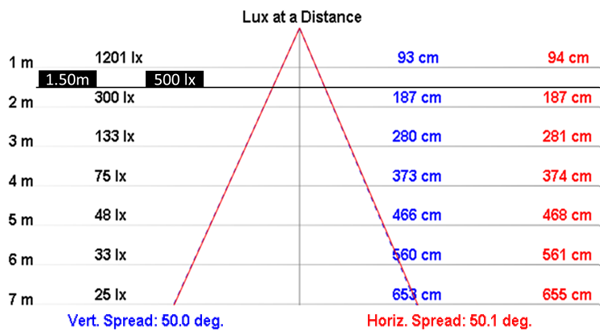

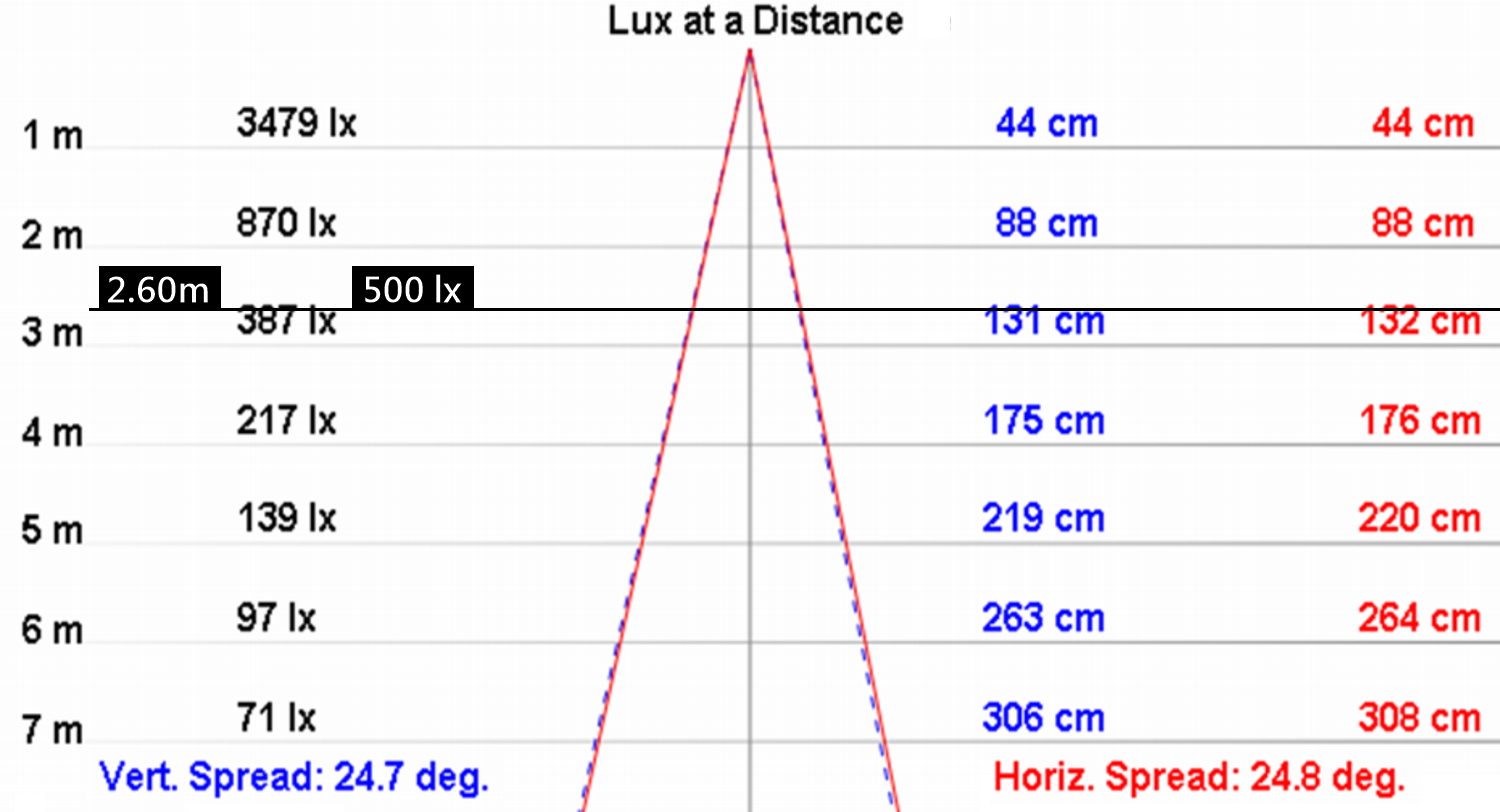

NLS-12C light distribution angle 25°

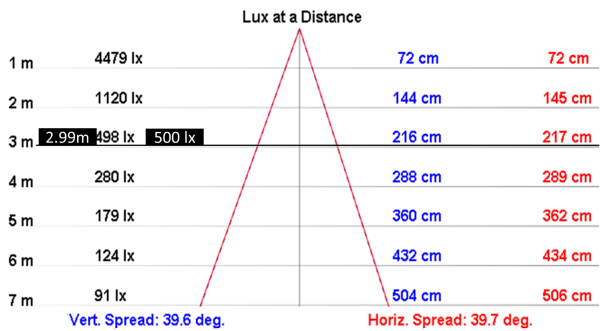

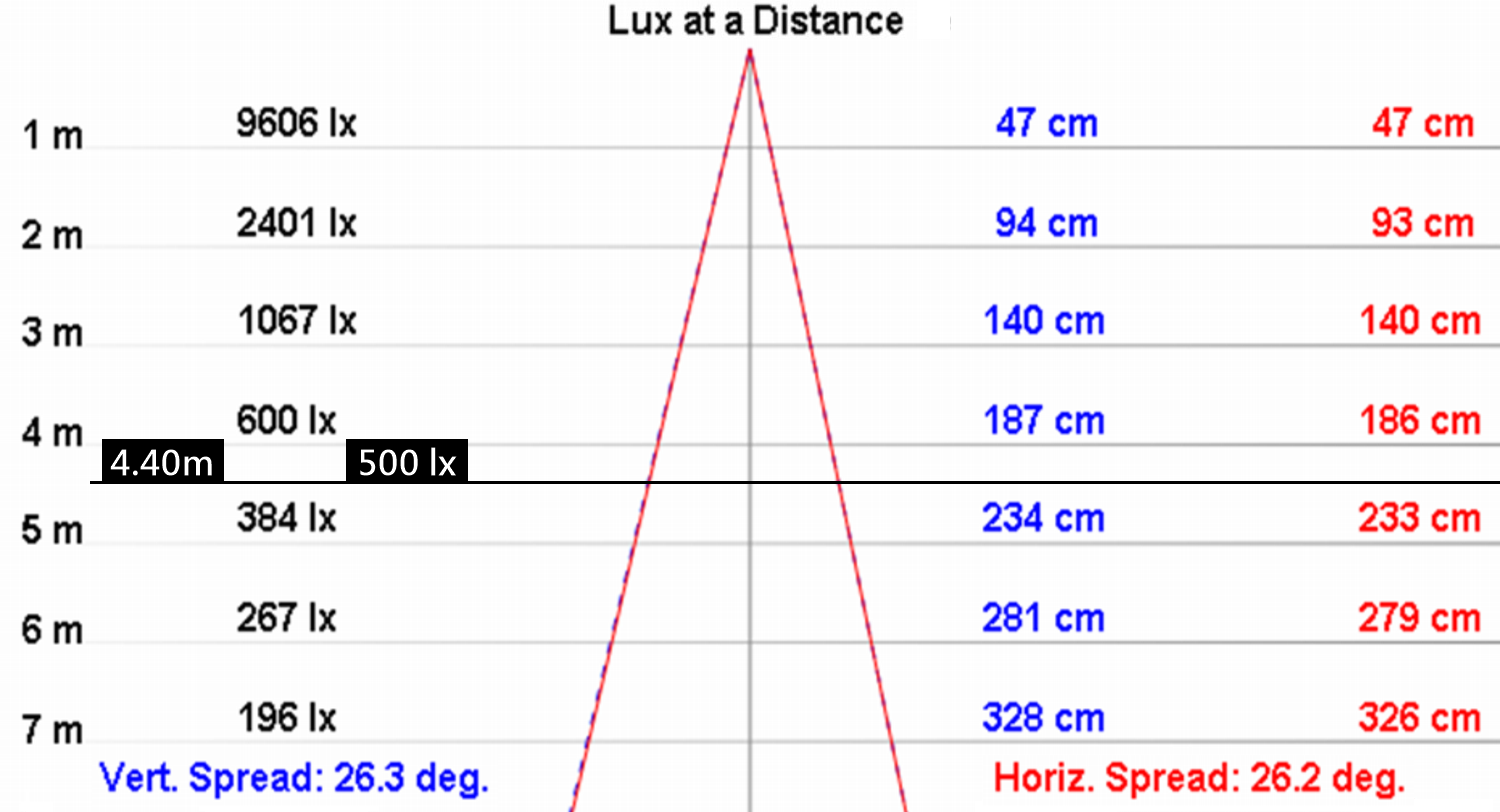

NLS-30C light distribution angle 25°
NLS-12C light distribution angle 40°
NLS-30C light distribution angle 40°
Standard model list
| model |
drawing
|
Luminous flux | Illuminance (1m) | power supply | Power consumption | |
|---|---|---|---|---|---|---|
| 25° | 40°※ | |||||

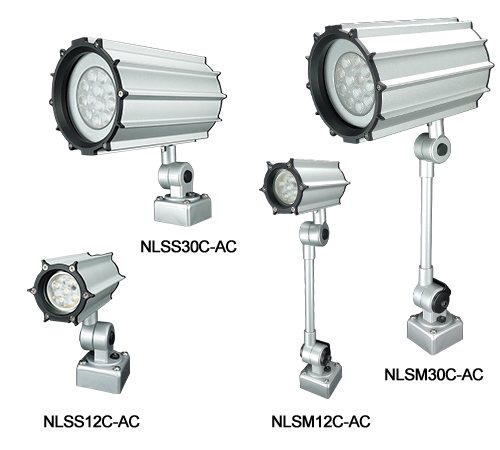

| NLSS12C-AC | PDF DXF | 900 lm | 3,470 lx | 1,200 lx | AC110V | 10w |
| NLSM12C-AC | PDF DXF | |||||
| NLSS30C-AC | PDF DXF | 3,100 lm | 9,600 lx | 4,480 lx | 30w | |
| NLSM30C-AC | PDF DXF | |||||
※The standard light distribution angle of this product is 40°.
※For optional plug wire, please add (2M+P) at the back of the model number.
Dimensional drawing
NLSS12C-AC
NLSM12C-AC
NLSS30C-AC
NLSM30C-AC
Select accessories
Series selection method
| Arm length | model | power supply | optical lens | Optional | |
|---|---|---|---|---|---|
| NLS |
|
|
|
|
|
