NLS-12C Waterproof LED Work Light
Features
The lengthened and enlarged lamp body structure provides brighter and wider illumination 2 to 3 times more than the original one for use on large gantry processing equipment machines.
The lamp body is made of Aluminum Alloy and stainless steel, and the glass is made of tempered glass for durability and breakage resistance.
The constant-current drive and comprehensive protection circuits help extend LED service life, while the high-insulation design reduces noise interference.
The independently developed protection circuit design protects against inrush current and sudden power outages.
Ideal for interior lighting of machine tools, it uses the world's most reliable LED.
Applications
Large Gantry Machining Centers.
Specifications
| Color Temperature | 5,700K |
|---|---|
| Service Life | Operating Temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Operating Temperature | -10℃～40℃ (referring to the non-freezing state) |
| Protection Rating | IP67 (only inside the lamp head) |
| Standard Wiring | 3m （VCTF0.75mm2x2C） |
| Power Supply | AC110V |
| Certification |
|
| Optional Accessories | Oil-Resistant Cable 3 m |
|---|---|
| L-Shaped Base (AL-23) | |
| C-Type Base (AL-28B) | |
| 2 m Cord with Plug (AC110V) |
JIS Lighting Specifications
According to JIS Z9110:2010, workplace surfaces require 500 lx illumination to meet work environment lighting standards.
Large machine use (NLS-30C)
The 25° light distribution angle is 4.4m directly below, and the measured illumination is 500lx, which provides sufficient lighting for large machines.
Light distribution curve data
NLS-30C light distribution angle 25°

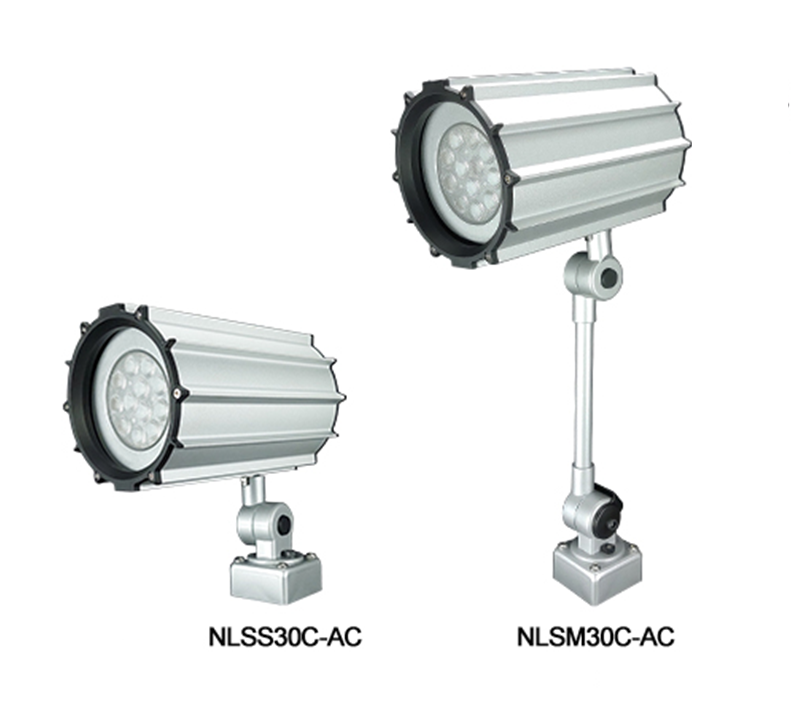

Dimensions
NLSS30C-AC
NLSM30C-AC
Optional Accessories
Model Number Selection Guide
| Arm Length | Model | Power Supply | Optional | |
|---|---|---|---|---|
| NLS |
|
|
|
|
