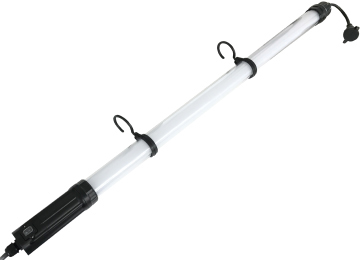

NLPW Series-Connected LED Work Light
Features
A series-connected LED work light with lightning protection and no glare from LED lamp particles.

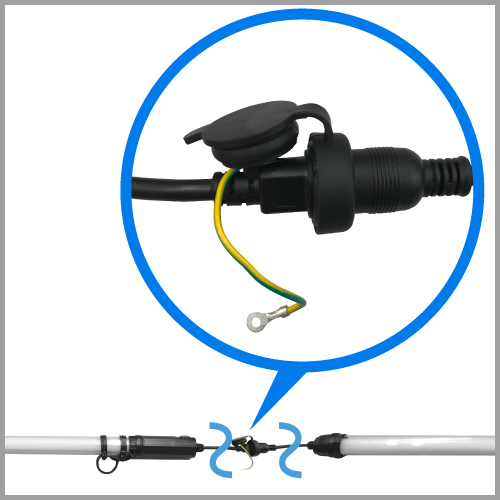

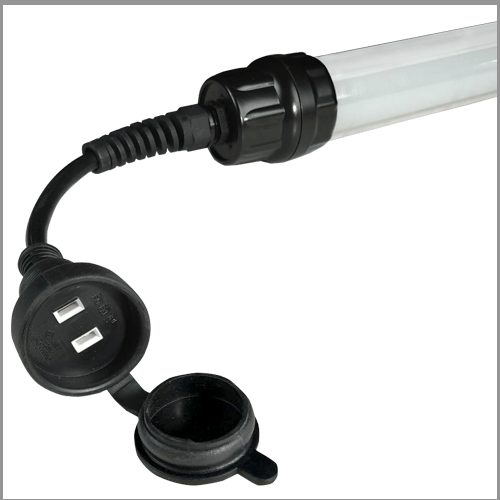

Ideal for lighting large spaces with connecting functions in factories, warehouses, construction sites and event venues.
The independently developed protection circuit helps protect against inrush current, surge voltage, and momentary power interruption. The high-insulation design improves electrical safety.
High-reliability LEDs support stable operation.
Applications
Indoor and Outdoor Construction Sites, and Areas Requiring Large Light Sources.
Specifications
| Color Temperature | 5,700K |
|---|---|
| Service Life |
Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
| Operating Temperature | -10℃～40℃ (referring to the condition without freezing) |
| Protection Rating | IP65 |
| Standard Wiring |

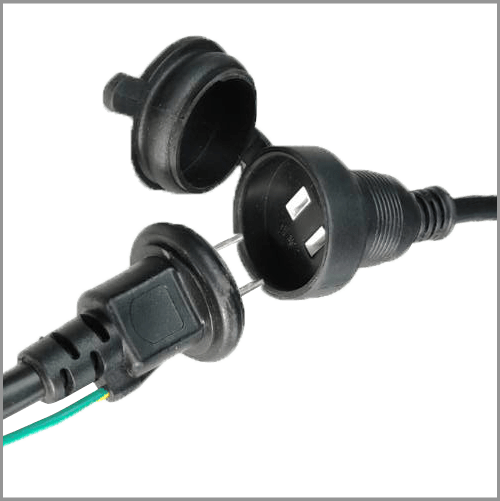

5 m Cord with Plugｍ（VCT 0.75mm2x3C） ※Rainproof Grounding Plug |
| Housing Material | Polycarbonate (PC) |
| Power Consumption | 9W / 20W |
| Certification |  |
Low-Flicker LED Illumination
IEEE 1789 (Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers) recommends a flicker percentage of 8% or less. At around 3%, flicker is barely perceptible to the human eye.
NIKKI LED lights feature an exclusive low-flicker design that reduces the flicker percentage to less than 2%. This minimizes flicker not only during standard still-image and video recording, but also when capturing high-speed video at frame rates such as 240 fps. As a result, these lights are ideal for precision imaging applications, including machine vision, image inspection, and visual inspection.
※The image below shows illumination provided by a NIKKI LED light.
[General LED] Flickers and streaks may be observed during
photography
[NIKKI product] Mild and even light, no flicker
Lightning Surge Protection
The lightning protection design helps protect the fixture from lightning-induced surge voltage. An 8/20 µs surge waveform can produce a discharge current of up to 10 kA.
During direct or induced lightning strikes, surge voltage may be conducted through cables and damage electronic equipment. The fixture includes a lightning surge protection circuit.
Line-to-line surge withstand voltage: ±6 kV
3 times the international standard
Line-to-ground surge withstand voltage: ±15 kV
3.75 times the international standard

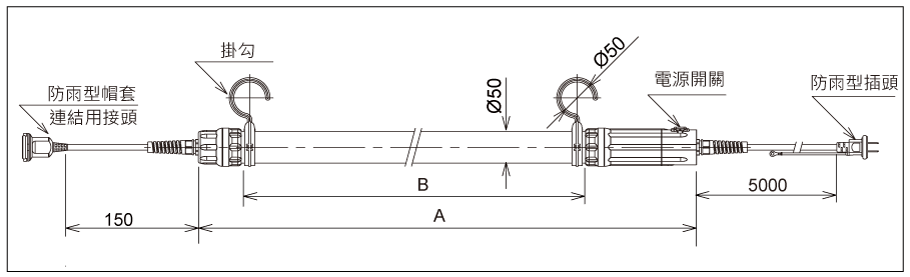

Dimensions
NLPW
| Model/Size (mm) | A | B |
|---|---|---|
| NLPW10-AC | 1,110 | 870 |
| NLPW20-AC | 1,542 | 1,300 |

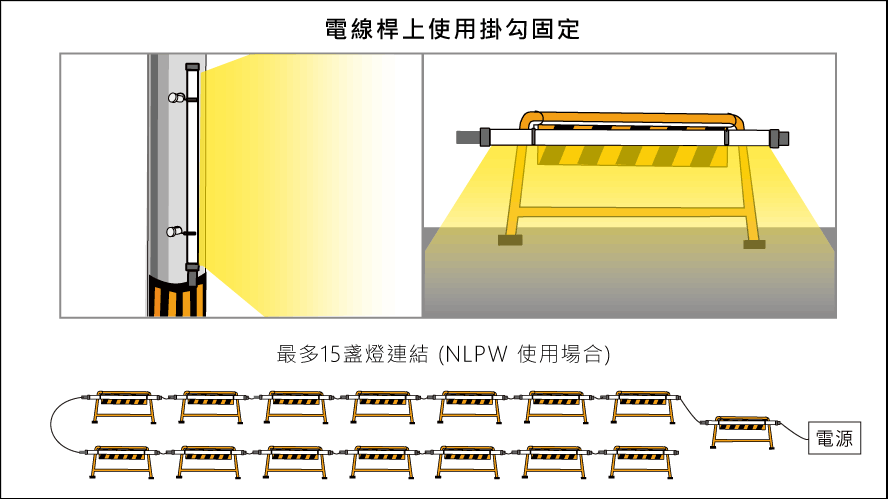

Installation example
